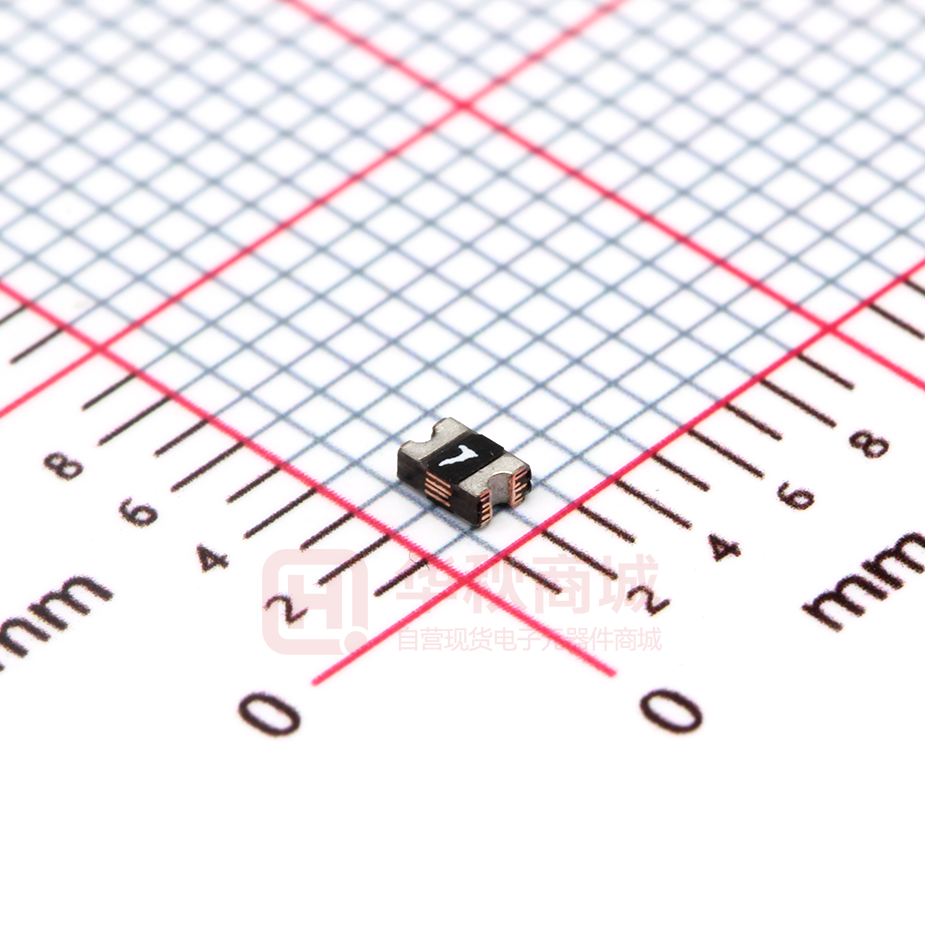

SMD0805-075

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Resettable Fuse Fax.: 886-2-2225-7268 PRODUCT: DOCUMENT: ECN. NO.: REV LETTER: REV DATE: PAGE NO.: SMD0805 series QR0429 2015/1/12 1 of 1 Specification Sheet A Terminal Pad Solderability: Meets EIA Specification RS186-9E And ANSI/J-STD-002 Category 3. Terminal Pad Materials: Tin-plated Nickel-Copper 1 B Lead-Free, RoHS Compliant Marking: Part Identification 1 = 010 D E C TABLE I. DIMENSIONS: Model Marking SMD0805-005 SMD0805-010 SMD0805-020 SMD0805-025 SMD0805-035 SMD0805-050 SMD0805-075 SMD0805-100 SMD0805-110 SMD0805-125 V 1 2 2 3 5 7 0 0 12 A Min. 1.90 1.90 1.90 1.90 1.90 1.90 1.90 1.90 1.90 1.90 B C Max. 1.00 1.00 1.00 1.00 1.00 1.10 1.10 1.10 1.10 1.20 D Min. 0.20 0.20 0.20 0.20 0.20 0.20 0.20 0.20 0.20 0.20 E Min. 0.10 0.10 0.10 0.10 0.10 0.10 0.10 0.10 0.10 0.10 Max. 2.20 2.20 2.20 2.20 2.20 2.20 2.20 2.20 2.20 2.20 Min. 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 1.20 Max. 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 Min. 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 Vmax Imax Ihold Itrip Pd Time To Trip Typ. Current Time Rimin R1max (Vdc) (A) (A) (A) (W) (A) (Sec) (Ω) (Ω) Unit:mm TABLE II. PERFORMANCE RATINGS: Maximum Model Marking @25°C @25°C Resistance SMD0805-005 V 15.0 100 0.05 0.20 0.50 0.5 1.50 2.000 10.000 SMD0805-010 1 15.0 100 0.10 0.30 0.50 0.5 1.50 1.000 6.000 SMD0805-020 2 9.0 100 0.20 0.50 0.50 8.0 0.02 0.650 3.500 SMD0805-025 2 9.0 100 0.25 0.55 0.50 8.0 0.02 0.600 3.000 SMD0805-035 3 6.0 100 0.35 0.75 0.50 8.0 0.10 0.250 1.200 SMD0805-050 5 6.0 100 0.50 1.00 0.50 8.0 0.10 0.150 0.850 SMD0805-075 7 6.0 40 0.75 1.50 0.60 8.0 0.20 0.090 0.385 SMD0805-100 0 6.0 100 1.00 1.95 0.60 8.0 0.30 0.060 0.230 SMD0805-110 0 6.0 100 1.10 2.20 0.60 8.0 0.30 0.060 0.210 SMD0805-125 12 6.0 100 1.25 2.50 1.50 8.0 0.60 0.030 0.140 Order Information Packaging SMD0805 020 -24V Product name Size 2012 mm / 0805 mils SMD：surface mount device Hold Current 0.20A Max voltage Recognition: SMD0805-020~100 : UL Approved. SMD0805-010，125 : UL Pending. Tape & Reel Quantity 005、010、020、025、035、050 5,000 pcs/reel 075、100、110、125 4,000 pcs/reel E201504/E319079 SMD0805-100 :TÜV, Approved. R50141892
