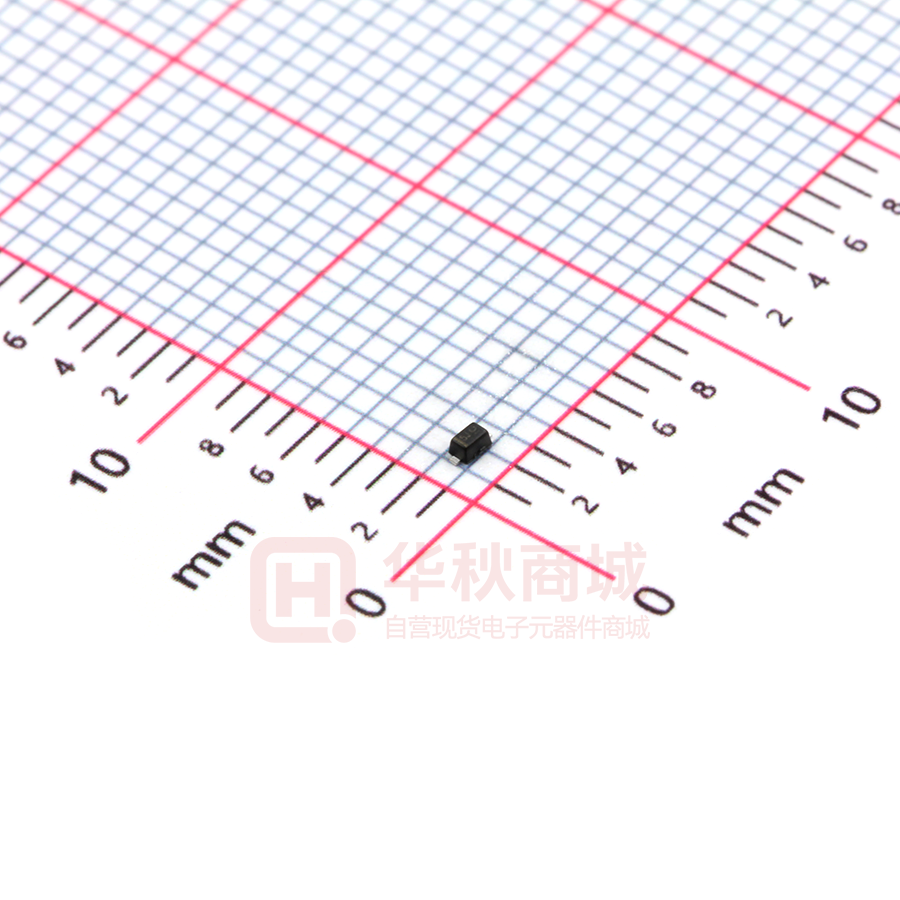

RB520S-30

RB520S-30 Schottky barrier diode www.sot23.com.tw Features Average forward current: IF(AV) ≤ 200 mA Reverse voltage: VR ≤ 30 V Low forward voltage: VF ≤ 600 mV @200mA Low reverse current: IR ≤ 1.0μA@10V Leadless ultra small SMD plastic package We declare that the material of product compliance with RoHS requirements and Halogen Free Ordering Information Qty per Reel RB520S-30 3000 ● Low current rectification Reel Size BL Part Number Applications IC • • • • • • 7” CH PU SOD523 TE Absolute Maximum Ratings (Tamb=25°C unless otherwise specified) Parameter Symbol Limits Unit Reverse voltage(DC) VR 30 V Average rectified forward current Io 200 mA IFSM 1 A Tj 125 ℃ TSTG -40~+125 ℃ Peak forward surge current Junction temperature Storage Temperature Range Electrical Characteristics (TA=25°C unless otherwise specified) Parameter Symbol Forward voltage VF Reverse current IR Min. Max. Unit Conditions 0.6 V IF=200mA 1  VR=10V - WWW.TECHPUBLIC.COM.TW 1 RB520S-30 Schottky barrier diode www.sot23.com.tw Package Outline Dimensions Dimensions In Millimet IC SYMBOL MIN MAX 1.10 1.30 B 0.70 0.90 C 0.50 0.70 D 0.25 0.35 J 0.07 0.20 K 0.15 0.25 S 1.50 1.70 TE CH PU BL A 2 WWW.TECHPUBLIC.COM.TW
