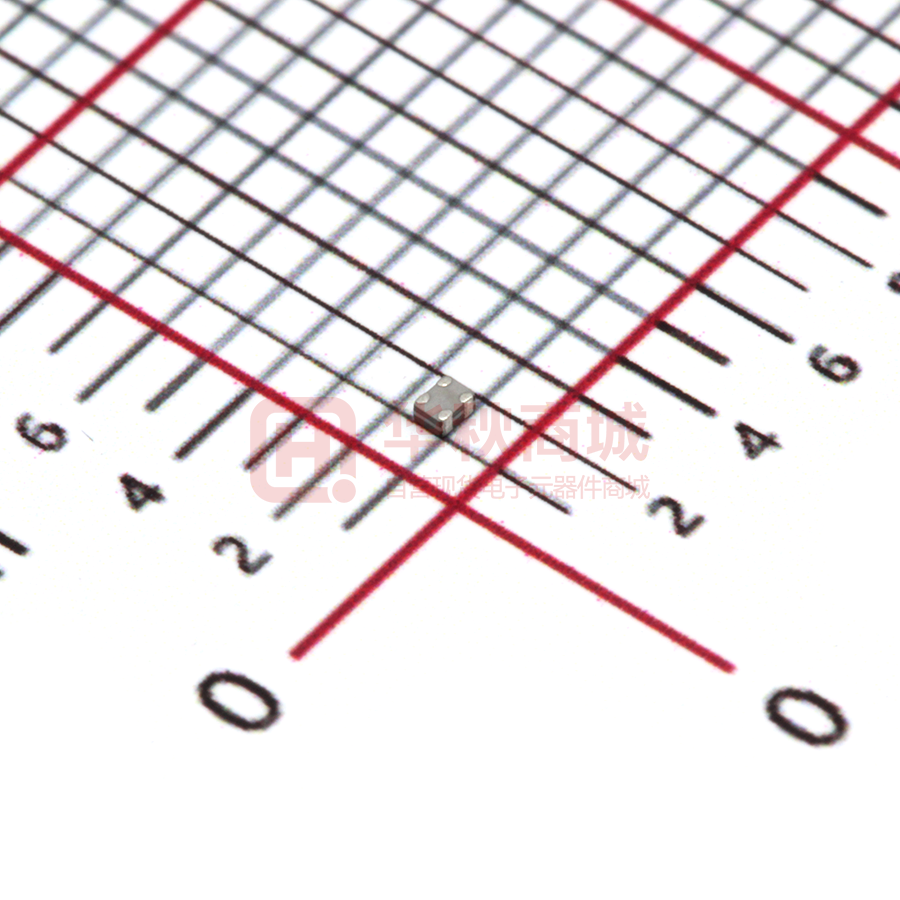

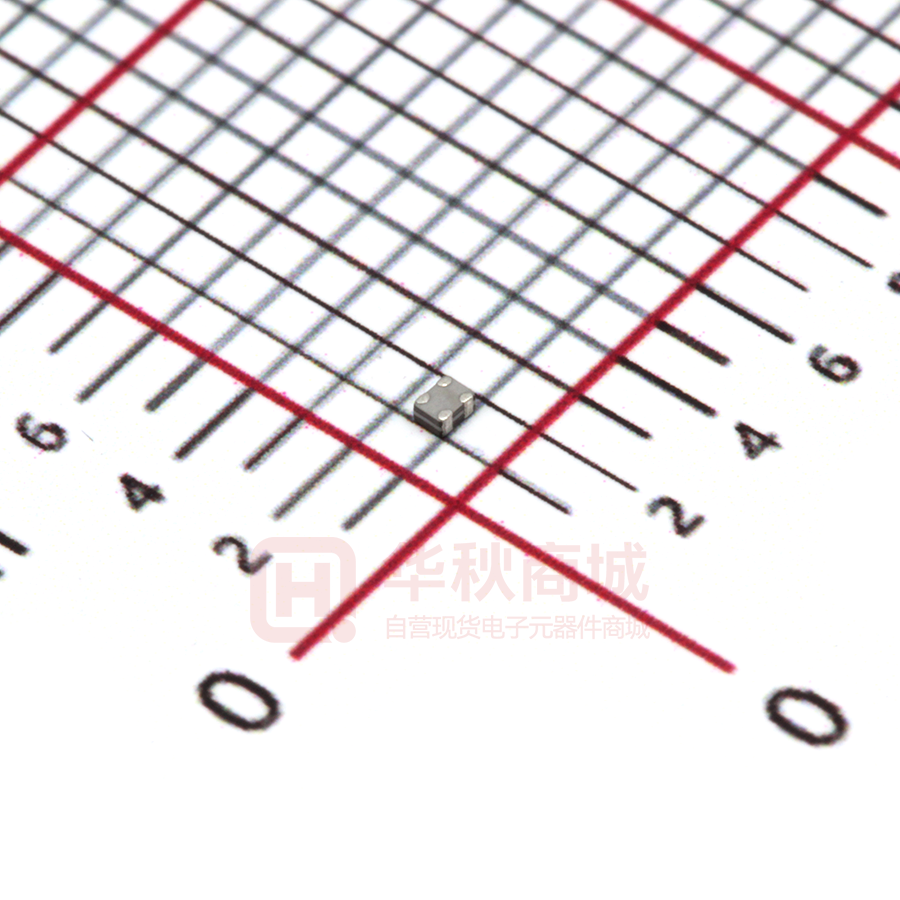

SDMM0806H-2-900T

Multilayer Chip Common Mode Filter– SDMM Series Operating Temp. : -40℃~+85℃ FEATURES     Effective for suppressing common mode noise at high frequency Excellent solderability characteristics Small size & low profile (0.85*0.65*0.40 mm) Multilayer type SMD component based on LTCC technology APPLICATIONS  Common mode noise suppression of high speed differential signal lines, such as MIPI, MHL in mobile phone, tablet PC etc. PRODUCT IDENTIFICATION 0806 SDMM ② ① ① H -2 900 T ③ ④ ⑤ ⑥ ③ ② External Dimensions (L×W) (mm) 0806 0.85×0.65 Type Multilayer Chip Common Mode Filter SDMM Feature Type For High-Speed Differential Signal Lines For Ultra high speed Differential Signal Lines H U ⑤ Common Mode Impedance (Ω) ④ Example Nominal Value 350 900 35 90 Number of Lines 2 Lines 2 ⑥ Packing T Tape & Reel SHAPE, DIMENSIONS AND LAND-PATTERN Type: SDMM0806 Land Pattern SL B (2) SW (3) (1) (1) A (4) D T (4) (3) (2) (2) C Unit: mm P W L Land A B C D 0.9 0.8 0.3 0.3 Unit: mm [inch] Type L W T SL SW P SDMM0806 0.85±0.05 [.033±.002] 0.65±0.05 [.026±.002] 0.40±0.05 [.016±.002] 0.20+0.05/-0.10 [.008+.002/-.004] 0.27±0.05 [.011±.002] 0.50±0.05 [.020±.002] Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2019/03/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com EQUIVALENT CIRCUIT （3） （1） （4） （2） SPECIFICATIONS SDMM0806H-2-_T Series Part Number Common Mode Impedance @ 100MHz Units Symbol SDMM0806H-2-120T SDMM0806H-2-350T SDMM0806H-2-470T SDMM0806H-2-900T Ω Z 12±5 35±20% 47±20% 90±20% Max. DC Max. Rated Resistance Current Ω DCR 2.5 3.0 3.5 4.0 mA Ir 130 100 100 100 Max. DC Max. Rated Resistance Current Ω DCR 3.5 4.5 mA Ir 100 100 Rated Voltage Withstand Voltage Min. Insulation Resistance Volts VDC 5 5 5 5 Volts VP 12.5 12.5 12.5 12.5 MΩ IR 100 100 100 100 SDMM0806U-2-_T Series Part Number Common Mode Impedance @ 100MHz Units Symbol SDMM0806U-2-350TB01 SDMM0806U-2-900TB01 Ω Z 35±20% 90±20% Rated Voltage Volts VDC 5 5 Min. Cutoff Insulation Frequency (typ.) Resistance MΩ IR 100 100 GHz f0 ＞6 3.5 ELECTRICAL CHARACTERISTICS SDMM0806H-2-_T Series Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2019/03/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com ELECTRICAL CHARACTERISTICS SDMM0806U-2-_T Series Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2019/03/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
