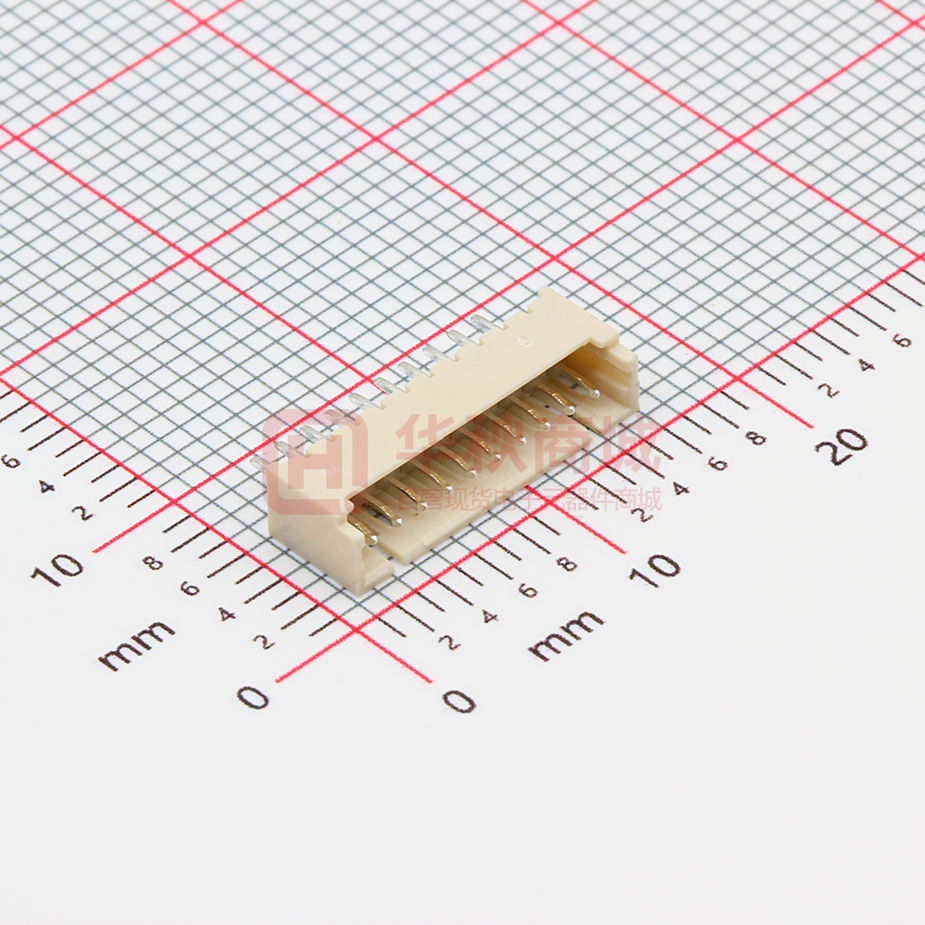

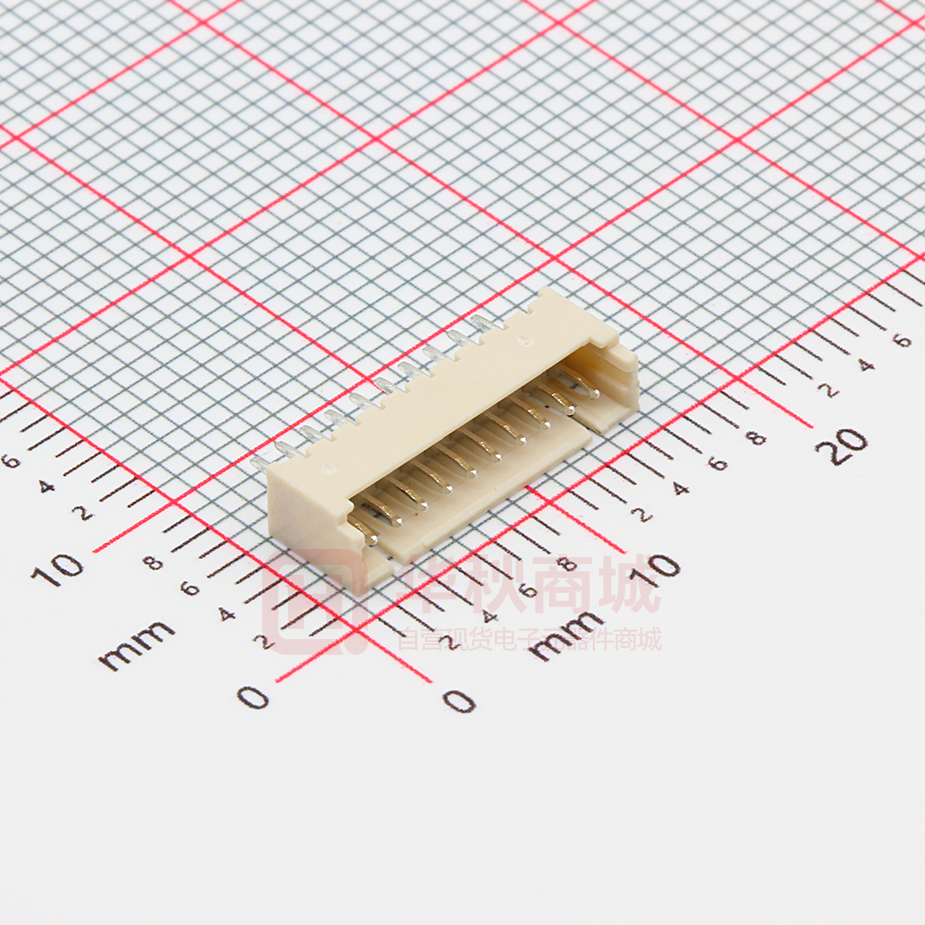

A1251WV-10P

A1251 SERIES 1.25mm pitch wire to board and wire to wire connector Specifications Current rating:1A AC,DC Voltage rating:125V AC,DC Temperature range:-40°C~+105°C Contact resistance:20m Max. Insulation resistance:100M Min. Withstanding voltage:500V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,need to customize* *Contact CJT for details* Standards E326732 E326732 3.20 9.11 REF. 3.20 WIRE TO WIRE 5.80 REF 3.70 5.30 REF SMT YTPE DIP YTPE CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-44 3.20 3.53 5.93 REF 0.80 1.50 1.50 0.80 3.20 5.80 REF A1251 SERIES A1251-T 1.25mm pitch wire to board and wire to wire connector 1.25mm pitch Crimp Terminal Reference Informations: *Used in CJT A1251H-XP series Housing 1.60±0.20 0.15 B 1.40±0.20 0.71 B SEC:A-A 0.35±0.15 0.92±0.20 A 0.75±0.20 3.15±0.25 A 1.00±0.10 0.61 1.70±0.20 1.15±0.20 0.45±0.20 SEC:B-B 0.90±0.20 Ordering information & Specifications: Unit:mm Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A1251-TP AWG#28-#32 1.00mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS A1251-GP AWG#28-#32 1.00mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS Optional Gold plating available but MOQ requested A1251M-T 1.70±0.20 1.25mm pitch Crimp Terminal Reference Informations: *Used in CJT A1251HM-XP series Housing 1.25±0.20 0.15 1.05±0.15 A 0.31±0.05 0.70 0.40 1.45±0.10 0.90±0.10 1.12±0.10 4.40±0.20 1.05 C SEC:B-B 3.60±0.20 C B 7.15±0.25 B 0.70 A 1.15±0.15 0.42 SEC:A-A SEC:C-C Ordering information & Specifications: Unit:mm Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A1251M-TP AWG#28-#32 1.00mm(max) Phosphor Bronze Tin over Nickel 15,000 PCS AWG#28-#32 1.00mm(max) Phosphor Bronze Gold over Nickel 15,000 PCS A1251M-GP Optional Gold plating available but MOQ requested CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-45 A1251 SERIES A1251H-XP 1.25mm pitch wire to board and wire to wire connector 1.25mm pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A1251-T series Terminal *Mates with CJT A1251HM-XP,A1251WV,WR-XP, A1251WV-S,WR-S-XP series Wafer *Color:White Ordering Information: A1251H-XP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Circuit 1 1.25±0.10 A±0.20 B±0.25 4.00±0.25 3.20±0.25 2.30±0.25 Dimensions A B 1.25 4.25 2.50 5.50 3.75 6.75 5.00 8.00 6.25 9.25 7.50 10.50 8.75 11.75 10.00 13.00 11.25 14.25 12.50 15.50 13.75 16.75 15.00 18.00 16.25 19.25 17.50 20.50 18.75 21.75 20.00 23.00 21.25 24.25 22.50 25.50 23.75 26.75 Unit: mm A1251HM-XP 1.25mm pitch Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A1251M-T series Terminal *Mates with CJT A1251H-XP series Housing *Color:White Ordering Information: A1251HM-XP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ Ordering Information & Dimensions: PART NO. 1.25±0.10 Circuit 1 A±0.20 B±0.25 3.25±0.25 1P 8.00±0.25 8.00±0.25 3.30±0.20 3.40±0.25 3.30±0.20 B±0.25 2P~20P 1P 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 2.50 ---1.25 4.25 2.50 5.50 3.75 6.75 5.00 8.00 6.25 9.25 7.50 10.50 8.75 11.75 10.00 13.00 11.25 14.25 12.50 15.50 13.75 16.75 15.00 18.00 16.25 19.25 17.50 20.50 18.75 21.75 20.00 23.00 21.25 24.25 22.50 25.50 23.75 26.75 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-46 A1251 SERIES A1251WV-XP 1.25mm pitch wire to board and wire to wire connector 1.25mm pitch 180° Wafer Ordering Information: A1251WV-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A1251H-XP series Housing *Color:Ivory Circuit 1 1.25±0.10 Ordering Information & Dimensions: PART NO. Ø0.50±0.05 1.25±0.10 P.C.B LAYOUT A±0.20 3.20±0.25 2.30±0.25 4.70±0.25 B±0.25 PIN 0.30 SQ 0.35±0.15 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 1.25 4.30 2.50 5.55 3.75 6.80 5.00 8.05 6.25 9.30 7.50 10.55 8.75 11.80 10.00 13.05 11.25 14.30 12.50 15.55 13.75 16.80 15.00 18.05 16.25 19.30 17.50 20.55 18.75 21.80 20.00 23.05 21.25 24.30 22.50 25.55 23.75 26.80 Unit: mm A1251WR-XP 1.25mm pitch 90° Wafer Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A1251H-XP series Housing *Color:Ivory Ordering Information: A1251WR-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold over Nickel PIN 0.30 SQ Circuit 1 Ordering Information & Dimensions: 1.25±0.10 PART NO. Ø0.50±0.05 P.C.B LAYOUT 1.25±0.10 A±0.20 B±0.25 2.30±0.20 4.20±0.25 0.35 4.70±0.25 3.20±0.25 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 1.25 4.30 5.55 2.50 3.75 6.80 5.00 8.05 6.25 9.30 7.50 10.55 8.75 11.80 10.00 13.05 11.25 14.30 12.50 15.55 13.75 16.80 15.00 18.05 16.25 19.30 17.50 20.55 18.75 21.80 20.00 23.05 21.25 24.30 22.50 25.55 23.75 26.80 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-47 A1251 SERIES A1251WRA-S-XP 1.25mm pitch 90° Wafer-SMT TYPE Ordering Information: A1251WRA-S-XP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 9T,UL94V-0 GWT:Nylon 9T,UL94V-0,GWT 750 ℃ 3.Finish: (blank):Tin over Nickel G:Gold over Nickel Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Solder Tabs:Phosphor Bronze/Tin over Nickel Insulator:Nylon 9T,UL94V-0 *Mates with CJT A1251H-XP series Housing *Color:Natural A±0.20 1.25 1.25mm pitch wire to board and wire to wire connector 0.30 Ordering Information & Dimensions: PART NO. 02P~03P Single Hole Circuit 1 B±0.25 4.20±0.25 0.25 C±0.20 3.40±0.25 0.80 1.10 3.20 1.25 3.00 3.60 1.60 A±0.10 2.10 Conn.line Recommended P.C.B Layout General Tolerance±0.05 04P~20P Double Hole 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 1.25 7.75 2.50 9.00 3.75 10.25 5.00 11.50 6.25 12.75 7.50 14.00 8.75 15.25 10.00 16.50 11.25 17.75 12.50 19.00 13.75 20.25 15.00 21.50 16.25 22.75 17.50 24.00 18.75 25.25 20.00 26.50 21.25 27.75 22.50 29.00 23.75 30.25 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-49
