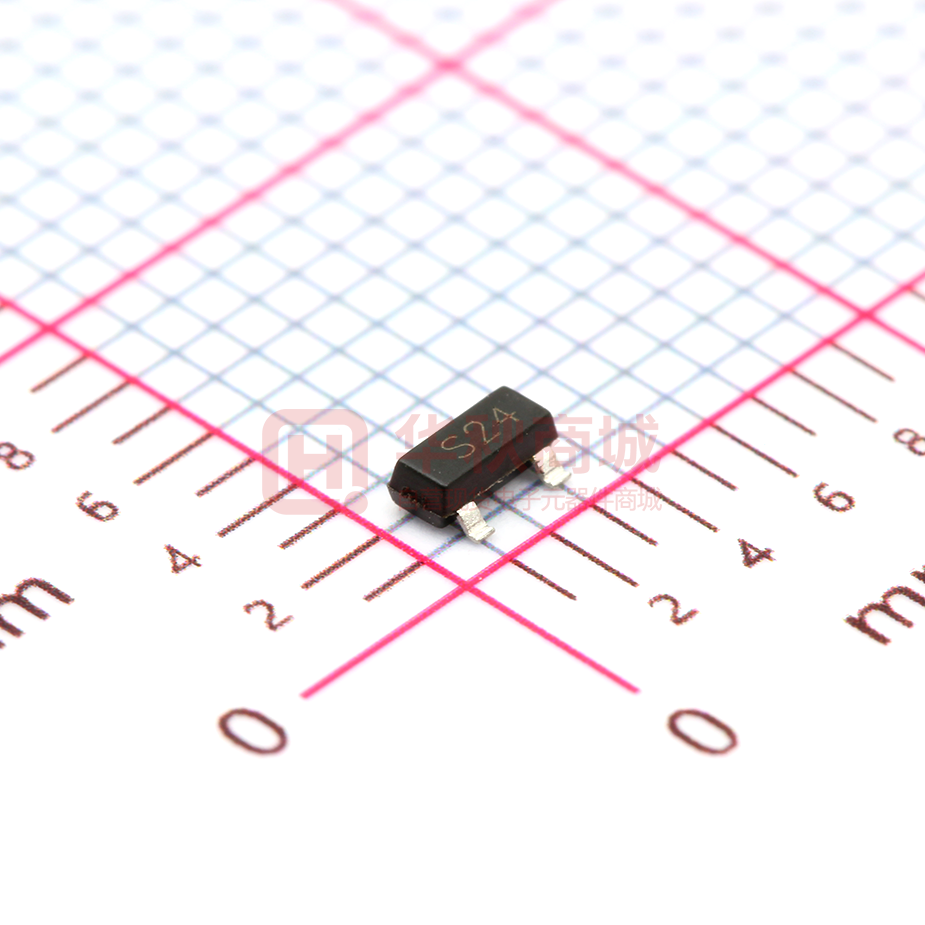

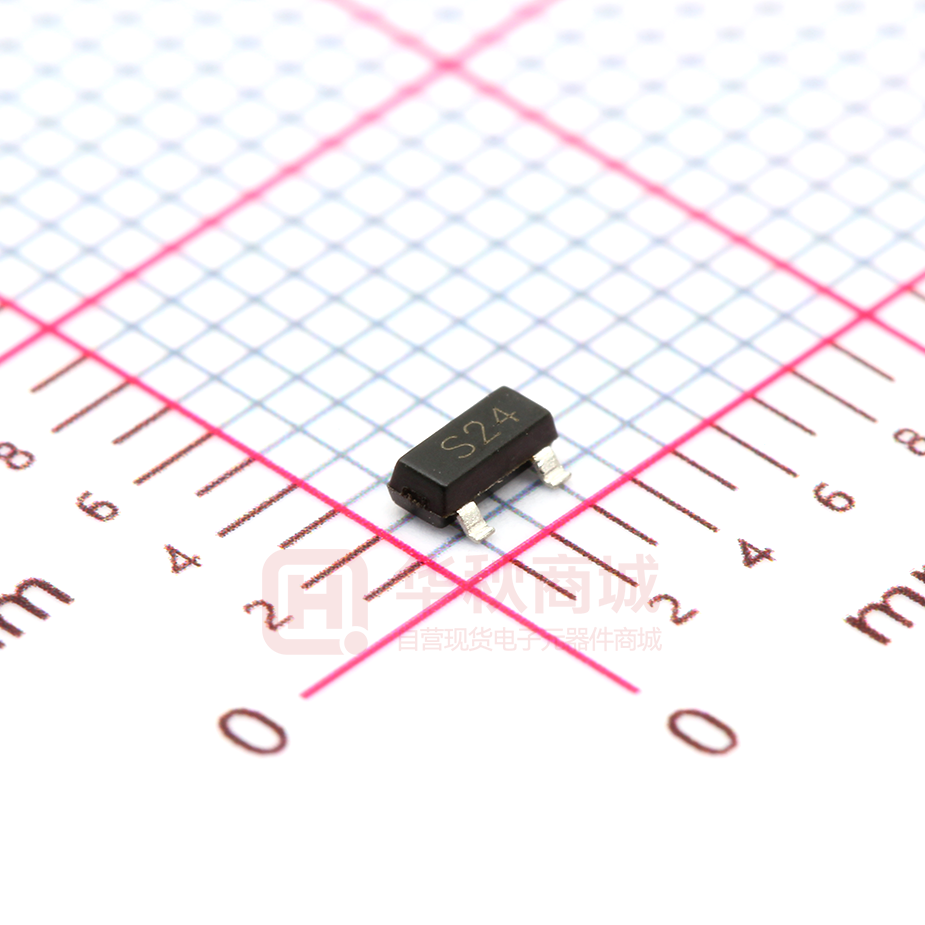

SOT24C

SOTXXC Integrated in OVP&OCP products provider 3.3V~36V 2Line Uni-directional TVS DiodeArray Description Mechanical Characteristics The SOTXXC is an uni-directional TVS diode array,  Package: SOT-23 utilizing leading monolithic silicon technology to provide  Lead Finish: Matte Tin  Case Material: “Green” Molding Compound.  Moisture Sensitivity: Level 3 per J-STD-020 complies with the IEC 61000-4-2 (ESD) standard with  Terminal Connections: See Diagram Below ±30kV air and ±30kV contact discharge. It is assembled  Marking Information: See Below fast response time and low ESD clamping voltage, making this device an ideal solution for protecting sensitive semiconductor components from damage. The SOTXXC into a lead-free SOT-23 package. It is designed to protect components which are connected to data and transmission lines from voltage surges. Applications Features  Cellular Handsets and Accessories  Personal Digital Assistants  Notebooks and Handhelds  Portable Instrumentation  Set Top Box  Industrial Controls  Server and Desktop PC  350W peak pulse power (8/20us)  Protects one bi-directional or two uni-directional line(s)  Ultra low leakage: nA level  Stand−off Voltage: 3.3 V ~ 36 V  Ultra low clamping voltage  Complies with following standards: Marking information – IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV  RoHS Compliant Dimensions & Symbol（Unit: mm Max） Details marking code reference customer approval list Ordering Information Part Number SOT03C SOT05C SOT12C SOT15C SOT24C SOT36C Rev.A_Aug,2016 -1- Packaging 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel 3000/Tape & Reel Reel Size 7 inch 7 inch 7 inch 7 inch 7 inch 7 inch www.wpmtek.com SOTXXC Integrated in OVP&OCP products provider 3.3V~36V 2Line Uni-directional TVS DiodeArray Absolute Maximum Ratings (TA=25°C unless otherwise specified) SOT03C Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 350 W Peak Pulse Current (8/20µs) Ipp 25 A ESD per IEC 61000−4−2 (Air) VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range ±30 ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 350 W Peak Pulse Current (8/20µs) Ipp 23 A Storage Temperature Range SOT05C Parameter ESD per IEC 61000−4−2 (Air) VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range ±30 ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 350 W Peak Pulse Current (8/20µs) Ipp 12 A Storage Temperature Range SOT12C Parameter ESD per IEC 61000−4−2 (Air) VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range Rev.A_Aug,2016 -2- ±30 ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C www.wpmtek.com SOTXXC Integrated in OVP&OCP products provider 3.3V~36V 2Line Uni-directional TVS DiodeArray SOT15C Parameter Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 350 W Peak Pulse Current (8/20µs) Ipp 10 A ESD per IEC 61000−4−2 (Air) VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range ±30 ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 350 W Peak Pulse Current (8/20µs) Ipp 6 A Storage Temperature Range SOT24C Parameter ESD per IEC 61000−4−2 (Air) VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range ±30 ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C Symbol Value Unit Peak Pulse Power (8/20µs) Ppk 350 W Peak Pulse Current (8/20µs) Ipp 4 A Storage Temperature Range SOT36C Parameter ESD per IEC 61000−4−2 (Air) VESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range Rev.A_Aug,2016 -3- ±30 ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C www.wpmtek.com SOTXXC Integrated in OVP&OCP products provider 3.3V~36V 2Line Uni-directional TVS DiodeArray Electrical Characteristics (TA=25°C unless otherwise specified) SOT03C Parameter Reverse Working Voltage Symbol Min Typ VRWM Breakdown Voltage VBR Reverse Leakage Current IR Clamping Voltage VC Clamping Voltage VC Junction Capacitance CJ Max Unit 3.3 V 4.0 Test Condition V IT = 1mA uA VRWM = 3.3V V IPP = 1A (8 x 20uS pulse) 15 V IPP = 25A (8 x 20uS pulse) 240 pF Max Unit 5 V 1 7.5 VR = 0V, f = 1MHz SOT05C Parameter Reverse Working Voltage Symbol Min Typ VRWM 6.0 V Test Condition Breakdown Voltage VBR Reverse Leakage Current IR 1 Clamping Voltage VC 8 V IPP = 1A (8 x 20uS pulse) Clamping Voltage VC 14 V IPP = 23A (8 x 20uS pulse) Junction Capacitance CJ 160 IT = 1mA VRWM = 5V pF VR = 0V, f = 1MHz SOT12C Parameter Reverse Working Voltage Symbol Min Typ VRWM Breakdown Voltage VBR Reverse Leakage Current IR Clamping Voltage Max Unit 12 V V IT = 1mA 1 uA VRWM = 12V VC 16 V IPP = 1A (8 x 20uS pulse) Clamping Voltage VC 30 V IPP =12A (8 x 20uS pulse) Junction Capacitance CJ 90 pF Rev.A_Aug,2016 13.3 Test Condition -4- VR = 0V, f = 1MHz www.wpmtek.com SOTXXC Integrated in OVP&OCP products provider 3.3V~36V 2Line Uni-directional TVS DiodeArray SOT15C Parameter Reverse Working Voltage Symbol Min Typ VRWM Breakdown Voltage VBR Reverse Leakage Current IR Clamping Voltage VC Clamping Voltage VC Junction Capacitance CJ Max Unit 15 V 16.7 Test Condition V IT = 1mA uA VRWM =15V V IPP = 1A (8 x 20uS pulse) 35 V IPP = 10A (8 x 20uS pulse) 55 pF Max Unit 24 V 1 24 VR = 0V, f = 1MHz SOT24C Parameter Reverse Working Voltage Symbol Min Typ VRWM Breakdown Voltage VBR Reverse Leakage Current IR Clamping Voltage VC Clamping Voltage VC Junction Capacitance CJ 26.7 Test Condition V IT = 1mA uA VRWM =24V V IPP = 1A (8 x 20uS pulse) 55 V IPP = 6A (8 x 20uS pulse) 40 pF Max Unit 36 V 1 35 VR = 0V, f = 1MHz SOT36C Parameter Reverse Working Voltage Symbol Typ VRWM Breakdown Voltage VBR Reverse Leakage Current IR Clamping Voltage VC Clamping Voltage VC Junction Capacitance CJ Rev.A_Aug,2016 Min 40 V IT = 1mA uA VRWM =36V V IPP = 1A (8 x 20uS pulse) 75 V IPP = 4A (8 x 20uS pulse) 35 pF 1 55 -5- Test Condition VR = 0V, f = 1MHz www.wpmtek.com SOTXXC Integrated in OVP&OCP products provider 3.3V~36V 2Line Uni-directional TVS DiodeArray Typical Performance Characteristics (TA=25°C unless otherwise Specified) Rev.A_Aug,2016 -6- www.wpmtek.com SOTXXC Integrated in OVP&OCP products provider 3.3V~36V 2Line Uni-directional TVS DiodeArray Soldering parameters Pb-Free assembly (see FIG.2) Reflow Condition Pre Heat -Temperature Min (Ts(min)) +150℃ -Temperature Max(Ts(max)) +200℃ -Time (Min to Max) (ts) 60-180 secs. Average ramp up rate (Liquid us Temp (TL) to peak) 3℃/sec. Max Ts(max) to TL - Ramp-up Rate 3℃/sec. Max Reflow -Temperature(TL) (Liquid us) +217℃ -Temperature(tL) 60-150 secs. Peak Temp (Tp) +260(+0/-5)℃ Time within 5℃ of actual Peak Temp (tp) 30 secs. Max Ramp-down Rate 6℃/sec. Max Time 25℃ to Peak Temp (TP) 8 min. Max Do not exceed +260℃ Rev.A_Aug,2016 -7- www.wpmtek.com SOTXXC Integrated in OVP&OCP products provider 3.3V~36V 2Line Uni-directional TVS DiodeArray Package mechanical data Suggested Land Pattern Contact information WPMTEK Incorporated Limited Floor 1 Building 4#, Binxianghua Industry Park, No.7, Huada Road, Hualian Community, Longhua New District, Shenzhen TEL：86755-29308003 FAX：86755-23739900 wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special, consequential or incidental damages. Rev.A_Aug,2016 -8- www.wpmtek.com
