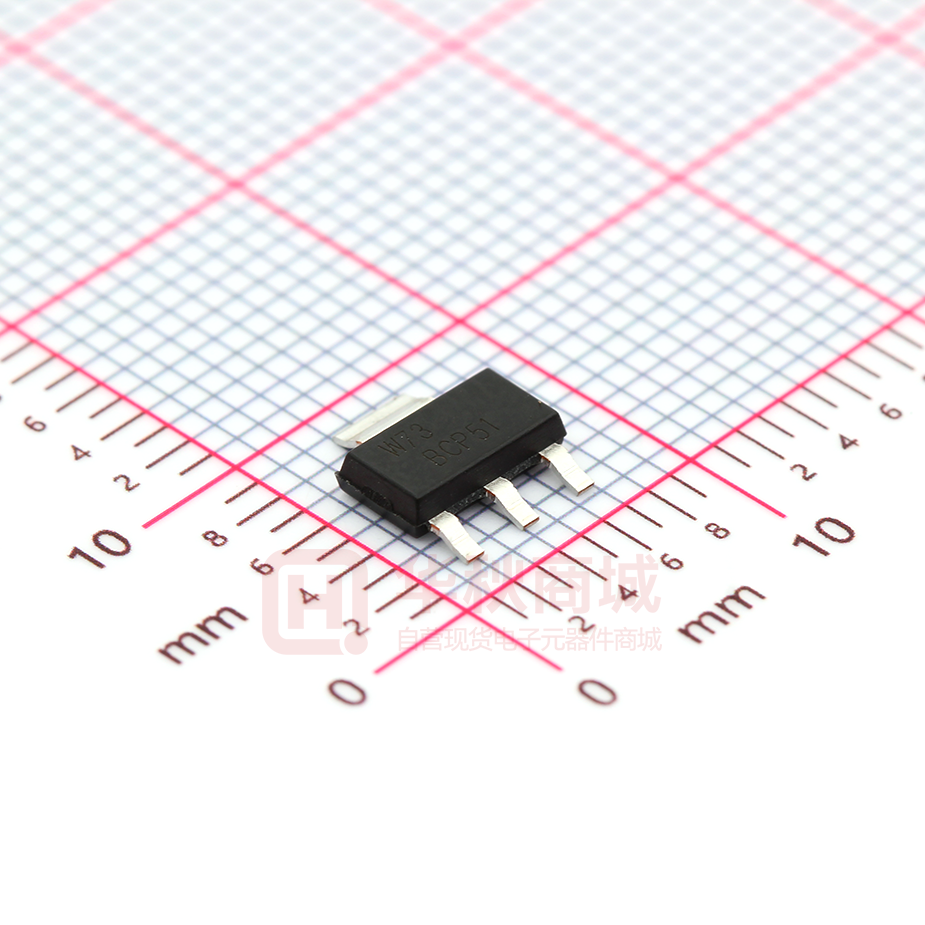

BCP51-16

BCP51-BCP53 TRANSISTOR (PNP) SOT-223 FEATURES z z z z For AF driver and output stages High collector current Low collector-emitter saturation voltage Complementary types: BCP54...BCP56 (NPN) 1 1. BASE 2. COLLECTOR 3. EMITTER MAXIMUM RATINGS (TA=25℃ unless otherwise noted) BCP51 BCP52 BCP53 Units Collector-Base Voltage -45 -60 -100 V VCEO Collector-Emitter Voltage -45 -60 -80 V VEBO Emitter-Base Voltage -5 V IC Collector Current -Continuous -1 A PC Collector Power Dissipation 1.5 W RθJA Thermal Resistance Junction to Ambient 94 ℃/W Tstg Storage Temperature Range -65to+150 ℃ Symbol Parameter VCBO ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) Symbol Parameter Collector-base breakdown voltage Test conditions V(BR)CBO IC=- 0.1mA,IE=0 -60 UNIT V -100 BCP53 -45 BCP51 BCP52 V(BR)CEO IC= -10mA,IB=0 -60 V -80 BCP53 Base-emitter breakdown voltage MAX -45 BCP51 BCP52 Collector-emitter breakdown voltage MIN V(BR)EBO IC= -10μA,IE=0 -5 V ICBO VCB= -30 V, IE=0 hFE(1) VCE=-2V, IC=-5mA 25 hFE(2) VCE= -2V, IC=-150m A 63 hFE(3) VCE= -2V, IC=-500m A 25 VCE(sat) IC=-500mA,IB=-50mA -0.5 V Base-emitter voltage VBE VCE=-2V, IC=-500m A -1 V Transition frequency fT Collector cut-off current DC current gain Collector-emitter saturation voltage CLASSIFICATION OF Rank Range www.slkormicro.com -100 VCE=-10V,IC=-50mA,f=100MHz 100 nA 250 MHz hFE(2) BCP51-10, BCP52-10, BCP53-10 BCP51-16, BCP52-16, BCP53-16 63-160 100-250 1 BCP51-BCP53 Typical Characteristics www.slkormicro.com 2 BCP51-BCP53 www.slkormicro.com 3
