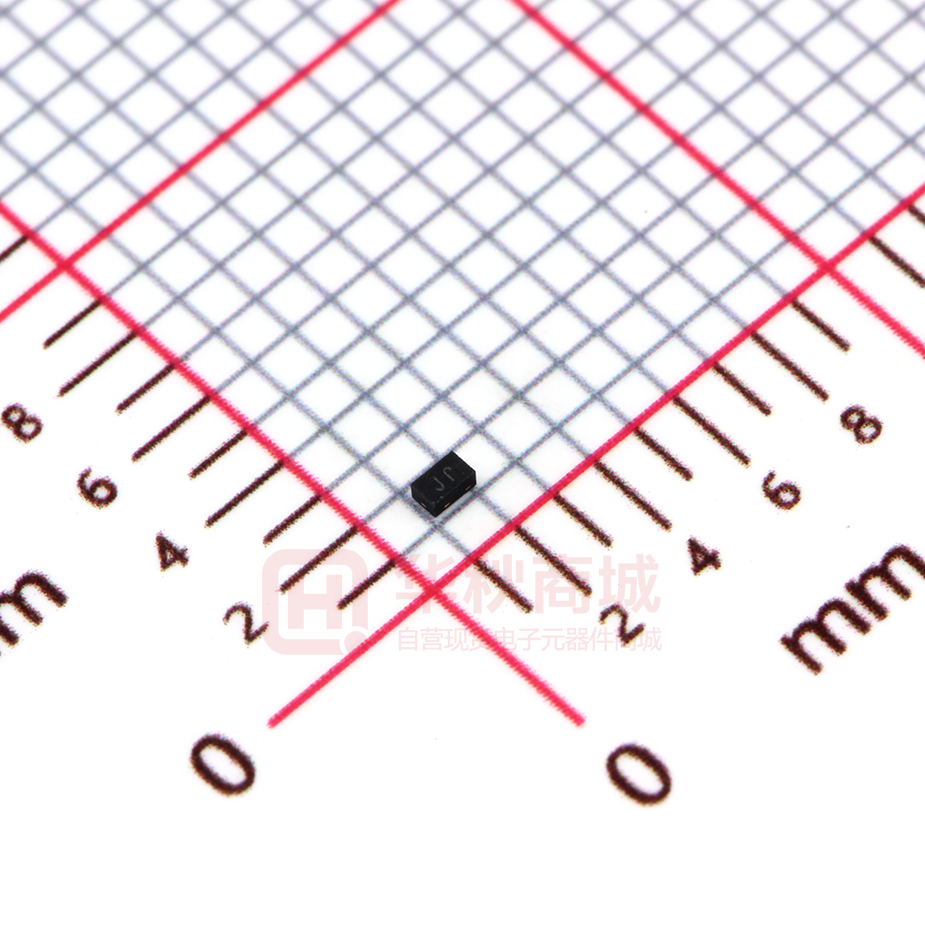

SELC2F5V1B

SELC2F5V1B Rev-2021-1 www.elecsuper.com SuperESD - SELC2F5V1B 1. Description The SELC2F5V1B is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. 2. Features ⚫ IEC 61000-4-2 Level 4 ESD Protection ⚫ Working voltage: 5V - ±10kV Contact Discharge ⚫ Low leakage current - ±15kV Air Discharge ⚫ RoHS compliant ⚫ 80W Peak pulse Power (8/20us) ⚫ Protecting one bi-directional lines ⚫ Low clamping voltage ⚫ Low Junction capacitance: 0.35pF Typ. 3. Applications ⚫ USB 2.0/3.0 ⚫ Notebook computers ⚫ Monitors and flat panel display ⚫ SIM ports ⚫ 10/100/1000 ethernet ⚫ ATM interface 4. Ordering Information Part Number Package Marking Material Packing SELC2F5V1B DFN10062L JJ Halogen free Tape & Reel Table-1 Copyright© ElecSuper Incorporated Quantity per reel 10,000 PCS Flammability Rating Reel Size UL 94V-0 7 inches Ordering information Contact Us 1 / 7 SELC2F5V1B Rev-2021-1 www.elecsuper.com 5. Pin Configuration and Functions Name Description Outline 1 IO1 Connect to IO 1 2 IO2 Connect to IO Table-2 J Circuit Diagram J Pin 1 2 2 Pin configuration 6. Specification 6.1. Absolute Maximum rating Over operating free-air temperature range (unless otherwise noted) Parameters Symbol Min. Max. Unit Peak pulse power (tp=8/20us)@25℃ Ppk - 80 W Peak pulse current (tp=8/20us)@25℃ IPP 4 A ESD (IEC61000-4-2 air discharge) @25℃ VESD - ±15 kV ESD (IEC61000-4-2 contact discharge) @25℃ VESD - ±10 kV TJ - 125 ℃ Operating temperature TOP -40 85 ℃ Storage temperature TSTG -55 150 ℃ TL - 260 ℃ Junction temperature Lead temperature Table-3 Copyright© ElecSuper Incorporated Absolute Maximum rating Contact Us 2 / 7 SELC2F5V1B Rev-2021-1 www.elecsuper.com 6.2. Electrical Characteristics At TA = 25℃ unless otherwise noted Parameter Symbol Conditions Reverse Stand-off Voltage Reverse Breakdown Voltage Min. Typ. VRWM Max. Units 5 V VBR IT=1mA 6.0 V Reverse Leakage Current IR VRWM=5V Clamping Voltage VC IPP=1A; tp=8/20us 12 V Clamping Voltage VC IPP=4A; tp=8/20us 18 V Junction Capacitance CJ I/O to GND; VR=0V; f=1MHz 0.35 pF 1 uA Table-4 Electrical Characteristics Symbol VRWM IR VBR Parameters Peak Reverse Working Voltage Reverse Leakage Current @ VRWM Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP IF Forward Current VF Forward Voltage @ IF Copyright© ElecSuper Incorporated Contact Us 3 / 7 SELC2F5V1B Rev-2021-1 www.elecsuper.com 7. Typical Characteristic 8. Typical Application Typical Interface Application Copyright© ElecSuper Incorporated Contact Us 4 / 7 SELC2F5V1B Rev-2021-1 www.elecsuper.com 9. Dimension DFN1006-2L Units in millimeters Symbol Min. Nom. Max. A 0.350 0.450 0.550 A1 0.000 0.020 0.050 A2 0.077 0.127 0.207 A3 0.013 0.063 0.113 b 0.070 0.120 0.200 D 0.500 0.600 0.700 D1 0.400 0.500 0.600 D2 0.200 0.300 0.400 E 0.900 1.000 1.100 E1 0.150 0.250 0..350 e 0.460 0.510 0.560 k 0.300 0.400 0.500 Table-6 Copyright© ElecSuper Incorporated product dimensions Contact Us 5 / 7 SELC2F5V1B Rev-2021-1 www.elecsuper.com 10. Recommended Land Pattern Note: 1. Controlling dimension: in millimeters 2. General tolerance: ±0.05mm 3. The pad layout is for reference only Copyright© ElecSuper Incorporated Contact Us 6 / 7 SELC2F5V1B Rev-2021-1 www.elecsuper.com DISCLAIMER ELECSUPER PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS” AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS. These resources are intended for skilled developers designing with ElecSuper products. You are solely responsible for (1) selecting the appropriate ElecSuper products for your application, (2) designing, validating and testing your application (3) ensuring your application meets applicable standards, and any other safety, security, or other requirements. These resources are subject to change without notice. ElecSuper grants you permission to use these resources only for development of an application that uses the ElecSuper products described in the resource. Other reproduction and display of these resources are prohibited. No license is granted to any other ElecSuper intellectual property right or to any third party intellectual property right. ElecSuper disclaims responsibility for, and you will fully indemnify ElecSuper and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these resources. ElecSuper’s products are provided subject to ElecSuper’s Terms of Sale or other applicable terms available either on www.elecsuper.com or provided in conjunction with such ElecSuper products. ElecSuper’s provision of these resources does not expand or otherwise alter ElecSuper’s applicable warranties or warranty disclaimers for ElecSuper products Copyright© ElecSuper Incorporated Contact Us 7 / 7
