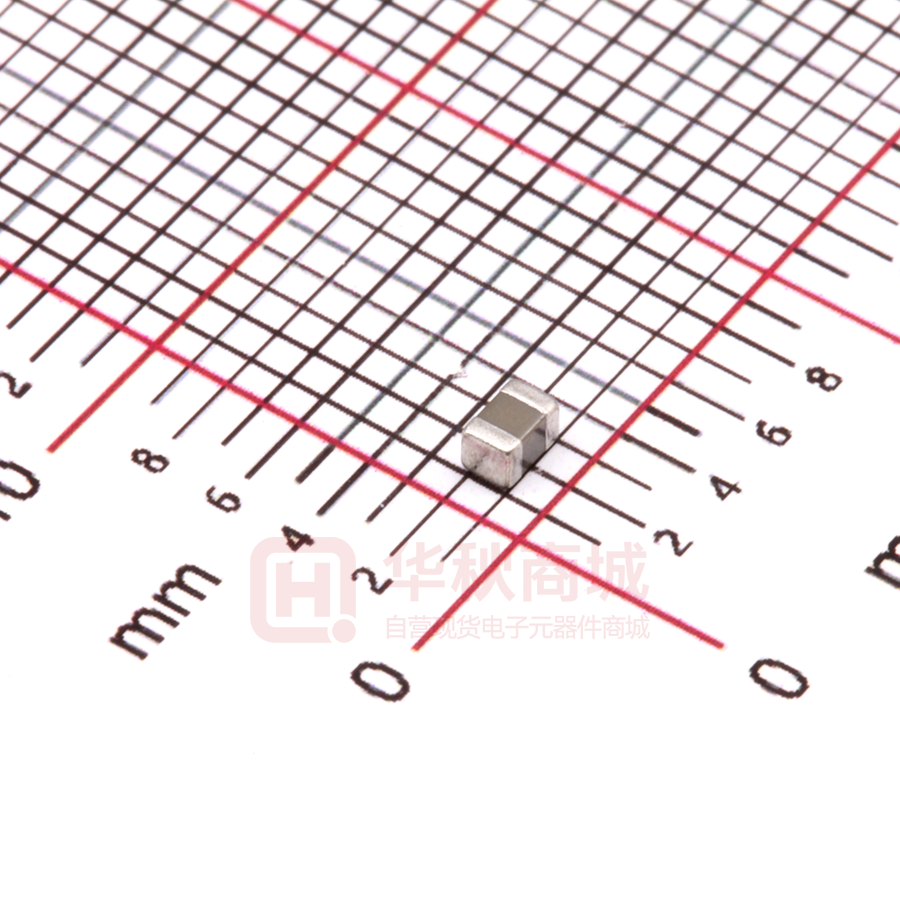

0805S476M4R0CT

Multilayer Ceramic Capacitors Approval Sheet MULTILAYER CERAMIC CAPACITORS General Purpose Series (4V to 100V) 0201 to 1812 Sizes NP0, X7R, Y5V, X6S, X7S & X5R Dielectrics Halogen Free & RoHS Compliance *Contents in this sheet are subject to change without prior notice. Page 1 of 22 ASC_General Purpose_001AL_AS Feb. 2021 Multilayer Ceramic Capacitors Approval Sheet 1. DESCRIPTION MLCC consists of a conducting material and electrodes. To manufacture a chip-type SMT and achieve miniaturization, high density and high efficiency, ceramic condensers are used. WTC’s MLCC is made by NP0, X7R, X6S, X5R and Y5V dielectric material and which provides product with high electrical precision, stability and reliability. 2. FEATURES 3. APPLICATIONS a. b. c. a. b. c. d. A wide selection of sizes is available (0201 to 1812). High capacitance in given case size. Capacitor with lead-free termination (pure Tin). For general digital circuit. For power supply bypass capacitors. For consumer electronics. For telecommunication. 4. HOW TO ORDER 1206 Size Inch (mm) 0201 (0603) 0402 (1005) 0603 (1608) 0805 (2012) 1206 (3216) 1210 (3225) 1812 (4532) Page 2 of 22 B Dielectric N=NP0 (C0G) B=X7R F=Y5V X=X5R S=X6S A=X7S 104 Capacitance Two significant digits followed by no. of zeros. And R is in place of decimal point. eg.: 0R5=0.5pF 1R0=1.0pF 4 104=10x10 =100nF K Tolerance A=±0.05pF B=±0.1pF C=±0.25pF D=±0.5pF F=±1% G=±2% J=±5% K=±10% M=±20% Z=-20/+80% 500 Rated voltage Two significant digits followed by no. of zeros. And R is in place of decimal point. C Termination C=Cu/Ni/Sn T Packaging style T=7” reeled G=13” reeled 4R0=4 VDC 6R3=6.3 VDC 100=10 VDC 160=16 VDC 250=25 VDC 500=50 VDC 101=100 VDC ASC_General Purpose_001AL_AS Feb. 2021 Multilayer Ceramic Capacitors Approval Sheet 5. EXTERNAL DIMENSIONS Outline Size Inch (mm) L (mm) W (mm) 01R5 (0402) 0.4±0.02 0.2±0.02 0.2±0.02 0.6±0.03 0.3±0.03 0.3±0.03 0.6±0.05#2 0.3±0.05#2 0.3±0.05#2 0.6±0.09#3 0.3±0.09#3 0.3±0.09#3 0201 (0603) 0402 (1005) 1.00±0.05 0.50±0.05 Soldering Method * MB (mm) V R 0.10±0.03 L R T (mm)/Symbol 0.15±0.05 0.15+0.1/-0.05 0.50±0.05 N R 0.50+0.02/-0.05 Q R 0.25 +0.05/-0.10 1.00±0.20 0.50±0.20 0.5±0.20 E R 1.60±0.10 0.80±0.10 0.80±0.07 S R/W 0.50±0.10 H R/W X R/W 0.50±0.10 H R/W 0.60±0.10 A R/W 0.80±0.10 B R/W 1.25±0.10 D R 0.85±0.10 T R/W 1.25±0.20 I R 0.80±0.10 B R/W 0.95±0.10 C R 1.25±0.10 D R 1.15±0.15 J R 1.60±0.20 G R 0.85±0.10 T R/W P R 0.95±0.10 C R 0.85±0.10 T R 1.25±0.10 D R 1.60±0.20 G R 2.00±0.20 K R M R 1.25±0.10 D R 1.40±0.15 F R 1.60±0.20 G R 2.00±0.20 K R 1.25±0.10 D R 1.60±0.20 G R 2.00±0.20 K R 2.50±0.30 M R 2.80±0.30 U * R = Reflow soldering process ; W = Wave soldering process. ** For 1808/1812/1825_200V~4000V and safety certificated products. *** For 1206_≧1000V, 1808/1812_200V~4000V and safety certificated products. #1: For 0603/Cap≧10µF or 0603(≦6.3V)/Cap≧4.7µFor 0603(>10V)/Cap>1µF products. #2: For 0201/ 0.1uF < Cap < 0.68uF products, Excluding 0201X334~474(≦6.3V) & 0201X224(≦10V). #3: For 0201/Cap≧0.68µF products. #4: For 1210(100V)/Cap>1µF or 1210(250V)/Cap>0.47µF or 1210(400V~630V)/Cap>0.22µF. R L T 0603 (1608) 1.60+0.15/-0.10 0.80+0.15/-0.10 0.80+0.15/-0.10 1.60±0.20#1 0.80±0.20#1 W MB MB Fig. 1 The outline of MLCC 2.00±0.15 1.25±0.10 0805 (2012) 2.00±0.20 3.20±0.15 1.25±0.20 1.60±0.15 1206 (3216) 3.20±0.20 1.60±0.20 0.8±0.20#1 3.20+0.30/-0.10 1.60+0.30/-0.10 1.60+0.30/-0.10 3.20±0.30 2.50±0.20 1210 (3225) 3.20±0.40 2.50±0.30 2.50±0.30 3.20±0.60#4 2.50±0.50#4 4.50±0.40 1808 (4520) 2.03±0.25 (4.5+0.5/-0.3)** 4.50±0.40 3.20±0.30 1812 (4532) (4.5+0.5/-0.3)** 3.20±0.40 Page 3 of 22 ASC_General Purpose_001AL_AS 0.40±0.15 2.50±0.50#4 0.50±0.20 0.60±0.20 (0.5±0.25)*** 0.75±0.25 0.75±0.25 (0.5±0.25)*** 0.75±0.25 (0.5±0.25)*** Feb. 2021 Multilayer Ceramic Capacitors Approval Sheet 6. GENERAL ELECTRICAL DATA Dielectric NP0 X7R Size Capacitance range* Y5V X5R X6S X7S 0201, 0402, 0603, 0805, 1206, 1210, 1812 0.1pF to 0.1µF 100pF to 47µF 0.01µF to 100µF 100pF to 220µF 0.1µF to 100µF 1µF to 100µF J (±5%), K (±10%), M (±20%) M (±20%), Z (-20/+80%) K (±10%), M (±20%) K (±10%), M (±20%) K (±10%), M (±20%) #1 Capacitance tolerance** Rated voltage (WVDC) Operating temperature Capacitance characteristic Termination Cap≤5pF : A (±0.05pF), B (±0.1pF), C (±0.25pF) 5pF0.47µF; 1206≧2.2µF; 1210≧10µF 0603≧1µF; 0805≥2.2µF; 1206≧2.2µF; 1210≧10µF 0201≧0.01µF; 0805≧1µF; 1210≧10µF 0603≧0.33µF 0201≧0.1µF; 0402≧0.056µF; 0603≧0.47µF; 0805≧2.2µF; 1206≧4.7µF; 1210≧22µF 0402≧0.47µF 0201≧0.01µF; 0402≧0.033µF; 0603≧0.15µF; 0805≧0.68µF; 1206≧2.2µF; 1210≧4.7µF 0201/X7R≧0.022µF; 0402≧0.22uF; 0603>0.47µF; 0805≧2.2µF; 1206≧4.7µF; 1210≧22µF 0201≧0.012µF; 0402≧0.22µF; 0603≧0.33µF; 0805≧2.2µF; 1206≧2.2µF; 1210≧22µF 0201≧0.1µF; 0402≧1µF 0201≧0.1µF; 0402≧1µF; 0603≧10µF; 0805≧4.7µF; 1206≧47µF; 1210≧100µF 0402≧2.2µF --- Exception of D.F. ≦ ≦3% ≧100V ≦2.5% ≦5% ≦10% ≦3% ≦5% 50V ≦2.5% ≦10% ≦12.5% 35V ≦3.5% ≦10% ≦5% ≦7% 25V ≦3.5% ≦10% 16V 10V 6.3V 4V 1206≧0.47µF 0603≧0.068µF; 0805＞0.1µF; 1206≧1µF; 1210≧2.2µF 0805＞0.22µF; 1210≧3.3µF 0201(50V); 0603≧0.047µF; 0805≧0.18µF; 1206≧0.47µF 0201≧0.01uF; 1210≧3.3µF 0402≧0.012µF; 0603>0.1µF; 0805≧1µF;1206≧2.2µF; 1210≧10µF 1206=10µF 0603≧1µF; 0805≥2.2µF; 1206≧2.2µF; 1210≧10µF 0201=0.01µF; 0805≧1µF 0603≧0.33µF 0201>0.01µF; 0402≧0.10µF; 0603≧0.47µF; 0805≧2.2µF; 1206≧4.7µF; 1210≧10µF ≦12.5% 0402≧0.47µF;0805=10µF 0201=0.01µF; 0402≧0.033µF; 0603≧0.15µF; ≦5% 0805≧0.68µF; 1206≧2.2µF; 1210≧4.7µF 0201>0.01uF; 0402≧ 0.22uF; ≦3.5% ≦10% 0603>0.47µF; 0805≧2.2µF; 1206≧4.7µF; 1210≧22µF ≦12.5% 0402≧1µF;0805=10µF 0201≧0.012µF; 0402≧0.22µF; ≦10% 0603≧0.33µF; 0805≧2.2µF; 1206≧2.2µF; 1210≧22µF; 01R5/X5R ≦5% ≦12.5% 0805=10µF ≦15% 0201>0.1µF; 0402≧1µF; 0603≧10µF 0201>0.1µF; 0402≧1µF; 0603≧10µF; ≦15% 0805≧4.7µF; 1206≧47µF; 1210≧100µF ≦10% ≦20% 0402≧2.2µF ≦15% ----- Y5V: Rated vol. D.F. ≦ Exception of D.F.≦ 0603≧0.1µF;0805≧0.47µF;1206≧4.7µF ≦7% ≧50V ≦5% ≦12.5% 1210≧6.8µF --35V ≦7% --0402≧0.047µF;0603≧0.1µF;0805≧0.33µF; ≦7% 1206≧1µF;1210≧4.7µF 25V ≦5% 0402≧0.068µF;0603≧0.47µF;1206≧4.7µF; ≦9% 1210≧22µF 0402≧0.068µF;0603≧0.68µF ≦9% 16V ≦7% (C0.1µF; 0805≧1µF; 1206≧2.2µF;1210≧10µF ≦3.5% ≦10% 0603≧1µF;0805≥2.2µF;1206≧2.2µF;1210≧10µF ≦5% 0201≧0.01µF;0805≧1µF;1210≧10µF ≦7% 0603≧0.33µF ≦3.5% 0201≧0.1µF; 0402≧0.10µF;0603≧0.47µF; ≦10% 0805≧2.2µF; 1206≧4.7µF;1210≧22µF ≦12.5% 0402≧0.47µF 0201≧0.01µF;0402≧0.033µF;0603≧0.15µF; ≦5% 0805≧0.68µF;1206≧2.2µF;1210≧4.7µF 0201≧0.1uF; 0402≧0.22uF; ≦3.5% ≦10% 0603>0.47µF; 0805≧2.2µF;1206≧4.7µF;1210≧22µF ≦12.5% 0402=1µF 0201≧0.012µF;0402≧0.22µF; ≦10% 0603≧0.33µF; 0805≧2.2µF;1206≧2.2µF;1210≧22µF ≦5% ≦15% 0201≧0.1µF; 0402≧1µF 0201≧0.1µF;0402≧0.47µF; 0603≧10µF; ≦15% 0805≧4.7µF;1206≧47µF; 1210≧100µF ≦10% ≦20% 0402≧2.2µF ≦15% ----- X7S: Rated D.F.≦ vol. Exception of D.F. ≦ ≦3% ≧100V ≦2.5% ≦5% ≦10% ≦3% ≦5% 50V ≦2.5% ≦10% 35V 25V 16V 10V 6.3V 4V 4. Dielectric Strength Page 14 of 22 * To apply voltage (≤100V) 250%. * Duration: 1 to 5 sec. * Charge and discharge current less than 50mA. 1206≧0.47µF 0603≧0.068µF;0805＞0.1µF;1206≧1µF;1210≧2.2µF 0805＞0.22µF;1210≧3.3µF 0201(50V); 0603≧0.047µF; 0805≧0.18µF;1206≧0.47µF 0201≧0.01uF; 1210≧3.3µF 0402≧0.012µF;0603>0.1µF; 0805≧1µF; 1206≧2.2µF;1210≧10µF ≦3.5% ≦10% 0603≧1µF;0805≥2.2µF;1206≧2.2µF;1210≧10µF ≦5% 0201≧0.01µF;0805≧1µF;1210≧10µF ≦7% 0603≧0.33µF ≦3.5% 0201≧0.1µF;0402≧0.10µF;0603≧0.47µF; ≦10% 0805≧2.2µF; 1206≧4.7µF;1210≧22µF ≦12.5% 0402≧0.47µF 0201≧0.01µF;0402≧0.033µF;0603≧0.15µF; ≦5% 0805≧0.68µF;1206≧2.2µF;1210≧4.7µF ≦3.5% 0201≧0.1uF; 0402≧ 0.22uF; ≦10% 0603>0.47µF;0805≧2.2µF;1206≧4.7µF; 1210≧22µF 0201≧0.012µF;0402≧0.22µF; ≦10% 0603≧0.33µF; 0805≧2.2µF;1206≧2.2µF;1210≧22µF ≦5% ≦15% 0201≧0.1µF; 0402≧1µF 0201≧0.1µF;0402≧1µF;0603≧10µF; ≦15% 0805≧4.7µF; 1206≧47µF; 1210≧100µF ≦10% ≦20% 0402≧2.2µF ≦15% ----- * No evidence of damage or flash over during test. ASC_General Purpose_001AL_AS Feb. 2021 Multilayer Ceramic Capacitors No. 5. Item Insulation Approval Sheet Test Condition Requirements To apply rated voltage for MAX. 120sec. 6. Temperature Coefficient With no electrical load. T.C. Operating Temp NPO -55~125°C at 25°C X7R -55~125°C at 25°C X7S -55 ~ 125°C at 25°C X5R -55~ 85°C at 25°C X6S -55~105°C at 25°C Y5V -25~ 85°C at 20°C *Before initial measurement (Class II only): To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp. * Measurement voltage for Class II: 01005 Cap≤0.01µF: 0.5V Cap>0.01µF: 0.2V 0402 Cap4.7µF; 0805≥47µF; 1206≥10µF 4V: 0603≥22µF; 0805≥47µF; 1206≥100µF RxC≧50 Ω-F. T.C. Capacitance Change NPO Within ±30ppm/°C X7R Within ±15% X7S Within ±22% X5R Within ±15% X6S Within ±22% Y5V Within +30%/-80% 0201 Cap0.1µF; 0805≧1µF(0805/X7R>0.47µF); 1206≧2.2µF;1210≧10µF 0603≧1µF;0805≥2.2µF;1206≧2.2µF;1210≧10µF 0201=0.01µF;0805≧1µF;1210≧10µF 0603≧0.33µF 0201>0.01µF;0402≧0.10µF&(0402/X7R≧0.056µF);0603≧0.47µF; 0805≧2.2µF; 1206≧4.7µF;1210≧22µF(1210/X5R≧10µF) 0402≧0.47µF 0603≧0.15µF;0805≧0.68µF;1206≧2.2µF;1210≧4.7µF 0201≧0.01µF(0201/X7R≧0.022µF);0402≧0.033µF; 0603>0.47µF;0805≧2.2µF;1206≧4.7µF;1210≧22µF 0201≧0.012µF; 0402≧0.22µF; 0603≧0.33µF;0805≧2.2µF;1206≧2.2µF; 1210≧22µF 0201≧0.1µF(0201/X5R>0.1µF);0402≧1µF; (0603/X5R≧10µF); 01R5/X5R 0201≧0.1µF(0201/X5R>0.1µF);0402≧1µF(0402/X6S≧0.47µF); 0603≧10µF;0805≧4.7µF;1206≧47µF;1210≧100µF --- D.F.≦ Exception of D.F.≦ ≦10% 0603≧0.1µF; 0805≧0.47µF;1206≧4.7µF ≧50V ≦7.5% ≦20% 1210≧ 6.8µF 35V ≦10% ----0402≧ 0.047µF;0603≧0.1µF; ≦10% 0805≧ 0.33µF;1206≧ 1µF; 1210≧ 4.7µF 25V ≦7.5% 0402≧ 0.068µF;0603≧0.47µF; ≦15% 1206≧ 4.7µF; 1210≧22µF ≦12.5% 0402≧ 0.068µF; 0603≧0.68µF 16V ≦10% (C0.01µF;0603≥1µF;0805≥1µF;1206≥4.7µF;1210≥4.7µF 35V:0603≥1µF;0805≥2.2µF; 1206≧ 2.2µF;1210≧10µF 25V:0201≧0.1uF; 0402≥0.22µF; 0603≥2.2µF;0805≥2.2µF; 1206≥10µF;1210≥10µF 16V: 0201≧ 0.1uF;0402≥0.22µF;0603≥1µF;0805≥2.2µF; 1206≥10µF;1210≥47µF 10V:0201≥47nF;0402≥0.47µF;0603≥0.47µF;0805≥2.2µF; 1206≥4.7µF;1210≥47µF 6.3V ; 4V ; All X6S/X7S items; Size≥1812 Page 17 of 22 ASC_General Purpose_001AL_AS 1GΩ or RxC≧10 Ω-F whichever is smaller. Feb. 2021 Multilayer Ceramic Capacitors No 14 Item Humidity (Damp Heat) Load Approval Sheet Test Condition *Test temp.：40±2°C *Humidity：90~95%RH *Test time：500+24/-0 hrs. *To apply voltage： Rated voltage (MAX. 500V) *Before initial measurement (Class II only): To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp. * Cap. / DF(Q) / I.R. Measurement to be made after de-aging at 150°C for 1hr then set for 24±2 hrs at room temp. Requirements * No remarkable damage. Cap change: NP0: ±7.5% or 0.75pF whichever is larger. X7R, X5R, X6S, X7S: ≥10V**,within ±12.5%; ≦6.3V within ±25%; **10V: 0603≧4.7µF;0402≧ 1µF;0201≧0.1µF, within ±25%; Y5V: ≥10V, within ±30%; ≦ 6.3V, within +30/-40% Q/D.F. value: NP0: C≥30pF,Q≥200;C0.1µF;0805≧1µF(0805/X7R>0.47µF); 1206≧2.2µF;1210≧10µF; ≦20% 0603≧1µF;0805≥2.2µF;1206≧2.2µF;1210≧10µF ≦10% 0201=0.01µF;0805≧1µF;1210≧10µF* ≦14% 0603≧0.33µF ≦20% 35V ≦5% 25V ≦5% 16V ≦5% 10V ≦7.5% 6.3V ≦15% ≦30% 0201≧0.1µF;0402≧1µF(0402/X6S≧0.47µF); 0603≧10µF;0805≧4.7µF;1206≧47µF;1210≧100µF 4V ≦20% --- --- 0201>0.01µF;0402≧0.10µF(0402/X7R≧0.056µF);0603≧0.47µF; 0805≧2.2µF;1206≧4.7µF;1210≧22µF(1210/X5R≧10µF)* ≦20% 0402≧0.47µF ≦10% 0603≧0.15µF;0805≧0.68µF;1206≧2.2µF;1210≧4.7µF 0201≧0.01µF(0201/X7R≧0.022µF);0402≧0.033µF; ≦15% 0603>0.47µF;0805≧2.2µF;1206≧4.7µF;1210≧22µF ≦15% ≦15% 0201≧0.012µF;0402≧0.22µF; 0603≧0.33µF;0805≧2.2µF;1206≧2.2µF;1210≧22µF ≦20% 0201≧0.1µF;0402≧1µF;0603/X5R≧10µF;01R5/X5R Y5V: Rated vol. D.F.≦ Exception of D.F.≦ ≦10% 0603≧ 0.1µF; 0805≧0.47µF;1206≧ 4.7µF ≧50V ≦7.5% ≦20% 1210≧ 6.8µF 35V ≦10% ----0402≧ 0.047µF;0603≧0.1µF; ≦10% 0805≧ 0.33µF;1206≧ 1µF; 1210≧ 4.7µF 25V ≦7.5% 0402≧ 0.068µF;0603≧0.47µF; ≦15% 1206≧ 4.7µF; 1210≧22µF ≦12.5% 0402≧ 0.068µF; 0603≧0.68µF 16V ≦10% (C0.01µF;0603≥1µF;0805≥1µF;1206≥4.7µF;1210≥4.7µF 35V:0603≥1µF;0805≥2.2µF; 1206≧ 2.2µF;1210≧10µF 25V:0201≧0.1uF; 0402≥0.22µF; 0603≥2.2µF;0805≥2.2µF; 1206≥10µF;1210≥10µF 16V: 0201≧ 0.1uF;0402≥0.22µF;0603≥1µF;0805≥2.2µF; 1206≥10µF;1210≥47µF 10V:0201≥47nF;0402≥0.47µF;0603≥0.47µF;0805≥2.2µF; 1206≥4.7µF;1210≥47µF 6.3V ; 4V ; All X6S/X7S items; Size≥1812 Page 18 of 22 ASC_General Purpose_001AL_AS 500MΩ or RxC≧5 Ω-F whichever is smaller. Feb. 2021 Multilayer Ceramic Capacitors No 15. Item Approval Sheet Test Condition High Temperature *Test temp.： NP0, X7R/X7E/X7S: 125±3°C Load X6S: 105±3°C (Endurance) X5R, Y5V: 85±3°C *Test time: 1000+24/-0 hrs. *To apply voltage: (1) ≤ 6.3V or C ≥10µF :150% of rated voltage. (2) 10V ≤ Ur < 500V: 200% of rated voltage. (3) 500V: 150% of rated voltage. (4) Ur ≥ 630V: 120% of rated voltage. (5) 100% of rated voltage for below range. Rated Capacitance Size Dielectric voltage range ≦10V C≧ 0.1µF 0201 X5R/X7R/X6S ≧16V C >0.1µF ≦16V C >1.0µF X5R 25V,50V C≧1.0µF 6.3V,10V C >1.0µF 0402 X6S 16V,25V C≧1.0µF X7R/X7S/Y5V 6.3V,10V C≧1.0µF 4V C≧22µF X5R/X7R/ X6S/X7S 6.3V,10V C≧4.7µF 0603 25V C≧1.0µF X5R/X6S/X7S 35V C≧1.0µF X7R 4V C≧47µF X5R/X7R/ 6.3V C≧22µF X6S/X7S 10V,50V C≧10µF 0805 X7R/X6S/X7S C≧10µF 16V,25V C≧22µF X5R C≧47µF 1206 X5R/X7R/X6S ≦6.3V 16V C≧47µF X5R/X7R/X6S 1210 100V C≧3.3µF X7R 6.3V C >1.0µF TT15 X5R TT18 Y5V 6.3V,10V C≧2.2µF 6.3V C≧10µF Y5V TT21 ≦10V C≧10µF X5R/X7R/X6S 6.3V C≧22µF TT31 Y5V **1WV items must follow de-rating conditions. (6) 150% of rated voltage for below range. Rated Size Dielectric Capacitance voltage 16V,25V C=0.1µF X5R/X6S 0201 16V C≧0.022µF X7R 50V C>0.01µF X7R/X5R/ X6S 0402 10~25V C≧0.22µF 16V C≧0.47µF Y5V 50V~100V C>0.22µF X7S 50V C>0.1µF X7R 25V C=1.0µF 0603 50V C≧1.0µF X5R X5R/X7R/ 10V,16V C≧1.0µF X6S/X7S 16V C≧2.2µF Y5V 100V C≧0.47µF 50V C≧0.68µF X5R/X7R/ X6S/X7S 35V C≧2.2µF 0805 10~25V C≧4.7µF 16V C≧4.7µF Y5V 100V C≧1.0µF X7R 50V C=4.7µF 1206 100V C>1.0µF X5R/X6S/ X7S 50V C=4.7µF X5R/X7R/ 50V~100V C≧2.2µF 1210 X6S/X7S 1825 2220 100V~250V C≧1.0µF X7R 2225 * Before initial measurement (Class II only): To apply de-aging at 150°C for 1hr then set for 24±2 hrs at room temp. * Cap. / DF(Q) / I.R. Measurement to be made after de-aging at 150°C for 1hr then set for 24±2 hrs at room temp. ** De-rating conditions: Page 19 of 22 Requirements * No remarkable damage. Cap change: NP0: ±3.0% or ±0.3pF whichever is larger X7R, X5R, X6S, X7S: ≥10V**,within ±12.5%; ≤ 6.3V within ±25%; **10V: 0603≥4.7µF;0402≥1µF;0201≥0.1µF, within ±25% Y5V: ≥10V, within ±30%; ≤ 6.3V, within +30/-40% Q/D.F. value: NP0: More than 30pF, Q≥350 10pF≤C0.1µF;0805≧1µF(0805/X7R>0.47µF); 1206≧2.2µF;1210≧10µF; ≦20% 0603≧1µF;0805≥2.2µF;1206≧2.2µF;1210≧10µF ≦10% 0201=0.01µF;0805≧1µF;1210≧10µF* ≦14% 0603≧0.33µF ≦20% 35V ≦5% 25V ≦5% 16V ≦5% 10V ≦7.5% 6.3V 4V 0201>0.01µF;0402≧0.10µF(0402/X7R≧0.056µF);0603≧0.47µF; 0805≧2.2µF;1206≧4.7µF;1210≧22µF(1210/X5R≧10µF)* ≦20% 0402≧0.47µF ≦10% 0603≧0.15µF;0805≧0.68µF;1206≧2.2µF;1210≧4.7µF 0201≧0.01µF(0201/X7R≧0.022µF);0402≧0.033µF; ≦15% 0603>0.47µF;0805≧2.2µF;1206≧4.7µF;1210≧22µF ≦15% 0201≧0.012µF;0402≧0.22µF; 0603≧0.33µF;0805≧2.2µF;1206≧2.2µF;1210≧22µF ≦20% 0201≧0.1µF;0402≧1µF;0603/X5R≧10µF;01R5/X5R 0201≧0.1µF;0402≧1µF(0402/X6S≧0.47µF); ≦15% ≦30% 0603≧10µF;0805≧4.7µF;1206≧47µF;1210≧100µF ≦15% ≦20% --- Y5V: Rated vol. D.F.≦ ≧50V ≦7.5% --- Exception of D.F.≦ ≦10% 0603≧ 0.1µF; 0805≧0.47µ F;1206≧ 4.7µF ≦20% 1210≧ 6.8µF 35V ≦10% ----0402≧ 0.047µF;0603≧0.1µF; ≦10% 0805≧ 0.33µ F;1206≧ 1µF; 1210≧ 4.7µF 25V ≦7.5% 0402≧ 0.068µF;0603≧0.47µF; ≦15% 1206≧ 4.7µF; 1210≧22µF ≦12.5% 0402≧ 0.068µF; 0603≧0.68µF 16V ≦10% (C0.01µF;0603≥1µF;0805≥1µF;1206≥4.7µF;1210≥4.7µF 35V:0603≥1µF;0805≥2.2µF; 1206≧ 2.2µF;1210≧10µF 25V:0201≧0.1uF; 0402≥0.22µF; 0603≥2.2µF;0805≥2.2µF; 1206≥10µF;1210≥10µF 16V: 0201≧ 0.1uF;0402≥0.22µF;0603≥1µF;0805≥2.2µF; 1206≥10µF;1210≥47µF 10V:0201≥47nF;0402≥0.47µF;0603≥0.47µF;0805≥2.2µF; 1206≥4.7µF;1210≥47µF 6.3V ; 4V ; All X6S/X7S items; Size≥1812 ASC_General Purpose_001AL_AS 1GΩ or RxC≧ 10 Ω-F whichever is smaller. Feb. 2021 Multilayer Ceramic Capacitors Approval Sheet APPENDIXES ◙ Tape & reel dimensions Fig. 2 The dimension of paper tape Fig. 3 The dimension of plastic tape Size 0201 0402 0603 0805 1206 Thickness L N,E S,H,X A,H B,T A0 B0 0.40 +/-0.10 0.70 +/-0.10 0.70 +/-0.20 1.20 +/-0.20 1.05 +/-0.30 1.80 +/-0.30 1.50 +/-0.20 2.30 +/-0.20 1.50 +/-0.20 2.30 +/-0.20 T ≦0.55 ≦0.80 ≦1.20 ≦1.15 ≦1.20 0.23 +/-0.1 D,I < 1.80 < 2.70 B,T 1.90 +/-0.50 3.50 +/-0.50 1210 T C,D G,K 1808 M D,F G,K 1812 C,J,D G,P < 2.00
