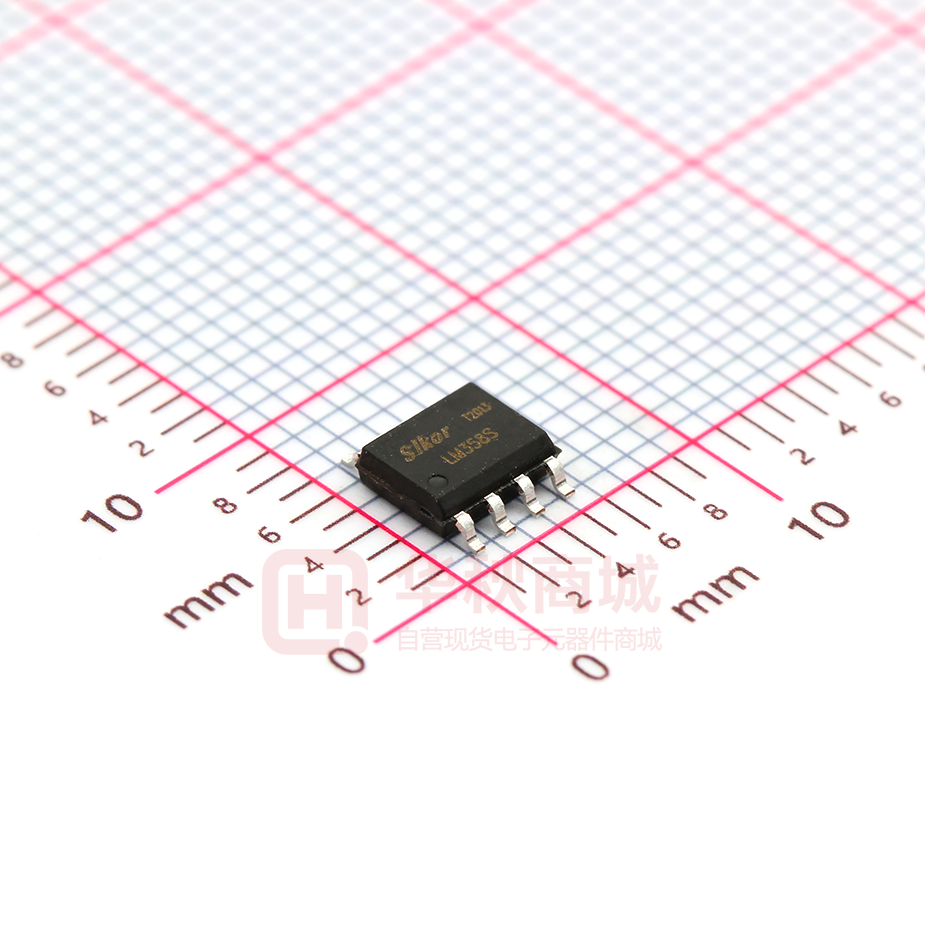

LM358S

LM358 Low Power Dual Operational Amplifier The LM358 contains two independent high gain operational amplifiers with internal frequency compensation. The two op-amps operate over a wide voltage range from a single power supply. Also use a split power supply. The device has low power supply current drain, regardless of the power supply voltage. The low power drain also makes the LM358 a good choice for battery operation. When your project calls for a traditional op-amp function, now you can streamline your design with a simple single power supply. Use ordinary +5VDC common to practically any digital system or personal computer application, without requiring an extra 15V power supply just to have the interface electronics you need. The LM358 is a versatile, rugged workhorse witha thousand-andone uses, from amplifying signals from a variety of transducers to dc gain blocks, or any op-amp function. The attached pages offer some recipes that will have your project cooking in no time. • Internally frequency compensated for unity gain • Large DC voltage gain: 100dB • Wide power supply range: 3V ~ 32V (or ±1.5V ~ ±16V) • Input common-mode voltage range includes ground • Large output voltage swing: 0V DC to VCC-1.5V DC • Power drain suitable for battery operation • Low input offset voltage and offset current • Differential input voltage range equal to the power supply voltage LOGIC DIAGRAM PIN 4 = GND PIN 8=VCC www.slkormicro.com 1 LM358D DIP-8 LM358S SOP-8 PIN ASSIGNMENT LM358 MAXIMUM RATINGS* Symbol VCC Parameter Value Unit 32 ±16 V Power Supply Voltages Single Supply Split Supplies VIDR Input Differential Voltage Range (1) ±32 V VICR Input Common Mode Voltage Range -0.3 to 32 V ISC Output Short Circuit Duration TJ Junction Temperature Continuous Plastic Packages Tstg °C 150 °C Storage Temperature Plastic Packages -55 to +125 IIN Input Current, per pin (2) 50 mA TL Lead Temperature, 1mm from Case for 10 Seconds 260 °C * Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions. +Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C SOP Package : : - 7 mW/°C from 65° to 125°C Notes: 1. Split Power Supplies. 2. VIN
