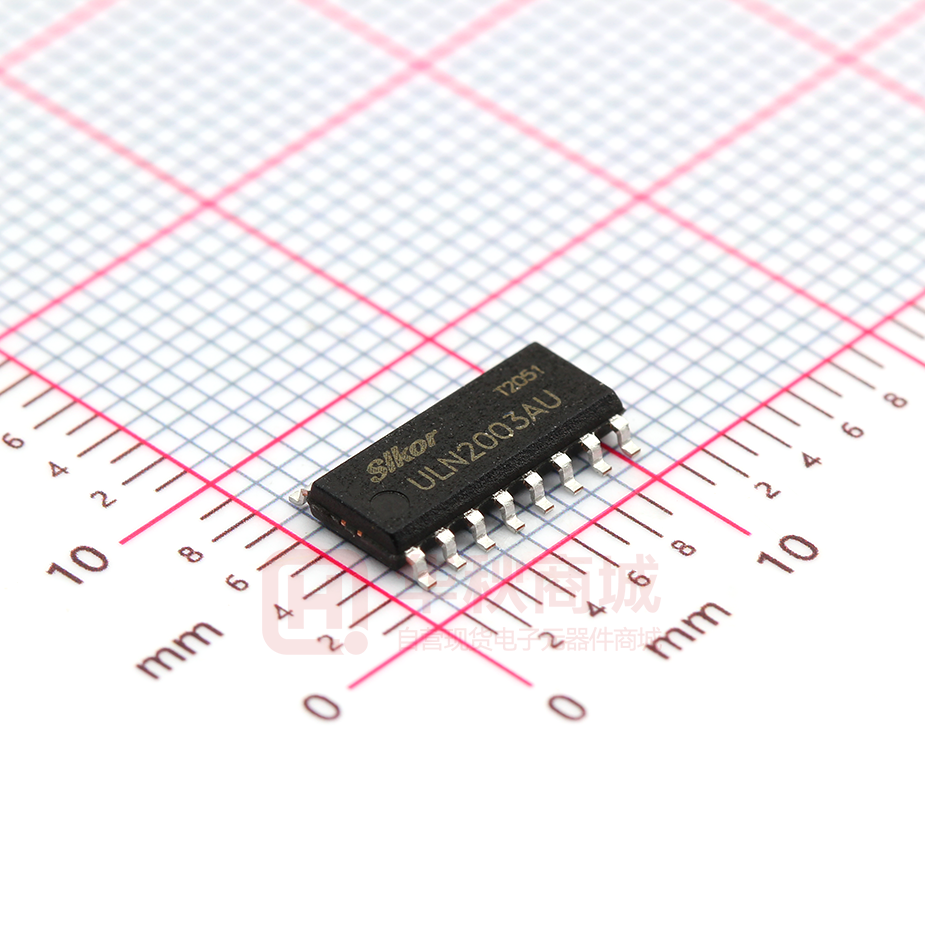

ULN2003AU

ULN2003 HIGH VOLTAGE AND HIGH CURRENT DARLINGTON TRANSISTOR ARRAY DESCRIPTION The ULN2003 is a monolithic high voltage and high current Darlington transistor arrays. It consists of seven NPN darlington pairs that features high-voltage outputs with common-cathode clamp diode for switching inductive loads. The collector-current rating of a single darlington pair is 500mA. The darlington pairs may be ULN2003AE DIP- 16 parrlleled for higher current capability. Applications include relay drivers,hammer drivers, lampdrivers,display drivers(LED gas discharge),line drivers, and logic buffers. The ULN2003 has a 2.7kΩ series base resistor for each darlington pair for operation directly with TTL or 5V CMOS devices. FEATURES ULN2003AU SOP- 16 * 500mA rated collector current(Single output) * High-voltage outputs: 50V * Inputs compatibale with various types of logic. * Relay driver application LOGIC DIAGRAM PAIR) SCHEMATIC(EACH DARLINGTON 1B 1 16 1C 2B 2 15 2C 3B 3 14 3C COM 2.7kO 4B 4 13 4C 5B 5 12 5C 6B 6 11 6C 7B 7 10 7C E 8 9 COM OUPUT C INPUT B 7.2kO www.slkormicro.com 3kO E 1 ULN2003 ABSOLUTE MAXIMUM RATINGS(Ta=25°C) Characteristic Symbol Value Unit VCE 50 V VI 30 V Peak Collector Current Io 500 mA Total Emitter-terminal IOK 500 mA Power Dissipation Pd 950 Tamb=25°C mW 495 Tamb
