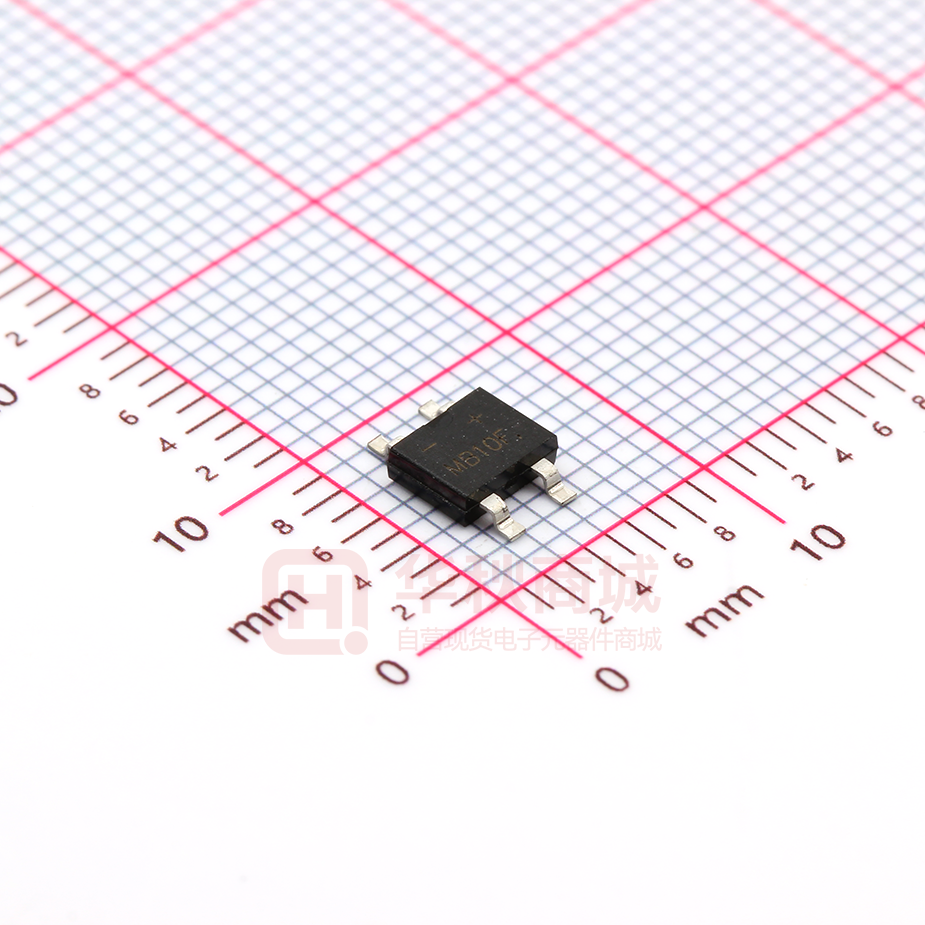

MB10F

MB05F-MB10F PASSIVATED BRIDGE RECTIFIER Features ! ! ! ! ! ! G Glass Passivated Die Construction Low Forward Voltage Drop High Surge Current Capability Designed for Surface Mount Application Plastic Material – UL Flammability 94V-O B - + ~ ~ H D C



















































A MB-F Dim Min Max 4.50 4.95 A 3.60 4.10 B 0.15 0.35 C — 0.20 D 6.40 7.00 E 0.50 1.10 G 1.30 1.70 H 1.20 1.60 J 2.30 2.70 K — 1.80 L All Dimensions in mm L Mechanical Data ! ! ! ! ! ! ! E J Case: MB-F, Molded Plastic Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Polarity: As Marked on Case Weight: 0.134 grams (approx.) Mounting Position: Any Marking: Type Number Lead Free: For RoHS / Lead Free Version, K Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current (Note 1) @TA = 40°C Average Rectified Output Current (Note 2) @TA = 40°C Symbo MB05F MB1F MB2F MB4F MB6F MB8F MB10F Unit VRRM VRWM VR 50 100 200 400 600 800 1000 V VR(RMS) 35 70 140 280 420 560 700 V IO 0.5 0.8 A IFSM 30 A I2 t 5.0 A 2s @IF = 0.5A VFM 1.0 V @TA = 25°C @TA = 125°C IRM 5.0 500 µA Cj 13 pF Typical Thermal Resistance per leg (Note 1) R
JA R
JL 60 16 °C/W Operating and Storage Temperature Range Tj, TSTG -55 to +150 °C Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) I2t Rating for Fusing (t < 8.3ms) Forward Voltage per element Peak Reverse Current At Rated DC Blocking Voltage Typical Junction Capacitance per leg (Note 3) Note: 1. Mounted on glass epoxy PC board with 1.3mm2 solder pad. 2. Mounted on aluminum substrate PC board with 1.3mm2 solder pad. 3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C. www.slkormicro.com 1 0.8 IF, INSTANTANEOUS FORWARD CURRENT (A) I(AV), AVERAGE FORWARD RECTIFIED CURRENT (A) MB05F-MB10F 0.6 Al. Substrate PC Board 0.4 Glass Epoxy PC Board 0.2 0 Resistive or Inductive Load 0 40 80 120 10 1.0 0.1 Tj = 25°C Pulse Width = 300µs 0.01 0.2 160 0.6 0.8 1.0 1.2 1.4 1.6 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics (per leg) TA, AMBIENT TEMPERATURE (°C) Fig. 1 Output Current Derating Curve 35 100 Tj = 25°C f = 1.0MHz 30 Cj, JUNCTION CAPACITANCE (pF) IFSM, PEAK FORWARD SURGE CURRENT (A) 0.4 20 10 TA = 25°C Single Half Sine-Wave Pulse Width = 5.3ms (JEDEC Method) 0 10 1 1.0 1 10 10 VR, REVERSE VOLTAGE (V) Fig. 4 Typical Junction Capacitance IR, INSTANTANEOUS REVERSE CURRENT (µA) NUMBER OF CYCLES AT 60 Hz Fig. 3 Maximum Peak Forward Surge Current (per leg) 100 Tj = 125°C 10 1.0 Tj = 25°C 0.1 0.01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 5 Typical Reverse Characteristics (per element) www.slkormicro.com 2 100
