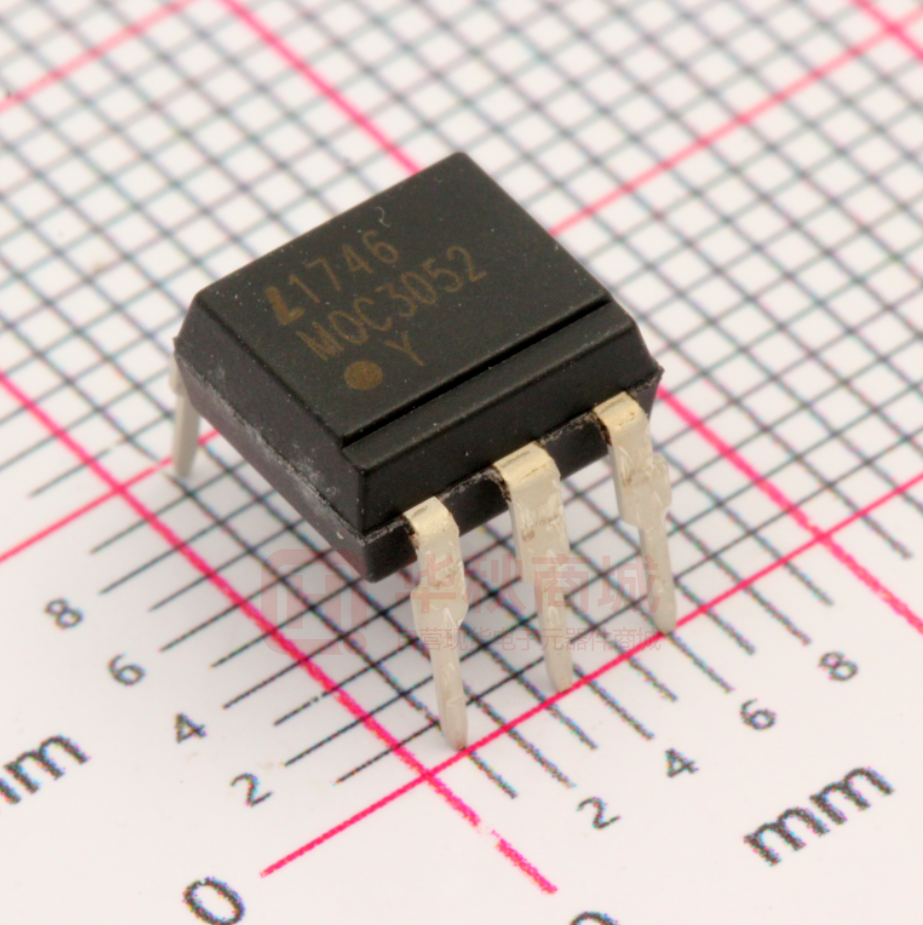

MOC3052

Photocoupler Product Data Sheet MOC3052 SERIES Spec No.: DS70-2001-025 Effective Date: 06/17/2016 Revision: E LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler MOC305X series 1. DESCRIPTION 1.1 Features    Isolation voltage between input and output Viso : 5,000Vrms 6pin DIP photocoupler, triac driver output High repetitive peak off-state voltage VDRM : Min. 600V      High critical rate of rise of off-state voltage( dV/dt : MIN. 1000V / s ) Dual-in-line package : MOC3050, MOC3051, MOC3052, MOC3053 Wide lead spacing package : MOC3050M, MOC3051M, MOC3052M, MOC3053M Surface mounting package : MOC3050S, MOC3051S, MOC3052S, MOC3053S Tape and reel packaging : MOC3050S-TA, MOC3051S-TA, MOC3052S-TA, MOC3053S-TA MOC3050S-TA1, MOC3051S-TA1, MOC3052S-TA1, MOC3053S-TA1 Safety approval UL 1577, Cert. No.E113898  CSA CA5A, Cert. No. 1020087 (CA 91533-1) FIMKO EN/IEC 60950-1, EN/IEC 60065; Cert. No.NCS/FI 24426 M3 VDE DIN EN60747-5-2, Cert. No. 40015248 CQC GB4943.1-2011/ GB8898-2011  RoHS Compliance  All materials be used in device are followed EU RoHS directive (No.2002/95/EC). MSL class1 1.2 Applications         AC Motor Drives AC Motor Starters E.M. Contactors Lighting Controls Solenoid/Valve Controls Solid State Relays Static Power Switches Temperature Controls 1/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 2. PACKAGE DIMENSIONS 2.1 2.3 MOC305X 2.2 MOC305XM MOC305XS Notes : 1. Year date code. 2. 2-digit work week. 3. Factory identification mark shall be marked (W: China-CZ, Y: Thailand) 4. VDE option 5. IFT rank * Dimensions are in Millimeters and (Inches). 2/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 3. TAPING DIMENSIONS 3.1 MOC305XS-TA 3.2 MOC305XS-TA1 Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (0.63) Pitch of sprocket holes P0 4±0.1 (0.15) F 7.5±0.1 (0.295) P2 2±0.1 (0.079) P1 12±0.1 (0.472) Distance of compartment Distance of compartment to compartment 3.3 Quantities Per Reel Package Type MOC305XS series Quantities (pcs) 1000 3/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 4. RATING AND CHARACTERISTICS 4.1 Absolute Maximum Ratings at Ta=25°C Parameter Symbol Rating Unit Forward Current IF 50 mA Reverse Voltage VR 6 V Junction Temperature TJ 125 Power Dissipation P 100 mW VDRM 600 V ITSM 1 A Junction Temperature TJ 125 Collector Power Dissipation PC 300 mW Total Power Dissipation Ptot 330 mW Isolation Voltage Viso 5000 Vrms Operating Temperature Topr -40 ~ +100 o C Storage Temperature Tstg -55 ~ +150 o C 260 o C Input Off-State Output Terminal Voltage o C Peak Repetitive Surge Current Output 1. 2. 1. AC For 1 Minute, ( PW=1ms, 120pps ) Soldering Temperature Tsol o C R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. 2. For 10 Seconds 4/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 4.2 ELECTRICAL OPTICAL CHARACTERISTICS at Ta=25°C Parameter Symbol Min. Typ. Max. Unit Test Condition Forward Voltage VF — 1.15 1.5 V IF=20mA Reverse Current IR — 0.05 10 A VR=6V IDRM — 10 100 nA VDRM = 600V VTM — 1.7 3.0 V ITM=100 mA Peak dv/dt 1000 — — V/s — — 30 — — 15 Input Peak Blocking Current, Either 1 Direction Peak On-State Voltage, Either Output Direction Critical rate of Rise of 2 Vin=240Vrms Off-State Voltage 3 Couple Led Trigger MOC3050 Current, Current MOC3051 IFT Main Terminal mA Required to MOC3052 — — 10 Latch Output, MOC3053 — — 5 — 200 — Voltage = 3V Either Direction Holding Current, Either IH A Direction *1. Test voltage must be applied within dv/dt rating. *2. This is static dv/dt. Commutating dv/dt is a function of the load-driving thyristor(s) only. *3. All devices are guaranteed to trigger at an I F value less than or equal to max IFT. Therefore, recommended operating IF lies between max IFT, 30 mA for MOC3050, 15 mA for MOC3051, 10 mA for MOC3052, 5 mA for MOC3053, and absolute max IF (50mA) 5/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 5. CHARACTERISTICS CURVES (TYPICAL PERFORMANCE) F ig .1 F o rw a rd C u rre n t vs. F ig .2 O n -sta te C u rre n t vs. A m b ie n t A m b ie n t T e m p e ra tu re T e m p e ra tu re 50 ITM , o n-state c urrent (A) Fo rw ard c urrent I F (m A) 60 40 30 20 10 0 -40 -20 0 20 40 60 0.10 0.05 0 -40 -20 80 100 120 o 0 20 40 60 80 100 120 o Am b ient tem p erature Ta ( C ) Am b ient tem p erature Ta ( C ) F ig .3 M in im u m T rig g e r C u rre n t F ig .4 F o rw a rd C u rre n t vs. F o rw a rd vs. A m b ie n t T e m p e ra tu re V o lta g e 10 100 M inim um trig g er c urrent IFT (m A) VP = 6V R L = 100 Fo rw ard c urrent IF (m A) 8 6 4 2 0 o o 60 C o 40 C o 20 C 80 C o 100 C 10 1 20 40 60 80 100 0.4 o 0.8 1.2 1.6 F ig .5 O n -sta te V o lta g e vs. A m b ie n t F ig .6 H o ld in g C u rre n t vs. T e m p e ra tu re A m b ie n t T e m p e ra tu re 3.0 1 IT= 100m A 2.6 VP = 6V H o ld ing c urrent IH (m A) O n-state vo ltag e VT (V) 2.0 Fo rw ard vo ltag e VF (V) Am b ient tem p erature ( C ) 2.2 1.8 1.4 1.0 0.1 0.01 20 40 60 80 100 20 40 o Am b ient tem p erature Ta ( C ) 60 80 100 o Am b ient Tem p erature Ta ( C ) 6/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 7/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 6. TEMPERATURE PROFILE OF SOLDERING 6.1 IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (TSmin) 150˚C - Temperature Max (TSmax) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL) 217˚C - Time (tL) 60 sec Peak Temperature (TP) 260˚C 3˚C / sec max. Ramp-up rate 3~6˚C / sec Ramp-down rate 2 0 se c T e m p e ra tu re ( C ) R a m p -u p TP 260 C TL 217 C R a m p -d o w n T sm a x 2 0 0 C 6 0 se c T sm in 150 C tL (S o ld e rin g ) 25 C 6 0 ~ 1 2 0 se c 3 5 ~ 7 0 se c T im e (s e c) ts (P re h e a t) 8/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 6.2 Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature: 260+0/-5˚C Time: 10 sec. Preheat temperature:25 to 140˚C Preheat time: 30 to 80 sec. 6.3 Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Temperature: 380+0/-5˚C Time: 3 sec max. 9/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 7. RRECOMMENDED FOOT PRINT PATTERNS (MOUNT PAD) Unit: mm 10/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : - Photocoupler MOC305X series 8. NAMING RULE MOC305(X)(1)-(2) DEVICE PART NUMBER (MOC305X) Please refer to Electrical Optical Characteristics Table on Page P5 (1) FORM TYPE (S, M or none) (2) TAPING TYPE (TA, TA1) Example : MOC3051S-TA1 MOC305(X)(1)(2)-V DEVICE PART NUMBER (MOC305X) Please refer to Electrical Optical Characteristics Table on Page P5 (1) FORM TYPE (S, M or none) (2) TAPING TYPE (TA, TA1) (3) VDE option Example : MOC3051STA1-V 9. NOTES  LiteOn is continually improving the quality, reliability, function or design and LiteOn reserves the right to make changes without further notices.  The products shown in this publication are designed for the general use in electronic applications such as office automation equipment, communications devices, audio/visual equipment, electrical application and instrumentation.  For equipment/devices where high reliability or safety is required, such as space applications, nuclear power control equipment, medical equipment, etc, please contact our sales representatives.  When requiring a device for any ”specific” application, please contact our sales in advice.  If there are any questions about the contents of this publication, please contact us at your convenience.  The contents described herein are subject to change without prior notice.  Immerge unit’s body in solder paste is not recommended. 11/11 Part No. : MOC305X Series BNS-OD-FC002/A4 Rev. : -
