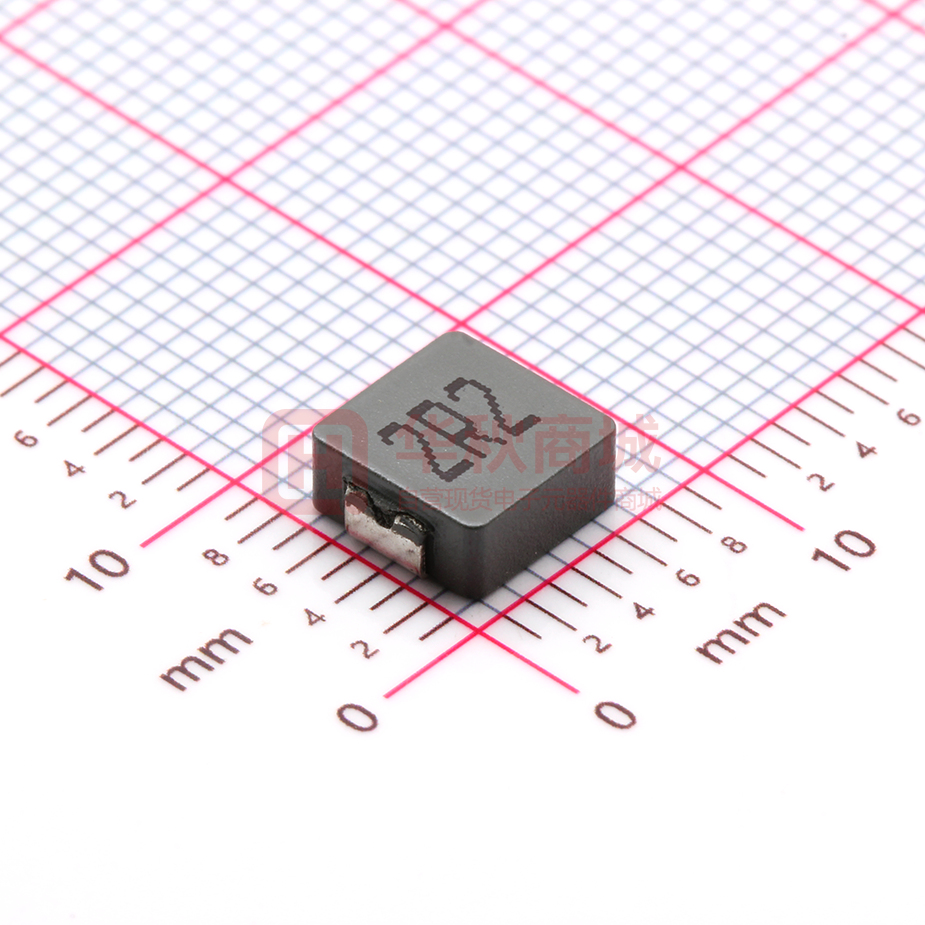

MHCB06030-2R2M-C1

Form No.: QF-1274 Edition: 2 RoHS & Halogen Free & REACH Compliance. SPECIFICATION FOR APPROVAL 各廠家 Customer： ： Customer P/N: Drawing No： ： Quantity： ： 0 Pcs. Chilisin P/N： ： Date : 2019/02/25 MHCB06030-R22M-C1 SPECIFICATION ACCEPTED BY: COMPONENT ENGINEER ELECTRICAL ENGINEER MECHANICAL ENGINEER APPROVED REJECTED 東莞奇力新電子( 東莞奇力新電子(東莞廠) 東莞廠)有限公司 奇力新電子股份有限公司 Chilisin Electronics (Dongguan) Co., Ltd. No. 78, Puxing Rd., Yuliangwei Administration Area, Qingxi Town, Dongguan City, Guangdong,China TEL +86-769-8773-0251~3 FAX +86-769-8773-0232 E-mail cect@chilisin.com Chilisin Electronics Corp No. 29, Alley 301, Tehhsin Rd., Hukou,Hsinchu 303, Taiwan TEL +886-3- 599-2646 FAX +886-3- 599-9176 E-mail sales@chilisin.com http //www.chilisin.com ： ： ： ： ： ： ： 奇力新電子( 奇力新電子(越南廠) 越南廠)有限公司 奇力新電子( 奇力新電子(湖南廠) 湖南廠)有限公司 Chilisin Electronics (Vietnam) Limited No 143 - 145, Road No 10, VSIP Hai Phong, Lap Le Commune, Thuy Nguyen Dist, Haiphong City, Vietnam Tel 84-316 255 688 Fax 84-316 255 689 E-mail sales@chilisin.com ： ： Drawn by 鍾瑞民 jacky.chung ： HuNan Chilisin Electronics Technology Co., Ltd No. 8, Shaziao Liangshuijing Town, Yuanling County, Huaihua City, Hunan Province 419601, China Tel 86-745-867-5882 E-mail cect@chilisin.com ： ： Checked by 吳韋邑 wayne.wu Approved by 鍾瑞民 jacky.chung YG19200862 MHCB06030 Series Specification 1 Scope: This specification applies to large current and low loss SMD shielding power inductor. 2 Part Numbering: 3 Rating: Operating Temperature: －５５℃ ~ １２５℃(Including self - temperature rise) Storage Temperature: (on tape & reel): -20°C to +40°C; 75% RH max. 4 Marking: 5 Standard Testing Condition Temperature Humidity Unless otherwise specified Ordinary Temperature(15 to 35 ) Ordinary Humidity(25 to 85% RH) ℃ In case of doubt 20 to 30 50 to 80 %RH ℃ MHCB06030 Series Specification 6 Configuration and Dimensions: 7 Electrical Characteristics: Inductance (uH) Tolerance (±%) Test Freq. Irms(A) Typ. Isat(A) Typ. RDC(mΩ) Max. Marking MHCB06030-R10M-C1 0.1 20 100kHz,0.5V 32.5 60 1.7(1.5typ) R10 MHCB06030-R22M-C1 0.22 20 100kHz,0.5V 23 40 2.8(2.5typ) R22 MHCB06030-R33M-C1 0.33 20 100kHz,0.5V 20 30 3.9(3.5typ) R33 MHCB06030-R47M-C1 0.47 20 100kHz,0.5V 17.5 26 4.2(4.0typ) R47 MHCB06030-R68M-C1 0.68 20 100kHz,0.5V 15.5 25 5.5(5.0typ) R68 MHCB06030-R82M-C1 0.82 20 100kHz,0.5V 13 24 8.0(6.7typ) R82 MHCB06030-1R0M-C1 1 20 100kHz,0.5V 11 22 10(9.0typ) 1R0 MHCB06030-1R5M-C1 1.5 20 100kHz,0.5V 9 18 15(14typ) 1R5 MHCB06030-2R2M-C1 2.2 20 100kHz,0.5V 8 14 20(18typ) 2R2 MHCB06030-3R3M-C1 3.3 20 100kHz,0.5V 6 13.5 30(28typ) 3R3 MHCB06030-4R7M-C1 4.7 20 100kHz,0.5V 5.5 10 40(37typ) 4R7 MHCB06030-6R8M-C1 6.8 20 100kHz,0.5V 4.5 8 60(54typ) 6R8 MHCB06030-100M-C1 10 20 100kHz,0.5V 3 7 102(85typ) 100 Part No. Note: ℃~125℃(Including self - temperature rise) 1.Operating temperature range -55 2.Isat for Inductance drop 20% from its value without current. ℃ temperature rise from 25℃ ambient. 3.Irms for a 40 4.The part temperature (ambient + temp rise) should not exceed 125°C under worst case operating conditions. Circuit design 125°C under worst case operating conditions. Component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application. 5.Absolute maximum voltage 30VDC MHCB06030 Series Specification 8 MHCB06030 Series 8.1 Construction: 8.2 Material List: MHCB06030 Series Specification 9 Packaging: 9.1 Packaging -Cover Tape The force for tearing off cover tape is 10 to 130 grams in the arrow direction. 9.2 Packaging Quantity 9.3 Reel Dimensions MHCB06030 Series Specification 9 Packaging: 9.4 Tape Dimensions in mm 10 Recommended Land Pattern: 11 Note: 1. Please make sure that your product has been evaluated and confirmed against your specifications when our product is mounted to your product. 2. Do not knock nor drop. 3. All the items and parameters in this product specification have been prescribed on the premise that our product is used for the purpose,under the condition and in the environment agreed upon between you and us. You are requested not to use our product deviating from such agreement. 4. Please keep the distance between transformer/coil and other components (refer to the standard IEC 950) 5. The moisture sensitivity level (MSL) of products is classified as level 1. MHCB06030 Series Specification 12 Graph: MHCB06030-R22M-C1
