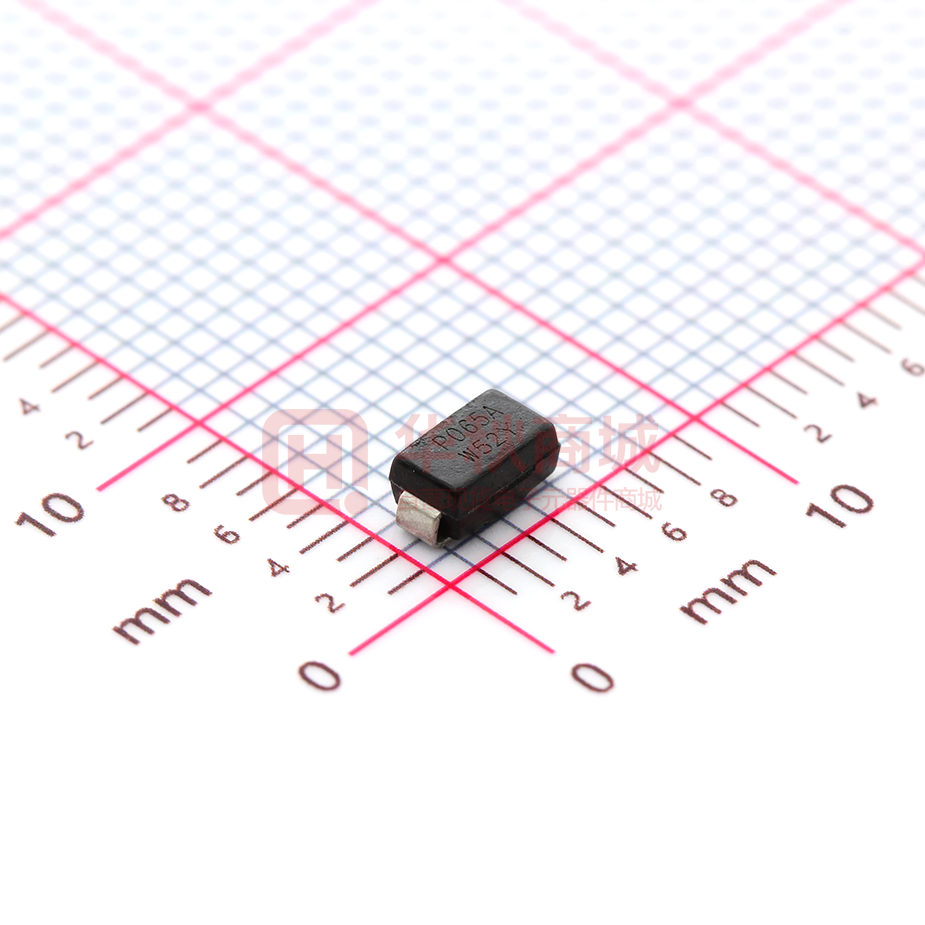

WP61065A

WP61065A

  • 厂商:

    WPMTEK(维攀微)

  • 封装:

    SMA(DO-214AC)

  • 描述:

    高性能浪涌和ESD保护装置 SMA-J VDRM=8V VT=4V IT=2.2A

  • 数据手册
  • 价格&库存
WP61065A 数据手册
WP61065x High Property Device for Surge & ESD Protection WP61065x High Property Device for Surge & ESD Protection High Property Device for Surge & ESD Protection This device has been especially designed to protect 1 low voltage or signal line, as well as classical RS-485 interface, against transient over-voltages. ESD-voltages are clamped by 2 TVS diodes. Surges are suppressed by 2 thyristors, their breakdown voltage close to 8V,then their leakage current as low as 1uA. This devices are not subject to ageing and provide a fail safe mode in short circuit for a better protection. WPM are used to help equipment to meet various standards such as UL1950, IEC950 / CSA C22.2, UL1459 and FCC part68. Features  Integrated the two TVS diodes and two thyristor  Accurate voltage of protection  Low switching voltages: VBR  Low leakage current: IR = 5 uA max  High Peak pulse current  Solid-state silicon technology  Meets MSL 1 Requirements  ROHS compliant  WeiPan technology SMA-J SMB Main applications  RS-485 interface  Telecommunications infrastructure  PBX's and other switches  Set-top box  Ammeter Pin 1 Control Circuit Protection solution to meet  TIA-968-A/TIA-968-B  ITU K.20/21 Enhanced Level*/Basic Level  GR 1089 Inter-building*/Intra-building  IEC 61000-4-5  IEC61000-4-2  YD/T 1082  YD/T 993  YD/T 950 Control Circuit Ordering Information Device Qty per Reel Reel Size WP61065A 5000 13 Inch WP61065B 2500 13 Inch !"#$%&'()*+,-. ! "! !!!"!#$%&'"()$ WP61065x High Property Device for Surge & ESD Protection Maximum ratings (Tamb=25℃ Unless Otherwise Specified) Parameter Symbol Value Unit Non-repetitive peak on-state current: WP61065A 45 10/1000 us (Telcordia(Bellcore)Gr-1089-CORE.Issue 2.February 1999,Section4) IPPSM 5/320 us (ITU-T K.20, K.21& K.45, K.44 open-circuit voltage wave shape 10/700us) A 60 1.2/50 us (Telcordia(Bellcore)Gr-1089-CORE.Issue 2.February 1999,Section4) 60 2/10 us (Telcordia(Bellcore)Gr-1089-CORE.Issue 2.February 1999,Section4) 80 Non-repetitive peak on-state current: WP61065B 65 10/1000 us (Telcordia(Bellcore)Gr-1089-CORE.Issue 2.February 1999,Section4) IPPSM 5/320 us (ITU-T K.20, K.21& K.45, K.44 open-circuit voltage wave shape 10/700us) A 100 1.2/50 us (Telcordia(Bellcore)Gr-1089-CORE.Issue 2.February 1999,Section4) 150 2/10 us (Telcordia(Bellcore)Gr-1089-CORE.Issue 2.February 1999,Section4) 150 Lead Soldering Temperature TL 260 (10 sec.) ℃ Operating Temperature Range TJ -40 ~ 85 ℃ TSTG -55 ~ 150 ℃ TL 260 ℃ RθJA 100 ℃/W Storage Temperature Range Lead Solder Temperature − Maximum (10 Second Duration) Junction To ambient Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected. Electrical characteristics ( Tamb=25℃ Unless Otherwise Specified) Parameter Symbol Value Min. Typ. Max. Unit Repetitive peak off-state voltage, WP61065A VDRM ±8 WP61065B V ±8 Reverse Leakage Current, VR=6.5V WP61065A IR ±2 WP61065B uA ±5 Reverse Breakdown Voltage, IR=1mA WP61065A VBR WP61065B ±8.7 V ±8.7 Impulse breakover voltage, dv/dt ≤ ±100 V/μs, Linear voltage ramp, WP61065A VBO WP61065B ±16 V ±14 On-state voltage, T = ±2.2 A, t w = 100 μs WP61065A VT WP61065B ±4 V ±4 Off-state capacitance, f =1 MHz, Vd =0.3V rms, VDC =0V WP61065A WP61065B !"#$%&'()*+,-. -2- Coff 55 pF 110 !!!"!#$%&'"()$ WP61065x High Property Device for Surge & ESD Protection Package Information SMA-J Mechanical Data  Case: SMA-J  Case Material: Molded Plastic. UL Flammability A B MARKING WPM Millimeters Inches DIM Max Min Max A 3.90 4.40 0.154 0.173 B 2.45 2.76 0.096 0.109 C Min H D F E C 1.45 1.95 0.057 0.077 D 0.150 0.203 0.006 0.008 E 0.76 1.52 0.030 0.060 F 4.06 6.26 0.160 0.246 H 1.90 2.40 0.075 0.094 SMA-J Recommended Pad outline 1.67 1.47 3.93 3.73 2.38 2.18 5.49 5.29 SMA-J Reel Dim E P0 K P2 D T B0 B1 W F D1 A0 K0 P1 Chip Size Package Pocket Size Tape Quantity Reel Diameter P0 P1 4mm 4mm (mm) B0×A0×K0(mm) Width SMA-J 5.0×2.50×2.00 5.10×2.60×2.10 12mm 330mm(13inch) 5000 D D1 E F K T W 1.5mm 1.0mm 1.75mm 3.5mm 2.45mm 0.5mm 12mm !"#$%&'()*+,-. -3- Per Reel !!!"!#$%&'"()$ WP61065x High Property Device for Surge & ESD Protection Package Information SMB Mechanical Data  Case: SMB  Case Material: Molded Plastic. UL Flammability C Millimeters B G D F G Inches DIM A MARKING WPM E B Min Nom Max Min Nom Max A 3.30 3.60 3.94 0.130 0.142 0.155 B 1.80 2.00 2.21 0.071 0.079 0.087 C 4.05 4.45 5.30 0.159 0.175 0.209 D 0.051 0.20 0.203 0.002 0.007 0.008 E 0.76 1.14 1.52 0.030 0.045 0.060 F 5.08 5.25 5.59 0.200 0.207 0.220 G 2.05 2.30 2.45 0.081 0.091 0.096 SMB Recommended Pad outline SMB Reel Dim E P0 K P2 D T B0 B1 W F D1 A0 K0 P1 Chip Size Package Pocket Size Tape Quantity Per Reel Diameter P0 P1 4mm 8mm (mm) B0×A0×K0(mm) Width SMB 5.50×3.80×2.40 5.70×4.00×2.70 12mm 330mm(13inch) 2500 D D1 E F K T W 1.5mm 1.0mm 1.75mm 5.5mm 2.5mm 0.5mm 12mm !"#$%&'()*+,-. -4- Reel !!!"!#$%&'"()$ WP61065x High Property Device for Surge & ESD Protection Contact Information WPMTEK Incorporated Limited Room 207,2nd Floor,Block 3,Minxing lndustry Park,Minzhi Longhua New District,Shenzhen TEL:86755-29308003 !"#$%&'()*+,-. FAX:86755-23739900 !5! !!!"!#$%&'"()$
