WPEXX91WP6
1-Line Uni-directional TVS Diode
Integrated in
OVP&OCP products
provider
Description
Mechanical Characteristics
The WPEXX91WP6 is an uni-directional TVS diode,
n

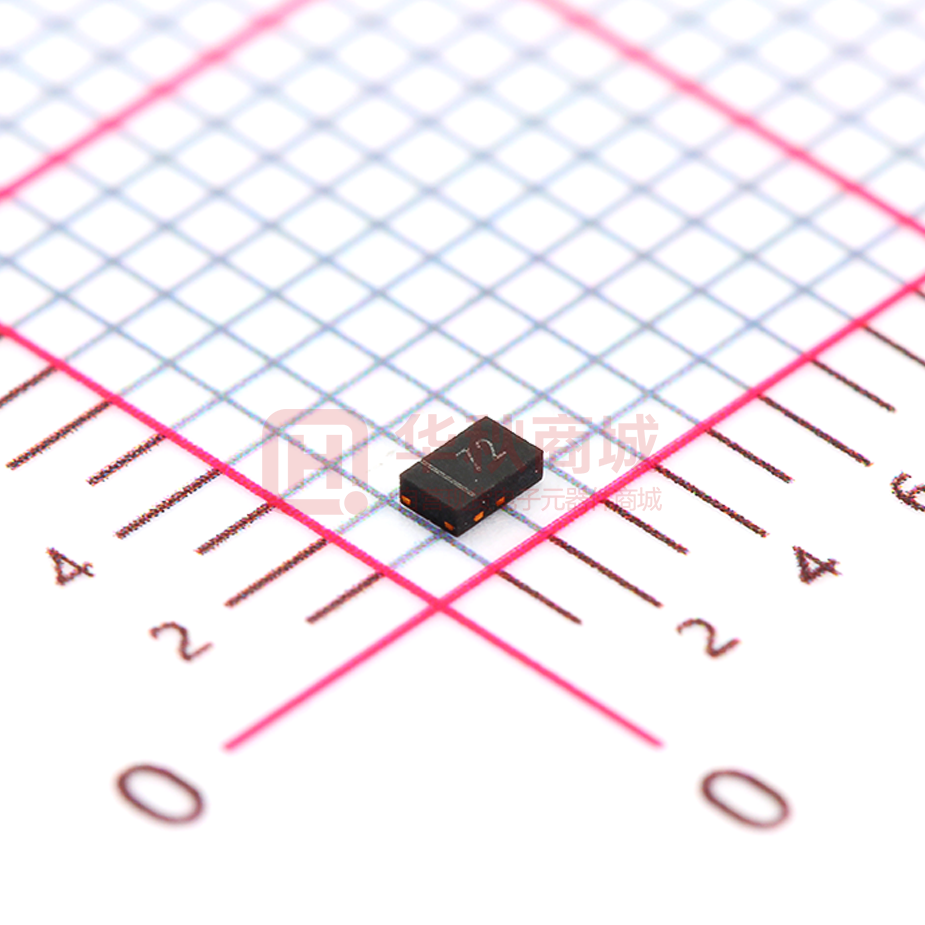

Package: DFN1610-2
utilizing leading monolithic silicon technology to provide
n
Lead Finish: Matte Tin
fast re-sponse time and low ESD clamping voltage,
n
Case Material: “Green” Molding Compound.
making this device an ideal solution for protecting
n
Moisture Sensitivity: Level 3 per J-STD-020
voltage
The
n
Terminal Connections: See Diagram Below
WPEXX91WP6 complies with the IEC 61000-4-2 (ESD)
n
Marking Information: See Below
sensitive
data
and
power
line.
standard with ±30kV air and ±30kV contact discharge. It
is
assembled
into
an
ultra-small
1.6x1.0x0.5mm
lead-free DFN package. The small size and high ESD
Applications
surge protection make WPEXX91WP6 an ideal choice
to protect cell phone, digital cameras, audio play-ers
and many other portable applications.
Features
n
Small package: 1.6x1.0x0.5mm
n
Protects one data or power line
n
Working Voltage: 3.3V, 5V, 7V, 12V, 15V, 18V, 24V,
n
Mobile Phones and Accessories
n
Battery Protection
n
USB VBus
n
Power Line Protection
n
Hand Held Portable Applications
Marking Information
36V
n
High peak pulse current capability
n
2-pin leadless package
n
Complies with following standards:
– IEC 61000-4-2 (ESD) immunity test
Bar denotes cathode
Air discharge: ±30kV
Details marking code reference customer approval list
Contact discharge: ±30kV
– IEC61000-4-5 (Lightning) 20A - 90A (8/20μs)
n
Ordering Information
RoHS Compliant
Part Number
WPE3391WP6
WPE0591WP6
WPE0791WP6
WPE0991WP6
WPE1291WP6
WPE1591WP6
WPE1891WP6
WPE2491WP6
WPE3691WP6
Dimensions & Symbol(Unit: mm Max)
Rev.A_July,2018
-1-
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
Reel Size
7 inch
7 inch
7 inch
7 inch
7 inch
7 inch
7 inch
7 inch
7 inch
www.wpmtek.com
WPEXX91WP6
1-Line Uni-directional TVS Diode
Integrated in
OVP&OCP products
provider
Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter
Symbol
Value
Unit
Ppk
1875
W
Peak Pulse Power (8/20µs)
ESD per IEC 61000−4−2 (Air)
±30
VESD
ESD per IEC 61000−4−2 (Contact)
Operating Temperature Range
Storage Temperature Range
kV
±30
TJ
−55 to +125
°C
Tstg
−55 to +150
°C
Electrical Characteristics (TA=25°C unless otherwise specified)
WPE3391WP6
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
Max
Unit
3.3
V
3.5
Test Condition
V
IT = 1mA
1.0
μA
VRWM = 3.3V
1.2
V
IF = 10mA
Reverse Leakage Current
IR
Forward Voltage
VF
Peak Pulse Current
IPP
90
A
tp = 8/20µs
Clamping Voltage
VC
5.5
V
IPP = 10A (8 x 20µs pulse)
Clamping Voltage
VC
12.5
V
IPP = 150A (8 x 20µs pulse)
Junction Capacitance
CJ
750
pF
VR = 0V, f = 1MHz
Max
Unit
5
V
1.0
WPE0591WP6
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
6
Test Condition
V
IT = 1mA
1.0
μA
VRWM = 5V
1.2
V
IF = 10mA
Reverse Leakage Current
IR
Forward Voltage
VF
Peak Pulse Current
IPP
125
A
tp = 8/20µs
Clamping Voltage
VC
9
V
IPP = 10A (8 x 20µs pulse)
Clamping Voltage
VC
15
V
IPP = 125A (8 x 20µs pulse)
Junction Capacitance
CJ
650
pF
VR = 0V, f = 1MHz
Rev.A_July,2018
1.0
-2-
www.wpmtek.com
WPEXX91WP6
1-Line Uni-directional TVS Diode
Integrated in
OVP&OCP products
provider
WPE0791WP6
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
Max
Unit
7
V
7.5
Test Condition
V
IT = 1mA
0.5
μA
VRWM = 7V
1.2
V
IF = 10mA
Reverse Leakage Current
IR
Forward Voltage
VF
Peak Pulse Current
IPP
115
A
tp = 8/20µs
Clamping Voltage
VC
12
V
IPP = 10A (8 x 20µs pulse)
Clamping Voltage
VC
16.5
V
IPP = 115A (8 x 20µs pulse)
Junction Capacitance
CJ
550
pF
VR = 0V, f = 1MHz
Max
Unit
Test Condition
9
V
1.0
WPE0991WP6
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
10
V
IT = 1mA
0.5
μA
VRWM = 9V
1.2
V
IF = 10mA
Reverse Leakage Current
IR
Forward Voltage
VF
Peak Pulse Current
IPP
90
A
tp = 8/20µs
Clamping Voltage
VC
15
V
IPP = 10A (8 x 20µs pulse)
Clamping Voltage
VC
23
V
IPP = 90A (8 x 20µs pulse)
Junction Capacitance
CJ
525
pF
VR = 0V, f = 1MHz
Max
Unit
12
V
1.0
WPE1291WP6
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
12.6
Test Condition
V
IT = 1mA
Reverse Leakage Current
IR
0.1
μA
VRWM = 12V
Forward Voltage
VF
1.2
V
IF = 10mA
Peak Pulse Current
IPP
75
A
tp = 8/20µs
Clamping Voltage
VC
18
V
IPP = 10A (8 x 20µs pulse)
Clamping Voltage
VC
25
V
IPP = 75A (8 x 20µs pulse)
Junction Capacitance
CJ
500
pF
VR = 0V, f = 1MHz
Rev.A_July,2018
-3-
www.wpmtek.com
WPEXX91WP6
1-Line Uni-directional TVS Diode
Integrated in
OVP&OCP products
provider
WPE1591WP6
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
Max
Unit
15
V
16.5
Test Condition
V
IT = 1mA
Reverse Leakage Current
IR
0.1
μA
VRWM = 15V
Forward Voltage
VF
1.2
V
IF = 10mA
Peak Pulse Current
IPP
60
A
tp = 8/20µs
Clamping Voltage
VC
22
V
IPP = 10A (8 x 20µs pulse)
Clamping Voltage
VC
31.25
V
IPP = 60A (8 x 20µs pulse)
Junction Capacitance
CJ
450
pF
VR = 0V, f = 1MHz
Max
Unit
Test Condition
18
V
WPE1891WP6
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
19.6
V
IT = 1mA
0.1
μA
VRWM = 18V
1.2
V
IF = 10mA
Reverse Leakage Current
IR
Forward Voltage
VF
Peak Pulse Current
IPP
50
A
tp = 8/20µs
Clamping Voltage
VC
26
V
IPP = 10A (8 x 20µs pulse)
Clamping Voltage
VC
37.5
V
IPP = 50A (8 x 20µs pulse)
Junction Capacitance
CJ
350
pF
VR = 0V, f = 1MHz
Max
Unit
24
V
1.0
WPE2491WP6
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
26.7
Test Condition
V
IT = 1mA
Reverse Leakage Current
IR
0.1
μA
VRWM = 24V
Forward Voltage
VF
1.2
V
IF = 10mA
Peak Pulse Current
IPP
35
A
tp = 8/20µs
Clamping Voltage
VC
42
V
IPP = 10A (8 x 20µs pulse)
Clamping Voltage
VC
53.5
V
IPP = 35A (8 x 20µs pulse)
Junction Capacitance
CJ
200
pF
VR = 0V, f = 1MHz
Rev.A_July,2018
-4-
www.wpmtek.com
WPEXX91WP6
1-Line Uni-directional TVS Diode
Integrated in
OVP&OCP products
provider
WPE3691WP6
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
Max
Unit
36
V
37
Test Condition
V
IT = 1mA
Reverse Leakage Current
IR
0.1
μA
VRWM = 36V
Forward Voltage
VF
1.2
V
IF = 10mA
Peak Pulse Current
IPP
25
A
tp = 8/20µs
Clamping Voltage
VC
60
V
IPP = 10A (8 x 20µs pulse)
Clamping Voltage
VC
75
V
IPP = 25A (8 x 20µs pulse)
Junction Capacitance
CJ
150
pF
VR = 0V, f = 1MHz
Typical Performance Characteristics (TA=25°C unless otherwise Specified)
Rev.A_July,2018
-5-
www.wpmtek.com
WPEXX91WP6
1-Line Uni-directional TVS Diode
Integrated in
OVP&OCP products
provider
Soldering Parameters
Reflow Condition
Pre Heat
Pb-Free assembly
-Temperature Min (Ts(min))
+150℃
-Temperature Max(Ts(max))
+200℃
-Time (Min to Max) (ts)
60-180 secs.
Average ramp up rate (Liquid us Temp (TL) to peak)
3℃/sec. Max
Ts(max) to TL - Ramp-up Rate
3℃/sec. Max
Reflow
-Temperature(TL) (Liquid us)
+217℃
-Temperature(tL)
60-150 secs.
Peak Temp (Tp)
+260(+0/-5)℃
Time within 5℃ of actual Peak Temp (tp)
30 secs. Max
Ramp-down Rate
6℃/sec. Max
Time 25℃ to Peak Temp (TP)
8 min. Max
Do not exceed
+260℃
Rev.A_July,2018
-6-
www.wpmtek.com
WPEXX91WP6
1-Line Uni-directional TVS Diode
Integrated in
OVP&OCP products
provider
Package Mechanical Data
Suggested Land Pattern
Contact information
WPMTEK Incorporated Limited
Room 207,2nd Floor,Block 3,Minxing lndustry Park,Minzhi
Longhua New District,Shenzhen
TEL:86755-29308003
FAX:86755-23739900
wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM
makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability
arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special,
consequential or incidental damages.
Rev.A_July,2018
-7-
www.wpmtek.com
