1SS181

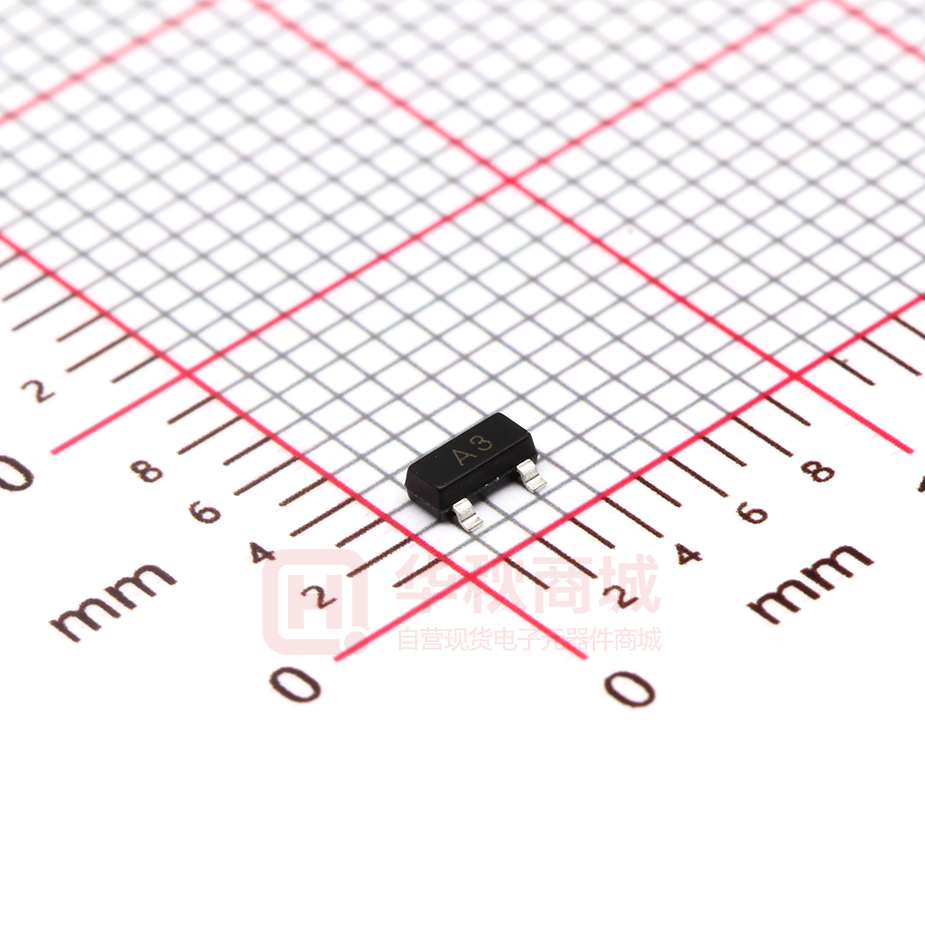

1SS181 SOT-23 FEATURES y Low forward voltage : VF(3)=0.92V(typ.) y Fast reverse recovery time : trr=1.6ns(typ.) MARKING: A3 1. CATHODE 2. CATHODE 3. ANODE Maximum Ratings @TA=25℃ Parameter Symbol Limits Unit Non-Repetitive Peak reverse voltage VRM 85 V DC Blocking VR 80 V Forward Continuous Current IFM 300 mA Average Rectified Output Current IO 100 mA Power Dissipation PD 150 mW Junction temperature TJ 125 ℃ TSTG -55-125 ℃ Voltage Storage temperature range Electrical Characteristics @TA=25℃ Parameter Reverse Breakdown Voltage Forward voltage Reverse current Symbol Min. V (BR)R 80 Typ. Max. Unit Conditions V IR=100μA VF1 0.61 V IF=1mA VF2 0.74 V IF=10mA VF3 0.92 1.2 V IF=100mA IR1 0.1 uA VR=30V IR2 0.5 uA VR=80V Capacitance between terminals CT 2.2 4.0 pF VR=0,f=1MHz Reverse recovery time t rr 1.6 4.0 ns IF=IR=10mA,Irr=0.1×IR www.slkormicro.com 1 1SS181 www.slkormicro.com 2
