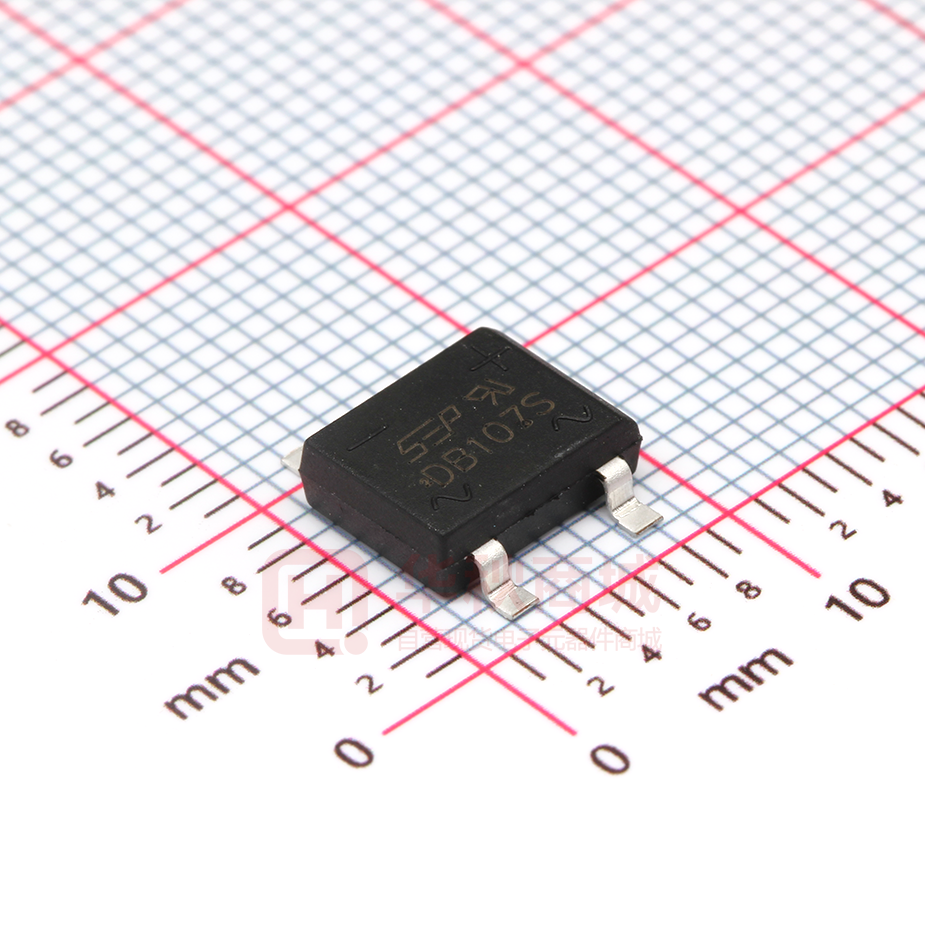

DB101S-DB107S
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS
REVERSE VOLTAGE - 50 to 1000Volts
FORWARD CURRENT - 1.0Amperes
.047(1.2)
.037(0.95)
.307(7.8)
FEATURES
-
●Rating to 1000V PRV
●Ideal for printed circuit board
+
.256(6.5)
.244(6.2)
~
~
●Low forward voltage drop,high current capability
.291(7.4)
.406(10.3)
.391(10.0)
●Reliable low cost construction utilizing molded plastic
.140(0.35)
.008(0.2)
technique results in inexpensive product
●Lead tin Pb/Sn copper
.346(8.8)
.323(8.2)
●The plastic material has UL flammability
.102(2.6)
.087(2.2)
classification 94V-0
MECHANICAL DATA
.205(5.2)
.197(5.0)
●Polarit:As marked on Body
●Weight:0.02 ounces,0.38 grams
Dimensions in inches and (millimeters)
●Mounting position:Any
Pakage:DBS
MAXIMUM RATINGS AND
ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
SYMBOL DB101S DB102S DB103S DB104S DB105S DB106S DB107S
Maximum Recurrent Peak Reverse Voltage
VRRM
50
Maximum RMS Voltage
VRMS
Maximum DC Blocking Voltage
VDC
Maximum Average Forward
Rectified Current
@T A=40℃
100
200
400
600
800
35
70
140
280
420
50
100
200
400
600
UNIT
1000
V
560
700
V
800
1000
V
I(AV)
1.0
A
IFSM
50
A
VF
1.1
V
Peak Forward Surage Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load (JEDEC Method)
Maximum Forward Voltage at 1.0A DC
Maximum DC Reverse Current
@TJ=25℃
at Rated DC Bolcking Voltage
@TJ=125℃
10
IR
500
uA
I2t Rating for Fusing (t
