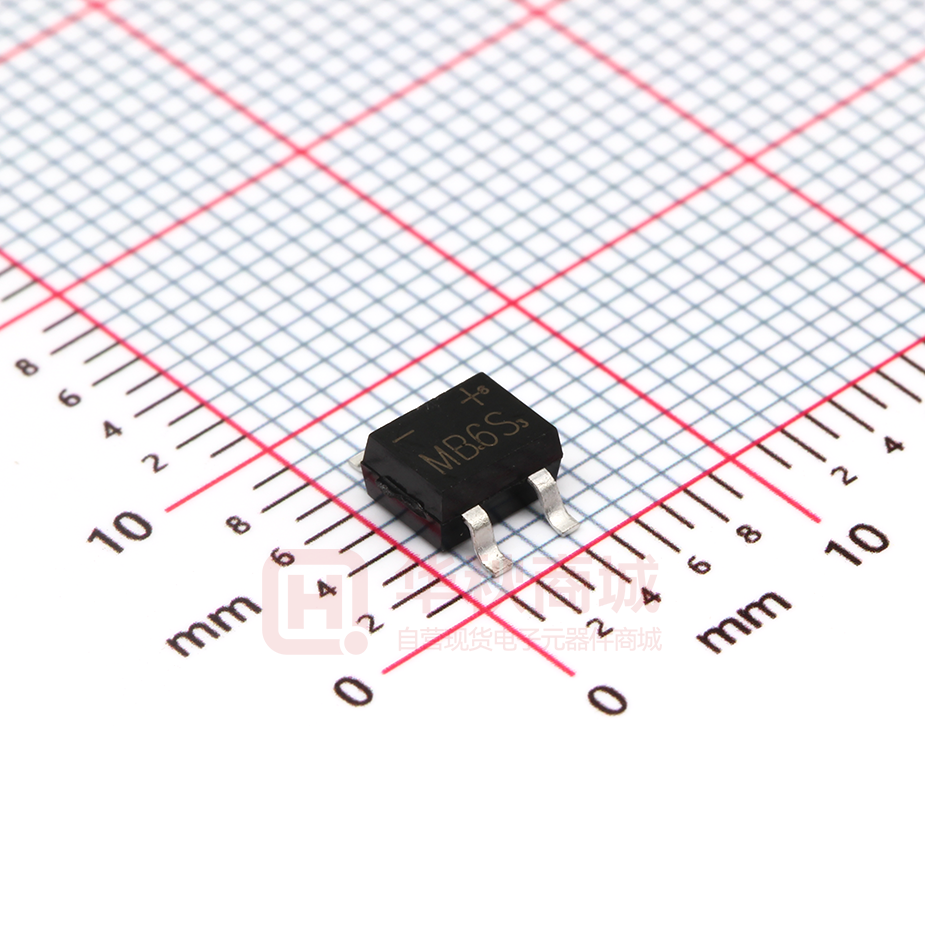

MB2S-MB10S
Miniautre Glass Passivated Single-Phase Surface Mount Bridge Rectifier
Reverse Voltage 200 to 1000 Volts Forward Current 0.5 Ampere
Features
◆ Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
◆ Glass passivated chip junctions
◆ High surge overload rating:35A peak
◆ Saves space on printed circuit boards
◆ High temperature soldering guaranteed:260℃/10 seconds
Mechanical Data
◆ Case:Molded plastic body over passivated junctions
◆ Terminals: plated leads solderable per MIL-STD-750,
Method 2026
◆ Mounting Position:Any
◆ Weight:0.078 oz.,0.22g
Maximum Ratings & Electrical Characteristics
(TA=25℃ unless otherwise noted)
Parameter
Symbol
MB2S
MB4S
MB6S
MB8S
MB10S
Unit
Maximum repetitive peak reverse voltage
VRRM
200
400
600
800
1000
V
Maximum RMS voltage
VRMS
140
280
420
560
700
V
Maximum DC blocking voltage
VDC
200
400
600
800
1000
V
Maximum Average forward output current
(see Fig.1)
on glass-epoxy P.C.B
0.5(1)
IF(AV)
0.8(2)
on aluminum substrate
Peak forward surge current 8.3 MS single HALF sine-wav
A
IFSM
35
A
I2t
5
A2sec
VF
1.00
V
p
p
superimposed
on rated load ((JEDEC Method))
Rating for fusig (t
