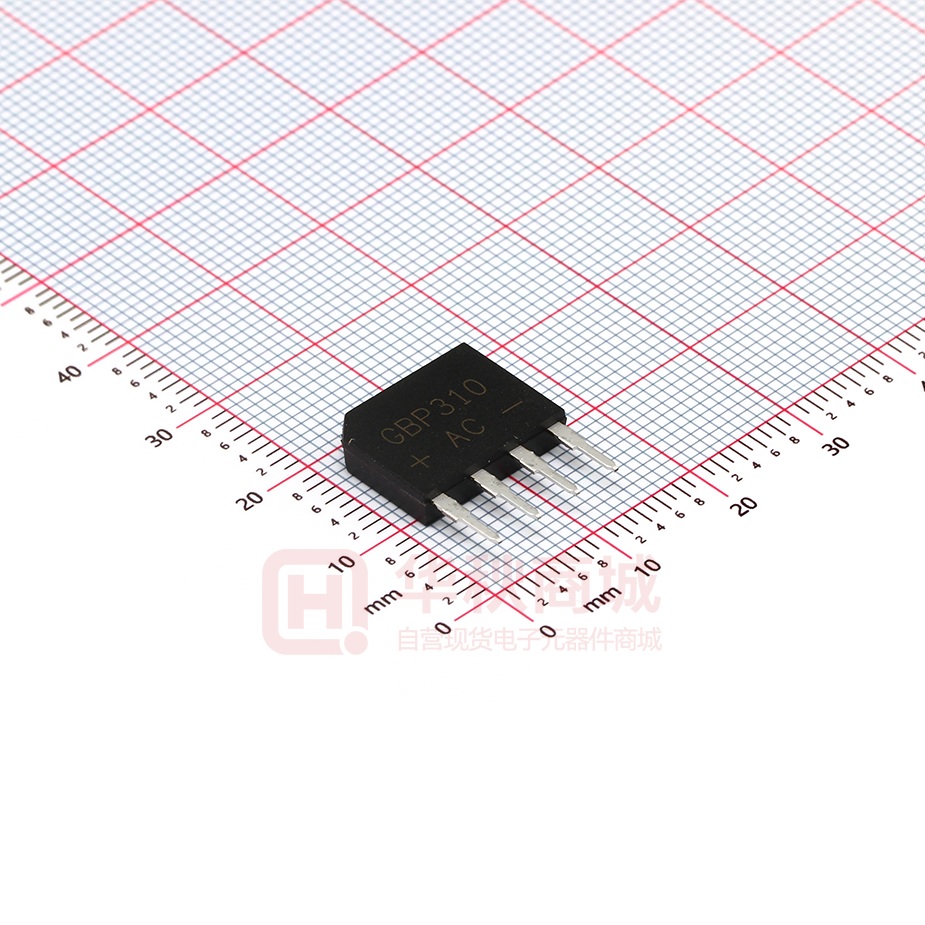

GBP310

GBP3005-GBP310 3. 0 A Single-Phase Silicon Bridge Rectifier Rectifier Reverse Voltage 50 to 1000V GBP Features Ideal for printed circuit board mounting This series is UL listed under the Recognized Component Index, file number E142814 The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 Built-in printed circuit board stand-offs High case dielectric strength High temperature soldering guaranteed 260 /5 seconds at 5 lbs (2.3kg) tension Mechanical Data Case: Reliable low cost construction utilizing molded plastic technique Terminals: Plated leads solderable per MIL-STD-202, Method 208 Mounting Position: Any Weight:1.35 grams (approx) Dimensions in inches and (milimeters) Maximum Ratings & Thermal Characteristics Rating at 25 C ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz. For Capacitive load derate current by 20%. Symbol GBP3005 GBP301 GBP302 GBP304 GBP306 GBP308 GBP310 unit Parameter Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS bridge input voltage VRMS 35 70 140 280 420 560 700 V 100 200 400 600 800 1000 V Maximum DC blocking voltage Maximum average forward rectified output current at TA=100 C (with heatsink) VDC 50 IF(AV) 3.0 A 90 A I t 2 35 A sec ReJA 55 Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) IFSM Rating for fusing ( t
