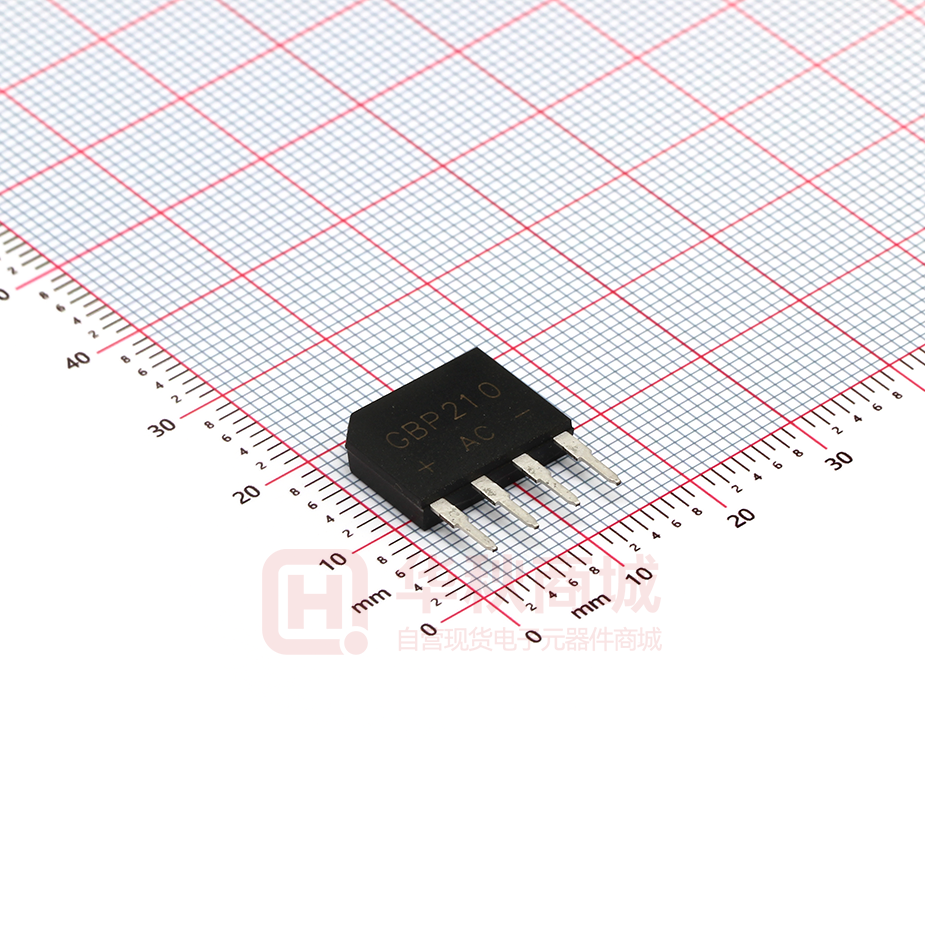

GBP210

GBP2005-GBP210 PASSIVATED BRIDGE RECTIFIER Features Ideal for printed circuit board mounting This series is UL listed under the Recognized Component Index, file number E142814 The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 Built-in printed circuit board stand-offs High case dielectric strength High temperature soldering guaranteed 260 /5 seconds at 5 lbs (2.3kg) tension GBP Mechanical Data Case: Reliable low cost construction utilizing molded plastic technique Terminals: Plated leads solderable per MIL-STD-202, Method 208 Mounting Position: Any Weight: 1.35 grams (approx) Dimensions in inches and (milimeters) Maximum Ratings & Thermal Characteristics Rating at 25 C ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz. For Capacitive load derate current by 20%. GBP GBP GBP GBP GBP GBP Parameter Symbol 2005 201 202 204 206 208 VRRM 200 400 800 Maximum repetitive peak reverse voltage 50 600 100 Maximum RMS bridge input voltage Maximum DC blocking voltage Maximum average forward rectified output current at TA=100 C (with heatsink) VRMS 35 VDC 50 70 140 280 100 200 400 IF(AV) Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) IFSM Rating for fusing ( t
