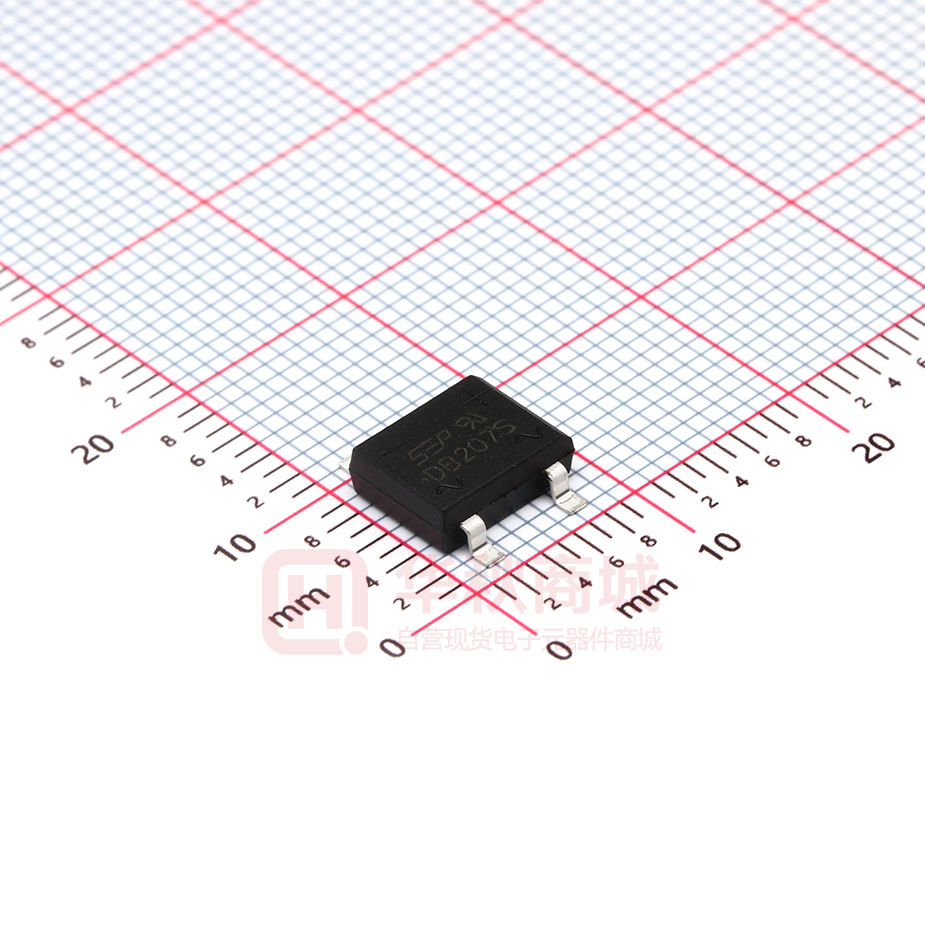

DB201S-DB207S
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS
REVERSE VOLTAGE - 50 to 1000Volts
FORWARD CURRENT - 2.0Amperes
.047(1.2)
.037(0.95)
FEATURES
.307(7.8)
●Rating to 1000V PRV
●Ideal for printed circuit board
●Low forward voltage drop,high current capability
●Reliable low cost construction utilizing molded plastic
-
+
~
~
.291(7.4)
.256(6.5)
.244(6.2)
.406(10.3)
.391(10.0)
technique results in inexpensive product
.140(0.35)
.008(0.2)
●Lead tin Pb/Sn copper
●The plastic material has UL flammability
.346(8.8)
.323(8.2)
classification 94V-0
.102(2.6)
.087(2.2)
MECHANICAL DATA
.205(5.2)
.197(5.0)
●Polarit: As marked on Body
●Weight: 0.02 ounces,0.38 grams
●Mounting position: Any
Dimensions in inches and (millimeters)
Pakage:DBS
MAXIMUM RATINGS AND
ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
SYMBOL DB201S DB202S DB203S DB204S DB205S DB206S DB207S
UNIT
Maximum Recurrent Peak Reverse Voltage
VRRM
50
100
200
400
600
800
1000
V
Maximum RMS Voltage
VRMS
35
70
140
280
420
560
700
V
Maximum DC Blocking Voltage
VDC
50
100
200
400
600
800
1000
V
Maximum Average Forward
Rectified Current
@TA=40℃
I(AV)
2.0
A
IFSM
60
A
VF
1.1
V
Peak Forward Surage Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load (JEDEC .Method)
Maximum Forward Voltage at 2.0A DC
Maximum DC Reverse Current
@TJ=25℃
at Rated DC Blocking Voltage
@TJ=125℃
I2t Rating for Fusing (t
