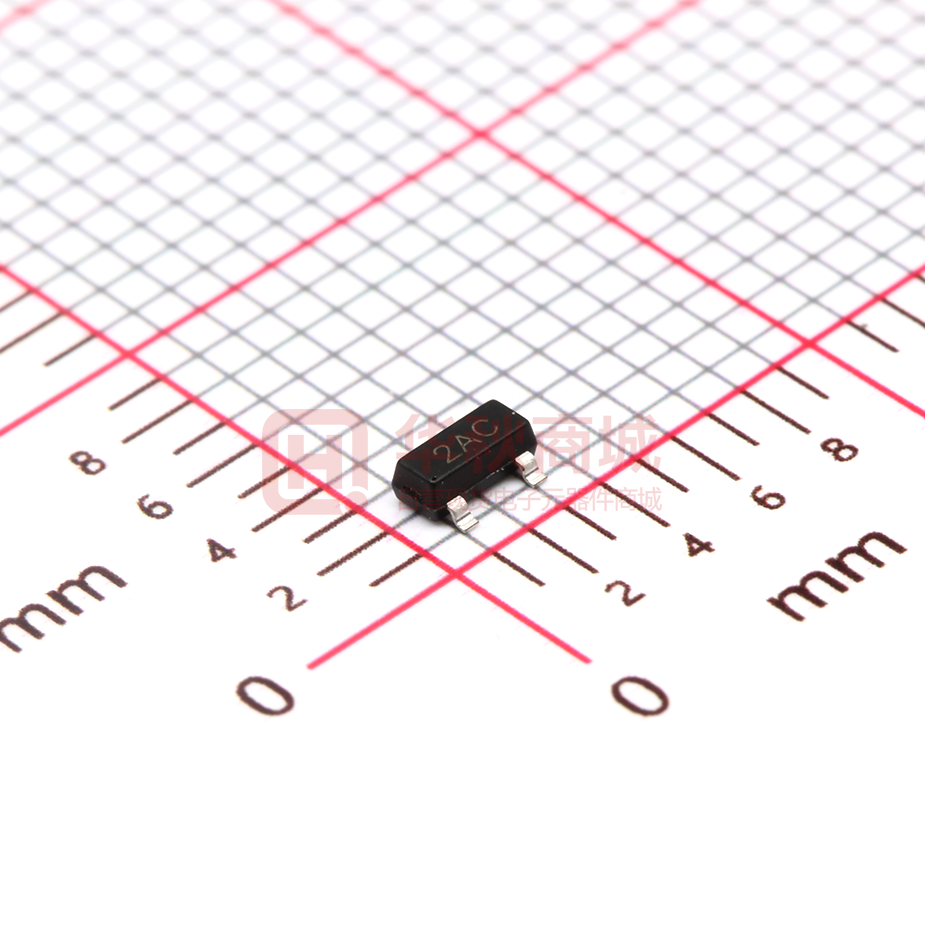

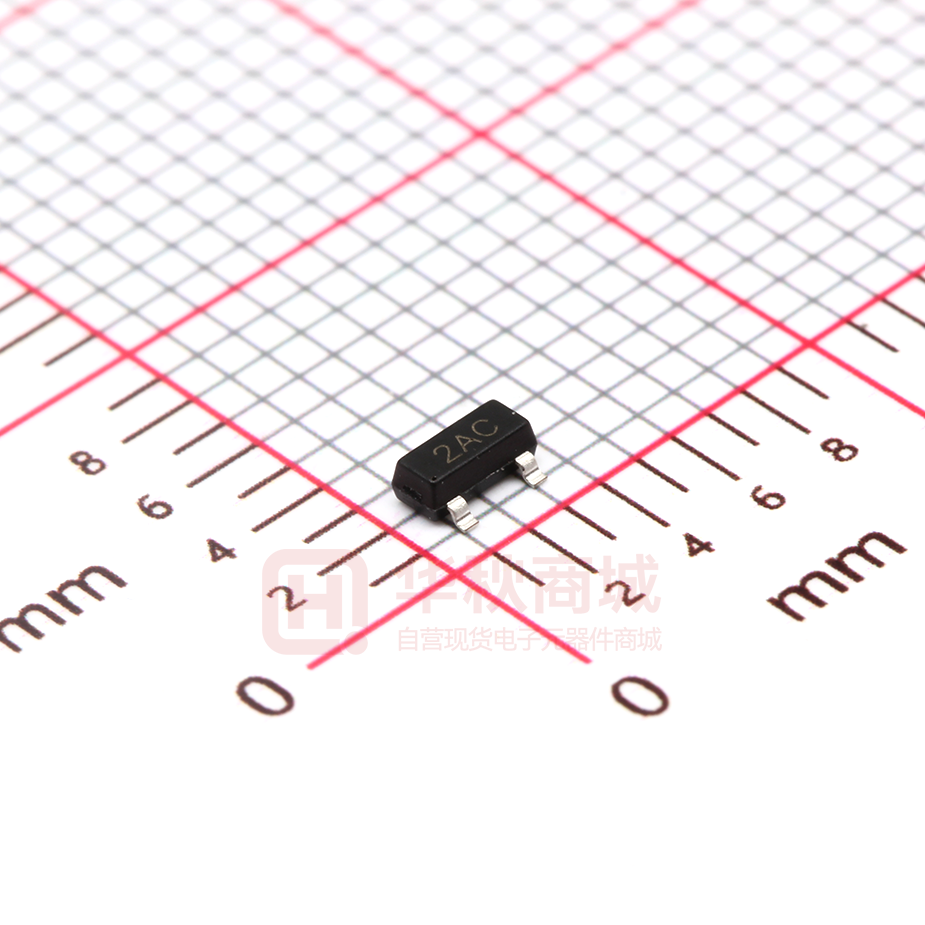

SLSOT05C

SLSOT Series Dual Transient Voltage Suppressors Array for ESD Protection General Description Features The SLSOT Series is a dual monolithic voltage z 2 Unidirectional Transil functions suppressor designed to protect components which z Low leakage current: IR max< 20 μA at VRM are connected to data and transmission lines z 300W peak pulse power(8/20μs) against ESD. It clamps the voltage just above the z Transient protection for data lines as per logic level supply for positive transients and to a diode drop below ground for negative transients. It can also work as bidirectional suppressor by Complies with the following standards connecting only pin1 and 2. IEC61000-4-2 Level 4 Applications z z z 15 kV (air discharge) 8 kV(contact discharge) Computers Printers Communication systems MIL STD 883E - Method 3015-7 Class 3 25 kV HBM (Human Body Model) Functional diagram SOT-23 Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPP Peak Pulse Power (tp = 8/20μs) 350 W TL Maximum lead temperature for soldering during 10s 260 °C Tstg Storage Temperature Range -55 to +155 °C Top Operating Temperature Range -40 to +125 °C Tj Maximum junction temperature 150 °C IEC61000-4-2 air discharge 15 kV IEC61000-4-2 contact discharge 8 Electrostatic discharge VPP www.slkormicro.com 1 SLSOT Series Electrical Parameter Symbol IPP VC VRWM IR IT VBR Parameter Reverse Peak Maximum Current Clamping Voltage @ IPP Pulse Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Test Current Breakdown Voltage @ IT Electrical Characteristics VBR C IT VRWM IR Typ. 0v Min. Typ. Max. V V V mA V µA pF SLSOT04C 5.0 5.6 6.2 1 4.0 1 30 SLSOT05C 6.0 6.7 7.4 1 5.0 1 30 SLSOT12C 13.3 14.0 14.7 1 12.0 1 25 SLSOT15C 16.7 17.4 18.1 1 15.0 1 25 SLSOT24C 26.7 28.2 29.6 1 24.0 1 20 Part Numbers bias 1).8/20 waveform used. (see fig2.) Typical Characteristics Fig1. Peak Pulse Power VS Pulse Time www.slkormicro.com 2 SLSOT Series Fig2. Pulse Waveform Fig3.Power Derating Curve Application Note Electrostatic discharge (ESD) is a major cause of failure in electronic systems. Transient Voltage Suppressors (TVS) are an ideal choice for ESD protection. They are capable of clamping the incoming transient to a low enough level such that damage to the protected semiconductor is prevented. Surface mount TVS arrays offer the best choice for minimal lead inductance. They serve as parallel protection elements, connected between the signal line to ground. As the transient rises above the operating voltage of the device, the TVS array becomes a low impedance path diverting the transient current to ground. The tiny SOT-23 package allows design flexibility in the design of high density boards where the space saving is at a premium. This enables to shorten the routing and contributes to hardening against ESD. www.slkormicro.com 3 SLSOT Series SOT-23 mechanical data Dim www.slkormicro.com 4 Millimeters Min TYP Max A 1.00 1.20 1.40 A1 0 0.05 0.10 A2 1.00 1.15 1.30 b 0.35 0.40 0.50 c 0.10 0.15 0.20 D 2.70 2.90 3.10 E 2.40 2.60 2.80 E1 1.40 1.50 1.60 e 0.85 1.00 1.15 e1 1.80 1.90 2.00 L1 0.40 . q 0° 5° 10° S 0.45 0.50 0.55
