TJ-S2012YFJ06YJY-A3

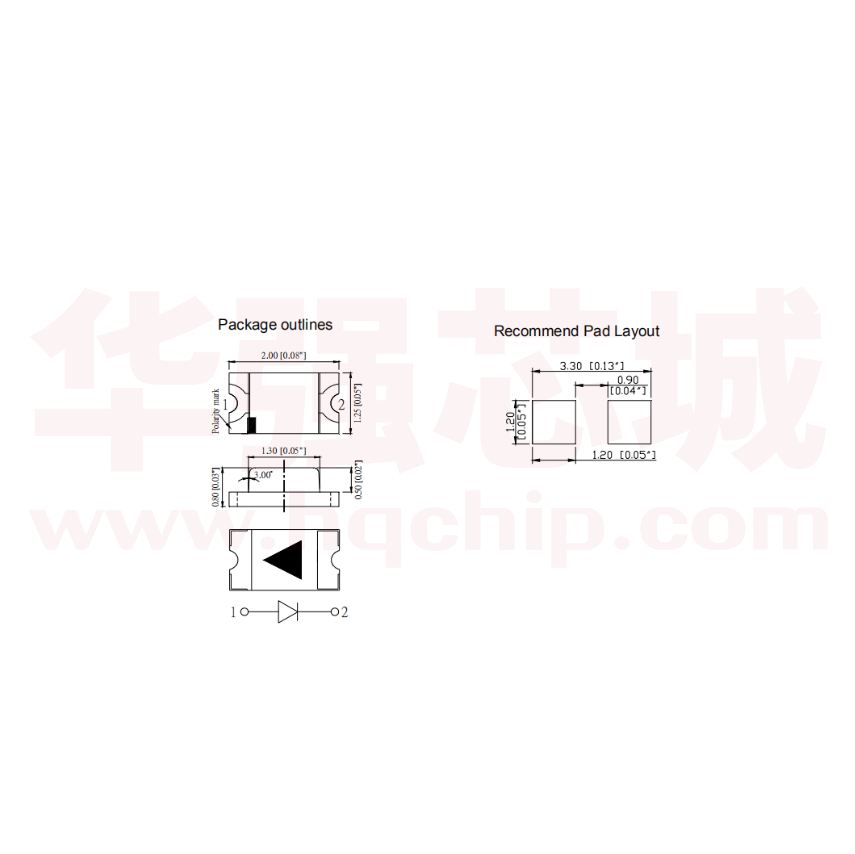

TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 承 認 書 Specification For Approval Customer: (客戶) Description: (產品描述) LED(SMD)0805 反极性黄光 Part number:(產品型號) TJ-S2012YFJ06YJY-A3 Date: (日期) Approved By: (客戶承認) Prepared By:(我司承認) Approval 核准 Check Design 審核 製作 Sales 業務 Customer Service Hotline：400-676-8616 TEL：0769-8662 5999 0769-8200 2226 E-MIAL∶dg@togialed.com FAX：0769-8200 2227 WEB：www.togialed.com TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Features 2.0mmⅹ1.25mm SMT LED, 0.8mm thickness Low power consumption Wide view angle Package: 3000pcs/reel RoHS Compliant Applications Ideal for back light and indicator Various colors and lens types available Package outlines Recommend Pad Layout 1 2 1.25 [0.05"] Polarity mark 2.00 [0.08"] 0.50 [0.02"] 0.80 [0.03"] 1.30 [0.05"] 3.00° ATTENTION OBSERVE PRECAUTIONS FOR HANDLING 1 ELECTROSTATIC SENSITIVE DEVICES 2 SENSITIVE DEVICES DEVICES   Part No. Emitted color Dice Lens color TJ-S2012YFJ06YJY-A3 Yellow AlGaInP Water transparent Notes: 1. All dimensions are in millimeters (inches); 2. Tolerances are ±0.1mm (0.004inch) unless otherwise noted. TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Absolute maximum ratings (TA=25℃) Parameter Symbol Value Unit Forward current If 20 mA Reverse voltage Vr 5 V Power dissipation Pd 72 mW Operating temperature Top -40 ~+80 ℃ Storage temperature Tstg -40 ~+85 ℃ Ifp 125 mA Peak pulsing current (1/8 duty f=1kHz) Electro-optical characteristics (TA=25℃) Parameter Test Condition Value Symbol Unit Min Typ Max Wavelength at peak emission If=20mA λp -- 595 -- nm Spectral half bandwidth If=20mA △λ -- 18 -- nm Dominant wavelength If=20mA λd 58 5 -- 59 5 nm Forward voltage If=20mA Vf 1.8 -- 2.4 V Luminous intensity If=20mA Iv 250 -- 500 mcd Viewing angle at 50% Iv If= 10mA 2θ1/2 -- 120 -- Deg Vr=5V Ir -- -- 10 µA Reverse current TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Optical characteristic curves Relative Intensity (%) Relative Intensity vs. Wavelength Forward Voltage (V) Wavelength (nm) Forward Current vs. Forward Voltage     Forward Current (mA) Directive Characteristics TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Reflow Profile � Reflow Temp/Time 300 (℃ ) 10 S Max. 260℃ Max. 250 230℃ 4℃ /S Max. Temperature 200 1 5 0~ 1 8 0 ℃ 4℃ /S Max. 150 6 0~ 1 2 0 S 100 3 0~ 5 0 S 50 25℃ 0 50 100 150 200 250 Time 300 (sec) Notes: 1.We recommend the reflow temperature 245℃(±5℃).the maximum soldering temperature should be limited to 260℃. 2.Don’t cause stress to the epoxy resin while it is exposed to high temperature. 3.Number of reflow process shall be 2 times or less. �Soldering iron Basic spec is  5sec when 260℃. If temperature is higher, time should be shorter (+10℃� -1sec ).Power dissipation of iron should be smaller than 20W, and temperatures should be controllable .Surface temperature of the device should be under 230℃ . �Rework 1.Customer must finish rework within 5 sec under 260℃. 2.The head of iron can not touch copper foil 3.Twin-head type is preferred. Correct( ) Mistake( ) � Avoid rubbing or scraping the resin by any object, during high temperature, for example reflow solder etc. TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Test circuit and handling precautions � Test circuit + - R V LED � Handling precautions 1. Over-current-proof Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 It is recommended to store the products in the following conditions: Humidity: 60% R.H. Max. Temperature : 5℃~30℃(41℉~86℉) 2.2 Shelf life in sealed bag: 12 month at ＜5℃~30℃ and ＜30% R.H. after the package is Opened, the products should be used within a week or they should be keeping to stored at≦20 R.H. with zip-lock sealed. 3. Baking It is recommended to baking before soldering when the pack is unsealed after 72hrs. The Conditions are as followings: 3.1 60±3℃ x(12~24hrs) and ＜5%RH, taped reel type 3.2 100±3℃ x(45min~1hr), bulk type 3.3 130±3℃ x(15~30min), bulk type TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Test items and results of reliability Operation Sequence Environmental Sequence Type Number of Test Item Test Conditions Note Temperature Cycle -20℃ 30min ↑↓ 80℃ 30min 100 cycle 0/22 Thermal Shock -20℃ 15min ↑↓ 80℃ 15min 100 cycle 0/22 High Humidity Heat Cycle 30℃⇔ 65℃ 90%RH 24hrs/1cycle 10 cycle 0/22 High Temperature Storage Ta=80℃ 1000 hrs 0/22 Humidity Heat Storage Ta=60℃ RH=90% 1000 hrs 0/22 Low Temperature Storage Ta=-30℃ 1000 hrs 0/22 Life Test Ta=25℃ IF=20mA 1000 hrs 0/22 High Humidity Heat Life Test 60℃ RH=90% IF=10mA 500 hrs 0/22 Low Temperature Life Test Ta=-20℃ IF=20mA 1000 hrs 0/22 Damaged TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 2012 Series SMD Chip LED Lamps Packaging Specifications � � Feeding Direction Dimensions of Reel (Unit: mm) RoHS 57.54 [2.27"] Feeding Direction 13.30 [0.52"] 颜色标签 Lable 9.40 [0.37"] Dimensions of Tape (Unit: mm) SEC.A-A 2.00 [0.08"] 5.25 [0.21"] 1.75 [0.07"] 0.20 [0.01"] 8.00 [0.31"] A 4.00 [0.16"] 1.10 [0.04"] � 178.50 [7.03"] 1.05 [0.04"] 4.00 [0.16"] � A Arrangement of Tape Empty parts (Min.20pcs) Loaded parts (LED:3000pcs) Empty parts (Min.40pcs) Feeding Direction Conclusion parts (Min.80mm) Introduction parts (Min.160mm) Notes: 1. Empty component pockets are sealed with top cover tape; 2. The maximum number of missing lamps is two; 3. The cathode is oriented towards the tape sprocket hole in accordance with ANSI/EIA RS-481 specifications. 4. 3,000 pcs/Reel. TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 2012 Series SMD Chip LED Lamps Packaging Specifications Packaging specifications Moisture-proof bag 颜色标签 Reel(3,000PCS) RoHS RoHS Lable Lable Ro HS La bl ble e HS La Inside box Maximums ten reels Ro � Outside box Maximums six inside boxes Notes: Reeled products (numbers of products are 3,000pcs) packed in a seal off moisture-proof bag along with a desiccant one by one, Seven moisture-proof bag of maximums (total maximum number of products are 30,000pcs) packed in an inside box (about size: 260x 220x 130mm) and four inside boxes of maximums are put in the outside box (about size: 450mm x 260mm x 400mm) Together with buffer material, and it is packed. (Part No., Lot No., quantity should appear on the label on the moisture-proof bag, part No. And quantity should appear on the label on the cardboard box.) The number of the loading steps of outside box (cardboard box) has it to three steps.
