TJ-S2835W80KDC-A3

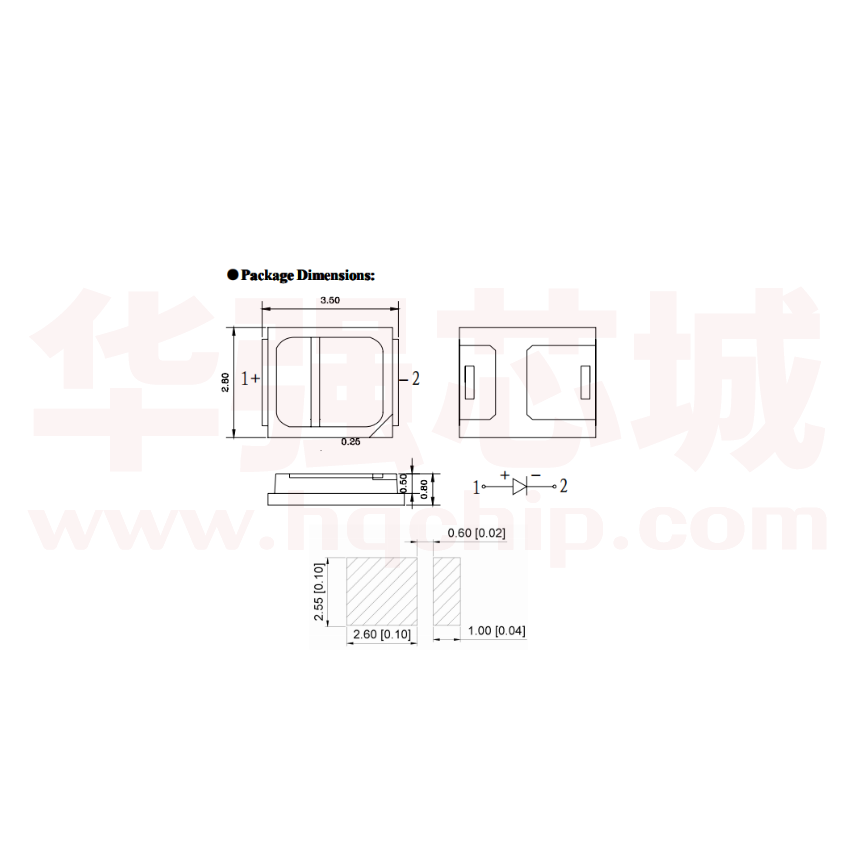

TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD 承 認 書 Specification For Approval Customer: (客戶) Description: (產品描述) Part number:(產品型號) Date: LED(SMD) TJ-S2835W80KDC-A3 (日期) Approved By: (客戶承認) Prepared By:(我司承認) Approval 核准 Check Design 審核 製作 Sales 業務 Customer Service Hotline：400-676-8616 TEL：0769-8662 5999 0769-8200 2226 E-MIAL∶dg@togialed.com FAX：0769-8200 2227 WEB：www.togialed.com TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD   ● Features: ● Applications: 1. Emitted Color: White. 2. Lens Appearance: Yellow Diffuse. 3. 35x28x08 mm mm standard package. 2. Backlighting: LCDs, Key pads advertising 4. Suitable for all SMT assembly methods. 3. Status indicators: Consumer & industrial 5. Compatible with infrared and vapor phase 1. Automotive: Dashboards, stop lamps, turn signals. electronics. reflow solder process. 6. 4. General use. Compatible with automatic placement equipment. ATTENTION 7. This product doesn’t contain restriction OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC SENSITIVE DEVICES Substance, comply ROHS standard. Package Dimensions ●Package Dimensions:: 2 1 + - - 1+ 2   Notes: 1. All dimensions are in millimeters. 2. Tolerance is ±0.2 unless otherwise noted. 3. Specifications are subject to change without notice.     TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Ta=25 ● Absolute Maximum Ratings Ratings（Ta=25 Ta=25℃） Item Symbol Value Unit Power Dissipation/DICE PD 320 mW DC Forward Current/DICE IF 60 mA Pulse Forward Current IFP 150 mA Reverse Voltage VR 5 V Operating Temperature Topr -30 ~ +80■ ℃ Storage Temperature Tstg -40 ~ +100 ℃ Tsol 260for5sec△ ℃ Soldering Temperature ※Duty 1/10， Pulse Width 0.1ms.. △Soldering time max 10sec Parameter Symbol Forward Voltage Vf Reverse Current Viewing angle Value Unit Test condition Typ. Max. 2.8 -- 3.2 Ir - - 10 V μA 2θ1/2 - 120 - Deg Vr=5V If=60mA X - - - - If=60mA Y - - - - Color Temperature CCT 8000 - 10000 K If=60mA Luminous intensity Iv 24 - 28 Lm If=60mA Color Rendering Index CRI - 80 - - If=60mA Chromaticity coordinate Min. If=60mA TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD ● Co l o r Bin Li mi ts (At 60 mA) TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD ● Co l o r Bin Li mi ts (At 60 mA) Warm White Bin Code WA0 WA1 WA2 WA3 Natural White Bin Code WG0 WG1 WG2 WG3 X Y 0.4598 0.4538 0.4400 0.4458 0.4598 0.4538 0.4477 0.4345 0.4400 0.4538 0.4477 0.4416 0.4289 0.4345 0.4477 0.4416 0.4355 0.4234 0.4289 0.4416 0.4368 0.4249 0.4204 0.4321 0.4368 0.4249 0.4130 0.4087 0.4204 0.4249 0.4130 0.4010 0.3971 0.4087 0.4130 0.4010 0.3891 0.3854 0.3971 0.4010 Bin Code WB0 WB1 WB2 WB3 X Y 0.3902 0.3871 0.3736 0.3758 0.3902 0.3871 0.3842 0.3714 0.3736 0.3871 0.3842 0.3813 0.3692 0.3714 0.3842 0.3813 0.3784 0.3670 0.3692 0.3813 0.4063 0.3959 0.3874 0.3973 0.4063 0.3959 0.3855 0.3775 0.3874 0.3959 0.3855 0.3751 0.3677 0.3775 0.3855 0.3751 0.3647 0.3578 0.3677 0.3751 X Y 0.4458 0.4400 0.4269 0.4313 0.4458 0.4400 0.4345 0.4222 0.4269 0.4400 0.4345 0.4289 0.4175 0.4222 0.4345 0.4289 0.4234 0.4128 0.4175 0.4289 0.4321 0.4204 0.4150 0.4261 0.4321 0.4204 0.4087 0.4039 0.4150 0.4204 0.4087 0.3971 0.3927 0.4039 0.4087 0.3971 0.3854 0.3816 0.3927 0.3971 Bin Code WH0 WH1 WH2 WH3 Bin Code WC0 WC1 WC2 WC3 X Y 0.4313 0.4269 0.4131 0.4172 0.4313 0.4269 0.4222 0.4090 0.4131 0.4269 0.4222 0.4175 0.4048 0.4090 0.4222 0.4175 0.4128 0.4007 0.4048 0.4175 0.4261 0.4150 0.4090 0.4199 0.4261 0.4150 0.4039 0.3981 0.4090 0.4150 0.4039 0.3927 0.3873 0.3981 0.4039 0.3927 0.3816 0.3764 0.3873 0.3927 X Y 0.3758 0.3736 0.3642 0.3664 0.3758 0.3736 0.3714 0.3625 0.3642 0.3736 0.3714 0.3692 0.3608 0.3625 0.3714 0.3692 0.3670 0.3591 0.3608 0.3692 0.3973 0.3874 0.3809 0.3907 0.3973 0.3874 0.3775 0.3712 0.3809 0.3874 0.3775 0.3677 0.3616 0.3712 0.3775 0.3669 0.3578 0.3522 0.3616 0.3677 TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Cool White Bin Code WP0 WP1 WP2 WP3 X Y 0.3222 0.3226 0.3127 0.3121 0.3222 0.3226 0.3229 0.3134 0.3127 0.3226 0.3229 0.3233 0.3142 0.3134 0.3229 0.3233 0.3236 0.3149 0.3142 0.3233 0.3587 0.3500 0.3411 0.3491 0.3587 0.3500 0.3413 0.3328 0.3411 0.3500 0.3413 0.3327 0.3246 0.3328 0.3413 0.3327 0.3240 0.3163 0.3246 0.3327 Bin Code WQ0 WQ1 WQ2 WQ3 X Y 0.3121 0.3127 0.3036 0.3025 0.3121 0.3127 0.3134 0.3047 0.3036 0.3127 0.3134 0.3142 0.3058 0.3047 0.3134 0.3142 0.3149 0.3069 0.3058 0.3142 0.3491 0.3411 0.3326 0.3401 0.3491 0.3411 0.3328 0.3247 0.3326 0.3411 0.3328 0.3246 0.3168 0.3247 0.3328 0.3246 0.3163 0.3089 0.3168 0.3246 TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD ● Typical Electro-Optical Characteristics Curves ! )85( & 8 &B 8B & 2 ! ?( 858B9 < !A)?()/ + ))8B ( 7&8B 8 8)( )8 , !A ) ? ()/ + ) )8B : (; 6 E % E 3 E E E 3 3, , ,, % ?( 858B9 < : %, > 3 # >, ; % 3 ( 7&8B 8)( )8 6 : +; &B 8B & 2 8)( )8 # &B 8B & 2 (; , 3 # ) 85( & 8 5 &BA :BA ) (5&D8/ ( !A ) ? ()/ + ) )8B : (; 8 ! 3 )85( & 8 5 &BA ( 7&8B 8 ! # !A)?()/ + ))8B !A)?()/ A5 (98 , , , # 3 $3 , 3 $ !A)?()/ A5 (98 : ; (( 7&8B ! , )85( & 8 5 &BA &B 8B & 2 !A)?()/ + ))8B 8 8)( )8 % : +; # ) 85( & 8 ) (/ &(B &B 8B & 2 &B 8B & 2:C (; ! % )(/&( &AB /&(9)( , &B A )85( & 8 5 ) 85( & 8 ) (/ &(B &B 8B & 2 E , # !A)?()/ + ))8B : (; 3 , 3 , 6 % > > 6 , # 3 % TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD ● Test items and results of reliability Operation Sequence Type Number of Test Item Test Conditions Note Life Test T a=25℃ IF=60mA 1000 hrs 0/22 500 hrs 0/22 1000 hrs 0/22 100 cycle 0/22 100 cycle 0/22 10 cycle 0/22 Damaged 85℃ RH=85% High Humidity Heat Life Test IF=60mA T a=-20℃ Low Temperature Life Test IF=60mA -45℃ 30min Temperature Cycle ↑↓20 min 105℃ 30min -10℃ 15min Environmental Sequence Thermal Shock ↑↓ ↑↓5sec 100℃ 15min 30℃⇔ 65℃ High Humidity Heat Cycle 90%RH 24hrs/1cycle High Temperature Storage Ta=100℃ 1000 hrs 0/22 Humidity Heat Storage T a=85℃ RH=85% 1000 hrs 0/22 Low Temperature Storage T a=-40℃ 1000 hrs 0/22 ● Judgment criteria of failure for the reliability Measuring items Symbol Measuring conditions Judgment criteria for failure Forward voltage VF (V) IF=60mA Over U1x1.2 Reverse current IR (uA) VR=5V Over U 1x2 Luminous intensity Iv ( mcd) IF=60mA Below S1X0.5 Note: .1. U means the upper limit of specified characteristics. S means initial value. 2. After each test, remove test pieces, wait for 2 hours and test pieces have returned to ambient temperature, then take next measurement. TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD ● Soldering : 1. Manual Soldering The temperature of the iron tip should not be higher than 350℃and Soldering time to be within 3 seconds per solder-pad. 2. Reflow Soldering Preheating : 140℃~160℃±5℃,within 2 minutes. Operation heating : 260℃(Max.) within 10 seconds.(Max) Gradual Cooling (Avoid quenching). 10 SEC. MAX. Temperature 260℃ MAX. 140~160℃ 4℃ /SEC. MAX. 4℃ /SEC. MAX. OVER 2 MIN. Time 3. DIP soldering (Wave Soldering) : Preheating : 120℃~150℃,within 120~180 sec. Operation heating : 245℃±5℃ within 5 sec.260℃ (Max) Gradual Cooling (Avoid quenching). Temperature Soldering heat Max. 260 ℃ 245 ± 5℃ within 5 sec. 120~150℃ Preheat 120~180 sec. Time TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD ● Handling : Care must be taken not to damage LED’s epoxy resin while exposing to high temperature or contact LED’s epoxy resin with hard or sharp objects, such as metal hook, tweezer or sand blasting.. ● Notes for designing: Current limiting resistor must be used in the circuit to drive TOGIA LEDs within the rated figures and not to overload TOGIA LEDs with instantaneous voltage at the turning ON and OFF cycles. When using pulse driving, the average current must be within the rated figures. And the circuit should be designed to avoid reverse voltage when turning off the TOGIA LEDs. ● Storage: In order to avoid the absorption of moisture, it is recommended to solder TOGIA LEDs as soon as possible after unpacking the sealed envelope. If the envelope is still packed, to store it in the environment as following: (1) Temperature : 5℃-30℃(41℉)Humidity : RH 60﹪Max. (2) After this bag is opened, devices that will be applied to infrared reflow, vapor-phase reflow, or equivalent soldering process must be: a. Completed within 168 hours. b. Stored at less than 30% RH. (3) Devices require baking before mounting, if: (2) a or (2) b is not met. (4) If baking is required, devices must be baked under below conditions: 48 hours at 60℃±3℃. ● Package and Label of Products: Package: Products are packed in one bag of 4000 pcs (one taping reel) and a label is attached to each bag. TAIWAN TONGJIA OPTOELECTRONICS TECHNOLOGY CO., LTD Cathode side 4mm + + + + - - - - Packaging 4mm Printed label DESICCANT*2 RoHS NOTES ： 1. Empty component pockets are sealed with top cover tape; 2. The maximum number of missing lamps is two; 3. The cathode is oriented towards the tape sprocket hole in accordance with ANSI/EIA RS-481 specifications. 4. 4,000 pcs / Reel.
