FR107

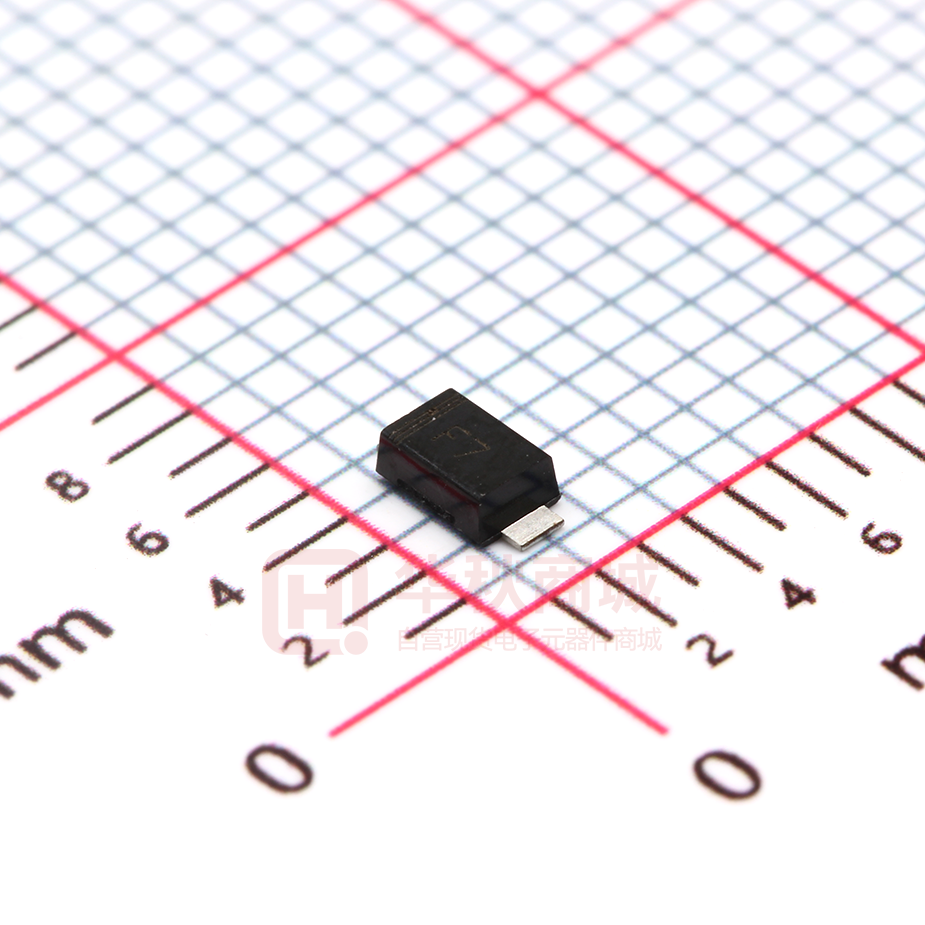

FR101-FR107 Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V PINNING Forward Current - 1 A PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • Fast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 1 2 Simplified outline SOD-123FL and symbol MECHANICAL DATA • Case: SOD-123FL • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 15mg 0.00053oz Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols FR101 FR102 FR103 FR104 FR105 FR106 FR107 Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at T c = 125 °C I F(AV) 1 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 30 A Maximum Forward Voltage at 1 A VF 1.3 V IR 5 100 μA Cj 15 pF Parameter Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance at V R =4V, f=1MHz Maximum Reverse Recovery Time （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range t rr 150 500 ns RθJA 80 °C/W T j , T stg -55 ~ +150 °C （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. www.slkormicro.com 250 1 FR101-FR107 Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Forward Current Derating Curve 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 1.0 1.5 2.0 2.5 Peak Forward Surage Current (A) 30 25 20 15 10 8.3 ms Single Half Sine Wave (JEDEC Method) 10 100 Number of Cycles www.slkormicro.com 100 120 140 T J =25°C 10 1.0 10 Reverse Voltage (V) 35 1 80 100 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 00 60 1 0.5 Instaneous Forward Voltage (V) 05 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) 2 100 FR101-FR107 PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL ∠ALL ROUND C A ∠ALL ROUND HE VM g Top View mil Bottom View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm 1.2 (47) 1.2 (47) 2.0 (79) Unit： mm (mil) www.slkormicro.com ∠ 7° The recommended mounting pad size 1.2 (47) g pad e E A pad D E A 3
