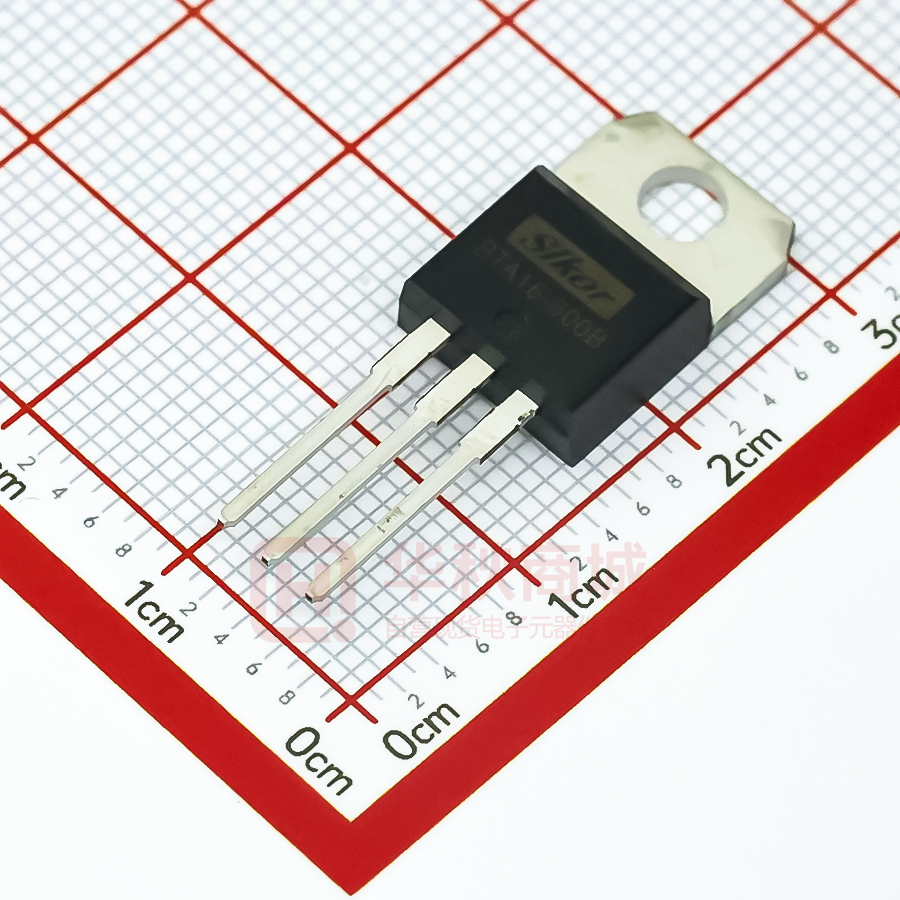

BTA16-800B

BTA16 3Quadrants/4 Quadrants TRIAC Features ■IT(RMS): 16A ■VGT: 1.5V ■VDRM VRRM: 600V and 800V Applications Washing machine,vacuums, massager,solid state relay，AC Motor speed regulation and so on. Absolute Maximum Ratings(Tc=25°C unless otherwise specifed) Symbol VDRM VRRM parameter Repetitive Peak OffState Voltage Conditions Ratings Unit BTA16 -600 600 V BTA16 -800 800 V 16 A 160/168 A IT(RMS) R.M.S On-State Current Tc=110°C ITSM Surge On-State Current f=50/60Hz I²t I²t for fusing Tp=10ms 144 A²s PG(AV) Average Gate Power Dissipation Tj=125°C 1 W IGM Peak Gate Current Tj=125°C 4 A Tj Operating Junction Temperature 一40~125 °C TSTG Storage Temperature 一40~150 °C www.slkormicro.com 1 tp=16.7ms/20ms BTA16 Electrical Characteristics(Tc=25°C unless otherwise specifed) Value symbol parameter Test Conditions Unit SW CW BW IDRM IRRM ≤5 uA Tc=125°C ≤1 mA Tc=25°C Repetitive Peak Reverse Current Tc=125°C ≤5 uA ≤1 mA 1.5 V ≤1.5 V ≥50 A/us ≥10 A/us IT=23A, tp=380us VD=12V, RL=30Ω Forward "on" voltage VGT Gate trigger voltage di/dt Critical rate of rise I,II,III F=100Hz, of on-state IG=2xIGT, tr≤ current IV 100ns IH VGD dv/dt B Tc=25°C Repetitive Peak OffState Current VTM IGT C Gate trigger current Holding current I,II,III VD=12V, RL=30Ω IV IT=0.2A ≤10 / ≤25 VD=VDRM, Gate non-trigger voltage TJ=125°C,RL=3 .3KΩ TJ=125°C, VD=2/3VDRM, ≥ Critical-rate of rise of Gate open commutation voltage 100 circuit ≤25 ≤50 ≤25 ≤50 / / mA ≤50 ≤100 mA ≤35 ≤50 ≤25 ≤50 mA ≥0.2 ≥ ≥ ≥ ≥ 400 1000 200 400 V V/us Rth(j-c) Thermal resistance Junction to case 2.1 °C/W Rth(j-a) Thermal resistance Junction to ambient 60 °C/W www.slkormicro.com 2 BTA16 characteristic curve FIG.1:Gate characteristics FIG.2: On-state characteristics(max) Gate Current(mA) On-State Voltage(V) FIG.3:Gate trigger voltage vs junction temperature FIG.4:on-state current vs max power Dissipation RMS On-State Current(A) Juntion Temperature(ºC) FIG.5:RMS On-state vs Allowable Case Temperature FIG.6:Gate trigger current vs junction temperature RMS On-State Current(A) www.slkormicro.com Juntion Temperature(ºC) 3 BTA16 PACKAGE MECHANICAL DATA TO-220 Package Dimension www.slkormicro.com 4
