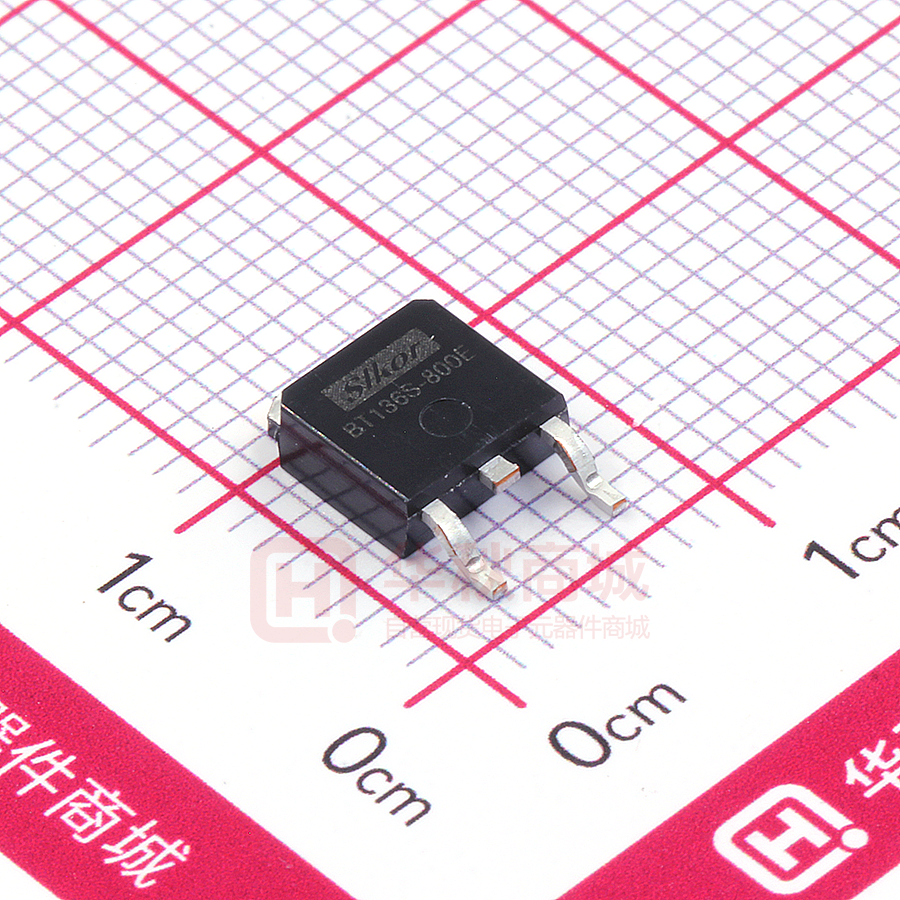

BT136S-800E

TRIACs BT136 Series 4 Quadrants ShenZhenHanKingyuan 02. BT136 4 Quadrants TRIAC FEATURES IT(RMS): 4A VGT: 1.5V VDRM VRRM:600Vand800V 2 APPLICATIONS 1 1 2 Washing machine,vacuums, massager,solid state relay， 3 3 TO-220 TO-252 AC Motor speed regulation and so on. 1 1 2 2 3 3 TO-251 TO-220F Absolute Maximum Ratings (Tj=25°C unless otherwise specifed) Symbol Parameter VDRM VRRM Conditions Ratings BT136-600 600 BT136-800 800 Tc=110°C 4 A 25/27 A Tp=10ms 3.1 A²s Tj=125°C 1 W tp=20us Tj=125°C 2 A Operating Junction Temperature ～40~125 °C Storage Temperature ～40~150 °C Repetitive Peak Off-State Voltage IT(RMS) R.M.S On-State Current ITSM I²t tp=16.7ms/ tp=10ms Surge On-State Current I²t for fusing PG(AV) Average Gate Power Dissipation IGM Tj TSTG Peak Gate Current www.slkormicro.com 1 Unit V TRIACs BT136 Series 4 Quadrants ShenZhenHanKingyuan 02. BT136 Electrical Characteristics Symbol Parameter Test Conditions IDRM Repetitive Peak Off-State Current IRRM Repetitive Peak Reverse Current VTM Forward "on" voltage VGD gate non-trigger voltage IH Holding current VGT Gate trigger voltage IGT Gate trigger current di/dt Critical-rate of rise of commutation current. dv/dt Critical-rate of rise of commutation voltage www.slkormicro.com (Tj=25°C unless otherwise specifed) Value D E I,II,III IV Unit ≤10 uA Tj=125°C ≤0.5 mA Tj=25°C ≤10 uA Tj=125°C ≤0.5 mA IT=5A tp=380us ≤1.7 V VD=12V, Tj=125°C ≥0.2 V ≤10 ≤25 VD=12V IV G Tj=25°C IT=100mA I,II,III F VD=12V,IGT=0.1A 2 ≤60 ≤1.5 mA V 5 10 25 50 mA 10 25 70 100 mA IT=6A ,IGT==0.2A, dIg/dt=0.2A/us TJ=125°C VD=2/3VDRM Gate open circuit ≤30 5 10 ≥50 A /us ≥10 A /us 50 200 V/us 03. 02. TRIACs TRIACs BT136 Series Series BT136 4 Quadrants 4 Quadrants ShenZhenHanKingyuan Electronic CO.,Ltd FIG1 BT136 FIG2 RMS on-state current versus case temperature Maximum power dissipation versus RMS on-state current 6 IT(RMS) (A) 6 5 5 4 4 3 3 2 2 1 1 P(w) α=180° TO-220/TO-262 TO-251/ TO-252 TO-220F 0 IT(RMS) (A) 0 1 2 3 4 Tc (℃) 0 0 5 25 FIG3 50 75 100 125 4 5 FIG4 On-state characteristics (maximum values) Surge peak on-state current versus number of cycles ITM (A) ITSM (A) 30 35 t=20ms One cycle 30 Tj=Tjmax 10 25 20 15 1 10 Tj=25℃ 5 0 1 10 Number of cycles 100 0.1 0 1000 1 FIG5 2 VTM (V) 3 FIG6 FIG.6: Relative variations of gate trigger current, holding current and latching current versus junction temperature Non-repetitive surge peak on-state current for a sinusoidal pulse with width tp
