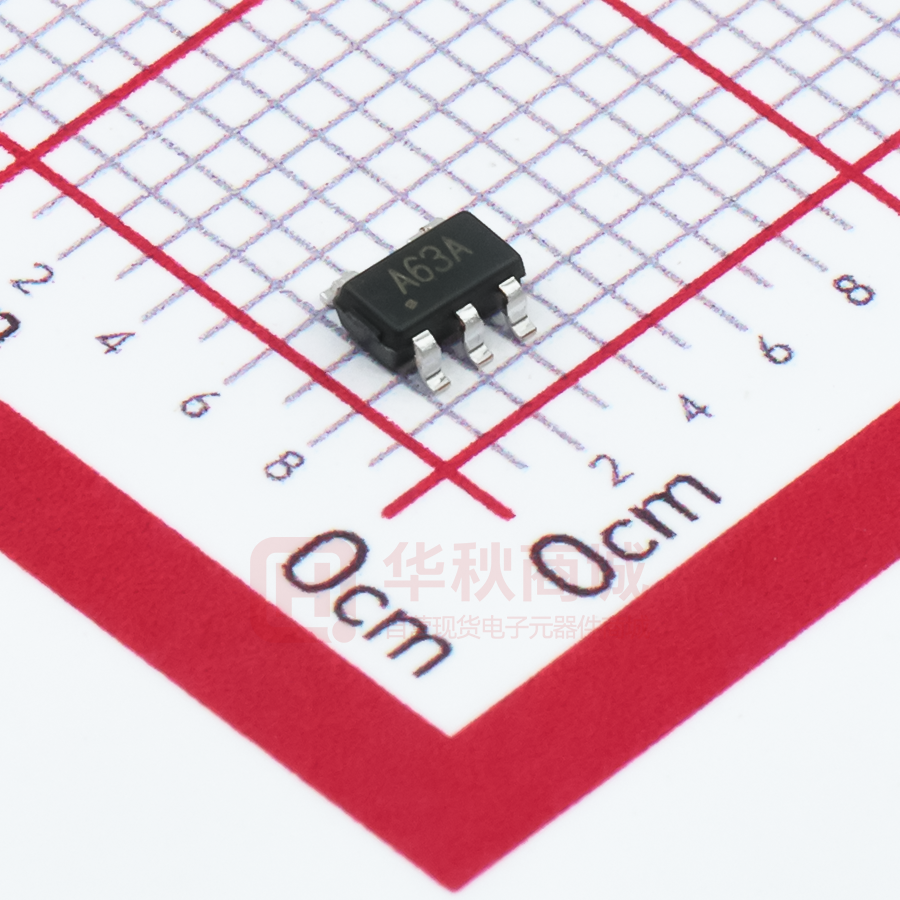

LM321

LM321 Low Power Single Operational Amplifier Description LM321 is a low power, wide power range performance operational amplifier；The static current is only 430 μA per 4.OUT 5.V+ amplifier (5V) with high unit gain frequency and A voltage swing rate of 0.4V/μs.Input common model circuit includes ground, so the device can operate in single - and dual-power applications.It can also comfortably drive large capacity loads. Features ⚫ Low quiescent current ⚫ Low input bias current ⚫ Wide range of supply voltage ⚫ High capacity load stability 1.+IN 2.V- 3.-IN SOT-23-5 Pin arrangement diagram Application ⚫ Communication infrastructure ⚫ Battery charger ⚫ Power supply www.slkormicro.com 1 LM321 Absolute Maximum Ratings (TA =25℃) Parameter Symbol VCC Value 24 or ±12 Units V Differential Input Voltage VID 24 V Input Voltage VIN -0.3~VCC V Power Dissipation PD 530 mW IO Continuous IIN 50 mA TJ 150 °C Operating Temperature Range TOPR 0 to 70 °C Storage Temperature Range TSTG -65 to 150 °C Supply Voltage Output Short Circuit to GND Input Current VIN
