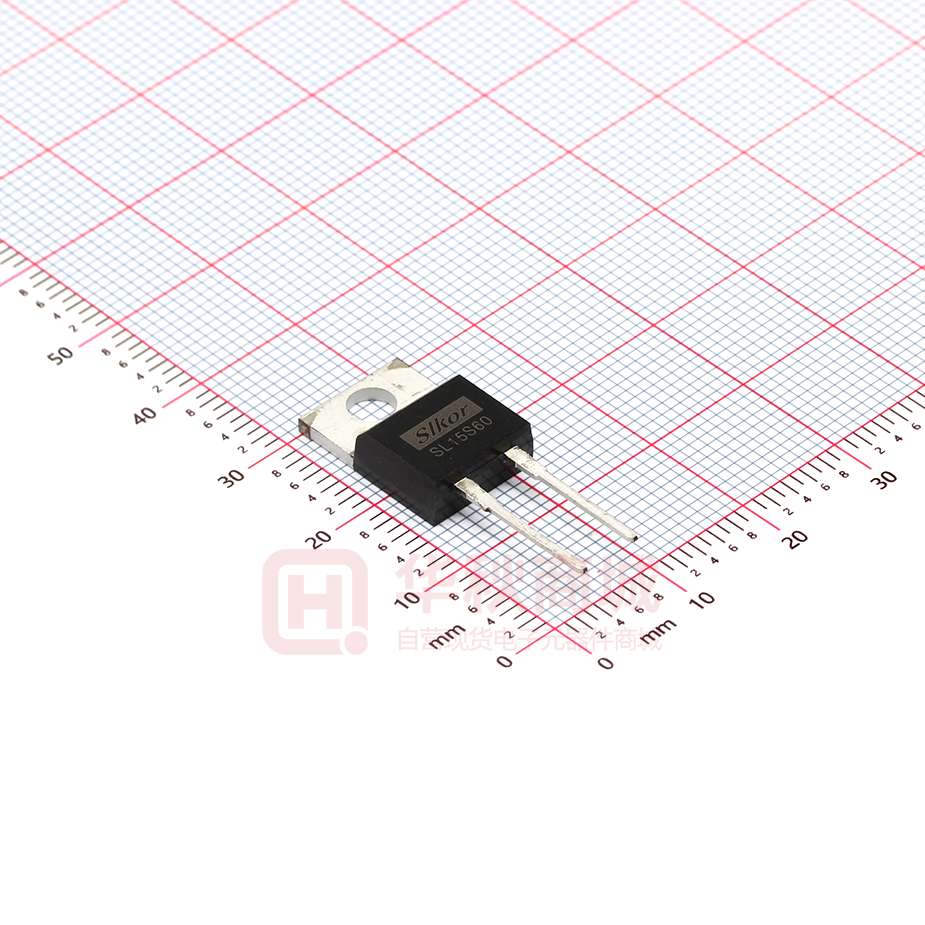

SL15S60

SL15S60 FAST RECOVER DIODE Features  600V,15A  Soft Recovery  Operation Temperature ＜175℃  Planar Construction Applications        Freewheeling,Snubber,Clamp Inversion Welder PFC Plating Power Supply Ultrasonic Cleaner and Welder Converter & Chopper UPS Absolute Maximum Ratings Symbol Value Units Maximum D.C. Reverse Voltage 600 V VRRM Maximum Repetitive Reverse Voltage 600 V IF(AV) Diode Continuous Forward Current ( TC=100 ℃) 15 A IFRMS RMS Forward Current (TC=100℃) 21 A IFSM Non-Repetitive Surge Forward Current 150 A PD Power Dissipation 83 W TJ Operating Junction Temperature Range -55 to +175 ℃ TSTG Storage Temperature Range -55 to +175 ℃ RthJC Thermal Resistance 3 ℃/W VR Parameter www.slkormicro.com -1- SL15S60 Electrical Characteristics (TC=25℃ unless otherwise noted) Symbol Parameter Test Conditions Min. Typ. Max. Units Diode Forward Voltage IF=15A TC=25℃ 1.4 1.8 V Diode Forward Voltage IF=15A TC=125℃ 1.1 1.6 V IR Instantaneous reverse current VR=600V 10 uA IRRM Diode peak Reverse Recovery Current IF= 1A 0.9 A trr Diode Reverse Recovery Time dif/dt=200A/us 30 ns QRR Diode Reverse Recovery Charge VR=30V 40 nC IRRM Diode peak Reverse Recovery Current A trr IF= 15A， dif/dt=200A/us 5 Diode Reverse Recovery Time 56 ns QRR Diode Reverse Recovery Charge VR=300V 153 nC VF Fig.1 Forward Current vs Forward Voltage Fig.2 Reverse Current vs Reverse Voltage Fig.3 trr Test Circuit www.slkormicro.com Fig.4 trr Waveforms and Definitions -2-
