SL3401A

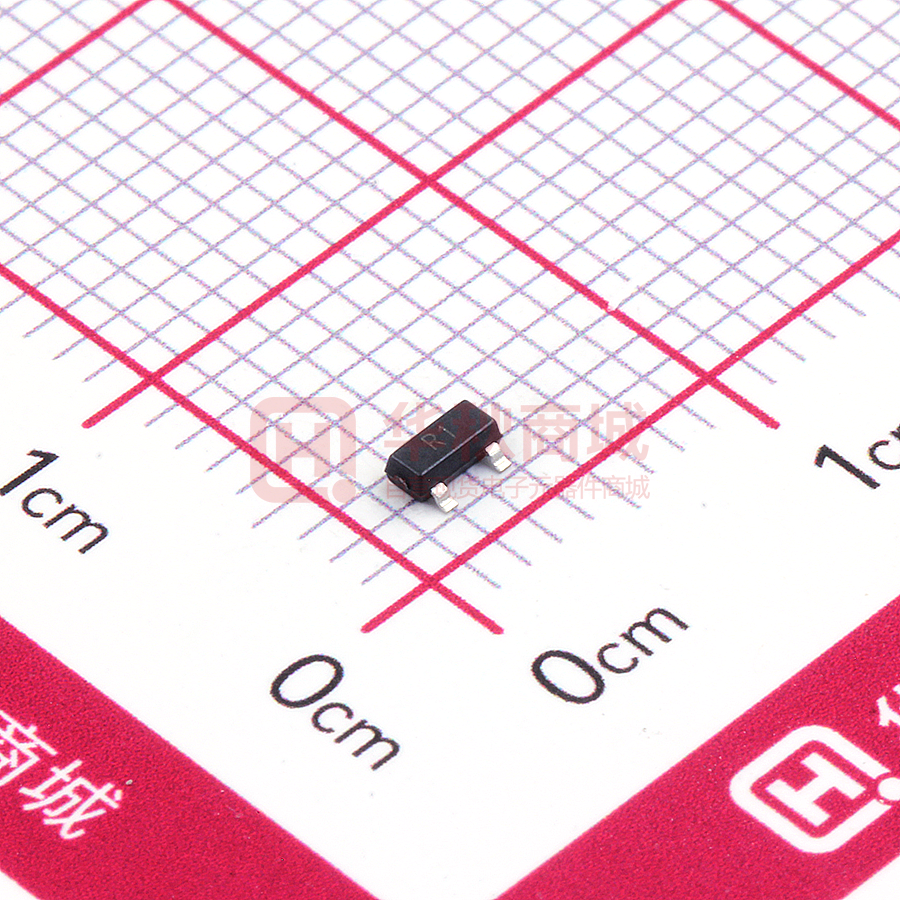

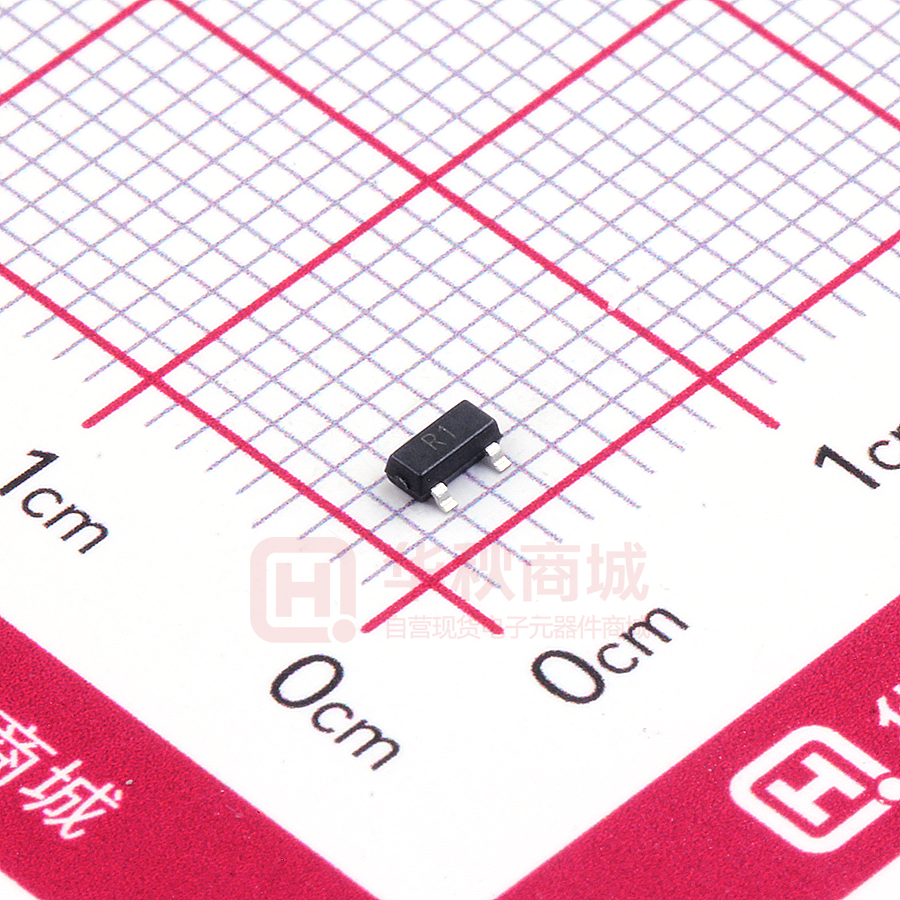

SL3401A P-Channel Power MOSFET D General Features G ● VDS = -30V,ID = -4.2A RDS(ON) < 50mΩ@ VGS=-10V RDS(ON) < 60mΩ@ VGS=-4.5V S Schematic diagram ● High power and current handing capability ● Lead free product is acquired ● Surface mount package Application ● PWM applications Marking and Pin Assignment ● Load switch ● Power management SOT-23 top view MAXIMUM RATINGS Characteristic Symbol Max Unit Drain-Source Voltage BVDSS -30 V Gate- Source Voltage VGS +12 V Drain Current (continuous) ID -4.2 A Drain Current (pulsed) IDM -18 A PD 1400 mW Junction TJ 150 ℃ Storage Temperature Tstg -55to+150 ℃ Total Device Dissipation TA=25℃ www.slkormicro.com 1 SL3401A ELECTRICAL CHARACTERISTICS (TA=25℃ unless otherwise noted ) Characteristic Symbol Min Typ Max Unit Drain-Source Breakdown Voltage (ID = -250uA,VGS=0V) BVDSS -30 — — V Gate Threshold Voltage (ID = -250uA,VGS= VDS) VGS(th) -0.6 — -2 V Diode Forward Voltage Drop (IS= -1A,VGS=0V) VSD — — -1 V Zero Gate Voltage Drain Current (VGS=0V, VDS= -24V, TA=55℃) IDSS — — -1 -5 uA Gate Body Leakage (VGS=+12V, VDS=0V) IGSS — — +100 nA Static Drain-Source On-State Resistance (ID= -4.2A,VGS= -10V) RDS(ON) — 42 50 mΩ Static Drain-Source On-State Resistance (ID= -2A,VGS= -4.5V) RDS(ON) — 53 60 mΩ Static Drain-Source On-State Resistance (ID= -1A,VGS= -2.5V) RDS(ON) — 80 85 mΩ Input Capacitance (VGS=0V, VDS= -15V,f=1MHz) CISS — 954 — pF Output Capacitance (VGS=0V, VDS= -15V,f=1MHz) COSS — 115 — pF Turn-ON Time (VDS= -15V, VGS= -10V, RGEN=6Ω) t(on) — 6 — ns Turn-OFF Time (VDS= -15V, VGS= -10V, RGEN=6Ω) t(off) — 38 — ns Pulse Width
