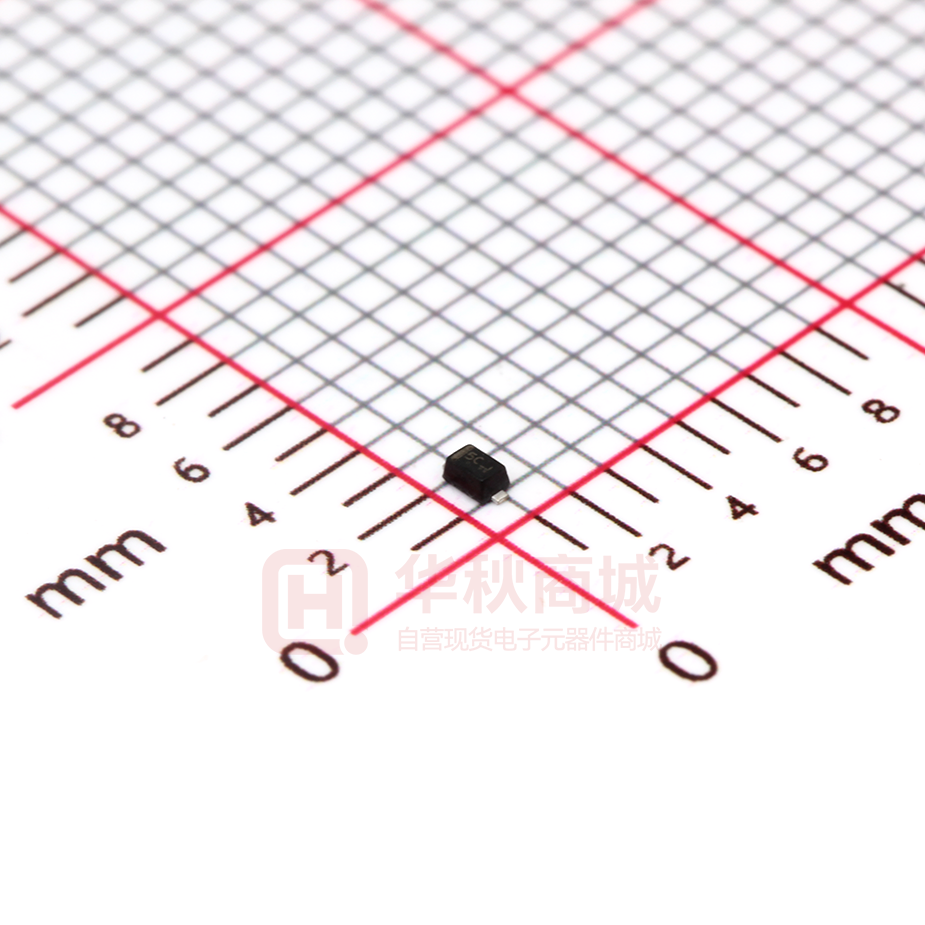

SLESD5Z5C

SLESD5Zx Transient Voltage Suppressors for ESD Protection General Description Features The SLESD5Z series are designed to protect z voltage sensitive components from ESD and transient z voltage events. Excellent clamping capability, low z leakage, and fast response time, make these parts Small Body Outline Dimensions Low Body Height Peak Power up to 200 Watts @ 8 x 20 _µs Pulse ideal for ESD protection on designs where board space z Low Leakage current is at a premium. z Response Time is Typically < 1 ns Applications Complies with the following standards z Cellular phones IEC61000-4-2 z Portable devices Level 4 z Digital cameras z Power supplies 15 kV (air discharge) 8 kV(contact discharge) MIL STD 883E - Method 3015-7 Class 3 25 kV HBM (Human Body Model) Functional diagram SOD-523 Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPP Peak Pulse Power (tp = 8/20μs) 200 W TL Maximum lead temperature for soldering during 10s 260 °C Tstg Storage Temperature Range -55 to +155 °C Top Operating Temperature Range -40 to +125 °C Tj Maximum junction temperature 150 °C ±15 ±8 kV 40 A 16 kV 400 V IEC61000-4-2 (ESD) air discharge contact discharge IEC61000-4-4 (EFT) ESD Voltage Per Human Body Model Per Machine Model www.slkormicro.com 1 SLESD5Zx Electrical Parameter Symbol IPP VC VRWM IR IT VBR Parameter Reverse Peak Maximum Current Clamping Voltage @ IPP Pulse Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Test Current Breakdown Voltage @ IT Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA VBR Part Numbers IT VRWM IR VF IF C Max. Typ. Typ. 0v bias Min. Typ. Max. V V V mA V µA V mA pF SLESD5Z3V3C 5.1 6.0 6.8 1 3.3 1 - - 20 SLESD5Z5C 5.6 6.7 7.8 1 5.0 1 - - 30 *Surge current waveform per Figure 1. 1. VBR is measured with a pulse test current IT at an ambient temperature of 25℃． Typical Characteristics Fig1. Pulse Waveform www.slkormicro.com Fig2.Power Derating Curve 2 SLESD5Zx Application Note Electrostatic discharge (ESD) is a major cause of failure in electronic systems. Transient Voltage Suppressors (TVS) are an ideal choice for ESD protection. They are capable of clamping the incoming transient to a low enough level such that damage to the protected semiconductor is prevented. Surface mount TVS offers the best choice for minimal lead inductance. They serve as parallel protection elements, connected between the signal lines to ground. As the transient rises above the operating voltage of the device, the TVS becomes a low impedance path diverting the transient current to ground. The tiny SOD-523 package allows design flexibility in the design of high density boards where the space saving is at a premium. This enables to shorten the routing and contributes to hardening against ESD. SOD-523 Mechanical Data Dim Millimeters INCHES MIN NOM MAX MIN NOM MAX A 1.10 1.20 1.30 0.043 0.047 0.051 B 0.70 0.80 0.90 0.028 0.032 0.035 C 0.50 0.60 0.70 0.020 0.024 0.028 D 0.25 0.30 0.35 0.010 0.012 0.014 J 0.07 0.14 0.20 0.0028 0.0055 0.0079 K 0.15 0.20 0.25 0.006 0.008 0.010 S 1.50 1.60 1.70 0.059 0.063 0.067 www.slkormicro.com 3
