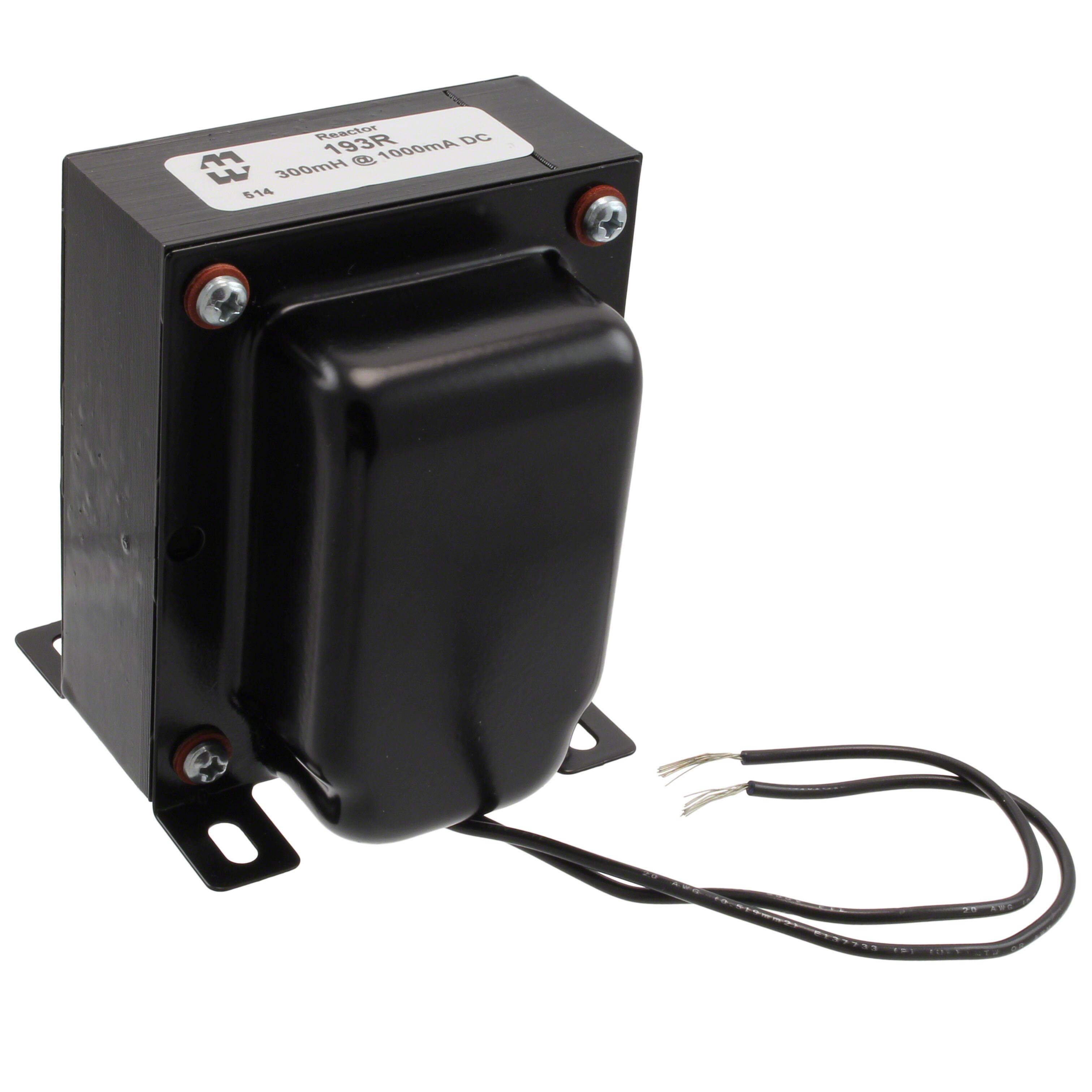

Enclosed & Potted D.C. Filter (193 Series) Chokes B A DA TE 19 xH en 3P rys , Mad e in xxx Ca mA na da C Potted Enclosed ENCLOSED & POTTED D.C. FILTER CHOKES • Enclosed, 4-hole chassis mount chokes (some models also available epoxy potted in a black powder paint - drawn steel cabinet - see chart). Potted models mount with 1/4" - 20 hardware (included). • Tolerance of 15% on both inductance & resistance. Inductances measured at rated D.C. current. • Minimum 8" long leads. • Units will exhibit less inductance at slightly higher currents or more at lower currents. • Perfect for high voltage power supply filtering, case matches power transformers & tube audio output transformers. Part No. Style Inductance Current Resistance (Henrys) (D.C. ma.) (Ohms) 193B 193C 193CP 193D 193G 193GP 193H 193J 193JP 193K 193L 193LP 193M 193MP 193N 193NP 193P 193Q 193R 193S 193T 193U 193V Enclosed Enclosed Potted Enclosed Enclosed Potted Enclosed Enclosed Potted Enclosed Enclosed Potted Enclosed Potted Enclosed Potted Enclosed Enclosed Enclosed Enclosed Enclosed Enclosed Enclosed 12 20 20 8 10 10 5 10 10 2.6 5 5 10 10 3 3 5 10 0.3 1 0.05 0.2 0.15 100 100 100 150 150 150 200 200 200 300 300 300 300 300 500 500 500 500 1000 1000 2000 2000 3000 155 181 184 75 102 103 65 82 79 21 57 55 63 63 35 36 26 53 3.50 5.75 0.7 1.7 1.0 Max. Wt. Dim. Operating Lbs. Ref. (Volts D.C.) 600 2.5 X6 600 3.25 X8 800 5.0 P1 600 3.25 X8 800 4.25 X17 800 6.0 P1 600 2.5 X6 800 5.5 X11 800 7.5 P1 800 3.25 X8 800 5.5 X11 800 7.5 P1 800 10.5 X14 800 10.5 P1 600 5.0 X11 800 7.0 P1 800 10.75 X14 1000 21.0 X16 1000 4.5 X10 1000 8.0 X13 300 2.5 X6 300 6.0 X12 300 9.0 X14 EUROPE Basingstoke, UK 01256 812812 AUSTRALIA Queenstown, Australia 61-8-8240-2244 Dimension Table Mtg. Style P1 X6 X8 X10 X11 X12 X13 X14 X16 X17 A 3.31 2.50 2.50 3.13 3.13 3.13 3.75 3.75 3.75 3.13 Dimensions (Inches) B C D E 3.88 4.25 2.75 3.06 2.00 1.69 3.25 3.06 2.00 2.19 3.50 3.81 2.50 2.19 3.75 3.81 2.50 2.44 4.25 3.81 2.50 2.94 4.00 4.56 3.00 2.81 4.50 4.56 3.00 3.31 5.50 4.56 3.00 4.31 3.25 3.81 2.50 1.94 G-Mtg. Slot .203 X .38 .203 X .38 .203 X .38 .203 X .38 .203 X .38 .203 X .38 .203 X .38 .203 X .38 .203 X .38 CANADA www.hammondmfg.com Guelph, Ontario (519) 822-2960 St. Laurent, Quebec (514) 343-9010 47 Cheektowaga, NY (716) 630-7030 USA ©
