S34042

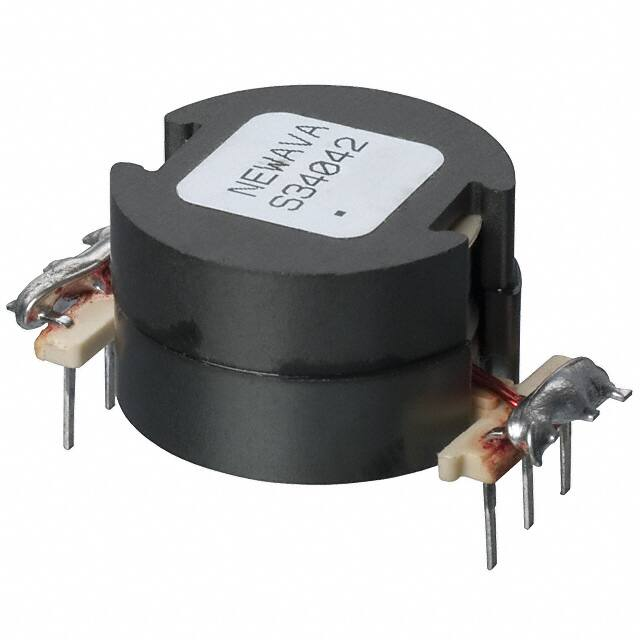

18 x 11 LM1575X, LM1577X Inductor 330 uHy 1.0 ADC Inductor designed for use with National Semiconductor Regulators: LM1575-XX / LM2575-XX LM1577-XX / LM2577-XX 1.125 Max 0.14 Typ NEWAVA S34042 YYWW 1 2 3 6 5 4 0.74 Max 0.45 Max ELECTRICAL SPECS: 1: INDUCTANCE: @ 10 kHz, 0.1 Vrms (1 thru 3 to 4 thru 6) = 300 - 360 uHy 0.15 Min 0.85 +/- 0.02 2: DCRs: (1 thru 3 to 4 thru 6) = 0.110 Ohms Max. 3: Temp Class - 130 C 4,5,6 Jumper Terminals on PC board 4: HIPOT: 250 VDC Winding to core (2 Sec., 5 mA Max) 2/20/03 A REV. + - Specifications at room temperature of 25 C. 1,2,3 Jumper Terminals on PC board .XXX - KAM DATE ECN BY TOLERANCES ON ANGLE .XX + + - - Production Release DESCRIPTION Newava Tech. Watertown, SD 57201 330 uHy Inductor 1.00 ADC 605-886-0264 DATE DRAWN: SCALE MODEL DRAWING NO. REV. CHECKED: APPROVED: - KAM NEXT ASSY: THIS PRINT MUST NOT BE COPIED IN WHOLE OR IN PART OR USED DETRIMENTALLY TO OUR INTEREST SHEET 1 OF 1 S34042 A
