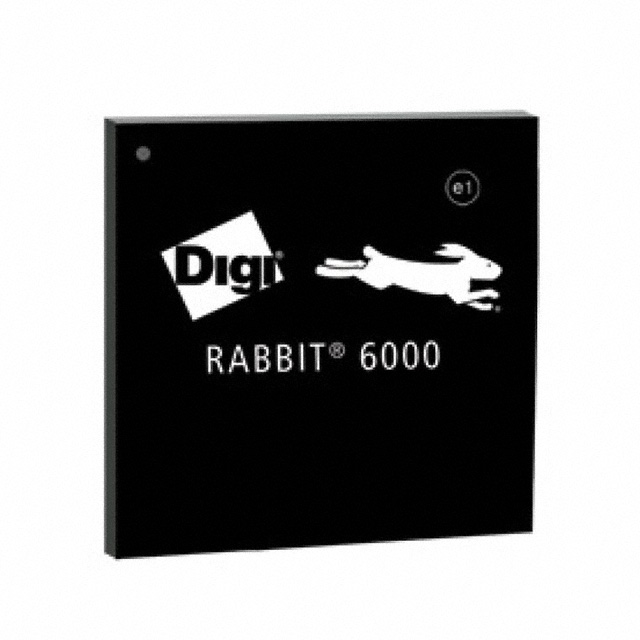

Rabbit® 6000 Communications and Control Processor A System-on-Chip ideal for industrial designs requiring multiple connectivity options. On-board features include Wi-Fi, USB and Ethernet. Overview The Rabbit 6000 raises the industry standard as the first wireless processor providing a rich set of industrial embedded control features. It is the perfect complement to future hardware designs, such as our award winning single-board computer (SBC) products that provide low-cost PLC functionality. Running at 200 MHz, the Rabbit 6000 is optimized for embedded control systems requiring high performance without sacrificing costs. Block Diagram 10/100 Ethernet MAC & PHY 200 MHz 16-bit Data Bus 802.11a/b/g MAC 32 KB of Battery Backed SRAM Rabbit 6000 CPU USB 2.0 Full Speed Host 1 MB DRAM 8 Channel ADC 12-bit Resolution The integrated hardware and software environment with processor specific libraries allows for programmable features such as I/O and peripherals to dramatically reduce development costs and time to market. The Rabbit 6000 eliminates the dependency on external components, thus increasing product longevity. 24-bit Address 16-bit Data External Memory 16 Channel DMA I/O Hub FIM B (Flexible Interface) FIM A (Flexible Interface) Serial Ports E-F (Async or HDLC) Serial Ports A-D (Async or SPI) Slave Port I2C Quadrature Decoder PWM or PPM Parallel Ports A-H (64 I/O) Features/Benefits Complete Solutions Modules SBCs Development Kits • Clock speed up to 200 MHz • On-board 802.11 a/b/g and 10/100 Ethernet • 64 I/O and up to 6 serial ports (4 as SPI) • 1 MB internal DRAM and 32K battery backable SRAM • USB 2.0 full speed host • 12-bit A/D converter samples up to 1Megasamples/s • Ideal for industrial motor control • Integrated hardware and software environment • Easily add an HMI as well as CANbus protocol support with the on-board FIMs • 4 PWM channels, 4 PPM channels Supported Software Platforms www.digi.com Specifications Rabbit® 6000 Features 292-ball BGA Package 17 mm x 17 mm x 1.3 mm Package Size Operating Voltage 1.2VDC core, 3.3V DC I/O ring Operating Current 372 μA/MHz @ 1.2V / 3.3V ( Wi-Fi and Ethernet Disabled) Operating Temperature -40° C to +85° C Maximum Clock Speed 200 MHz Digital I/O 64+ (arranged in eight 8-bit ports) Network Interfaces 10/100Base-T, 802.11a/b/g Wi-Fi Serial Ports 6 CMOS-compatible Baud Rate Clock speed / 8 max. asynchronous I2C 1 24-bit Address Bus 8/16-bit Data Bus Ten 8-bit, one 10-bit with 2 match registers, and one 16-bit with 8 match registers Timers Yes, battery-backable Real-Time Clock External RTC Oscillator Circuitry Yes Watchdog Timer/Supervisor 1x, 2x, /2, /3, /4, /6, /8 Clock Modes Sleepy (32 kHz), Ultra Sleepy (16, 8, 2 kHz) Power-Down Modes 8 or 16-bit data, 8 address lines External I/O A/D Converters 12-bit, eight multiplexed channels, up to 1 megasamples/s 10-bit, 2 synchronous channels, up to 40 megasamples/s 10-bit, single channel, up to 1 megasample/s (Wi-Fi disabled) D/A Converters 10-bit, 2 synchronous channels, up to 80 megasamples/s (Wi-Fi Disabled) Software The Dynamic C® integrated development environment reduces the time and effort to write real-time software for embedded systems that use a Rabbit microprocessor, enabling easy development of a wide range of applications. Rabbit integrates editing, compiling, linking, loading and debugging into a single development environment as one function. There are no compatibility issues when moving from one stage to another. Once the design is complete, you can debug it on the target hardware and see how your code works. Because it is a dialect of C, the Dynamic C language has all the statements and constructions of traditional C, plus extensions that make it easier to write reliable, real-time multi-tasking software. The Dynamic C integrated development environment allows for easy hardware migration, moving from a single-board computer to chip level production. Dynamic C also includes highly useful software components that can add functionality and value to your applications. This functionality includes web server capability, filing system, remote firmware updates, and wired and wireless security. Compatible software components are listed below. Rabbit Program Update Allows for remote firmware updates from anywhere in the world using an Internet connection Wi-Fi Authentication Provides strongest Wi-Fi security available via WPA-2 and 802.11i RabbitWeb Easily create web interfaces to monitor and control embedded applications You can purchase with confidence knowing that Digi is always available to serve you with expert technical support and our industry leading warranty. For detailed information visit www.digi.com/support Digi International Worldwide HQ 877-912-3444 952-912-3444 www.digi.com Digi International France +33-1-55-61-98-98 www.digi.fr Digi International Japan +81-3-5428-0261 www.digi-intl.co.jp Digi International Singapore +65-6213-5380 91001606 B2/415 Digi International China +86-21-50492199 www.digi.com.cn www.digi.com © 1996-2015 Digi International Inc. All rights reserved. All other trademarks are the property of their respective owners.
