e.MMC 4.41 I/F
Released Data Sheet
80-36-03433
V1.3
December 2010
SanDisk Corporation
Corporate Headquarters • 601 McCarthy Boulevard • Milpitas, CA 95035
Phone (408) 801-1000 • Fax (408) 801-8657
www.sandisk.com
80-36-03433
SanDisk iNAND e.MMC 4.41 I/F - Data Sheet
REVISION HISTORY
Doc. No
Revision
Date
Description
80-36-03433
1.0
25-Feb-10
Preliminary
80-36-03433
1.1
17-May-10
Released version.
New device marking spec was added
80-36-03433
1.2
12-Aug-10
Added X3 SKUs
80-36-03433
1.3
16-Dec-10
Fixed 64GB P/N
Added Max Enhanced Area Size for X3
Added System Performance numbers.
Reference
SanDisk® Corporation general policy does not recommend the use of its products in life support applications where in a failure
or malfunction of the product may directly threaten life or injury. Per SanDisk Terms and Conditions of Sale, the user of SanDisk
products in life support applications assumes all risk of such use and indemnifies SanDisk against all damages. See “Disclaimer
of Liability.”
This document is for information use only and is subject to change without prior notice. SanDisk Corporation assumes no
responsibility for any errors that may appear in this document, nor for incidental or consequential damages resulting from the
furnishing, performance or use of this material. No part of this document may be reproduced, transmitted, transcribed, stored in
a retrievable manner or translated into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written consent of an officer of SanDisk
Corporation.
All parts of the SanDisk documentation are protected by copyright law and all rights are reserved.
SanDisk and the SanDisk logo are registered trademarks of SanDisk Corporation. Product names mentioned herein are for
identification purposes only and may be trademarks and/or registered trademarks of their respective companies.
© 2010 SanDisk Corporation. All rights reserved.
SanDisk products are covered or licensed under one or more of the following U.S. Patent Nos. 5,070,032; 5,095,344; 5,168,465;
5,172,338; 5,198,380; 5,200,959; 5,268,318; 5,268,870; 5,272,669; 5,418,752; 5,602,987. Other U.S. and foreign patents
awarded and pending.
80-36-03433. August 2010 Printed in U.S.A
© 2010 SanDisk Corporation
-2-
80-36-03433
Table of Contents
SanDisk iNAND e.MMC 4.41 I/F - Data Sheet
80-36-03433
TABLE OF CONTENTS
1. Introduction ......................................................................................................................... 5
1.1. General Description ...................................................................................................... 5
1.2. Plug-and-Play Integration ............................................................................................. 5
1.3. Feature Overview ......................................................................................................... 6
1.4. Functional Description .................................................................................................. 7
1.5. Technology Independence ........................................................................................... 7
1.6. Defect and Error Management...................................................................................... 7
1.7. MMC bus and Power Lines ........................................................................................... 8
1.7.1.
Bus operating conditions ................................................................................................. 8
2. e.MMC4.41 Features Overview ........................................................................................... 9
2.1. Boot .............................................................................................................................. 9
2.2. Automatic Sleep Mode.................................................................................................. 9
2.3. Sleep (CMD5) ............................................................................................................... 9
2.4. Enhanced Reliable Write .............................................................................................. 9
2.5. Secure Erase ................................................................................................................ 9
2.6. Secure Trim ................................................................................................................ 10
2.7. Trim ............................................................................................................................ 10
2.8. Partition management................................................................................................. 10
2.9. Enhanced Write Protection ......................................................................................... 10
2.10. High Priority Interrupt (HPI)......................................................................................... 11
2.11. H/W Reset .................................................................................................................. 11
2.12. DDR I/F ...................................................................................................................... 11
3. Product Specifications ..................................................................................................... 12
3.1. Typical Power Requirements ...................................................................................... 12
3.2. Operating Conditions .................................................................................................. 12
3.2.1.
Operating and Storage Temperature Specifications ..................................................... 12
3.2.2.
Moisture Sensitivity ........................................................................................................ 12
3.3. System Performance .................................................................................................. 12
4GB 13
9MB/s .................................................................................................................................. 13
20MB/s ................................................................................................................................ 13
5MB/s .................................................................................................................................. 13
20MB/s ................................................................................................................................ 13
© 2010 SanDisk Corporation
3
80-36-03433
Table of Contents
SanDisk iNAND e.MMC 4.41 I/F - Data Sheet
80-36-03433
8/16/32/64GB ...................................................................................................................... 13
9MB/s .................................................................................................................................. 13
20MB/s ................................................................................................................................ 13
8MB/s .................................................................................................................................. 13
20MB/s ................................................................................................................................ 13
Physical Specifications ........................................................................................................ 14
4. Interface Description......................................................................................................... 17
4.1. MMC I/F Ball Array ..................................................................................................... 17
4.2. Pins and Signal Description ........................................................................................ 20
4.2.1. Table 9 contains the SanDisk iNAND, with MMC interface (153 balls), functional pin
assignment. ................................................................................................................................ 20
4.2.2. Table 10 contains the SanDisk iNAND, with MMC interface (169 balls), functional pin
assignment. ................................................................................................................................ 21
4.3. iNAND Registers ........................................................................................................ 22
4.3.1.
OCR Register................................................................................................................. 22
4.3.2.
CID Register .................................................................................................................. 22
4.3.3.
DSR Register ................................................................................................................. 22
4.3.4.
CSD Register ................................................................................................................. 23
4.3.5.
EXT_CSD Register ........................................................................................................ 24
5. Power Delivery and Capacitor Specifications ................................................................. 27
5.1. SanDisk iNAND Power Domains ................................................................................ 27
5.2. Capacitor Connection Guidelines ............................................................................... 27
5.2.1.
VDDi Connections ......................................................................................................... 27
5.2.2.
VCC and VCCQ Connections ........................................................................................ 27
6. Marking .............................................................................................................................. 29
7. Ordering Information ........................................................................................................ 30
How to Contact Us .................................................................................................................. 31
© 2010 SanDisk Corporation
4
80-36-03433
Introduction
SanDisk iNAND e.MMC 4.41 I/F - data Sheet
80-36-03433
1. INTRODUCTION
1.1. General Description
iNAND is an Embedded Flash Drive (EFD) designed for mobile handsets and consumer electronic
devices. iNAND is a hybrid device combining an embedded thin flash controller and standard MLC
NAND flash memory, with an industry standard e.MMC 4.411 interface.
Empowered with a new e.MMC4.41 feature set such as Boot and RPMB partitions, HPI
(implemented on MLC products only), and HW Reset the iNAND e.MMC is the optimal device for
reliable code and data storage.
Designed specifically for mobile multimedia applications, iNAND is the most mature on board
SD/MMC device since 2005, providing mass storage of up to 32GB in JEDEC compatible form
factors, with low power consumption and high performance - an ideal solution for multimedia
handsets of 2.5G, 3G, 3.5G and 4G.
In addition to the high reliability and high system performance offered by the current iNAND
family of products, iNAND offers plug-and-play integration and support for multiple NAND
technology transitions, as well as features such as advanced power management scheme.
iNAND uses advanced Multi-Level Cell (MLC) NAND flash technology, enhanced by SanDisk‟s
embedded flash management software running as firmware on the flash controller.
iNAND architecture and embedded firmware fully emulates a hard disk to the host processor,
enabling read/write operations that are identical to a standard, sector-based hard drive. In addition,
SanDisk firmware employs patented methods, such as virtual mapping, dynamic and static wearleveling, and automatic block management to ensure high data reliability and maximize flash life
expectancy.
SanDisk iNAND provides up to 32GB of memory for use in mass storage applications. In addition
to the mass-storage-specific flash memory chip, iNAND includes an intelligent controller, which
manages interface protocols, data storage and retrieval, error correction code (ECC) algorithms,
defect handling and diagnostics, power management and clock control.
iNAND enables multimedia driven applications such as music, photo, video, TV, GPS, games,
email, office and other applications.
The breakthrough in performance and design makes iNAND the ideal solution for mobile handset
vendors, portable navigation and Automotive Infotainment vendors who require easy integration,
fast time to market and high-capacity.
1.2. Plug-and-Play Integration
iNAND optimized architecture eliminates the need for complicated software integration and testing
processes and enables a practically plug-and-play integration in the system. The replacement of one
iNAND device with another of a newer generation requires virtually no changes to the host. This
makes iNAND the perfect solution for platforms and reference designs, as it allows for the
1
Compatible to JESD84-A441
© 2010 SanDisk Corporation
-5-
80-36-03433
Introduction
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
utilization of more advanced NAND Flash technology with minimal integration or qualification
efforts.
SanDisk iNAND is well-suited to meet the needs of small, low power, electronic devices. With
JEDEC form factors measuring 12mm x 16mm (169 balls), 12x18mm (169 balls) and 11.5x13mm
(153 balls) compatible with 0.5mm ball pitch, iNAND is fit for a wide variety of portable devices
such as multi-media mobile handsets, personal media players, GPS devices and Automotive
infotainment (car multimedia and car navigation).
To support this wide range of applications, iNAND is offered with an MMC/SD Interface.
The MMC interface allows for easy integration into any design, regardless of the host (chipset) type
used. All device and interface configuration data (such as maximum frequency and device
identification) are stored on the device.
Figure 1 shows a block diagram of the SanDisk iNAND with MMC Interface.
SanDisk iNAND
MMC Bus
Interface
Data In/Out
Single Chip
controller
Flash
Memory
Control
Figure 1 - SanDisk iNAND with MMC I/F Block Diagram
1.3. Feature Overview
SanDisk iNAND, with MMC interface, features include the following:
Memory controller and NAND flash
Complies with e.MMC Specification Ver. 4.412
Mechanical design complies with JEDED MO-276C Specification
Offered in five TFBGA packages of e.MMC 4.413
o
11.5mm x 13mm x 1.2mm (2GB)
o
12mm x 16mm x 1.2mm (4GB, 8GB, 16GB)
o
14mm x 18mm x 1.4mm and 12mm x 18mm x 1.4mm (32GB)
o
16mm x 20mm x 1.4mm (64GB)
2
Refer to JEDEC Standards No. JESD84-A441
3
Refer to JEDEC Standards No. JESD84-C441
© 2010 SanDisk Corporation
6
80-36-03433
Introduction
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
Operating temperature range: –25C° to +85C°
Dual power system
Core voltage (VCC) 2.7-3.6v
I/O (VCCQ) voltage, either: 1.7-1.95v or 2.7-3.6v
Up to 32 GB of data storage.
Supports three data bus widths: 1bit (default), 4bit, 8bit.
Variable clock frequencies of 0-20 MHz, 0-26 MHz (default), 0-52 MHz (high-speed)
Up to 52 MB/sec bus transfer rate (using 8 parallel data lines at 52 MHz)
Correction of memory field errors
Designed for portable and stationary applications that require high performance and reliable
data storage
1.4. Functional Description
SanDisk iNAND contains a high-level, intelligent subsystem as shown in Figure 1. This intelligent
(microprocessor) subsystem provides many capabilities not found in other types of storage devices.
These capabilities include:
Host independence from details of erasing and programming flash memory
Sophisticated system for managing defects
Sophisticated system for error recovery including a powerful ECC
Power management for low power operation
1.5. Technology Independence
SanDisk iNAND uses 512 bytes as sector size. To write or read a sector (or multiple sectors), the
host software simply issues a read or write command to the device. The command contains the
address and number of sectors to write or read. The host software then waits for the command to
complete.
There is no host software involvement in the details of flash operations such as erase, program or
read. This is extremely important since flash devices are becoming increasingly complex with
current advanced NAND MLC processes. Because iNAND uses an intelligent on-board controller,
host system software will not need to be updated as new flash memory evolves. In other words,
systems that support iNAND technology today will be able to access future SanDisk devices built
with new flash technology without having to update or change the host software.
1.6. Defect and Error Management
The SanDisk iNAND contains a sophisticated defect and error management system. If necessary,
iNAND will rewrite data from a defective sector to a good sector. This is completely transparent to
the host and does not consume any user data space. In the extremely rare case that a read error does
occur, iNAND has innovative algorithms to recover the data. These defect and error management
systems, coupled with the solid state construction, give SanDisk iNAND unparalleled reliability.
© 2010 SanDisk Corporation
7
80-36-03433
Introduction
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
1.7. MMC bus and Power Lines
SanDisk iNAND with MMC interface supports the MMC protocol. For more details regarding
these buses refer to JEDEC standards No. JESD84-A441.
The iNAND bus has the following communication and power lines:
CMD: Command is a bidirectional signal. The host and iNAND operate in two modes, open
drain and push-pull.
DAT0-7: Data lines are bidirectional signals. Host and iNAND operate in push-pull mode.
CLK: Clock input.
RST_n: Hardware Reset Input
VCCQ: VCCQ is the power supply line for host interface.
VCC: VCC is the power supply line for internal flash memory.
VDDi: VDDi is iNAND‟s internal power node, not the power supply. Connect 0.1uF capacitor
from VDDi to ground.
VSS, VSSQ: ground lines.
1.7.1. Bus operating conditions
Table 1 - Bus operating conditions
Parameter
Symbol
Min
Max
Unit
Peak voltage on all lines
-0.5
VCCQ+0.5
V
Input Leakage Current (before
initializing and/or connecting the
internal pull-up resistors)
-100
100
µA
-2
2
µA
Output Leakage Current (before
initializing and/or connecting the
internal pull-up resistors)
-100
100
µA
Output Leakage Current (after
changing the bus width and
disconnecting the internal pull-up
resistors)
-2
2
µA
Input Leakage Current (after changing
the bus width and disconnecting the
internal pull-up resistors)
Table
Parameter
Supply Voltage
Symbol
Min
Max
Unit
VCCQ (Low)
1.7
1.95
V
VCCQ ( High)
2.7
3.6
V
VCC
2.7
3.6
V
-0.5
0.5
V
VSS-VSSQ
2–
Power
supply
voltage
© 2010 SanDisk Corporation
8
80-36-03433
e.MMC4.41 Features Overview
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
2. E.MMC4.41 FEATURES OVERVIEW
2.1. Boot
iNAND supports e.MMC 4.41 boot operation modes, 1MB is size.
2.2. Automatic Sleep Mode
A unique feature of iNAND is automatic entrance and exit from sleep mode. Upon completion of
an operation, iNAND enters sleep mode to conserve power if no further commands are received.
Typically the entrance to sleep mode occurs after 200ns, max value entering sleep mode is 850ms
due to housekeeping operation. The host does not have to take any action for this to occur,
however, in order to achieve the lowest sleep current, the host needs to shut down its clock to the
memory device. In most systems, embedded devices are in sleep mode except when accessed by
the host, thus conserving power. When the host is ready to access a memory device in sleep mode,
any command issued to it will cause it to exit sleep and respond immediately.
2.3. Sleep (CMD5)
An iNAND device may be switched between a Sleep and a Standby state using the
SLEEP/AWAKE (CMD5). In the Sleep state the power consumption of the memory device is
minimized and the memory device reacts only to the commands RESET (CMD0) and
SLEEP/AWAKE (CMD5). All the other commands are ignored by the memory device.
The Vcc power supply may be switched off in Sleep state is to enable even further system power
consumption saving.
For additional information please refer JESD84-A441 section number 7.6.15
2.4. Enhanced Reliable Write
iNAND supports enhanced reliable write as defined in e.MMC 4.41 spec4.
Enhanced reliable write is a special write mode in which the old data pointed to by a logical address
must remain unchanged until the new data written to same logical address has been successfully
programmed. This is to ensure that the target address updated by the reliable write transaction never
contains undefined data. When writing in reliable write, data will remain valid even if a sudden
power loss occurs during programming.
2.5. Secure Erase
In addition to the standard erase command the iNAND supports the optional Secure Erase
command5.
The Secure Erase command differs from the basic Erase command in that it requires the iNAND to
execute the erase operation on the memory array when the command is issued and requires the
iNAND and host to wait until the operation is complete before moving to the next iNAND
operation.
4
For additional information refer to JEDEC Standards No. JESD84-A441
5
For additional information refer to JEDEC Standards No. JESD84-A441
© 2010 SanDisk Corporation
9
80-36-03433
e.MMC4.41 Features Overview
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
The secure erase command requires the iNAND to perform a secure purge operation on the erase
groups, and copy items identified for erase, in those erase groups .
A purge operation is defined as overwriting addressable locations with a single character and then
performing an erase.
This new command meets high security application requirements (e,g, those used by military and
government customers) that once data has been erased, it can no longer be retrieved from the
device.
2.6. Secure Trim
The Secure Trim6 command is similar to the Secure Erase command but performs a secure purge
operation on write blocks instead of erase groups. The size of a write block in the iNAND device is
512B
2.7. Trim
The Trim function is similar to the Erase command but applies the erase operation to write blocks
instead of erase groups. The size of a write block in the INAND device is 512B
For additional information on the Trim function, refer to JEDEC standards No. JESD84-A441
2.8. Partition management
The iNAND offers the possibility for the host to configure additional split local memory partitions
with independent addressable space starting from logical address 0x00000000 for different usage
models. Therefore memory block area scan be classified as follows7:
Factory configuration supplies two boot partitions, each 1MB in size, implemented as
enhanced storage media and one RPMB partitioning of 128KB in size.
The host is free to configure one segment in the User Data Area to be implemented as
enhanced storage media, and to specify its starting location and size in terms of Write
Protect Groups. The attributes of this Enhanced User Data Area can be programmed only
once during the device life-cycle (one-time programmable).
Up to four General Purpose Area Partitions can be configured to store user data or sensitive
data, or for other host usage models. The size of these partitions is a multiple of the write
protect group. Size and attributes can be programmed once in device life-cycle (one-time
programmable). Each of the General Purpose Area Partitions can be implemented with
enhanced technological features.
2.9. Enhanced Write Protection
To allow the host to protect data against erase or write, the iNAND supports two levels of write
protect command8:
6
For additional information refer to JEDEC Standards No. JESD84-A441
7
For additional information refer to JEDEC Standards No. JESD84-A441
8
For additional information refer to JEDEC Standards No. JESD84-A441
© 2010 SanDisk Corporation
10
80-36-03433
e.MMC4.41 Features Overview
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
The entire iNAND (including the Boot Area Partitions, General Purpose Area Partition, and
User/Enhanced User Data Area Partition) may be write-protected by setting the permanent
or temporary write protect bits in the CSD.
Specific segments of the iNAND may be permanently, power-on or temporarily write
protected. Segment size can be programmed via the EXT_CSD register.
For additional information please refer JESD84-A441 standard.
2.10. High Priority Interrupt (HPI)
Many operating-systems use demand-paging to launch a process requested by the user. If the host
needs to fetch pages while in a middle of a write operation the request will be delayed until the
completion of the write command.
The high priority interrupt (HPI) as defined in JESD84-A441 enables low read latency operation
by suspending a lower priority operation before it is actually completed. This mechanism can
reduce read latency, in typical condition to below 10msec.
For additional information on the HPI function, refer to JESD84-A441 standard section 7.6.20
Note: HPI is implemented on MLC products only
2.11. H/W Reset
Hardware reset may be used by host to reset the device, moving the device to a Pre-idle state and
disabling the power-on period write protect on blocks that was set as power-on write protect before
the reset was asserted. For more information, refer to JESD84-A441 standard.
2.12. DDR I/F
Support DDR signaling to double bus performance. For additional information please refer to
JESD84-A441 standard.
© 2010 SanDisk Corporation
11
80-36-03433
Product Specifications
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
3. PRODUCT SPECIFICATIONS
3.1. Typical Power Requirements
Table 3 - iNAND Power Requirements (Ta=25°C@3.3V)
Max Value
Measurement
350
uA
Auto Sleep mode
Sleep (CMD5)
200 (Max)
130 (Typical)
Read
Write
uA
Default Speed
100
mA
High-Speed
200
mA
Default Speed
100
mA
High-Speed
200
mA
VCC (ripple: max, 60mV peak-to-peak) 2.7 V – 3.6 V
Note 1: Current measurements are average over 100 mSecs.
Note 2: Sleep is measured at room temperature
Note 3: In sleep state, triggered by CMD5, Flash Vcc power supply is switched off
3.2. Operating Conditions
3.2.1.
Operating and Storage Temperature Specifications
Table 4 - Operating and Storage Temperatures
Temperature
Operating
-25° C to 85° C
Non-Operating: After soldered onto PC Board
-40° C to 85° C
3.2.2. Moisture Sensitivity
The moisture sensitivity level for iNAND is MSL = 3.
3.3. System Performance
All performance values for iNAND in Table 5 were measured under the following conditions:
Voltage range:
Core voltage (VCC): 2.7-3.6v
Host voltage (VCCQ), either: 1.7-1.95v or 2.7-3.6v
Operating temperature -25° C to 85° C
© 2010 SanDisk Corporation
12
80-36-03433
Product Specifications
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
Table 5a - System Performance
X2
Capacity
X3
Sustained Write
Sustained Read
Sustained Write
Sustained Read
4GB
9MB/s
20MB/s
5MB/s
20MB/s
8/16/32/64GB
9MB/s
20MB/s
8MB/s
20MB/s
Table 6b - System Timing Performance
Timing
Value
Block Read Access Time (MAX)
100 ms
Block Write Access Time (MAX)
250 ms
CMD1 to Ready after Power-up (MAX)
1000 ms
© 2010 SanDisk Corporation
13
80-36-03433
Product Specifications
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
Physical Specifications
The SanDisk iNAND is a 169-pin, thin fine-pitched ball grid array (BGA). See Figure 2, Figure 3 and
Table 7 for physical specifications and dimensions.
Figure 2- INAND Specification Top and Side View (Detail A)
Legend
Ball
Test Pad (for SanDisk internal use only).
Figure 3- Package Outline Drawing – bottom view
© 2010 SanDisk Corporation
14
80-36-03433
Product Specifications
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
Table 7 - iNAND Package Specification
Dimension in millimeters
Package
Size
1
Dimension in inches
Symbol
Minimum
Nominal
Maximum
Minimum
Nominal
Maximum
All
A
---
---
1.20
---
---
0.047
All
A1
0.17
0.22
0.27
0.007
0.009
0.011
12X18mm
A2
0.98
1.03
1.08
0.038
0.040
0.042
12X16mm
11.5X13mm
A2
0.785
0.835
0.885
0.031
0.033
0.035
12X18mm
C
0.10
0.13
0.16
0.004
0.005
0.006
12X16mm
11.5X13mm
C
0.17
0.21
0.25
0.007
0.008
0.010
12X18mm
12X16mm
D(A)
11.93
12.00
12.07
0.470
0.472
0.476
11.5X13mm
D(B)
11.43
11.5
11.57
0.450
0.453
0.456
12X16mm
E(A)
15.93
16.00
16.07
0.627
0.630
0.633
12X18mm
E(B)
17.90
18.00
18.10
0.706
0.709
0.713
11.5X13mm
E(C)
12.93
13.00
13.07
0.509
0.512
0.515
12X18mm
12X16mm
D1
---
1.50
---
---
0.059
---
12X18mm
12X16mm
D2
---
3.50
---
---
0.138
---
12X18mm
12X16mm
D3
---
5.50
---
---
0.217
---
All
D4
---
6.50
---
---
0.256
---
All
E1
---
6.50
---
---
0.256
---
12X18mm
12X16mm
E2
---
10.50
---
---
0.413
---
12X18mm
12X16mm
E3
---
12.50
---
---
0.492
---
12X18mm
12X16mm
E4
---
13.50
---
---
0.531
---
All
E
---
.50
---
---
0.020
---
All
B
0.25
0.30
0.35
0.010
0.012
0.014
All
Aaa
0.10
1
0.004

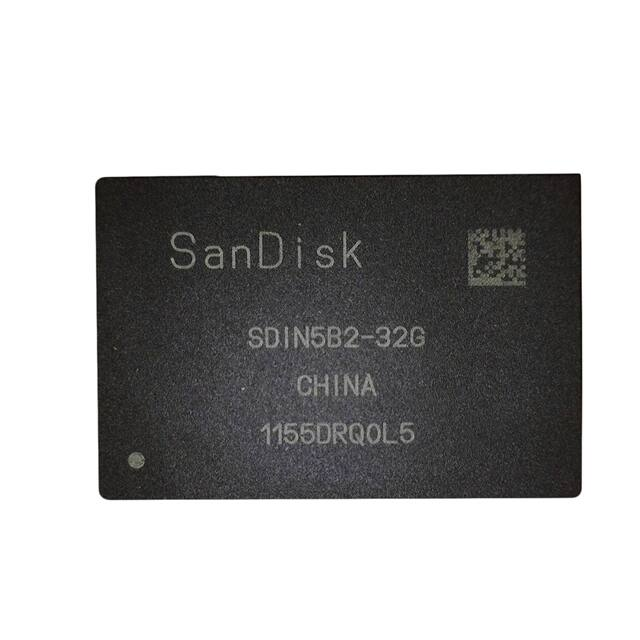

For SDIN5B2-32G maximum device height (A) is 1.40 mm
© 2010 SanDisk Corporation
15
80-36-03433
Product Specifications
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
Dimension in millimeters
Dimension in inches
All
Bbb
0.10
0.004
All
Ddd
0.08
0.003
All
Eee
0.15
0.006
All
Fff
0.05
0.002
All
MD/ME
14/14
14/14
© 2010 SanDisk Corporation
16
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
4. INTERFACE DESCRIPTION
4.1. MMC I/F Ball Array
A
NC
B
NC
NC
NC
NC
NC
C
D
NC
NC
E
F
G
H
NC
NC
DAT0
DAT1
DAT2
NC
NC
NC
NC
NC
NC
NC
NC
NC
J
NC
DAT3
DAT4
DAT5
DAT6
DAT7
NC
NC
NC
NC
NC
NC
NC
NC
K
NC
VDDi
NC
VSSQ
NC
VCCQ
NC
NC
NC
NC
NC
NC
NC
NC
L
NC
NC
NC
NC
NC
NC
NC
M
NC
NC
NC
NC
NC
NC
NC
NC
N
NC
NC
NC
VCC
NC
NC
NC
NC
P
NC
NC
NC
VSS
NC
NC
NC
NC
R
NC
NC
NC
NC
VSS
NC
NC
NC
T
NC
NC
NC
NC
VCC
NC
NC
NC
U
NC
NC
NC
RESET
NC
NC
NC
NC
V
NC
NC
NC
NC
NC
NC
W
NC
NC
NC
VCCQ
CMD
CLK
NC
NC
NC
NC
NC
NC
NC
NC
Y
NC
VSSQ
NC
VCCQ
VSSQ
NC
NC
NC
NC
NC
NC
NC
NC
NC
AA
NC
NC
VCCQ
VSSQ
VCCQ
VSSQ
NC
NC
NC
NC
NC
NC
NC
NC
VCC
NC
VSS
NC
NC
VSS
NC
VCC
AB
AC
AD
AE
NC
NC
AF
AG
AH
NC
NC
NC
NC
NC
NC
Figure 4 - 169 balls - Ball Array (Top View)
© 2010 SanDisk Corporation
17
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
1
2
3
4
5
6
7
8
9
A
NC
NC
DAT0
DAT1
DAT2
NC
NC
NC
B
NC
DAT3
DAT4
DAT5
DAT6
DAT7
NC
C
NC
Vddi
NC
VssQ
NC
VccQ
NC
D
NC
NC
NC
14
11
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
12
13
10
Index
NC
NC
NC
NC
F
NC
NC
NC
VCC
NC
NC
NC
NC
G
NC
NC
NC
VSS
NC
NC
NC
NC
H
NC
NC
NC
NC
VSS
NC
NC
NC
J
NC
NC
NC
NC
VCC
NC
NC
NC
K
NC
NC
NC
RESET
NC
NC
NC
NC
L
NC
NC
NC
NC
NC
NC
M
NC
NC
NC
VccQ
CMD
CLK
NC
NC
NC
NC
NC
NC
NC
NC
N
NC
VssQ
NC
VccQ
VssQ
NC
NC
NC
NC
NC
NC
NC
NC
NC
P
NC
NC
VccQ
VssQ
VccQ
VssQ
NC
NC
NC
NC
NC
NC
NC
NC
VCC
NC
VSS
NC
NC
E
VSS
NC
VCC
Figure 7 - 153 balls - Ball Array (Top View)
© 2010 SanDisk Corporation
18
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
iNAND with 16x20x1.4mm package size contains an additional 24 Not-Connected balls that
optimizes the device‟s bond with the PCB. The additional balls are located in the four corners of
the device as shown in the following figure:
24 Not-Connected balls in 16x20x1.4mm package (Bottom View)
© 2010 SanDisk Corporation
19
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F - data Sheet
80-36-03433
4.2. Pins and Signal Description
4.2.1. Table 9 contains the SanDisk iNAND, with MMC interface (153 balls),
functional pin assignment.
Table 8 – Functional Pin Assignment, 153 balls
Ball No.
Ball Signal
A3
DAT0
A4
DAT1
A5
DAT2
B2
DAT3
B3
DAT4
B4
DAT5
B5
DAT6
B6
DAT7
M5
CMD
M6
CLK
K5
RST_n
E6
VCC
F5
VCC
J10
VCC
K9
VCC
D6
VCCQ
M4
VCCQ
N4
VCCQ
P3
VCCQ
P5
VCCQ
E7
VSS
G5
VSS
H10
VSS
K8
VSS
C4
VSSQ
N2
VSSQ
N5
VSSQ
P4
VSSQ
P6
VSSQ
C2
VDDi
Type
Description
I/O
Data I/O: Bidirectional channel used for data transfer
I/O
Command: A bidirectional channel used for device initialization and
command transfers.
Input
Clock: Each cycle directs a 1-bit transfer on the command and DAT
lines
Hardware Reset
Supply
Flash I/O and memory power supply
Supply
Memory controller core and MMC I/F I/O power supply
Supply
Flash I/O and memory ground connection
Memory controller core and MMC I/F ground connection
Internal power node. Connect 0.1uF capacitor from VDDi to ground
Note: All other pins are not connected [NC] and can be connected to GND or left floating.
© 2010 SanDisk Corporation
- 20 -
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
4.2.2. Table 10 contains the SanDisk iNAND, with MMC interface (169 balls),
functional pin assignment.
Table 10 – Functional Pin Assignment, 169 balls
Ball No.
Ball Signal
H3
DAT0
H4
DAT1
H5
DAT2
J2
DAT3
J3
DAT4
J4
DAT5
J5
DAT6
J6
DAT7
W5
CMD
W6
CLK
Type
I/O
Data I/O: Bidirectional channel used for data transfer
I/O
Command: A bidirectional channel used for device initialization and
command transfers.
Input
U5
RST_n
M6
VCC
N5
VCC
T10
VCC
U9
VCC
K6
VCCQ
W4
VCCQ
Y4
VCCQ
AA3
VCCQ
AA5
VCCQ
M7
VSS
P5
VSS
R10
VSS
U8
VSS
K4
VSSQ
Y2
VSSQ
Y5
VSSQ
AA4
VSSQ
AA6
VSSQ
K2
VDDi
Description
Clock: Each cycle directs a 1-bit transfer on the command and DAT
lines
Hardware Reset
Supply
Flash I/O and memory power supply
Supply
Memory controller core and MMC I/F I/O power supply
Supply
Flash I/O and memory ground connection
Memory controller core and MMC I/F ground connection
Internal power node. Connect 0.1uF capacitor from VDDi to ground
Note: All other pins are not connected [NC] and can be connected to GND or left floating.
© 2010 SanDisk Corporation
21
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
4.3. iNAND Registers
4.3.1. OCR Register
Value for 4GB-32GB: 0xC0FF8080
Value for 2GB:
0x40FF8080
Note: Bit 30 is set because the device is High Capacity; bit 31 will be set only when the device is
ready
Width
Parameter
OCR slice
Description
Value
Access Mode
[30:29]
Access mode
2GB 10b
2
[23:15]
VDD: 2.7 - 3.6 range
111111111b
9
[14:8]
VDD: 2.0 - 2.6 range
0000000b
7
[7]
VDD: 1.7 - 1.95 range
1b
1
4.3.2. CID Register
Parameter
CID slice
Description
Value
Width
MID
[127:120]
Manufacturer ID
45h
8
CBX
[113:112]
Card BGA
01h
2
OID
[111:104]
OEM/Application ID
0000h
8
PNM
[103:56]
Product name
2GB: 53454d303247h ("SEM02G")
48
4GB: 53454d303447h ("SEM04G")
8GB: 53454d303847h ("SEM08G")
16GB: 53454d313647h ("SEM16G")
32GB: 53454d333247h ("SEM32G")
PRV
[55:48]
Product revision
90h
8
PSN
[47:16]
Product serial number
Random by Production
32
MDT
[15:8]
Manufacturing date
month, year
8
CRC
[7:1]
CRC7 checksum
0000000b
7
4.3.3. DSR Register
Parameter
DSR slice
Description
Value
Width
RSRVD
[15:8]
Reserved
04h
8
RSRVD
[7:0]
Reserved
04h
8
DSR is not implemented; in case of read, value of 0x0404 will be returned.
© 2010 SanDisk Corporation
22
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
4.3.4. CSD Register
Parameter
CSD Slice
Description
Value
Width
CSD_STRUCTURE
[127:126]
CSD structure
11b
3
SPEC_VERS
[125:122]
System specification version
0100b
4
TAAC
[119:112]
Data read access-time 1
0Fh
8
NSAC
[111:104]
Data read access-time 2 in CLK
cycles (NSAC*100)
00h
8
TRAN_SPEED
[103:96]
Max. bus clock frequency
32h
8
CCC
[95:84]
Card command classes
0F5h
12
READ_BL_LEN
[83:80]
Max. read data block length
9h – Not 2GB
4
Ah – for 2GB
READ_BL_PARTIAL
[79:79]
Partial blocks for read allowed
0b
1
WRITE_BLK_MISALIGN
[78:78]
Write block misalignment
0b
0
READ_BLK_MISALIGN
[77:77]
Read block misalignment
0b
0
DSR_IMP
[76:76]
DSR implemented
0b
0
*C_SIZE
[73:62]
Device size
2GB-E97h
12
VDD_R_CURR_MIN
[61:59]
Max. read current @ VDD min
111b
3
VDD_R_CURR_MAX
[58:56]
Max. read current @ VDD max
111b
3
VDD_W_CURR_MIN
[55:53]
Max. write current @ VDD min
111b
3
VDD_W_CURR_MAX
[52:50]
Max. write current @ VDD max
111b
3
C_SIZE_MULT
[49:47]
Device size multiplier
111b
3
ERASE_GRP_SIZE
[46:42]
Erase group size
11111b
5
ERASE_GRP_MULT
[41:37]
Erase group size multiplier
2GB 00111b
4GB 01111b
>=8GB 11111b
5
WP_GRP_SIZE
[36:32]
Write protect group size
11111b
5
WP_GRP_ENABLE
[31:31]
Write protect group enable
1b
1
DEFAULT_ECC
[30:29]
Manufacturer default
00b
2
R2W_FACTOR
[28:26]
Write speed factor
100b
3
WRITE_BL_LEN
[25:22]
Max. write data block length
9h
4
WRITE_BL_PARTIAL
[21:21]
Partial blocks for write allowed
0b
1
CONTENT_PROT_APP
[16:16]
Content protection application
0b
1
FILE_FORMAT_GRP
[15:15]
File format group
0b
1
COPY
[14:14]
Copy flag (OTP)
1b
1
PERM_WRITE_PROTECT
[13:13]
Permanent write protection
0b
1
TMP_WRITE_PROTECT
[12:12]
Temporary write protection
0b
1
FILE_FORMAT
[11:10]
File format
00b
2
ECC
[9:8]
ECC code
00b
2
CRC
[7:1]
Calculated CRC
0000000b
7
>2GB FFFh
© 2010 SanDisk Corporation
23
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
4.3.5. EXT_CSD Register
Parameter
ECSD slice
[bytes]
Description
Value
S_CMD_SET
[504]
Supported Command Sets
1h
HPI_FEATURES
[503]
HPI Features
1h
BKOPS_SUPPORT
[502]
Background operations support
0h
BKOPS_STATUS
[246]
Background operations status
Default = 0h
Updated in Run time
CORRECTLY_PRG_SECTORS_
NUM
[245:242]
Number of correctly programmed
sectors
Default = 0h
INI_TIMEOUT_AP
[241]
1st Initialization time after partitioning
Ah
TRIM _MULT
[232]
TRIM Multiplier
1h
SEC_FEATURE_SUPPORT
[231]
Secure Feature support
15h
SEC_ERASE_MULT
[230]
Secure Erase Multiplier
96h
SEC_TRIM_MULT
[229]
Secure TRIM Multiplier
96h
BOOT_INFO
[228]
Boot Information
7h
BOOT_SIZE_MULTI
[226]
Boot partition size
8h
ACCESS_SIZE
[225]
Access size
6h
HC_ERASE_GROUP_SIZE
[224]
High Capacity Erase unit size
Table 9
ERASE_TIMEOUT_MULT
[223]
High capacity erase time out
1h
REL_WR_SEC_C
[222]
Reliable write sector count
1h
HC_WP_GRP_SIZE
[221]
High capacity write protect group size
Table 9
S_C_VCC
[220]
Sleep current [VCC]
8h
S_C_VCCQ
[219]
Sleep current [VCCQ]
7h
S_A_TIMEOUT
[217]
Sleep/Awake time out
11h
SEC_COUNT
[215:212]
Sector count
Table 9
MIN_PERF_W_8_52
[210]
Minimum Write Performance for 8bit
@52MHz
ah
MIN_PERF_R_8_52
[209]
Minimum Read Performance for 8bit
@52MHz
ah
MIN_PERF_W_8_26_4_52
[208]
Minimum Write Performance for 4bit
@52MHz or 8bit @26MHz
ah
MIN_PERF_R_8_26_4_52
[207]
Minimum Read Performance for 4bit
@52MHz or 8bit @26MHz
ah
MIN_PERF_W_4_26
[206]
Minimum Write Performance for 4bit
@26MHz
ah
MIN_PERF_R_4_26
[205]
Minimum Read Performance for 4bit
@26MHz
ah
PWR_CL_26_360
[203]
Power Class for 26MHz @ 3.6V
0h
PWR_CL_52_360
[202]
Power Class for 52MHz @ 3.6V
0h
© 2010 SanDisk Corporation
24
Updated in Run time
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
Parameter
ECSD slice
[bytes]
Description
Value
PWR_CL_26_195
[201]
Power Class for 26MHz @ 1.95V
0h
PWR_CL_52_195
[200]
Power Class for 52MHz @ 1.95V
0h
PARTITION_SWITCH_TIME
[199]
Partition switching timing
1h
OUT_OF_INTERRUPT_TIME
[198]
Out-of-interrupt busy timing
1h
CARD_TYPE
[196]
Card Type
7h
CSD_STRUCTURE
[194]
CSD Structure Version
2h
EXT_CSD_REV
[192]
Extended CSD Revision
5h
CMD_SET
[191]
Command Set
0h
CMD_SET_REV
[189]
Command Set Revision
0h
POWER_CLASS
[187]
Power Class
0h
HS_TIMING
[185]
High Speed Interface Timing
0h
BUS_WIDTH
[183]
Bus Width Mode
0h
ERASE_MEM_CONT
[181]
Content of explicit erased memory range
0h
PARTITION_CONFIG
[179]
Partition Configuration
0h
BOOT_CONFIG_PROT
[178]
Boot config protection
0h
BOOT_BUS_WIDTH
[177]
Boot bus width1
0h
ERASE_GROUP_DEF
[175]
High-density erase group definition
0h
BOOT_WP
[173]
Boot area write protect register
0h
USER_WP
[171]
User area write protect register
0h
FW_CONFIG
[169]
FW Configuration
0h
RPMB_SIZE_MULT
[168]
RPMB Size
1h
WR_REL_SET
[167]
Write reliability setting register
0h
WR_REL_PARAM
[166]
Write reliability parameter register
0h
BKOPS_START
[164]
Manually start background operations
0h
BKOPS_EN
[163]
Enable background operations
handshake
0h
RST_n_FUNCTION
[162]
H/W reset function
0h
HPI_MGMT
[161]
HPI management
0h
PARTITIONING SUPPORT
[160]
Partitioning support
3h
MAX_ENH_SIZE_MULT
[159:157]
Max Enhanced Area Size
PARTITIONS_ATTRIBUTE
© 2010 SanDisk Corporation
[156]
Partitions Attribute
25
X2
X3
2GB
E8h
NA
4GB
ECh
99h
8GB
ECh
9Ah
16GB
EDh
9Ah
32GB
EDh
9Ah
64GB
NA
98h
0h
80-36-03433
Interface Description
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
Parameter
ECSD slice
[bytes]
Description
Value
GP_SIZE_MULT
[154:143]
General Purpose Partition Size
0h
ENH_SIZE_MULT
[142:140]
Enhanced User Data Area Size
0h
ENH_START_ADDR
[139:136]
Enhanced User Data Start Address
0h
SEC_BAD_BLK_MGMNT
[134]
Bad Block Management mode
0h
The following table shows the capacity available for user data for the various device capacities:
Table 9: Capacity* for User Data
Capacity
LBA [Hex]
LBA [Dec]
Capacity [Bytes]
SDIN5D2-2G
0x3A6000
3,825,664
1,958,739,968
SDIN5C2-4G
0x75F000
7,729,152
3,957,325,824
SDIN5C2-8G
0xECB000
15,511,552
7,941,914,624
SDIN5C2-16G
0x1DA9000
31,100,928
15,923,675,136
SDIN5B2-32G
0x3B6F000
62,320,640
31,908,167,680
SDIN5C1-4G
0x760000
7,733,248
3,959,422,976
SDIN5C1-8G
0xECC000
15,515,648
7,944,011,776
SDIN5C1-16G
0x1DAA000
31,105,024
15,925,772,288
SDIN5E1-32G
0x3B70000
62,324,736
31,910,264,832
SDIN5F1-64G
0x74F0000
122,617,856
62,780,342,272
*Note: Exported capacity numbers in Table 11 are the Factory Default exported capacity. By
implementing Enhanced User Data Area the exported capacity is reduced.
Table 10: Write protect group size
SKU
HC_ERASE_GROUP
_SIZE
HC_WP_GRP_
SIZE
Erase Unit Size
[MB]
Write Protect Group
Size [MB]
SDIN5D2-2G
4h
2h
2MB
4MB
SDIN5C2-4G
4h
4h
2MB
8MB
SDIN5C2-8G
4h
8h
2MB
16MB
SDIN5C2-16G
4h
10h
2MB
32MB
SDIN5B2-32G
4h
20h
2MB
64MB
SDIN5C1-4G
8h
2h
4MB
8MB
SDIN5C1-8G
8h
4h
4MB
16MB
SDIN5C1-16G
8h
8h
4MB
32MB
SDIN5E1-32G
8h
10h
4MB
64MB
SDIN5F1-64G
8h
20h
4MB
128MB
© 2010 SanDisk Corporation
26
80-36-03433
Power Delivery and Capacitor Specifications
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
5. POWER DELIVERY AND CAPACITOR SPECIFICATIONS
5.1. SanDisk iNAND Power Domains
SanDisk iNAND has three power domains assigned to VCCQ, VCC and VDDi, as shown in Table
11.
Table 11 - Power Domains
Pin
Power Domain
VCCQ
Host Interface
Comments
Supported voltage ranges:
High Voltage Region: 3.3V (nominal)
Low Voltage Region: 1.8V (nominal)
VCC
Memory
Supported voltage range:
High Voltage Region: 3.3V (nominal)
VDDi
Internal
VDDi is the internal regulator connection to an
external decoupling capacitor.
5.2. Capacitor Connection Guidelines
5.2.1. VDDi Connections
The VDDi (C2/K2) ball must only be connected to an external capacitor that is connected to VSS.
This signal may not be left floating. The capacitor‟s specifications and its placement instructions
are detailed below.
The capacitor is part of an internal voltage regulator that provides power to the controller.
Caution: Failure to follow the guidelines below, or connecting the VDDi ball to any external signal
or power supply, may cause the device to malfunction.
The trace requirements for the VDDi (C2/K2) ball to the capacitor are as follows:
Resistance: =6.3 V
Dielectric: X7R or X5R
5.2.2. VCC and VCCQ Connections
All VCC balls should be connected to a 3.3V supply
All VCCQ balls should be connected either to a 3.3V or 1.8V supply
SanDisk recommends providing separate bypass capacitors for each power domain as shown in
Figure 8
© 2010 SanDisk Corporation
27
80-36-03433
Power Delivery and Capacitor Specifications
SanDisk iNAND e.MMC 4.41 I/F -Data Sheet
80-36-03433
Note: Signal routing in the diagram is for illustration purposes only and the final routing depends
on your PCB layout. Also, for clarity, the diagram does not show the VSS connection. All
balls marked VSS should be connected to a ground (GND) plane.
14
13
12
11
10
T10
Vcc
9
U9
Vcc
8
Top View
7
6
K6
VccQ
M6
Vcc
5
N5
Vcc
AA5
VccQ
4
W4
VccQ
Y4
VccQ
3
AA3
VccQ
2
K2
VDDi
1
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y AA AB AC AD AE AF AG AH
VccQ
power
supply
C_1
C_2
Vcc = 3.3V (nom)
Trace Requirements (C_5):
Resistance < 2 ohm
Inductance < 5nH
C_5
Capacitor C_5:
Capacitance >= 0.1uF
Voltage >= 6.3V
Dielectric: X7R or X5R
C_3
VSS
C_4
VSS VSS
Close to
Ball N5
C_1=C_3>=2.2uF
C_2=C_4
工商网监
湘ICP备2023018690号
