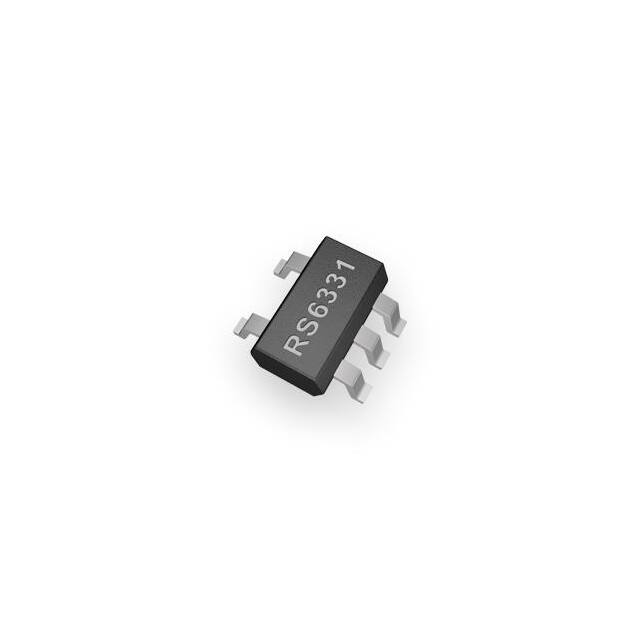

RS6331KXF

RS6331S, RS6332S RS6331, RS6332, RS6334 1.1MHz, Rail-to-Rail I/O CMOS Operational Amplifier FEATURES DESCRIPTION  HIGH GAIN BANDWIDTH:1.1MHz  RAIL-TO-RAIL INPUT AND OUTPUT 0.6mV Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.6V with Vs = 5.5V   SUPPLY RANGE: +2.5V to +5.5V   SHUTDOWN: RS6331S/RS6332S SPECIFIED UP TO +125°C  MicroSIZE The RS6331, RS6332, RS6334, RS6331S, RS6332S families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.1MHz) and slew rate of 0.5V/us. The op-amps are unity gain stable and feature an ultra-low input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The RS6331S, RS6332S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The RS6331, RS6332, RS6334, RS6331S, RS6332S families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V. PACKAGES: SOT23-5, SOT23-6 APPLICATIONS  SENSORS  PHOTODIODE AMPLIFICATION   ACTIVE FILTERS TEST EQUIPMENT  DRIVING A/D CONVERTERS PIN CONFIGURATIONS 4 -IN 1 -IN 2 +IN 3 V- 4 8 N.C. 7 V+ 6 OUT 5 N.C. SOT23-5 6 1 5 2 3 - SOT23-6 REV B.5 +IN B V- 4 En A 5 3 + A 6 B+ 4 5 - A B EN OUT A 1 7 V+ -IN A 2 6 OUT +IN A 5 NC 8 1 -IN 2 +IN 3 V- 4 4 V+ SOIC-8 EN -IN - + D + - 3 14 OUT D 13 -IN D 12 4 11 V- +IN B 5 10 +IN C OUT B 6 - + B + C 7 8 SOIC-14,TSSOP-14 1 9 +IN A 1 V+ 2 +IN B 3 -IN B 4 16 15 14 13 +IN D V+ -IN B Note: N.C. indicates no internal connection A -IN D NC OUT D OUT 10 V+ 9 OUT B - 8 -IN B 7 +IN B 6 En B MSOP-10 RS6334 RS6334 12 +IN D 11 V- 10 +IN C 9 -IN C TQFN3x3-16L -IN C 5 6 7 8 OUT B +IN 3 + 4 + -IN B +IN A - - RS6331S V- 2 2 RS6331S SOT23-5 OUT 1 -IN A -IN A 3 OUT A OUTB OUT A 2 V- V+ 7 V+ + V- IN +IN A 8 SOIC-8,MSOP-8,TSSOP-8, TDFN2x2-8L,TDFN3x3-8L 5 1 -IN A 1 SOIC-8,MSOP-8 RS6331B + IN OUT A N.C. - N.C. OUT C 3 + V+ + +IN 5 N.C. 2 + 1 V- - OUT RS6332S RS6332 RS6331 + RS6331 OUT C www.run-ic.com RS6331S, RS6332S RS6331, RS6332, RS6334 ABSOLUTE MAXIMUM RATINGS (1) Supply Voltage, V+ to V-...............................................7.0V (2) Input Terminals, Voltage …………... – 0.5 to (V+) + 0.5V (2) Current …………………....…..... ±10mA Storage Temperature ……….…………… −65°C to +150°C Operating Temperature ……….………… −40°C to +125°C Junction Temperature................................................150°C Package Thermal Resistance @ TA = +25°C SOT23-5, SOT23-6………………….………………200°C/W MSOP-10, SOIC-8, TSSOP-8.……….…………... 150°C/W SOIC-14, TSSOP-14………….……….……………100°C/W Lead Temperature (Soldering, 10s) ……………........260°C ESD Susceptibility HBM …......................................................................5000V MM ……………………….........………………...……….400V ESD SENSITIVITY CAUTION ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the supply rails should be current-limited to 10mA or less. PACKAGE/ORDERING INFORMATION PRODUCT RS6331 RS6331S RS6332 RS6332S RS6334 TEMPERATURE PACKAGE PACKAGE RANGE LEAD MARKING RS6331XK -40℃~125℃ SOIC-8 RS6331 Tape and Reel,2500 RS6331XF -40℃~125℃ SOT23-5 6331 Tape and Reel,3000 RS6331BXF -40℃~125℃ SOT23-5 6331B Tape and Reel,3000 RS6331XM -40℃~125℃ MSOP-8 RS6331 Tape and Reel,3000 RS6331SXK -40℃~125℃ SOIC-8 RS6331S Tape and Reel,2500 RS6331SXH -40℃~125℃ SOT23-6 6331S Tape and Reel,3000 RS6332XK -40℃~125℃ SOIC-8 RS6332 Tape and Reel,2500 RS6332XM -40℃~125℃ MSOP-8 RS6332 Tape and Reel,3000 RS6332XTDE8 -40℃~125℃ TDFN2x2-8L RS6332 Tape and Reel,3000 RS6332XTDC8 -40℃~125℃ TDFN3x3-8L RS6332 Tape and Reel,3000 RS6332XQ -40℃~125℃ TSSOP-8 RS6332 Tape and Reel,3000 RS6332SXN -40℃~125℃ MSOP-10 RS6332S Tape and Reel,3000 RS6334XP -40℃~125℃ SOIC -14 RS6334 Tape and Reel,2500 RS6334XQ -40℃~125℃ TSSOP-14 RS6334 Tape and Reel,3000 RS6334XTQC16 -40℃~125℃ TQFN3x3-16L RS6334 Tape and Reel,3000 ORDERING NUMBER 2 PACKAGE OPTION www.run-ic.com RS6331S, RS6332S RS6331, RS6332, RS6334 ELECTRICAL CHARACTERISTICS (At TA = +25C, Vs=5V, RL = 10kΩ connected to VS/2, and VOUT = VS/2, unless otherwise noted.) PARAMETER CONDITIONS TJ RS6331S,RS6332S, RS6331,RS6332,RS6334 MIN TYP MAX UNIT POWER SUPPLY Vs IQ 25°C Operating Voltage Range Quiescent Current/Amplifier PSRR Power-Supply Rejection Ratio 2.5 25°C 25°C Vs= 2.5V to 5.5V Vcm =(V-)+0.5V –40°C to 125°C 58 72 5.5 V 80 uA 90 dB 65 INPUT Vos Input Offset Voltage Vos TC Input Offset Voltage Drift IB Input Bias Current Ios Input Offset Current Vcm Common-Mode Voltage Range CMRR Common-Mode Rejection Ratio 25°C Vcm =Vs/2 0.6 3 mV 2 -40°C to 125°C uV/°C 25°C 1 10 pA 25°C 1 10 pA 5.6 V Vs=5.5V 25°C -0.1 Vs = 5.5V, Vcm =-0.1V to 4V 25°C 71 –40°C to 125°C 68 Vs = 5.5V, Vcm = -0.1V to 5.6V 25°C 60 –40°C to 125°C 57 RL =2KΩ, Vo = 0.15V to 4.85V 25°C 94 –40°C to 125°C 85 90 dB 80 OUTPUT AOL Open-Loop Voltage Gain RL = 2KΩ RL = 10kΩ 100 dB 110 90 25°C 25°C 25 8 mV 25°C 55 mA Slew Rate Gain-Bandwidth Product 25°C 0.5 V/us 25°C 1.1 MHz Phase Margin 25°C 64 ° Settling Time, 0.1% Overload Recovery Time 25°C 1.3 us 25°C 2.3 us f = 1 kHz 25°C 22 nV/√Hz f = 10 kHz 25°C 20 nV/√Hz 25°C
