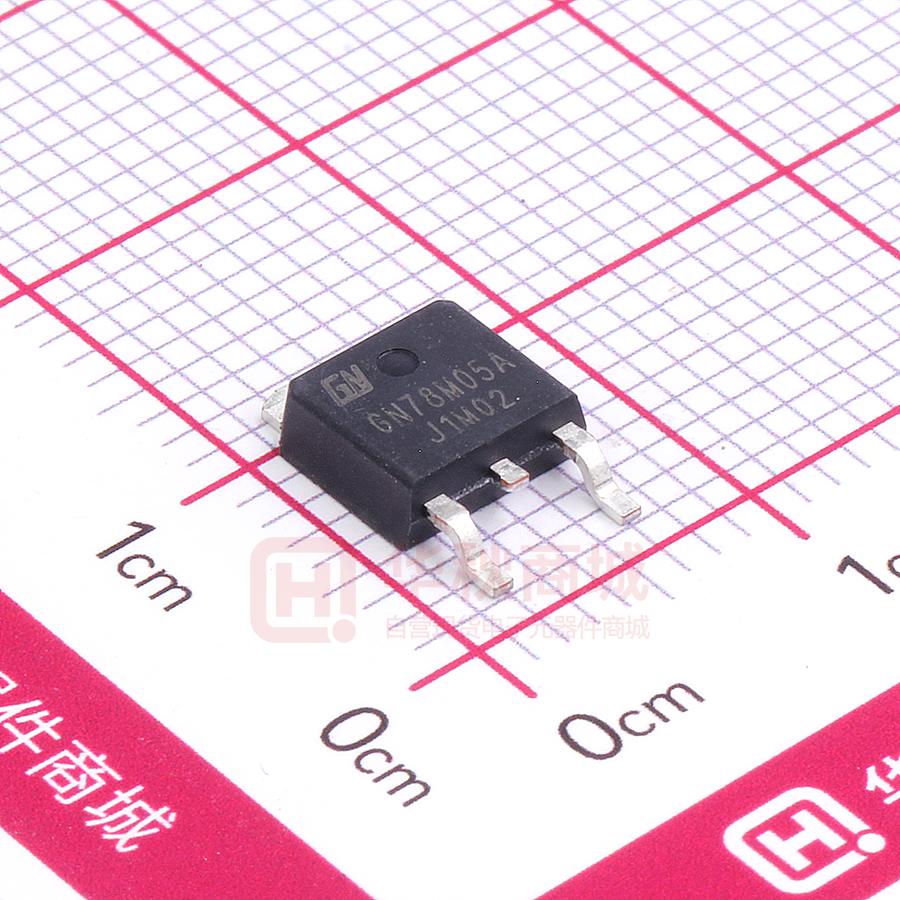

GN78M05A

旌芯半导体科技(上海)有限公司 GN78M05A GN Semiconductor (Shanghai) Co., Ltd. 3-Terminal Voltage Regulator Features  Input Voltage up to 35V  Output Voltage:5V TO-252 Output Current：0.5A（Max）  Overload Protection and Short-Circuit Limiting. 1、IN 2、GND 3、OUT Absolute Maximum Ratings Ratings at TA = 25℃ unless otherwise specified. Parameter Symbol Value Unit VI 35 V Thermal Resistance Junction-Ambient RθJA 100 ℃/W Thermal Resistance Junction-Case RθJC 8.0 ℃/W Operating Temperature Range TOPR -40～125 ℃ TJ 150 ℃ TSTG -55～150 ℃ Input Voltage Junction Temperature Storage Temperature Range Application Circuit 中国(上海)自由贸易试验区芳春路400号1幢3层 http://www.gnsemic.com 电话:021-34125778 第 1 页，共 4 页 旌芯半导体科技(上海)有限公司 GN78M05A GN Semiconductor (Shanghai) Co., Ltd. Electrical Characteristics Ratings at TA = 25℃ unless otherwise specified. Parameter Symbol Output Voltage VO Load Regulation △Vo Line Regulation △Vo Test Conditions Min Typ Max Unit TJ=25℃ 4.9 5 5.1 V Vi=7V-20V Io=5mA~350mA 4.8 5 5.2 V Io=5mA-500mA TJ=25℃ - - 100 mV Io=5mA~200mA TJ=25℃ - - 50 mV Vi=7V~25V TJ=25℃ - - 100 mV Vi=8V~25V TJ=25℃ - - 50 mV - 40 - μV Output Noise Voltage eN Ripple Rejection RR Vi=8V~18V f=120Hz 62 - - dB Short Circuit Current Isc Vi=35V TJ=25℃ - 300 - mA Quiescent Current IQ TJ=25℃ - - 6 mA Vi=8V~25V - - 0.8 mA Io=5mA~350mA - - 0.5 mA △Vo/△T Io=5mA - -0.5 - mV/℃ Dropout Voltage VD TJ=25℃ - 2 - V Short Circuit Peak Current Iscp TJ=25℃ - 700 - mA Quiescent Current Change Output Voltage Drift △IQ B=10Hz~100KHz 中国(上海)自由贸易试验区芳春路400号1幢3层 http://www.gnsemic.com 电话:021-34125778 TJ=25℃ 第 2 页，共 4 页 旌芯半导体科技(上海)有限公司 GN Semiconductor (Shanghai) Co., Ltd. GN78M05A Electrical Characteristics Curves 中国(上海)自由贸易试验区芳春路400号1幢3层 http://www.gnsemic.com 电话:021-34125778 第 3 页，共 4 页 旌芯半导体科技(上海)有限公司 GN Semiconductor (Shanghai) Co., Ltd. GN78M05A Package Outline TO-252 Dimensions in Millimeters Recommended Soldering Footprint 2.5 11.6 7 7 2.3 中国(上海)自由贸易试验区芳春路400号1幢3层 http://www.gnsemic.com 电话:021-34125778 1.5 第 4 页，共 4 页
