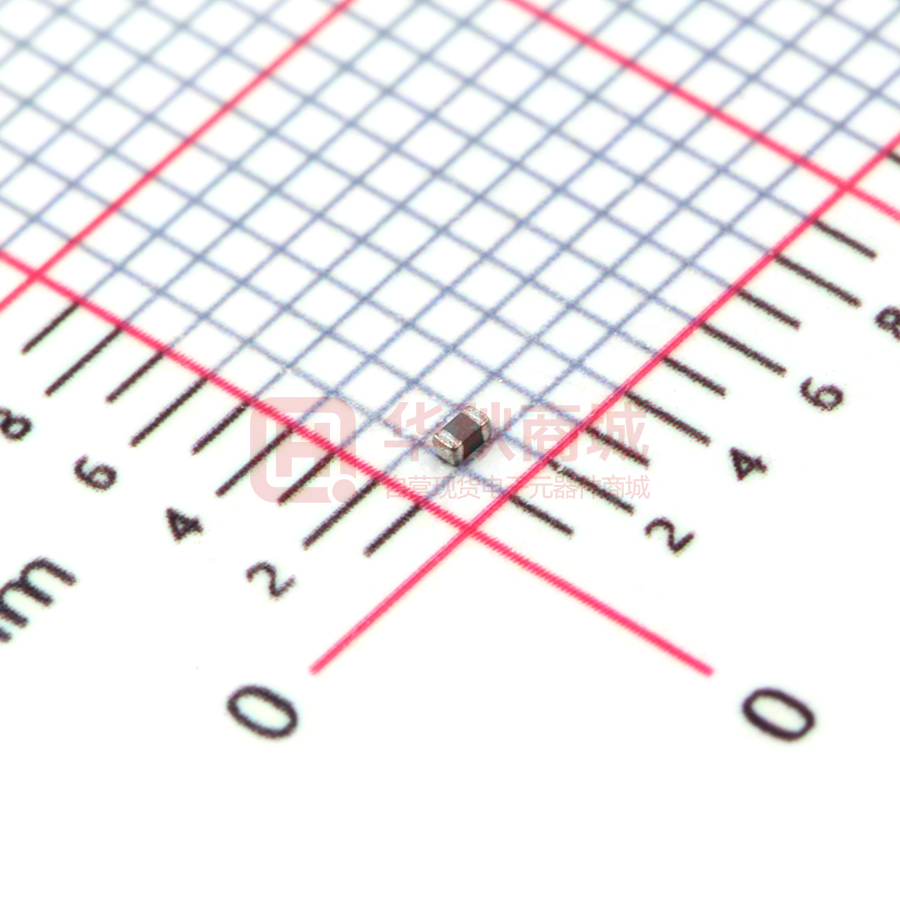

PBY100505T-800Y-N

SMD Multilayer Ferrite Chip Beads Multilayer Ferrite Chip Beads Chilisin offers a wide range of multi-layered ferrite chip beads with various sizes, frequency characteristics, and impedance values for EMI solutions. These ferrite formulas are used to compose seven types of EMI suppression chip beads: SB, GB, PB, UPB, NB, HF, and VPB series. Product Identification  Product symbol: SB, GB, PB, UPB, NB, HF, VPB  Packaging: T：Tape and Reel；B：Bulk  Tolerance: Y = ± 25%; M = ± 20%; T:±30%  Note: RoHS Compliant Shape and Dimensions Recommended Pattern Dimensions in mm Dimensions in mm TYPE A B C D TYPE A B C 060303 0.60.03 0.300.03 0.30.03 0.150.05 060303 0.2 ~ 0.3 0.75 ~ 1.05 0.3 100505 1.00.10 0.500.10 0.50.10 0.250.10 100505 0.4 1.2 ~ 1.4 0.5 160805 1.60.15 0.800.15 0.50.15 0.30.2 160805 0.7 ~ 0.8 1.8 ~ 2.0 0.6 ~ 0.8 160808 1.60.15 0.800.15 0.80.15 0.30.2 160808 0.7 ~ 0.8 1.8 ~ 2.0 0.6 ~ 0.8 201209 2.00.20 1.250.20 0.90.20 0.50.3 201209 1.0 ~ 1.2 2.6 ~ 4.0 1.0 ~ 1.2 321611 3.20.20 1.600.20 1.10.20 0.50.3 321611 2.0 4.2 ~ 5.2 1.2 ：SBY / SBJ / NB / PB ：UPB ：SBY / SBJ / NB / PB / UPB / HF ：SBK / SBJ / GB / PB / NB / UPB / VPB ：SBK / GB / PB / UPB ：SBY / SBK / PBY / UPB Dimension Conversion Code Dimension in mm (AxBxC) EIA 060303 0.6X0.3X0.3 0201 100505 1.0X0.5X0.5 0402 160805 1.6x0.8x0.5 0603 160808 1.6x0.8x0.8 0603 201209 2.0x1.2x0.9 0805 321611 3.2x1.6x.1.1 1206 ＊ Don’t apply narrower pattern than listed above to PBY and UPB. Narrow pattern might cause excessive heat or open circuit. SMD Multilayer Ferrite Chip Beads – PBY Series Electrical Characteristics Impedance Test Frequency RDC Rated current (Ω±25%) (MHz) (Ω) Max (mA) Max PBY060303T-100Y-N 10 100 0.050 1000 PBY060303T-220Y-N 22 100 0.065 1000 PBY060303T-330Y-N 33 100 0.090 750 PBY060303T-470Y-N 47 100 0.120 500 PBY060303T-800Y-N 80 100 0.180 500 PBY060303T-121Y-N 120 100 0.230 450 PBY060303T-241Y-N 240 100 0.400 350 PBY060303T-331Y-N 330 100 0.500 300 Part Number Note: When ordering, please specify tolerance code. Tolerance : Y=±25%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Rate Current：Applied the current to coils, the temperature rise shall not be more than 30℃  Measure Equipment： Z：HP4291A RDC：HP4338B or CHEN HWA 502 Test Instruments：Agilent E4991A Impedance / Material Analyzer PBY060303T-100Y-N 18 10 8 6 X 4 2 30 20 15 X 10 10 100 FREQUENCY (MHz) RDC
