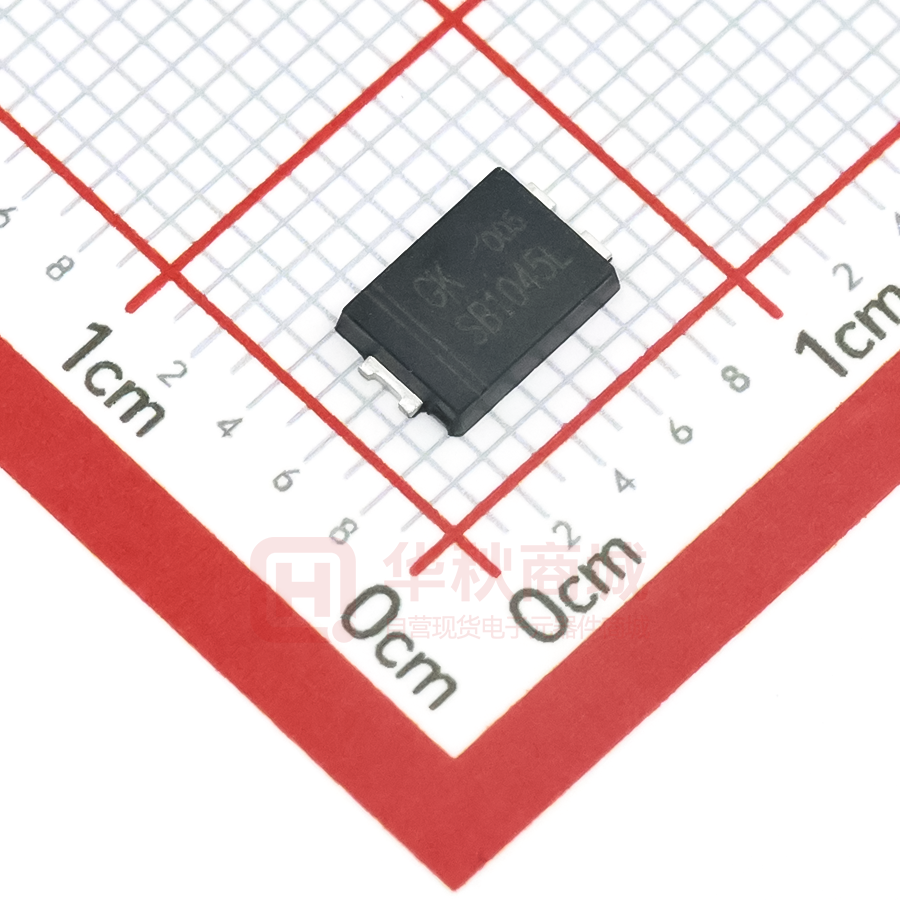

SB1045L

SB1045L. 98MIL 10.0 AMP SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 45 Volts CURRENT 10.0 Ampere 0.264 (6.70) 0.248 (6.30) • Low forward voltage drop. • Excellent high temperature stability. • Fast switching capability. • Suffix "G" indicates Halogen-free part, ex.CP10S45SG. • Lead-free parts meet environmental standards of MIL-STD-19500 /228 1 0.073 (1.85) 0.069 (1.75) 2 3 0.028 (0.71) 0.016 (0.41) 0.216 (5.48) 0.208 (5.28) ■ Mechanical data • Epoxy : UL94-V0 rated flame retardant. • Case : Molded plastic, TO-277 . • Lead : Solder plated, solderable per MIL-STD-750, Method 2026. • Polarity: Indicated by cathode band . • Mounting Position : Any. • Weight : Approximated 0.093 grams . PIN 1 PIN 3 PIN 2 0.163 (4.13) 0.151 (3.83) TO-277 ■ Features 0.077 (1.96) 0.069 (1.76) 0.028 (0.71) 0.016 (0.41) 0.037 (0.95) 0.033 (0.85) 0.124 (3.15) 0.112 (2.85) 0.037 (0.95) 0.033 (0.85) 0.145 (3.69) 0.133 (3.39) 0.014 (0.35) 0.010 (0.25) 0.069 (1.74) 0.057 (1.44) 0.049 (1.25) 0.037 (0.95) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current SB1045L.98MIL 45 32 45 UNITS V V V See Fig. 1 Peak Forward Surge Current, 8.3 ms single half sine-wave 10.0 A superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 10.0A Maximum DC Reverse Current Ta=25 C 150 0.53 A V A at Rated DC Blocking Voltage Ta=125 C Typical Junction Capacitance (Note1) Typical Thermal Resistance R JA (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG 150 0.70 0.85 50 570 250 60 to10+150 -55 -55 to +150 mA pF C/W C C Note : 1.FR-4 PCB, 2oz.Copper. 2.Polymide PCB, 2oz.Copper.Cathode pad dimensions 18.8mm x 14.4mm.Anode pad dimensions 5.6mm x 14.4mm. REV 1.0 2017 JAN PAGE:1/2 RATING AND VHARACTERISTIC CURVES(SB1045L.98MIL) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-TYPICAL FORWARD 50 10 8 6 4 2 0 0 20 40 60 80 100 120 140 160 180 200 CASE TEMPERATURE,( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT INSTANTANEOUS FORWARD CURRENT,(A) AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 12 10 5.0 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 250 .01 200 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 150 8.3ms Single Half Tj=25 C Sine Wave 100 JEDEC method 50 FIG.5 - TYPICAL REVERSE CHARACTERISTICS 0 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 1400 1200 1000 800 600 400 10 Tj=100 C 1.0 Tj=75 C .1 Tj=25 C 200 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) REV 1.0 2017 JAN PAGE:2/2
