SMD Power Inductors
-YPRH0703 Series
■ Features
● High current type.
● Ferrite bobbin core and compact size.
● Low core loss for high frequency power application.
● Large terminal surface for good PCB bonding.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● Portable communication equipment.
● Notebook PC,digital camera,LCD television set.
● Power supply for VTR,OA equipment.
● DC/DC converters.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance;N=±30%,M=±20%,K=±10%
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C max
D
E
F Ref.
G Ref.
H Ref.
YPRH0703
7.30±0.5
7.30±0.5
3.5
5.40±0.2
1.8
1.6
4.8
2.2
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YPRH0703 Series
■ YPRH0703 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
MAX.Rated Current
(KHz)
(Ω)
(A)
YPRH0703-R33□
0.33
100
0.059
6.94
YPRH0703-1R0□
1.00
100
0.018
5.20
YPRH0703-1R2□
1.20
100
0.020
4.20
YPRH0703-2R2□
2.20
100
0.025
3.50
YPRH0703-3R3□
3.30
100
0.035
2.50
YPRH0703-4R7□
4.70
100
0.038
2.26
YPRH0703-6R8□
6.80
100
0.065
1.81

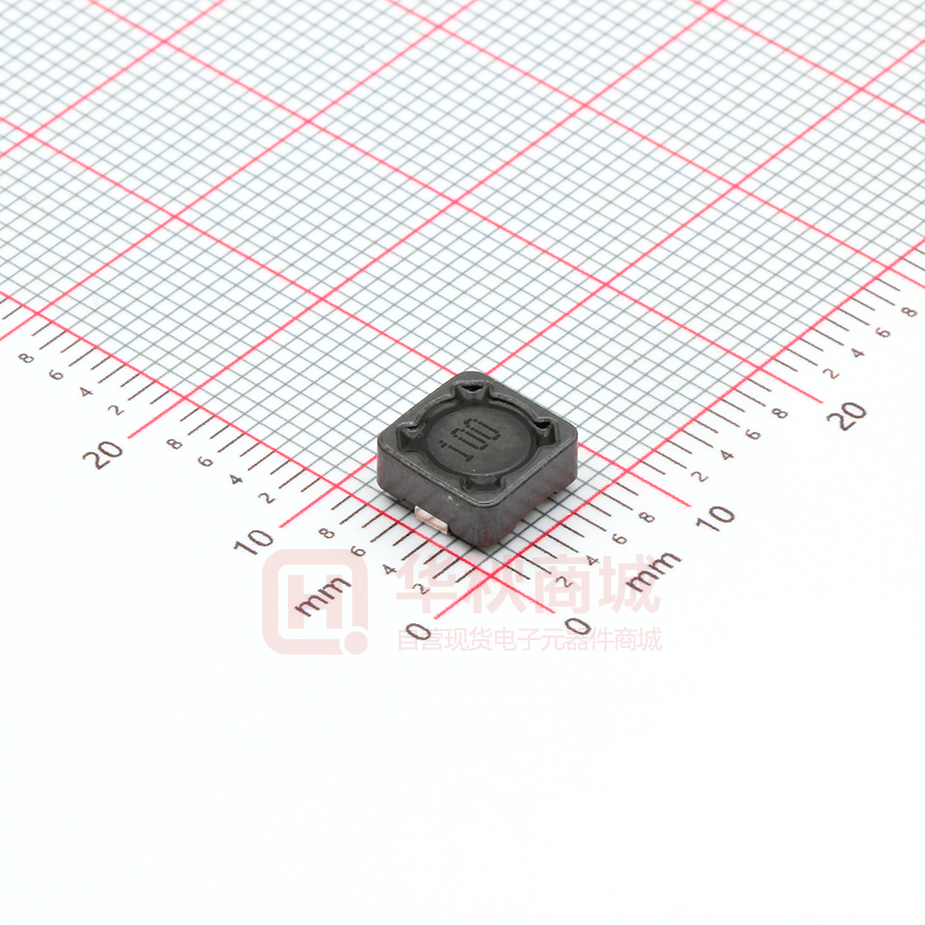

YPRH0703-100□
10.0
100
0.072
1.68
YPRH0703-120□
12.0
100
0.098
1.52
YPRH0703-150□
15.0
100
0.130
1.33
YPRH0703-180□
18.0
100
0.140
1.20
YPRH0703-220□
22.0
100
0.190
1.07
YPRH0703-270□
27.0
100
0.210
0.96

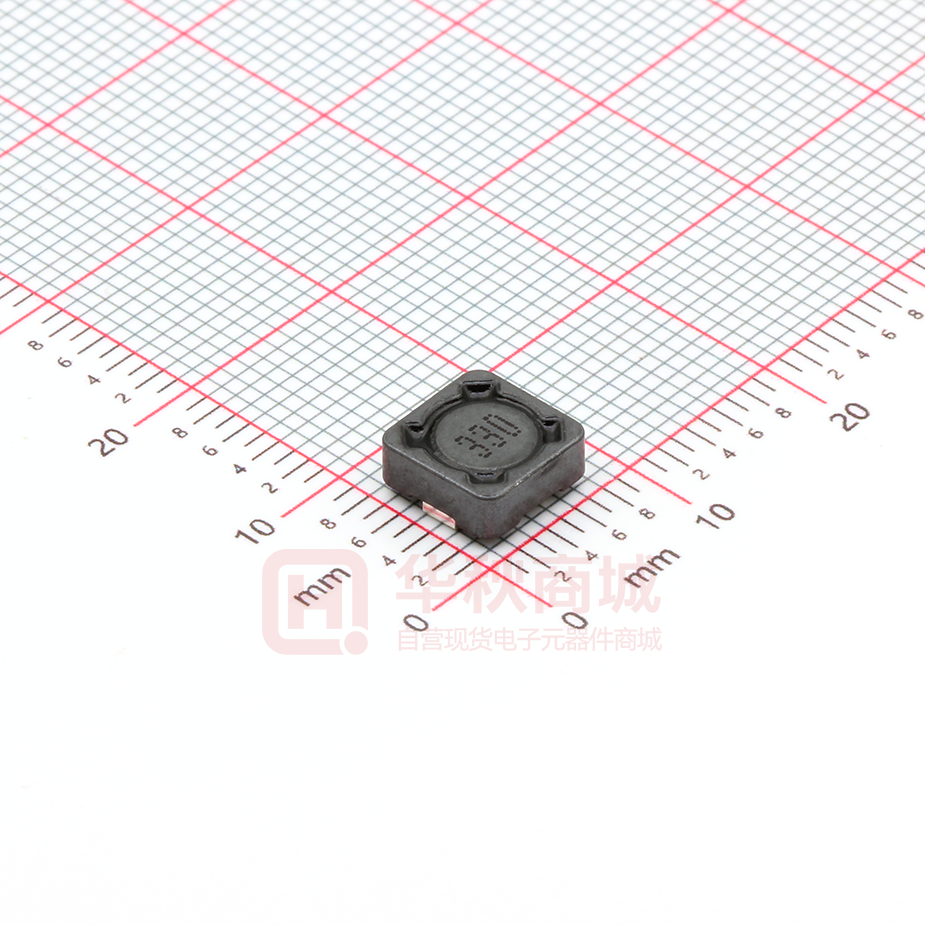

YPRH0703-330□
33.0
100
0.240
0.91
YPRH0703-390□
39.0
100
0.320
0.77
YPRH0703-470□
47.0
100
0.360
0.76
YPRH0703-560□
56.0
100
0.470
0.68

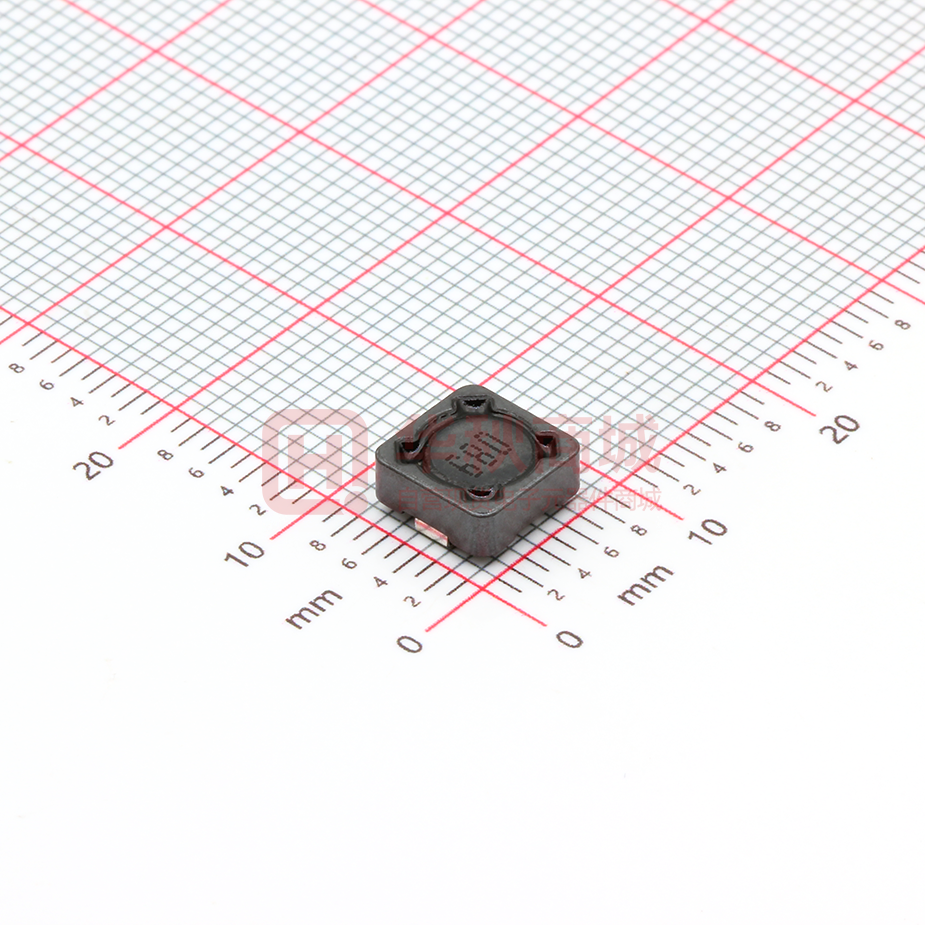

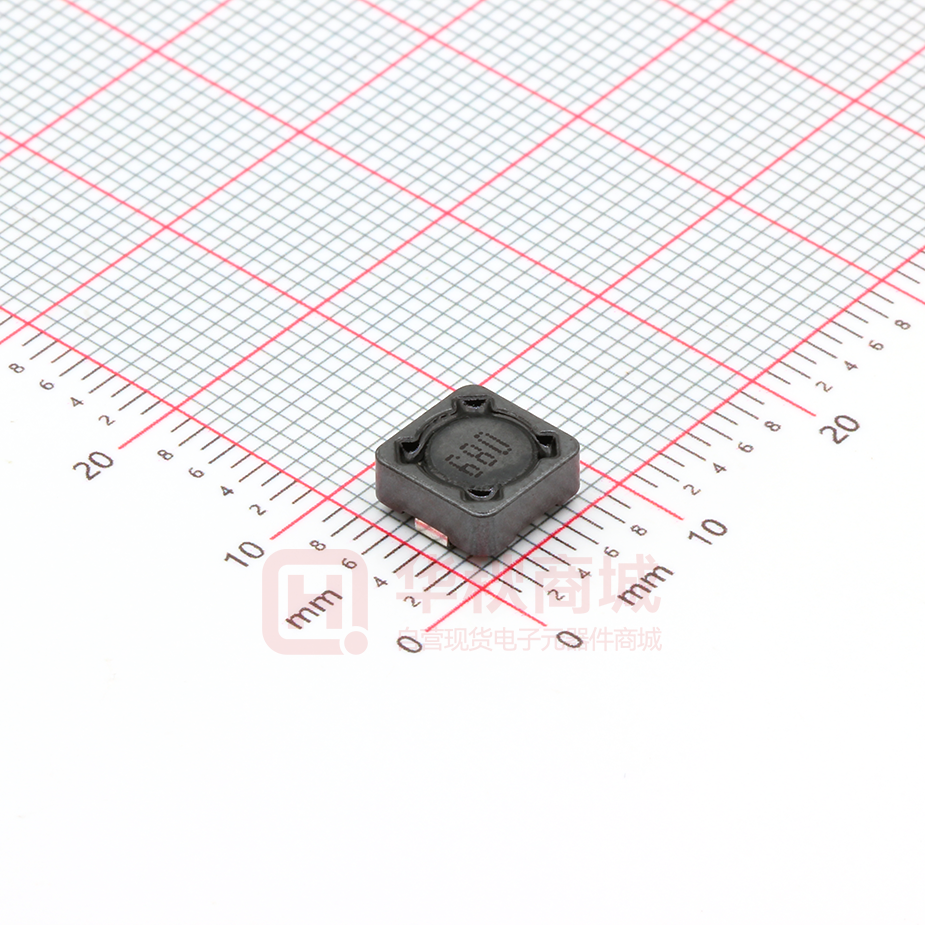

YPRH0703-680□
68.0
100
0.520
0.61
YPRH0703-820□
82.0
100
0.690
0.57
YPRH0703-101□
100
100
0.790
0.50
YPRH0703-121□
120
100
0.890
0.49
YPRH0703-151□
150
100
1.270
0.43
YPRH0703-181□
180
100
1.450
0.39
YPRH0703-221□
220
100
1.650
0.35
YPRH0703-271□
270
100
2.310
0.32
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YPRH0703 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
MAX.Rated Current
(KHz)
(Ω)
(A)
YPRH0703-331□
330
100
2.620
0.28
YPRH0703-391□
390
100
2.940
0.26
YPRH0703-471□
470
100
4.180
0.24
YPRH0703-561□
560
100
4.670
0.22
YPRH0703-681□
680
100
5.730
0.19
YPRH0703-821□
820
100
6.540
0.18
YPRH0703-102□
1000
100
9.440
0.16
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YPRH0703 Series
■ Taping Dimensions(Unit:mm)
TYPE
MPQ
W
A
B
C
D
E
P
K
T
YPRH0703
1000
16±0.3
7.7±0.1
7.7±0.1
6.75
7.5±0.1
3.65±0.1
12±0.1
3.85 Ref
0.35±0.05
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YPRH0703
330±2.00
16.4±1.50
22.40 Max
15.90 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YPRH0703 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
