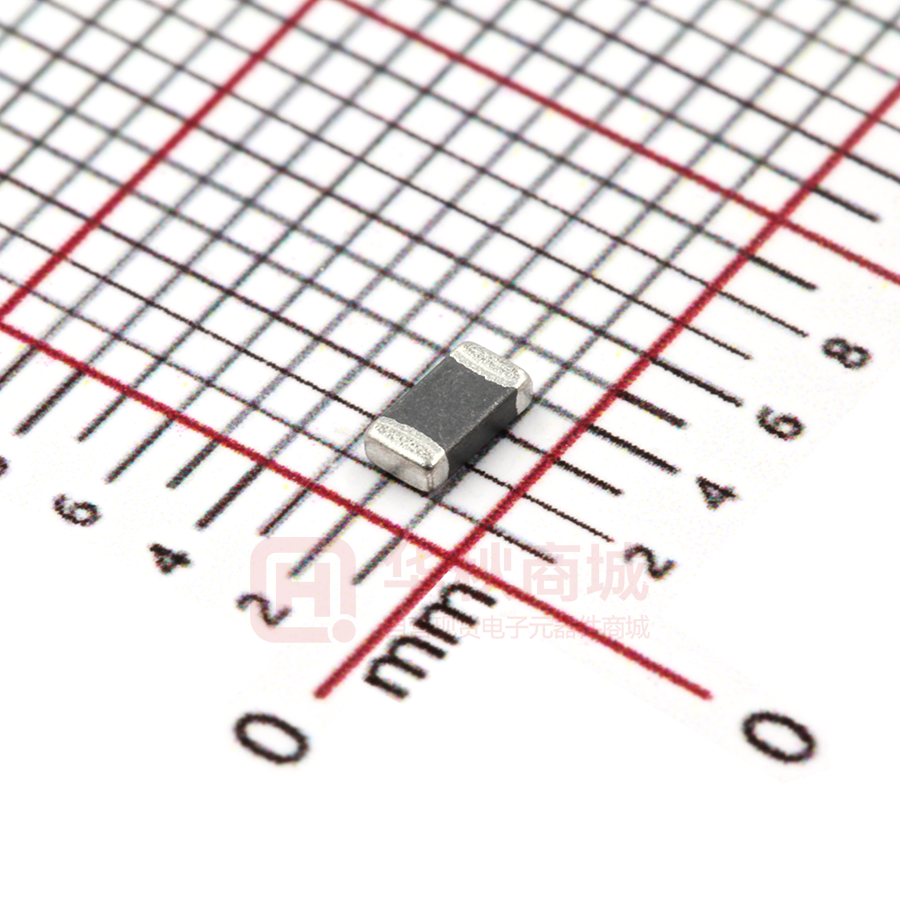

CMP321609XD6R8MT

FERRITE CHIP INDUCTORS FERRITE CHIP INDUCTORS(CMP) 1005 :-55~125 OPEARATING TEMP 1608 :-40~=+85 2012 FEATURES Very large rated current and low direct-current resistance. No cross coupling between indutors due to low magnetic shield and high reliability. No lead,ideal for high density SMT installation,with no directtionlity. Superior solderability and resistance to soldering heat,ideal for wave or reflow soldering. APPLICATIONS VCD/DVD VCD/DVD digital cameras personal computers etc. ORDERING CODE CMP V 201209 47N D (L Product Code T K ( W T) (mm) Dimensions CMP 160808 201209 321609 252009 Multilayer Chip Inductors Tolerance K 10% M N 20% 30% 1.6 2.0 3.2 2.5 0.8 1.2 1.6 2.0 0.8 0.9 0.9 0.9 U V J X D E T Tape & Reel Bulk 15 H) Inductance Example 47N R10 1R0 N R Packaging Style B Material Code Series Code 0.047 0.10 1.0 0.0(nH) 0.0( H) SHAPE AND DIMENSIONS Unit:mm(inch) Part No. 160808 1.6 (0603) (0.063 201209 2.0 (0805) (0.079 201212 2.0 (0805) (0.079 321609 3.2 (1206) (0.126 252009 2.5 (1008) (0.098 T W L 0.8 0.2 (0.031 0.008) 1.2 0.2 (0.047 0.008) 1.2 0.2 (0.047 0.008) 1.6 0.2 (0.063 0.008) 0.2 2.0 0.008) (0.079 0.8 0.2 0.008) (0.031 0.9 0.2 0.008) (0.035 1.2 0.2 0.008) 0.2 (0.047 1.1 0.008) 0.2 0.008) (0.035 0.9 (0.035 D 0.2 0.008) 0.2 0.008) 0.2 0.008) 0.2 0.008) 0.2 0.008) 0.3 (0.01 0.2 0.008) 0.5 (0.020 0.5 (0.020 0.5 (0.020 0.5 (0.020 0.3 0.012) 0.3 0.012) 0.3 0.012) 0.3 0.012) ELECTRICAL CHARACTERISTICS 2012 TYPE Part No. Pnductance( H) Test Fre. SRF (MHz) (MHz)Min DCR ( )Max Ir (mA)Max CMP201209VD47NK/M/N 0.047 280 0.10 1100 CMP201209VD56NK/M/N 0.056 280 0.10 1100 CMP201209VD68NK/M/N 0.068 250 0.15 1100 CMP201209VD82NK/M/N 0.082 250 0.15 1100 CMP201209VDR10K/M/N 0.10 210 0.15 1100 CMP201209VDR12 K/M/N 0.12 200 0.15 1100 CMP201209VDR15 K/M/N 0.15 175 0.15 1100 CMP201209VDR18 K/M/N 0.18 160 0.15 1100 CMP201209VDR22 K/M/N 0.22 150 0.15 1100 CMP201209VDR27 K/M/N 0.27 130 0.15 1100 CMP201209VDR33 K/M/N 0.33 120 0.15 1100 CMP201209VDR39 K/M/N 0.39 110 0.15 1100 CMP201209VDR47 K/M/N 0.47 100 0.15 1100 CMP201209VDR56 K/M/N 0.56 100 0.20 800 CMP201209VDR68 K/M/N 0.68 95 0.20 800 CMP201209VDR82 K/M/N 0.82 90 0.20 800 CMP201209UD1R0 K/M/N 1.0 75 0.24 800 CMP201209UD1R2 K/M/N 1.2 65 0.24 800 CMP201209UD1R5 K/M/N 1.5 60 0.30 700 CMP201209UD1R8 K/M/N 1.8 55 0.36 600 CMP201209UD2R2 K/M/N 2.2 50 0.36 600 CMP201209UD2R7 K/M/N 2.7 45 0.36 600 CMP201209UD3R3 K/M/N 3.3 41 0.40 350 CMP201209UD3R9 K/M/N 3.9 38 0.40 350 CMP201209UD4R7 K/M/N 4.7 35 0.40 350 CMP201209UD5R6 K/M/N 5.6 32 0.50 250 CMP201209XD6R8 K/M/N 6.8 29 0.50 250 CMP201209XD8R2 K/M/N 8.2 26 0.56 250 CMP201209XD100 K/M/N 10 24 0.56 250 CMP201209XD120 K/M/N 12 22 0.56 250 CMP201209JD150 K/M/N 15 19 0.65 100 CMP201209JD180 K/M/N 18 18 0.65 100 CMP201209JD220 K/M/N 22 16 0.65 100 1 16 FERRITE CHIP INDUCTORS ELECTRICAL CHARACTERISTICS 2520 TYPE Part No. Pnductance ( H) Test Fre. SRF (MHz) (MHz)Min DCR ( )Max Ir (mA)Max CMP252009UD1R0 K/M/N 1.0 70 0.12 1500 CMP252009UD1R2 K/M/N 1.2 50 0.15 1500 CMP252009UD1R5 K/M/N 1.2 50 0.15 1500 CMP252009UD1R8 K/M/N 1.8 40 0.18 1000 CMP252009UD2R2 K/M/N 2.2 40 0.18 1000 CMP252009UD2R7 K/M/N 2.7 30 0.22 1000 CMP252009UD3R3 K/M/N 3.3 30 0.22 1000 CMP252009UD3R9 K/M/N 3.9 25 0.26 1000 CMP252009UD4R7 K/M/N 4.7 25 0.26 1000 1 3216 TYPE Part No. Pneuctance ( H) Test Fre. SRF (MHz) (MHz)Min DCR ( )Max Ir (mA)Max CMP321609VD47N K/M/N 0.047 250 0.01 1800 CMP321609VD56N K/M/N 0.056 250 0.01 1800 CMP321609VD68N K/M/N 0.068 2 30 0.06 1800 CMP321609VD82N K/M/N 0.082 2 30 0.06 1800 CMP321609VDR10 K/M/N 0.10 215 0.06 1500 CMP321609VDR12 K/M/N 0.12 190 0.06 1500 CMP321609VDR15 K/M/N 0.15 165 0.06 1500 CMP321609VDR18 K/M/N 0.18 150 0.06 1500 CMP321609VDR22 K/M/N 0.22 130 0.06 1500 CMP321609VDR27 K/M/N 0.27 110 0.06 1500 CMP321609VDR33 K/M/N 0.33 100 0.06 1500 CMP321609VDR39 K/M/N 0.39 90 0.09 1400 CMP321609VDR47 K/M/N 0.47 80 0.09 1400 CMP321609VDR56 K/M/N 0.56 75 0.10 1100 CMP321609VDR68 K/M/N 0.68 65 0.10 1100 CMP321609VDR82 K/M/N 0.82 60 0.10 1100 CMP321609UD1R0 K/M/N 1.0 60 0.15 1200 CMP321609UD1R2 K/M/N 1.2 65 0.15 1200 CMP321609UD1R5 K/M/N 1.5 60 0.17 1000 CMP321609UD1R8 K/M/N 1.8 55 0.24 900 CMP321609UD2R2 K/M/N 2.2 50 0.24 900 CMP321609UD2R7 K/M/N 2.7 45 0.30 800 CMP321609UD3R3 K/M/N 3.3 41 0.30 800 CMP321609UD3R9 K/M/N 3.9 38 0.38 700 CMP321609UD4R7 K/M/N 4.7 35 0.38 700 CMP321609UD5R6 K/M/N 5.6 32 0.45 500 CMP321609XD6R8 K/M/N 6.8 29 0.45 500 CMP321609XD8R2 K/M/N 8.2 26 0.55 300 CMP321609XD100 K/M/N 10 24 0.55 300 CMP321609XD120 K/M/N 12 22 0.55 300 CMP321609JD150 K/M/N 15 19 0.65 100 CMP321609JD180 K/M/N 18 18 0.65 100 CMP321609JD220 K/M/N 22 16 0.85 100 CMP321609JD270 K/M/N 27 14 0.85 100 1 17 1608 TYPE Part No. Pneuctance ( H) Test Fre. SRF (Mhz) (MHz)Min DCR ( )Max Ir (mA)Max CMP160808VE47N K/M/N 0.047 260 0.12 150 CMP160808VE56N K/M/N 0.056 260 0.12 150 CMP160808VE68N K/M/N 0.068 250 0.12 150 CMP160808VE82N K/M/N 0.082 245 0.12 150 CMP160808VER10 K/M/N 0.10 240 0.15 150 CMP160808VER12 K/M/N 0.12 205 0.20 150 CMP160808VER15 K/M/N 0.15 180 0.20 150 CMP160808VER18 K/M/N 0.18 165 150 CMP160808VER22 K/M/N 0.22 150 0.20 0.25 CMP160808VER27 K/M/N 0.27 136 0.30 100 CMP160808VER33 K/M/N 0.33 125 0.30 100 CMP160808VER39 K/M/N 0.39 110 0.47 105 0.35 0.45 100 CMP160808VER47 K/M/N CMP160808VER56 K/M/N 0.56 95 CMP160808VER68 K/M/N 90 0.45 0.55 100 0.68 1 150 100 100 CMP160808VER82 K/M/N 0.82 85 0.60 100 CMP160808UE1R0 K/M/N 1.0 75 0.30 150 CMP160808UE1R2 K/M/N 1.2 65 0.30 150 CMP160808UE1R5 K/M/N 1.5 60 0.35 120 CMP160808UE1R8 K/M/N 1.8 55 0.40 120 CMP160808UE2R2 K/M/N 2.2 50 0.50 120 CMP160808UE2R7 K/M/N 2.7 45 0.60 100 CMP160808XE3R3 K/M/N 3.3 40 0.65 100 CMP160808XE3R9 K/M/N 3.9 35 0.70 80 CMP160808XE4R7 K/M/N 4.7 33 0.75 80 CMP160808JE5R6 K/M/N 5.6 22 0.90 60 CMP160808JE6R8 K/M/N 6.8 20 0.90 60 CMP160808JE8R2 K/M/N 8.2 18 1.05 60 CMP160808JE100 K/M/N 10 17 1.15 60 12 15 1.25 60 CMP160808JE120 K/M/N 18 FERRITE CHIP INDUCTORS 2012 TYPE Part No. Pneuctaece ( H) Test Fre. SRF (MHz) (MHz)Min DCR ( )Max Ir (mA)Max CMP201209VE47N K/M/N 0.047 320 0.15 350 CMP201209VE56N K/M/N 0.056 320 0.15 350 CMP201209VE68N K/M/N 0.068 280 0.20 350 CMP201209VE82N K/M/N 0.082 280 0.20 350 CMP201209VER10 K/M/N 0.10 235 0.20 350 CMP201209VER12 K/M/N 0.12 220 0.20 350 CMP201209VER15 K/M/N 0.15 200 0.20 350 CMP201209VER18 K/M/N 0.18 185 0.25 300 CMP201209VER22 K/M/N 0.22 170 0.25 300 CMP201209VER27 K/M/N 0.27 150 0.25 300 CMP201209VER33 K/M/N 0.33 145 0.25 300 CMP201209VER39 K/M/N 0.39 135 0.30 250 CMP201209VER47 K/M/N 0.47 125 0.30 250 CMP201209VER56 K/M/N 0.56 115 0.36 200 CMP201209VER68 K/M/N 0.68 105 0.36 200 CMP201209VER82 K/M/N 0.82 100 0.36 200 CMP201209UE1R0 K/M/N 1.0 75 0.26 220 CMP201209UE1R2 K/M/N 1.2 65 0.26 220 CMP201209UE1R5 K/M/N 1.5 60 0.30 180 CMP201209UE1R8 K/M/N 1.8 55 0.30 180 CMP201209UE2R2 K/M/N 2.2 50 0.36 150 CMP201209UE2R7 K/M/N 2.7 45 0.36 150 CMP201209UE3R3 K/M/N 3.3 41 0.40 120 CMP201209UE3R9 K/M/N 3.9 38 0.40 120 CMP201209UE4R7 K/M/N 4.7 35 0.40 120 CMP201209XE5R6 K/M/N 5.6 32 0.60 100 CMP201209XE6R8 K/M/N 6.8 29 0.60 100 CMP201209XE8R2 K/M/N 8.2 26 0.65 100 CMP201209XE100 K/M/N 10 24 0.65 100 CMP201209XE120 K/M/N 12 22 0.65 100 CMP201209JE150 K/M/N 15 19 0.75 50 CMP201209JE180 K/M/N 18 18 0.75 50 CMP201209JE220 K/M/N 22 16 0.75 50 19 3216 TYPE Part No. Pneuctance ( H) Test Fre. SRF (MHz) (MHz)Min DCR ( )Max Ir (mA)Max CMP321609VE47N K/M/N 0.047 320 0.15 450 CMP321609VE56N K/M/N 0.056 320 0.15 450 CMP321609VE68N K/M/N 0.068 280 0.20 450 CMP321609VE82N K/M/N 0.082 280 0.20 450 CMP321609VER10 K/M/N 0.10 235 0.20 350 CMP321609VER12 K/M/N 0.12 220 0.20 350 CMP321609VER15 K/M/N 0.15 200 0.20 350 CMP321609VER18 K/M/N 0.18 185 0.20 350 CMP321609VER22 K/M/N 0.22 170 0.20 350 CMP321609VER27 K/M/N 0.27 150 0.20 350 CMP321609VER33 K/M/N 0.33 145 0.20 350 CMP321609VER39 K/M/N 0.39 135 0.30 220 CMP321609VER47 K/M/N 0.47 125 0.30 220 CMP321609VER56 K/M/N 0.56 115 0.30 220 CMP321609VER68 K/M/N 0.68 105 0.30 220 CMP321609VER82 K/M/N 0.82 100 0.30 220 CMP321609UE1R0 K/M/N 1.0 75 0.20 250 CMP321609UE1R2 K/M/N 1.2 65 0.20 250 CMP321609UE1R5 K/M/N 1.5 60 0.25 250 CMP321609UE1R8 K/M/N 1.8 55 0.25 250 CMP321609UE2R2 K/M/N 2.2 50 0.30 200 CMP321609UE2R7 K/M/N 2.7 45 0.30 200 CMP321609UE3R3 K/M/N 3.3 41 0.30 200 CMP321609UE3R9 K/M/N 3.9 38 0.35 150 CMP321609UE4R7 K/M/N 4.7 35 0.35 150 CMP321609UE5R6 K/M/N 5.6 32 0.50 100 CMP321609XE6R8 K/M/N 6.8 29 0.50 100 CMP321609XE8R2 K/M/N 8.2 26 0.50 100 CMP321609XE100 K/M/N 10 24 0.50 100 CMP321609XE120 K/M/N 12 22 0.60 50 CMP321609JE150 K/M/N 15 19 0.80 50 CMP321609JE180 K/M/N 18 18 0.80 50 CMP321609JE220 K/M/N 22 16 1.00 50 1 20
