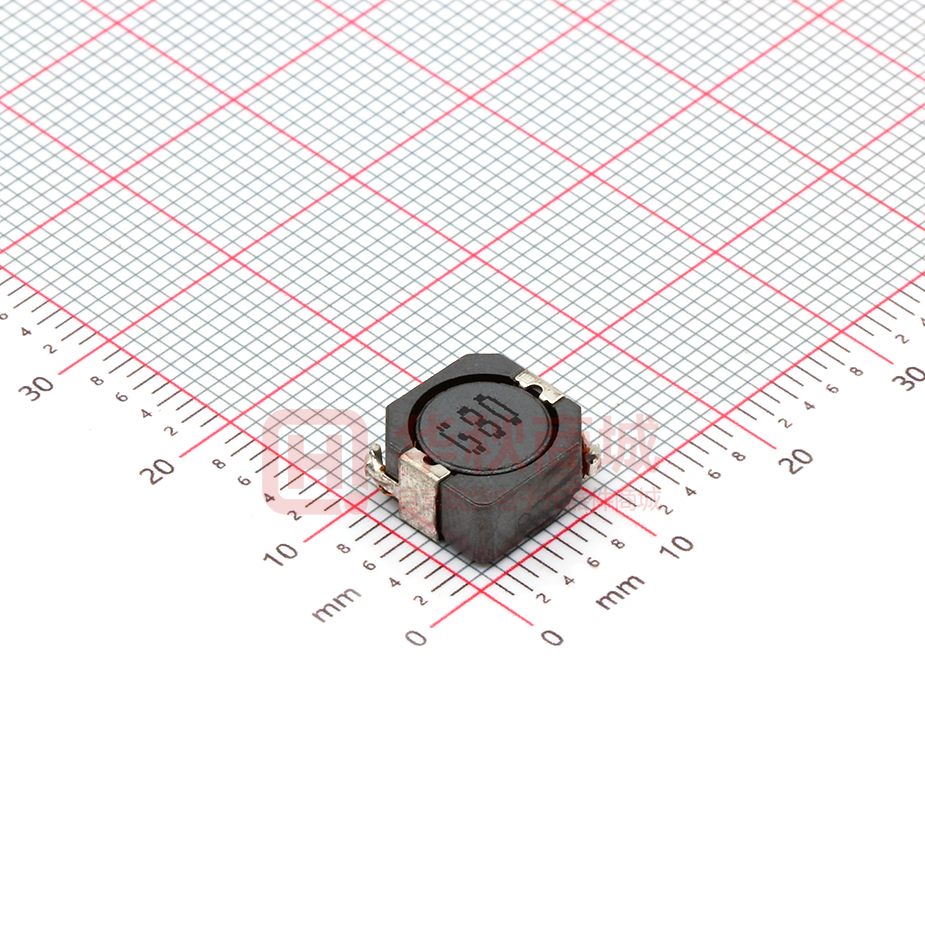

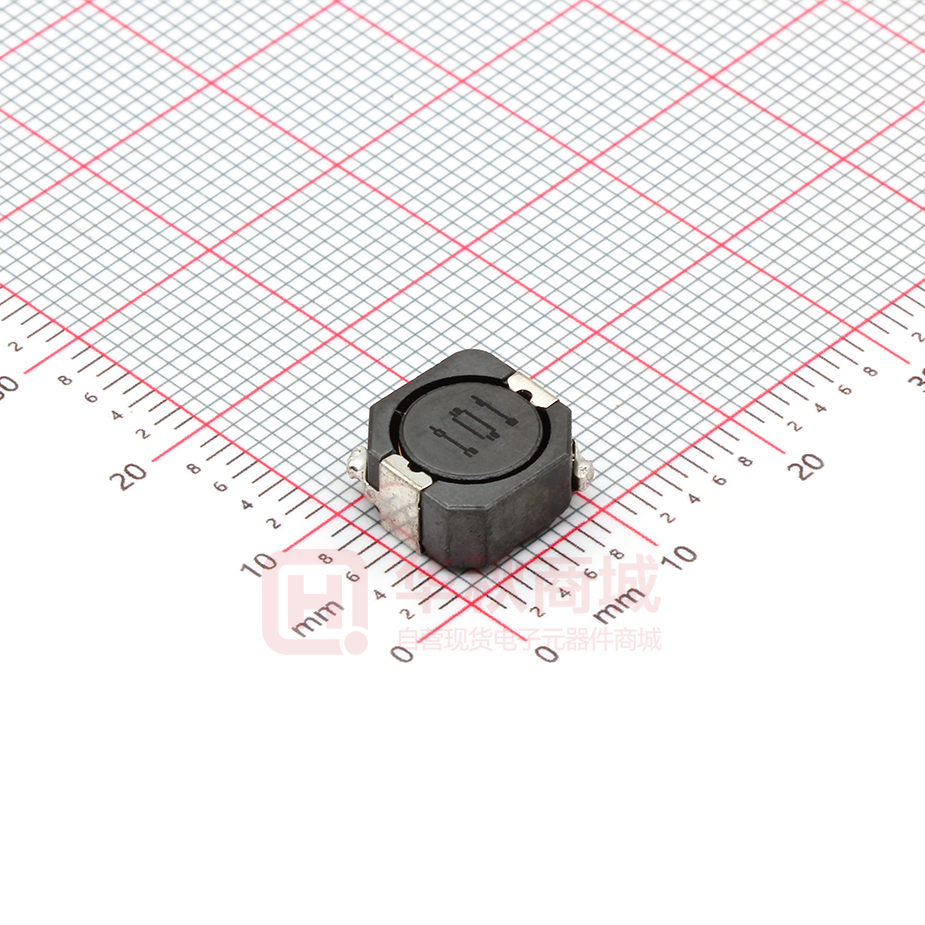

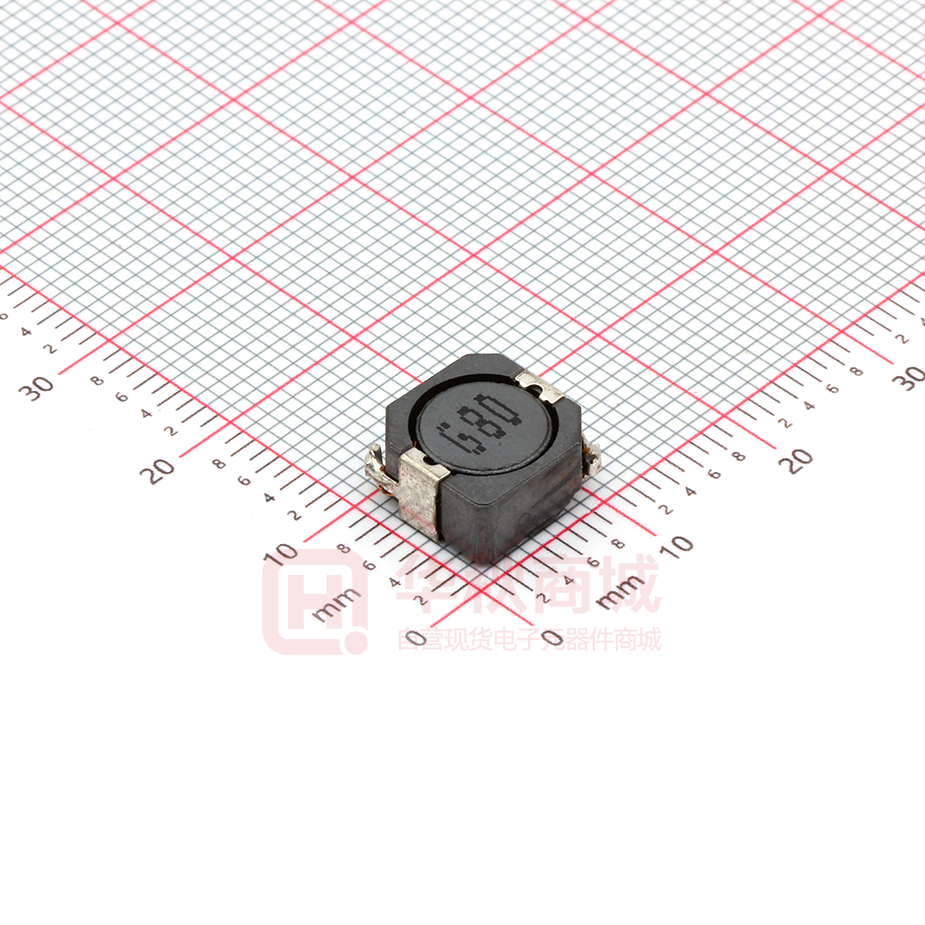

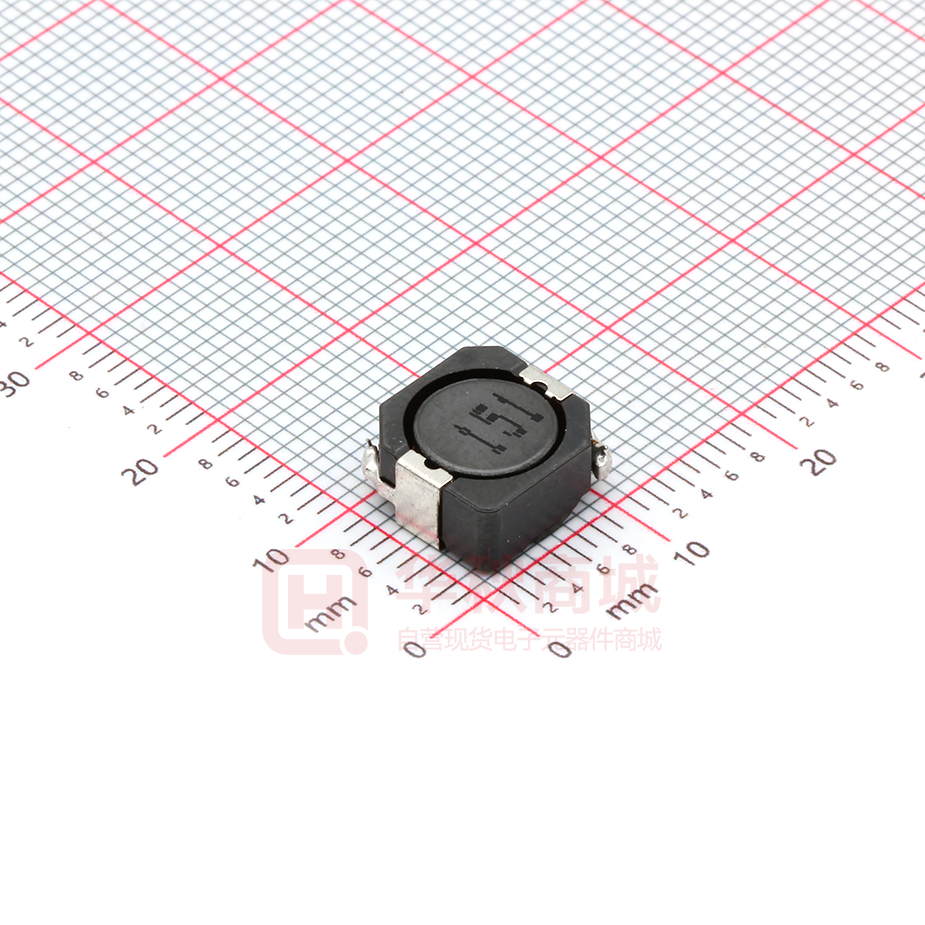

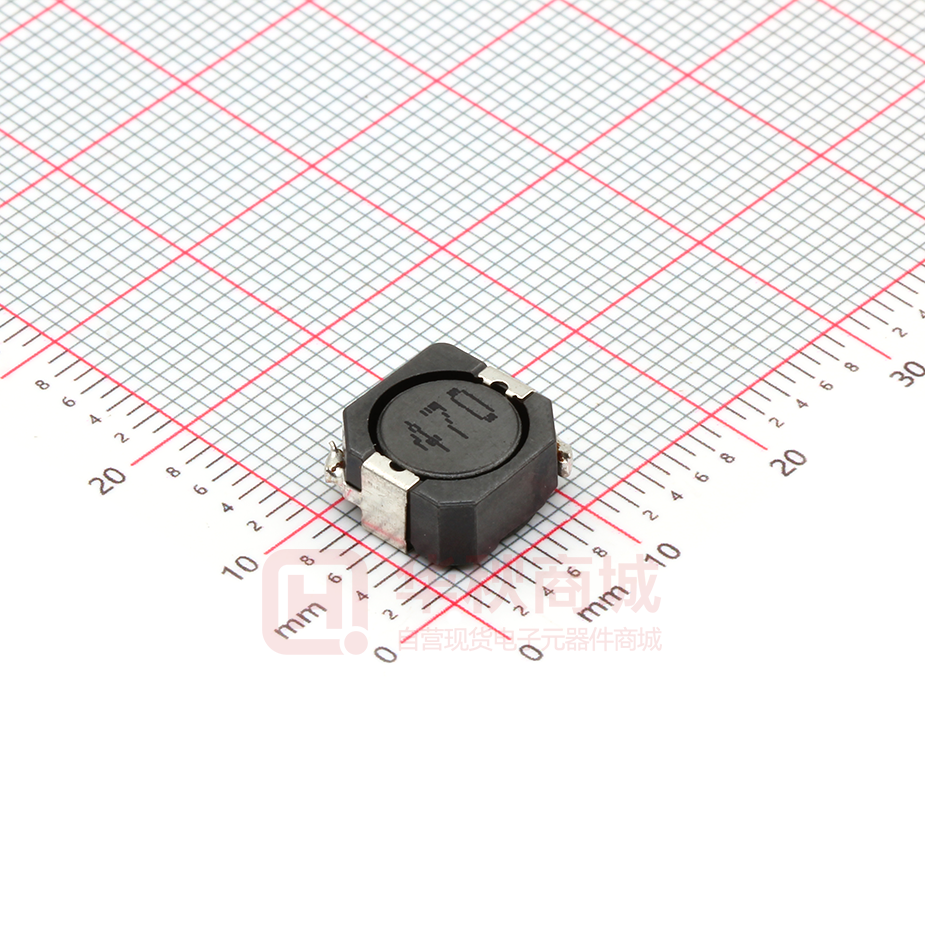

SMD Power Inductors
-YPRH105R Series
■ Features
● Ultra low profile.
● Magnetic shielded for low radiation.
● Bobbin ferrite core and compact size.
● Low core loss for high frequency power application.
● Large terminal surface for good PCB bonding.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● Portable communication equipment.
● Notebook PC,digital camera,LCD television set.
● Power supply for VTR,OA equipment.
● DC/DC converters.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance;N=±30%,M=±20%,K=±10%
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C max
D
E
F Ref.
G Ref.
H Ref.
YPRH105R
10.2±0.3
10.0±0.3
4.8±0.3
3.0
1.2
1.6
7.3
3.2
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YPRH105R Series
■ YPRH105R Series
Part Number
Inductance
(uH)
Test Freq.
DCR MAX.
Saturation
Heat Rating
(KHz)
(Ω)
Current (A)
Current (A)
YPRH105R-R80□
0.80
100
0.005
9.50
13.50
YPRH105R-1R5□
1.50
100
0.006
8.30
10.50
YPRH105R-2R2□
2.20
100
0.008
7.50
9.25
YPRH105R-3R3□
3.30
100
0.011
6.50
7.80
YPRH105R-4R7□
4.70
100
0.013
6.10
6.40
YPRH105R-6R8□
6.80
100
0.018
5.40
5.40
YPRH105R-8R2□
8.20
100
0.020
5.00
4.85
YPRH105R-100□
10.0
100
0.026
4.50
4.45
YPRH105R-120□
12.0
100
0.033
3.80
4.00
YPRH105R-150□
15.0
100
0.041
3.40
3.60
YPRH105R-180□
18.0
100
0.046
3.10
3.20
YPRH105R-220□
22.0
100
0.061
2.90
2.95
YPRH105R-270□
27.0
100
0.069
2.60
2.70
YPRH105R-330□
33.0
100
0.084
2.50
2.40
YPRH105R-390□
39.0
100
0.106
2.25
2.30
YPRH105R-470□
47.0
100
0.130
2.00
2.00
YPRH105R-560□
56.0
100
0.149
1.90
1.90
YPRH105R-680□
68.0
100
0.201
1.60
1.65
YPRH105R-820□
82.0
100
0.227
1.45
1.50
YPRH105R-101□
100
100
0.253
1.35
1.35
YPRH105R-121□
120
100
0.303
1.18
1.28
YPRH105R-151□
150
100
0.370
1.10
1.12
YPRH105R-181□
180
100
0.419
1.00
1.04
YPRH105R-221□
220
100
0.500
0.94
0.94
YPRH105R-271□
270
100
0.672
0.80
0.84
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YPRH105R Series
Part Number
Inductance
(uH)
Test Freq.
DCR MAX.
Saturation
Heat Rating
(KHz)
(Ω)
Current (A)
Current (A)
YPRH105R-331□
330
100
0.812
0.73
0.75
YPRH105R-391□
390
100
0.953
0.70
0.70
YPRH105R-471□
470
100
1.289
0.54
0.60
YPRH105R-561□
560
100
1.430
0.52
0.54
YPRH105R-681□
680
100
1.599
0.51
0.52
YPRH105R-821□
820
100
1.768
0.48
0.50
YPRH105R-102□
1000
100
1.989
0.42
0.48
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YPRH105R Series
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
C
D
E
P
K Ref
T
MPQ
YPRH105R
24±0.3
10.8±0.1
10.8±0.1
10.75
11.5±0.1
4.75±0.1
16±0.1
4.95
0.35±0.05
800
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YPRH105R
330±2.0
24.4±1.50
30.4MAX
23.9 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YPRH105R Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-5-
