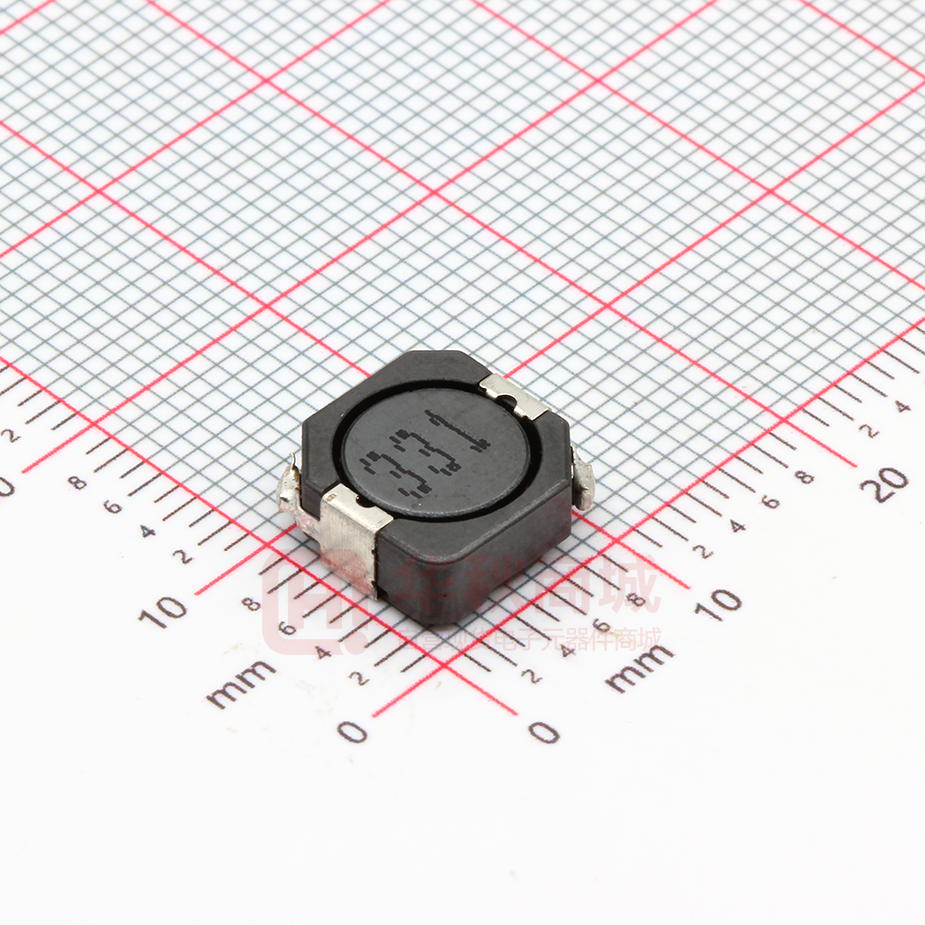

YPRH104R-331M

SMD Power Inductors -YPRH104R Series ■ Features ● Ultra low profile. ● Magnetic shielded for low radiation. ● Bobbin ferrite core and compact size. ● Low core loss for high frequency power application. ● Large terminal surface for good PCB bonding. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● Portable communication equipment. ● Notebook PC,digital camera,LCD television set. ● Power supply for VTR,OA equipment. ● DC/DC converters. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷ ：Inductance Tolerance；N=±30%,M=±20%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C max D E F Ref. G Ref. H Ref. YPRH104R 10.2±0.3 10.0±0.3 3.8±0.3 3.0 1.2 1.6 7.3 3.2 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YPRH104R Series ■ YPRH104R Series Part Number Inductance (uH) Test Freq. DCR MAX. Saturation Heat Rating (KHz) (Ω) Current (A) Current (A) YPRH104R-1R0□ 1.00 100 0.010 7.68 6.98 YPRH104R-2R2□ 2.20 100 0.011 7.50 6.32 YPRH104R-2R7□ 2.70 100 0.011 7.50 6.10 YPRH104R-3R9□ 3.90 100 0.013 6.00 5.50 YPRH104R-4R7□ 4.70 100 0.020 5.50 5.40 YPRH104R-5R2□ 5.20 100 0.022 5.50 5.40 YPRH104R-6R8□ 6.80 100 0.027 4.80 4.50 YPRH104R-100□ 10.0 100 0.035 4.40 3.80 YPRH104R-120□ 12.0 100 0.046 3.70 3.40 YPRH104R-150□ 15.0 100 0.050 3.60 3.10 YPRH104R-180□ 18.0 100 0.069 3.10 2.60 YPRH104R-220□ 22.0 100 0.073 2.90 2.50 YPRH104R-270□ 27.0 100 0.088 2.60 2.30 YPRH104R-330□ 33.0 100 0.093 2.30 2.20 YPRH104R-390□ 39.0 100 0.127 2.20 2.00 YPRH104R-470□ 47.0 100 0.128 2.10 1.90 YPRH104R-560□ 56.0 100 0.188 1.65 1.50 YPRH104R-680□ 68.0 100 0.213 1.50 1.42 YPRH104R-820□ 82.0 100 0.283 1.45 1.30 YPRH104R-101□ 100 100 0.304 1.35 1.25 YPRH104R-121□ 120 100 0.375 1.20 1.08 YPRH104R-151□ 150 100 0.506 1.15 0.85 YPRH104R-181□ 180 100 0.568 1.00 0.75 YPRH104R-221□ 220 100 0.756 0.92 0.70 YPRH104R-271□ 270 100 0.853 0.84 0.55 YPRH104R-331□ 330 100 1.090 0.70 0.52 YPRH104R-471□ 470 100 1.450 0.48 0.36 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YPRH104R Series ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YPRH104R 24±0.3 10.55±0.1 10.55±0.1 10.75 11.5±0.1 4.2±0.1 16±0.1 4.4 0.5±0.05 1000 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YPRH104R 330±2.0 24.4±1.50 30.4MAX 23.9Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YPRH104R Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjysmd.com.cn Tel:0755-27803896 Fax:0755-27803897 -4-
