SMD Power Inductors
-YPRH104R Series
■ Features
● Ultra low profile.
● Magnetic shielded for low radiation.
● Bobbin ferrite core and compact size.
● Low core loss for high frequency power application.
● Large terminal surface for good PCB bonding.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● Portable communication equipment.
● Notebook PC,digital camera,LCD television set.
● Power supply for VTR,OA equipment.
● DC/DC converters.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance;N=±30%,M=±20%,K=±10%
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C max
D
E
F Ref.
G Ref.
H Ref.
YPRH104R
10.2±0.3
10.0±0.3
3.8±0.3
3.0
1.2
1.6
7.3
3.2
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YPRH104R Series
■ YPRH104R Series
Part Number
Inductance
(uH)
Test Freq.
DCR MAX.
Saturation
Heat Rating
(KHz)
(Ω)
Current (A)
Current (A)
YPRH104R-1R0□
1.00
100
0.010
7.68
6.98
YPRH104R-2R2□
2.20
100
0.011
7.50
6.32
YPRH104R-2R7□
2.70
100
0.011
7.50
6.10
YPRH104R-3R9□
3.90
100
0.013
6.00
5.50
YPRH104R-4R7□
4.70
100
0.020
5.50
5.40
YPRH104R-5R2□
5.20
100
0.022
5.50
5.40
YPRH104R-6R8□
6.80
100
0.027
4.80
4.50

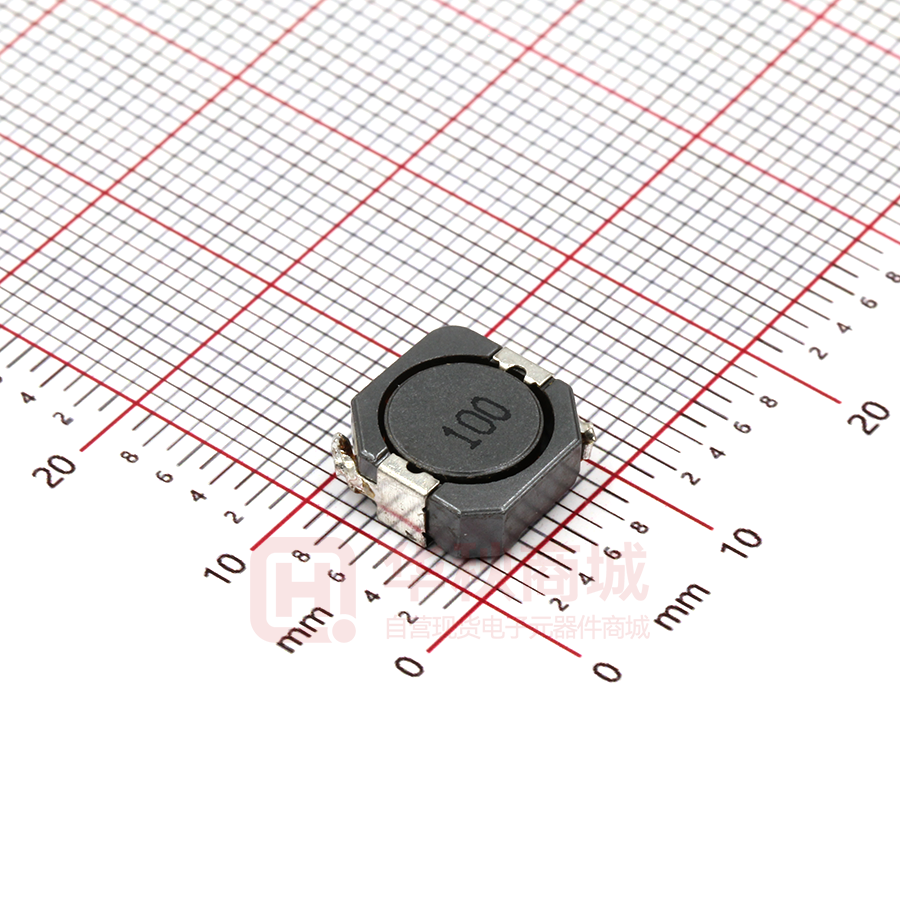

YPRH104R-100□
10.0
100
0.035
4.40
3.80
YPRH104R-120□
12.0
100
0.046
3.70
3.40
YPRH104R-150□
15.0
100
0.050
3.60
3.10
YPRH104R-180□
18.0
100
0.069
3.10
2.60
YPRH104R-220□
22.0
100
0.073
2.90
2.50
YPRH104R-270□
27.0
100
0.088
2.60
2.30

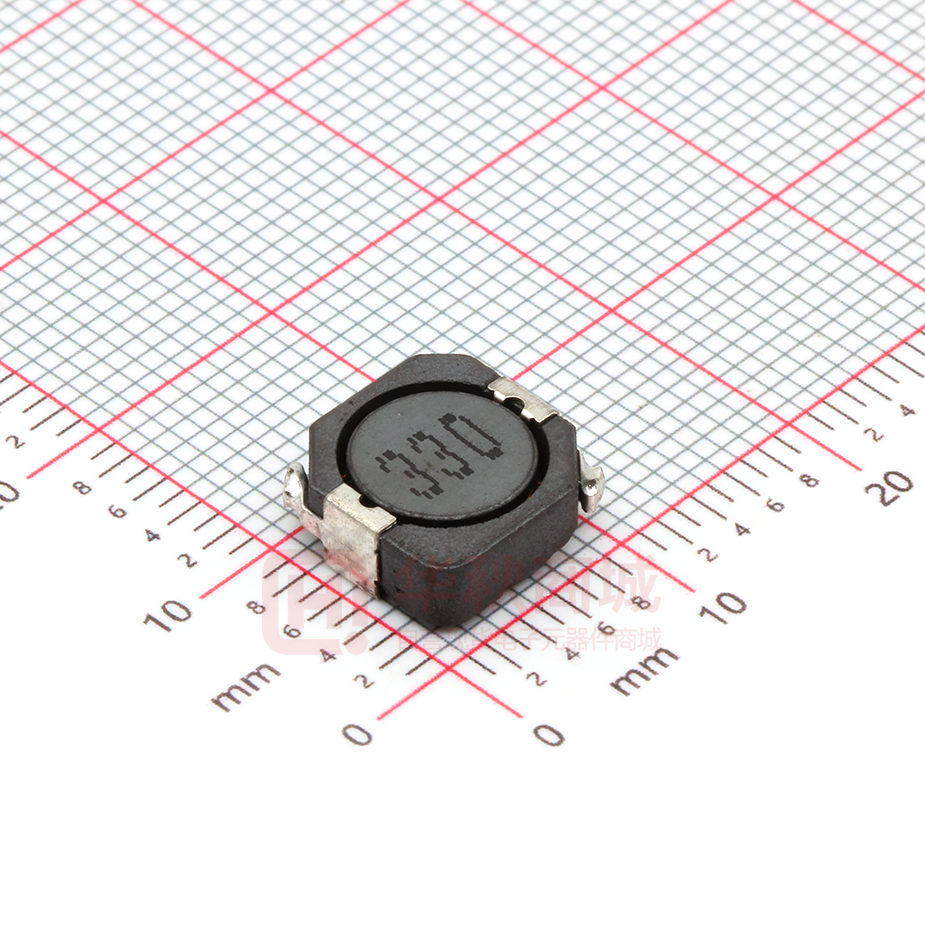

YPRH104R-330□
33.0
100
0.093
2.30
2.20
YPRH104R-390□
39.0
100
0.127
2.20
2.00

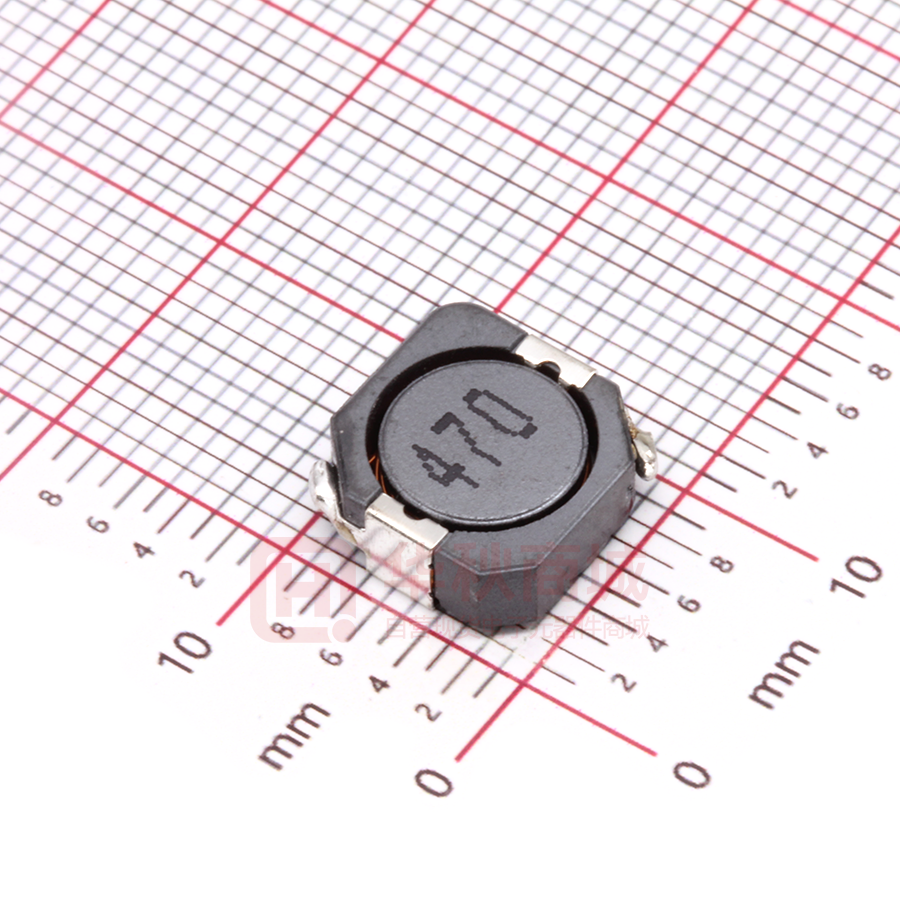

YPRH104R-470□
47.0
100
0.128
2.10
1.90
YPRH104R-560□
56.0
100
0.188
1.65
1.50
YPRH104R-680□
68.0
100
0.213
1.50
1.42
YPRH104R-820□
82.0
100
0.283
1.45
1.30

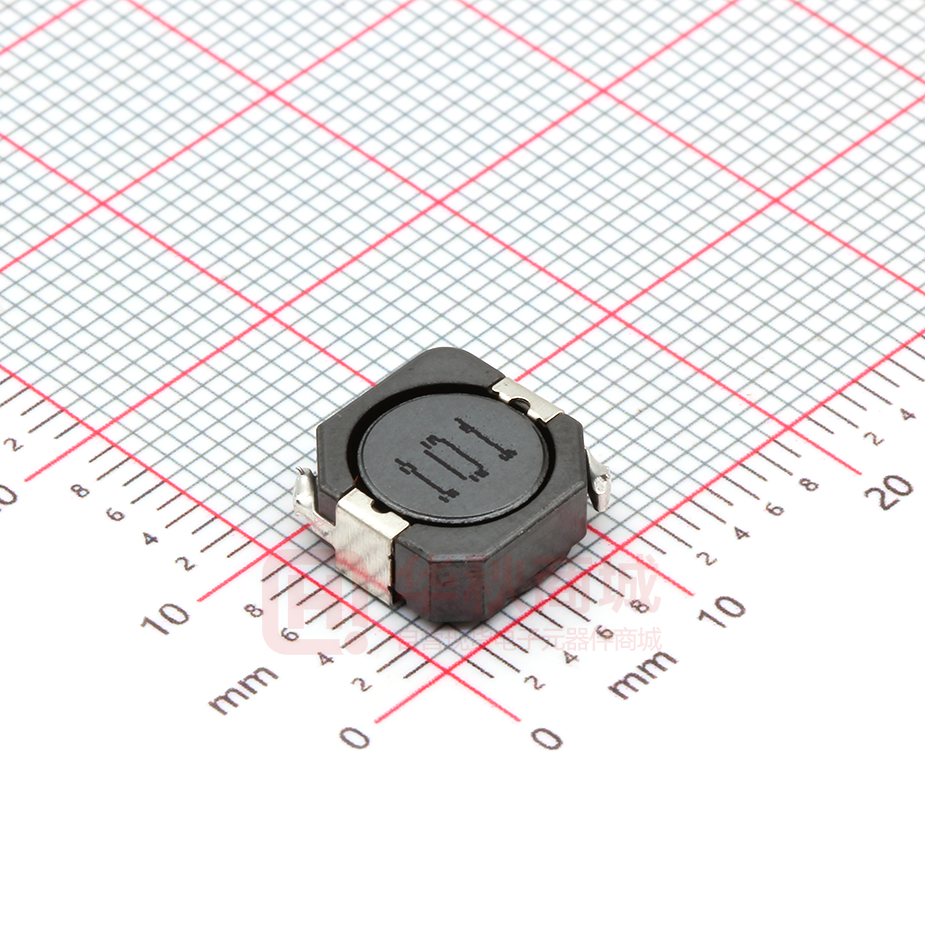

YPRH104R-101□
100
100
0.304
1.35
1.25
YPRH104R-121□
120
100
0.375
1.20
1.08

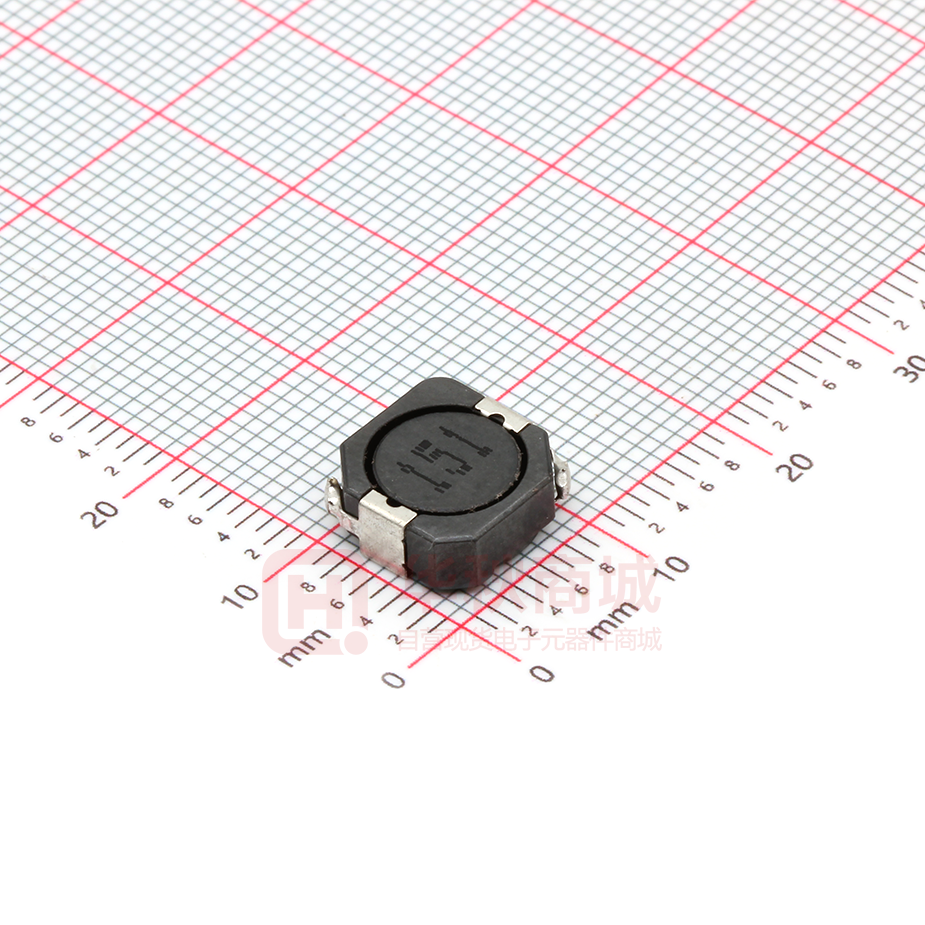

YPRH104R-151□
150
100
0.506
1.15
0.85
YPRH104R-181□
180
100
0.568
1.00
0.75

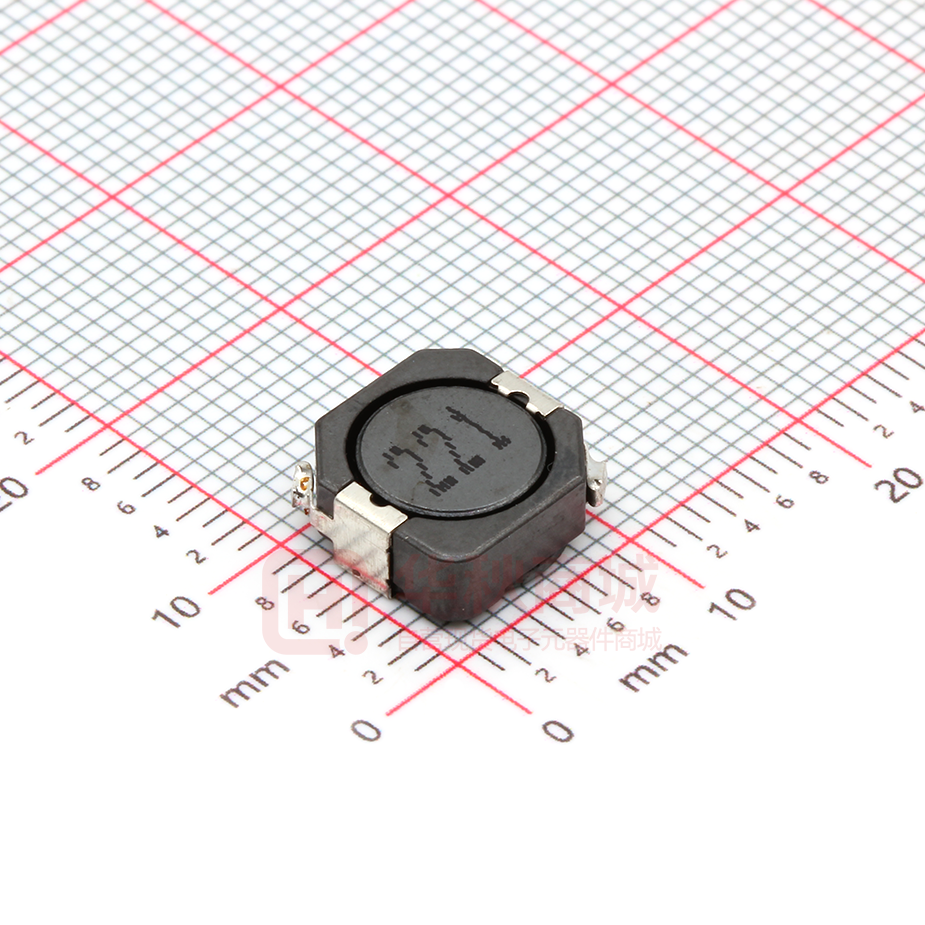

YPRH104R-221□
220
100
0.756
0.92
0.70
YPRH104R-271□
270
100
0.853
0.84
0.55
YPRH104R-331□
330
100
1.090
0.70
0.52
YPRH104R-471□
470
100
1.450
0.48
0.36
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YPRH104R Series
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
C
D
E
P
K Ref
T
MPQ
YPRH104R
24±0.3
10.55±0.1
10.55±0.1
10.75
11.5±0.1
4.2±0.1
16±0.1
4.4
0.5±0.05
1000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YPRH104R
330±2.0
24.4±1.50
30.4MAX
23.9Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YPRH104R Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-4-
