NSi8140/NSi8141/NSi8142: High Relia
bility Quad-Channel Digital Isolators
NOVOSENSE
Datasheet (EN) 1.2
SOIC-16 narrow body

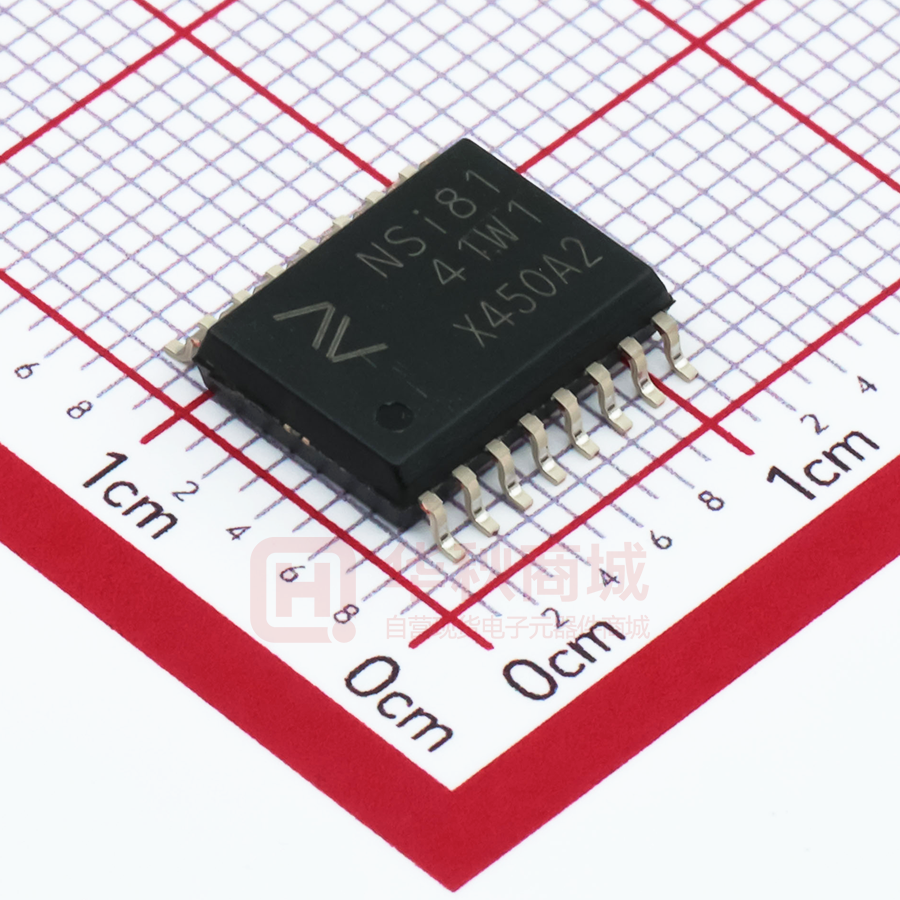

SOIC-16 wide body
Product Overview
The NSi814x devices are high reliability quadchannel digital isolators. The NSi814x device is
safety certified by UL1577 support several
insulation withstand voltages (3.75kVrms,
5kVrms), while providing high electromagnetic
immunity and low emissions at low power
consumption. The data rate of the NSi814x is up to
150Mbps, and the common-mode transient
immunity (CMTI) is up to 150kV/us. The NSi814x
device provides digital channel direction
configuration and the default output level
configuration when the input power is lost. Wide
supply voltage of the NSi814x device support to
connect with most digital interface directly, easy to
do the level shift. High system level EMC
performance enhance reliability and stability of use.
AEC-Q100 (Grade 1) option is provided for all
devices.
Key Features
Up to 5000VRMS Insulation voltage
Date rate: DC to 150Mbps
Power supply voltage: 2.5V to 5.5V
AEC-Q100 Grade 1 available for All devices
High CMTI: 150kV/us
Chip level ESD: HBM: ±6kV
High system level EMC performance:
Enhanced system level ESD, EFT, Surge
immunity
Default output high level or low level option
Isolation Barrier Life: >60 years
Low power consumption: 1.5mA/ch (1 Mbps)
Low propagation delay: 600
V
DIN EN 60112 (VDE 0303-11);
IEC 60112
Material Group
Ⅰ
3.2. DIN VDE V 0884-10 (VDE V 0884-10) INSULATION CHARATERISTICS
Description
Test Condition
Symbol
Value
NBSOIC-16
WBSOIC-16
For Rated Mains Voltage ≤ 150Vrms
Ⅰto Ⅳ
Ⅰto Ⅳ
For Rated Mains Voltage ≤ 300Vrms
Ⅰto Ⅲ
Ⅰto Ⅳ
For Rated Mains Voltage ≤ 400Vrms
Ⅰto Ⅲ
Ⅰto Ⅳ
Unit
Installation Classification per DIN
VDE 0110
Climatic Classification
10/105/21
Pollution Degree per DIN VDE 0110,
2
10/105/21
2
Table 1
Maximum repetitive isolation voltage
Input to Output Test Voltage, Method
B1
V IORM × 1. 5 = V pd (m) , 100%
production test,
VIORM
565
800
Vpeak
V pd (m)
847
1200
Vpeak
V pd (m)
678
960
Vpeak
t ini = t m = 1 sec, partial
discharge < 5 pC
Input to Output Test Voltage, Method A
After Environmental Tests Subgroup 1
V IORM × 1.2 = V pd (m) , t ini =
60 sec, t m = 10 sec, partial
discharge < 5 pC
Novosense Confidential Page 11
NSi8140/NSi8141/NSi8142
After Input and /or Safety Test Subgroup
2 and Subgroup 3
V IORM × 1.2= V pd (m) , t ini = 60
sec, t m = 10 sec, partial
discharge < 5 pC
V pd (m)
678
960
Vpeak
t = 60 sec
VIOTM
5300
7000
Vpeak
Test method per
IEC60065,1.2/50us
waveform, VTEST=VIOSM
VIOSM
5384
5384
Vpeak
VIO =500V
RIO
>109
>109
Ω
f = 1MHz
CIO
0.6
0.6
pF
Input capacitance
CI
2
2
pF
Total Power Dissipation at 25℃
Ps
Maximum transient isolation voltage
Maximum Surge Isolation Voltage
Isolation resistance
Isolation capacitance
θJA = 140 °C/W, V I = 5.5 V,
T J = 150 °C, T A = 25 °C
Safety input, output, or supply current
160
Is
θJA = 84 °C/W, V I = 5.5 V,
T J = 150 °C, T A = 25 °C
Case Temperature
Ts
Saftey Limiting Current (mA)
1499
150
W
mA
237
mA
150
℃
180
160
140
120
100
80
60
40
20
0
0
50
100
150
200
Case Temperature (℃)
Saftey Limiting Current (mA)
Figure 3.1 NSi8140N/NSi8141N/NSi8142N Thermal Derating Curve, Dependence of Safety Limiting Values with Case Temperature
per DIN V VDE V 0884-10
250
200
150
100
50
0
0
50
100
150
Case Temperature (℃)
Novosense Confidential Page 12
200
NSi8140/NSi8141/NSi8142
Figure 3.2 NSi8140W/NSi8141W/NSi8142W Thermal Derating Curve, Dependence of Safety Limiting Values with Case Temperature
per DIN V VDE V 0884-10
3.3. REGULATORY INFORMATION
The NSi8140N/NSi8141N/NSi8142N are approved or pending approval by the organizations listed in table.
UL
UL 1577 Component
Recognition Program1
CSA
Approved under CSA Component
Acceptance Notice 5A
File (pending)
1
CQC
DIN V VDE V088410 (VDE V 088410):2006-122
Certified by CQC11471543-2012
400VRMS basic insulation working
voltage
Basic Insulation
565Vpeak,
VIOSM=7000Vpeak
Basic insulation at
400VRMS (565Vpeak)
File (pending)
File (pending)
IEC60950-1
Single Protection,
3750Vrms Isolation
voltage
VDE
GB4943.1-2011
File (pending)
In accordance with UL 1577, each NSi8140N/NSi8141N/NSi8142N is proof tested by applying an insulation test voltage ≥ 4500 V rms for 1 sec.
2
In accordance with DIN V VDE V 0884-10, each NSi8140N/NSi8141N/NSi8142N is proof tested by applying an insulation test voltage ≥ 1059 V peak for 1
sec (partial discharge detection limit = 5 pC). The * marking branded on the component designates DIN V VDE V 0884-10 approval.
The NSi8140W/NSi8141W/NSi8142W are approved or pending approval by the organizations listed in table.
UL
UL 1577 Component Recognition
Program
CSA
Approved under CSA
Component Acceptance Notice
5A
VDE
DIN V VDE V088410 (VDE V 088410):2006-12
CQC
Certified by CQC11471543-2012
GB4943.1-2011
IEC60950-1
Single Protection, 5000Vrms
Isolation voltage
800VRMS basic insulation
working voltage
400VRMS Reinforced insulation
working voltage
File (pending)
1
File (pending)
Basic Insulation
1131Vpeak,
VIOSM=5384Vpeak
File (pending)
Basic insulation at
800VRMS (1131Vpeak)
Reinforced insulation at
400VRMS (565Vpeak)
File (pending)
In accordance with UL 1577, each NSi8140W/NSi8141W/NSi8142W is proof tested by applying an insulation test voltage ≥ 6000 V rms for 1 sec.
2
In accordance with DIN V VDE V 0884-10, each NSi8140W/NSi8141W/NSi8142W is proof tested by applying an insulation test voltage ≥ 1592 V peak for 1
sec (partial discharge detection limit = 5 pC). The * marking branded on the component designates DIN V VDE V 0884-10 approval.
4.0 FUNCTION DESCRIPTION
The NSi814x is a Quad-channel digital isolator based on a capacitive isolation barrier technique. The digital signal is modulated with
RF carrier generated by the internal oscillator at the Transmitter side. Then it is transferred through the capacitive isolation barrier and
demodulated at the Receiver side.
The NSi814x devices are high reliability quad-channel digital isolator with AEC-Q100 qualified. The NSi814x device is safety
certified by UL1577 support several insulation withstand voltages (3.75kVrms, 5kVrms), while providing high electromagnetic
immunity and low emissions at low power consumption. The data rate of the NSi814x is up to 150Mbps, and the common-mode
transient immunity (CMTI) is up to 150kV/us. The NSi814x device provides digital channel direction configuration and the default
output level configuration when the input power is lost. Wide supply voltage of the NSi814x device support to connect with most
digital interface directly, easy to do the level shift. High system level EMC performance enhance reliability and stability of use.
The NSi814x has a default output status when VDDIN is unready and VDDOUT is ready as shown in Table 4.1, which helps for
diagnosis when power is missing at the transmitter side. The output B follows the same status with the input A within 1us after
powering up.
Novosense Confidential Page 13
NSi8140/NSi8141/NSi8142
Table 4.1 Output status vs. power status
Input
ENX
VDD1
status
VDD2
status
Output
Comment
H
H or NC
Ready
Ready
H
Normal operation.
L
H or NC
Ready
Ready
L
X
L
Ready
Ready
Z
Output Disabled, the output is high impedance
X
H or NC
Unready
Ready
L
H
The output follows the same status with the input within 60us
after input side VDD1 is powered on.
X
L
Unready
Ready
Z
Output Disabled, the output is high impedance
X
X
Ready
Unready
X
The output follows the same status with the input within 60us
after output side VDD2 is powered on.
5.0 APPLICATION NOTE
5.1. PCB LAYOUT
The NSi814x requires a 0.1 µF bypass capacitor between VDD1 and GND1, VDD2 and GND2. The capacitor should be
placed as close as possible to the package. Figure 5.1 to Figure 5.2 show the recommended PCB layout, make sure the space under the
chip should keep free from planes, traces, pads and via. To enhance the robustness of a design, the user may also include resistors (50–
300 Ω ) in series with the inputs and outputs if the system is excessively noisy. The series resistors also improve the system reliability
such as latch-up immunity.
The typical output impedance of an isolator driver channel is approximately 50 Ω, ±40%. When driving loads where transmission line
effects will be a factor, output pins should be appropriately terminated with controlled impedance PCB traces.
Figure5.1 Recommended PCB Layout — Top Layer
Figure5.2 Recommended PCB Layout — Bottom Layer
5.2. HIGH SPEED PERFORMANCE
Figure 5.5 shows the eye diagram of NSi814x at 200Mbps data rate output. The result shows a typical measurement on the NSi814x
with 350ps p-p jitter.
Novosense Confidential Page 14
NSi8140/NSi8141/NSi8142
Figure5.3 NSi814x Eye Diagram
5.3. TYPICAL SUPPLY CURRENT EQUATIONS
The typical supply current of NSi814x can be calculated using below equations. IDD1 and IDD2 are typical supply currents measured in
mA, f is data rate measured in Mbps, CL is the capacitive load measured in pF
NSi8140:
IDD1 = 0.19 *a1+1.45*b1+0.82*c1.
IDD2 = 1.36+ VDD1*f* CL *c1*10-9
When a1 is the channel number of low input at side 1, b1 is the channel number of high input at side 1, c1 is the channel number of
switch signal input at side 1.
NSi8141:
IDD1 = 0.87 +1.26*b1+0.63*c1+ VDD1*f* CL *c2*10-9
IDD2 = 0.87 +1.26*b2+0.63*c2+ VDD1*f* CL *c1*10-9
When b1 is the channel number of high input at side 1, c1 is the channel number of switch signal input at side 1, b2 is the channel
number of high input at side 2, c2 is the channel number of switch signal input at side 2.
NSi8142:
IDD1 = 0.87 +1.26*b1+0.63*c1+ VDD1*f* CL *c2*10-9
IDD2 = 0.87 +1.26*b2+0.63*c2+ VDD1*f* CL *c1*10-9
When b1 is the channel number of high input at side 1, c1 is the channel number of switch signal input at side 1, b2 is the channel
number of high input at side 2, c2 is the channel number of switch signal input at side 2.
Novosense Confidential Page 15
NSi8140/NSi8141/NSi8142
6.0 PACKAGE INFORMATION
VDD1 1
16 VDD2
VDD1 1
16 VDD2
GND1 2
15 GND2
GND1 2
15 GND2
INA 3
14 OUTA
INA 3
14 OUTA
INB 4
13 OUTB
INB 4
13 OUTB
INC 5
12 OUTC
INC 5
12 OUTC
IND 6
11 OUTD
OUTD 6
11 IND
EN1 7
10 EN2
NC 7
GND1 8
10 EN2
NSI8140 9 GND2
Figure 6.1 NSi8140N Package
GND1 8
Figure 6.2 NSi8141N Package
VDD1 1
16 VDD2
GND1 2
15 GND2
INA 3
14 OUTA
INB 4
13 OUTB
OUTC 5
12 INC
OUTD 6
11 IND
EN1 7
10 EN2
GND1 8
NSI8141 9 GND2
NSI8142 9 GND2
Figure 6.3 NSi8142N Package
Figure 6.4 NB SOIC16 Package Shape and Dimension in millimeters (inches)
Table6.1 NSi8140N/ NSi8141N/ NSi8142N Pin Configuration and Description
Novosense Confidential Page 16
NSi8140/NSi8141/NSi8142
NSi8140N
PIN NO.
NSi8141N
PIN NO.
NSi8142N
PIN NO.
SYMBOL
FUNCTION
1
1
1
VDD1
Power Supply for Isolator Side 1
2
2
2
GND1
Ground 1, the ground reference for Isolator Side 1
3
3
3
INA
Logic Input A
4
4
4
INB
Logic Input B
5
5
12
INC
Logic Input C
6
11
11
IND
Logic Input D
7
7
7
NC/ EN1
No Connection. or
Output Enable 1. Active high logic input. When EN1 is high or NC, the
output of Side 1 are enabled. When EN1 is low, the output of Side 1 are
disabled to high impedance state.
8
8
8
GND1
Ground 1, the ground reference for Isolator Side 1
9
9
9
GND2
Ground 2, the ground reference for Isolator Side 2
10
10
10
EN2
Output Enable 2. Active high logic input. When EN2 is high or NC, the
output of Side 2 are enabled. When EN2 is low, the output of Side 2 are
disabled to high impedance state.
11
6
6
OUTD
Logic Output D
12
12
5
OUTC
Logic Output C
13
13
13
OUTB
Logic Output B
14
14
14
OUTA
Logic Output A
15
15
15
GND2
Ground 2, the ground reference for Isolator Side 2
16
16
16
VDD2
Power Supply for Isolator Side 2
VDD1 1
16 VDD2
VDD1 1
16 VDD2
GND1 2
15 GND2
GND1 2
15 GND2
INA 3
14 OUTA
INA 3
14 OUTA
INB 4
13 OUTB
INB 4
13 OUTB
INC 5
12 OUTC
INC 5
12 OUTC
IND 6
11 OUTD
OUTD 6
11 IND
EN1 7
10 EN2
NC 7
GND1 8
10 EN2
NSI8140 9 GND2
Figure 6.5 NSi8140W Package
GND1 8
NSI8141 9 GND2
Figure 6.6 NSi8141W Package
Novosense Confidential Page 17
NSi8140/NSi8141/NSi8142
VDD1 1
16 VDD2
GND1 2
15 GND2
INA 3
14 OUTA
INB 4
13 OUTB
OUTC 5
12 INC
OUTD 6
11 IND
EN1 7
10 EN2
GND1 8
NSI8142 9 GND2
Figure 6.7 NSi8142W Package
Figure 6.8 WB SOIC16 Package Shape and Dimension in millimeters and (inches)
Table 6.2 NSi8140W/ NSi8141W/ NSi8142W Pin Configuration and Description
NSi8140W
PIN NO.
NSi8141W
PIN NO.
NSi8142W
PIN NO.
SYMBOL
FUNCTION
1
1
1
VDD1
Power Supply for Isolator Side 1
2
2
2
GND1
Ground 1, the ground reference for Isolator Side 1
3
3
3
INA
Logic Input A
4
4
4
INB
Logic Input B
5
5
12
INC
Logic Input C
6
11
11
IND
Logic Input D
7
7
7
NC/ EN1
No Connection. or
Novosense Confidential Page 18
NSi8140/NSi8141/NSi8142
Output Enable 1. Active high logic input. When EN1 is high or NC, the
output of Side 1 are enabled. When EN1 is low, the output of Side 1 are
disabled to high impedance state.
8
8
8
GND1
Ground 1, the ground reference for Isolator Side 1
9
9
9
GND2
Ground 2, the ground reference for Isolator Side 2
10
10
10
EN2
Output Enable 2. Active high logic input. When EN2 is high or NC, the
output of Side 2 are enabled. When EN2 is low, the output of Side 2 are
disabled to high impedance state.
11
6
6
OUTD
Logic Output D
12
12
5
OUTC
Logic Output C
13
13
13
OUTB
Logic Output B
14
14
14
OUTA
Logic Output A
15
15
15
GND2
Ground 2, the ground reference for Isolator Side 2
16
16
16
VDD2
Power Supply for Isolator Side 2
7.0 ORDER INFORMATION
Part No.
Isolation
Rating(kV)
Number
Number
Max Data
Default Temperature
Automotive Package
of side 1
of side 2
Rate
Output
inputs
inputs
(Mbps)
State
NSi8140N0
3.75
4
0
150
Low
NO
NB SOIC16
-40 to 125℃
NSi8140N1
3.75
4
0
150
High
NO
NB SOIC16
-40 to 125℃
NSi8141N0
3.75
3
1
150
Low
NO
NB SOIC16
-40 to 125℃
NSi8141N1
3.75
3
1
150
High
NO
NB SOIC16
-40 to 125℃
NSi8142N0
3.75
2
2
150
Low
NO
NB SOIC16
-40 to 125℃
NSi8142N1
3.75
2
2
150
High
NO
NB SOIC16
-40 to 125℃
NSi8140W0
5
4
0
150
Low
NO
WB SOIC16
-40 to 125℃
NSi8140W1
5
4
0
150
High
NO
WB SOIC16
-40 to 125℃
NSi8141W0
5
3
1
150
Low
NO
WB SOIC16
-40 to 125℃
NSi8141W1
5
3
1
150
High
NO
WB SOIC16
-40 to 125℃
NSi8142W0
5
2
2
150
Low
NO
WB SOIC16
-40 to 125℃
NSi8142W1
5
2
2
150
High
NO
WB SOIC16
-40 to 125℃
NSi8140W0Q
5
4
0
150
Low
YES
WB SOIC16
-40 to 125℃
NSi8140W1Q
5
4
0
150
High
YES
WB SOIC16
-40 to 125℃
NSi8141W0Q
5
3
1
150
Low
YES
WB SOIC16
-40 to 125℃
NSi8141W1Q
5
3
1
150
High
YES
WB SOIC16
-40 to 125℃
NSi8142W0Q
5
2
2
150
Low
YES
WB SOIC16
-40 to 125℃
NSi8142W1Q
5
2
2
150
High
YES
WB SOIC16
-40 to 125℃
NOTE: All packages are RoHS-compliant with peak reflow temperatures of 260 °C according to the JEDEC industry standard
classifications and peak solder temperatures.
All devices are AEC-Q100 qualified.
Part Number Rule:
Novosense Confidential Page 19
NSi8140/NSi8141/NSi8142
NSi(81)(4)(1)(N)(1)(Q)
Series Number
Total Channel Amount:
N=N Channels N=1,2,4…
N=0: I2C Part
Reverse Channel Amount:
N=N Channels N=0,1,2…
Q = Automotive version
Fail-Safe Output State:
0 = Logic Low
1 = Logic High
Package Type:
N= NB SOIC16
W= WB SOIC16
8.0 REVISION HISTORY
Revision
1.0
1.1
1.2
Description
Add maximum operation current spec.
Change to ordering information
Novosense Confidential Page 20
Date
2017/11/15
2018/10/12
2018/12/20
工商网监
湘ICP备2023018690号
