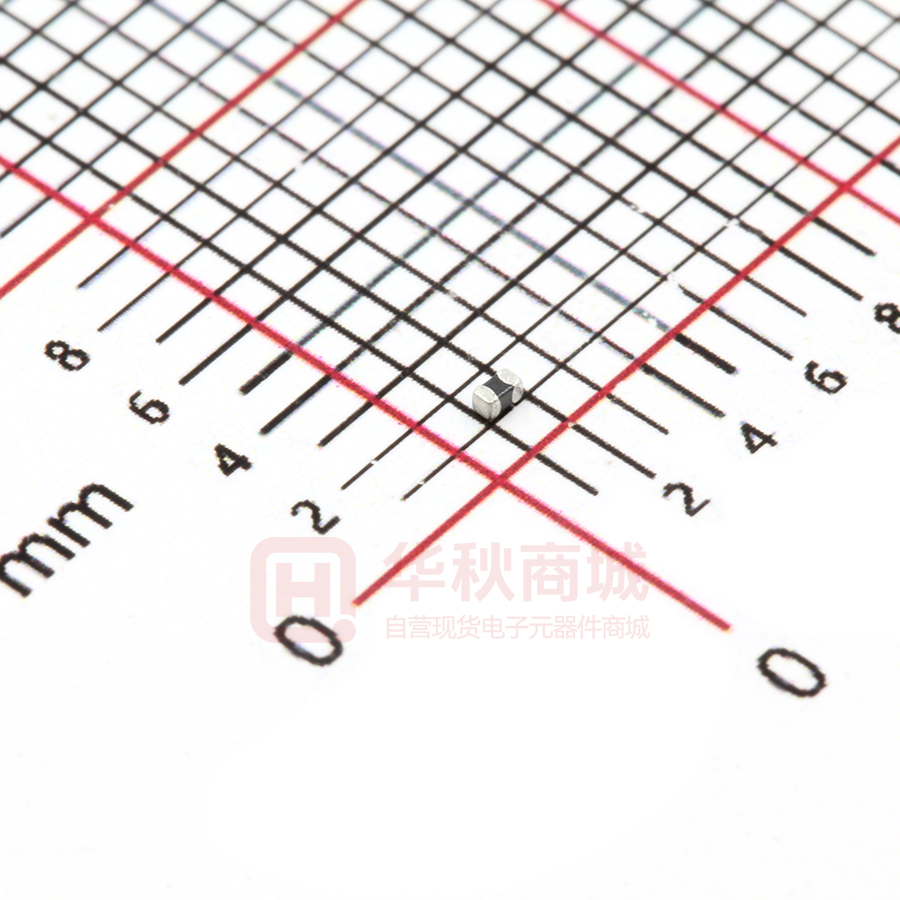

SDNT1005X104F4250FTF

Chip Temp. Sensing NTC Thermistor – SDNT Series Operating Temp. : -55℃~+125℃ FEATURES SMD type suitable for high density mounting Series of B constant for various applications Excellent solder ability ● ● ● APPLICATIONS Telecommunication equipments such as cellular phone, automobile phone, etc. Office automation such as printer, facsimile, word processor, etc. Battery, CPU temperature protection. ● ● ● PRODUCT IDENTIFICATION SDNT 1005 X 103 F 3380 F T F ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ② ① Type SDNT ③ External Dimensions (L×W) (mm) Chip NTC Thermistor ④ 0603 [0201] 0.6×0.3 1005 [0402] 1.0×0.5 1608 [0603] 1.6×0.8 2012 [0805] 2.0×1.25 Tolerance of Resistance F ±1% H ±3% J ±5% K ±10% ⑦ ⑧ Tolerance of B Constant F ±1% H ±3% X C ⑥ ⑤ Zero-power Resistance Example Nominal Value 472 4.7kΩ 103 10kΩ Internal Code Packing Tape & Reel T B Constant (25-50℃) Example Nominal Value 3380 3380K 4250 4250K ⑨ Hazardous Substance Free Products F SHAPE AND DIMENSIONS Unit: mm [inch] Type Sunlord L W T a SDNT0603 0.6±0.05 0.3±0.05 0.3±0.05 0.15±0.05 [0201] [.024±.002] [.012±.002] [.012±.002] [.006±.002] SDNT1005 1.0±0.15 0.5±0.15 0.5±0.15 0.25±0.1 [0402] [.039±.006] [.020±.006] [.020±.006] [.010±.004] SDNT1608 1.6±0.15 0.8±0.15 0.8±0.15 0.3±0.2 [0603] [.063±.006] [.031±.006] [.031±.006] [.012±.008] SDNT2012 2.0±0.2 1.25±0.2 0.85±0.2 0.5±0.3 [0805] [.079±.008] [.049±.008] [.033±.008] [.020±.012] Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SDNT0603 TYPE Part Number Resistance B Constant at 25℃ (25-50℃) Max. Permissive Operating Current (25℃) Thermal Time Dissipation Rated Electric Constant Factor Power Units kΩ K mA sec mW/℃ mW t C P
