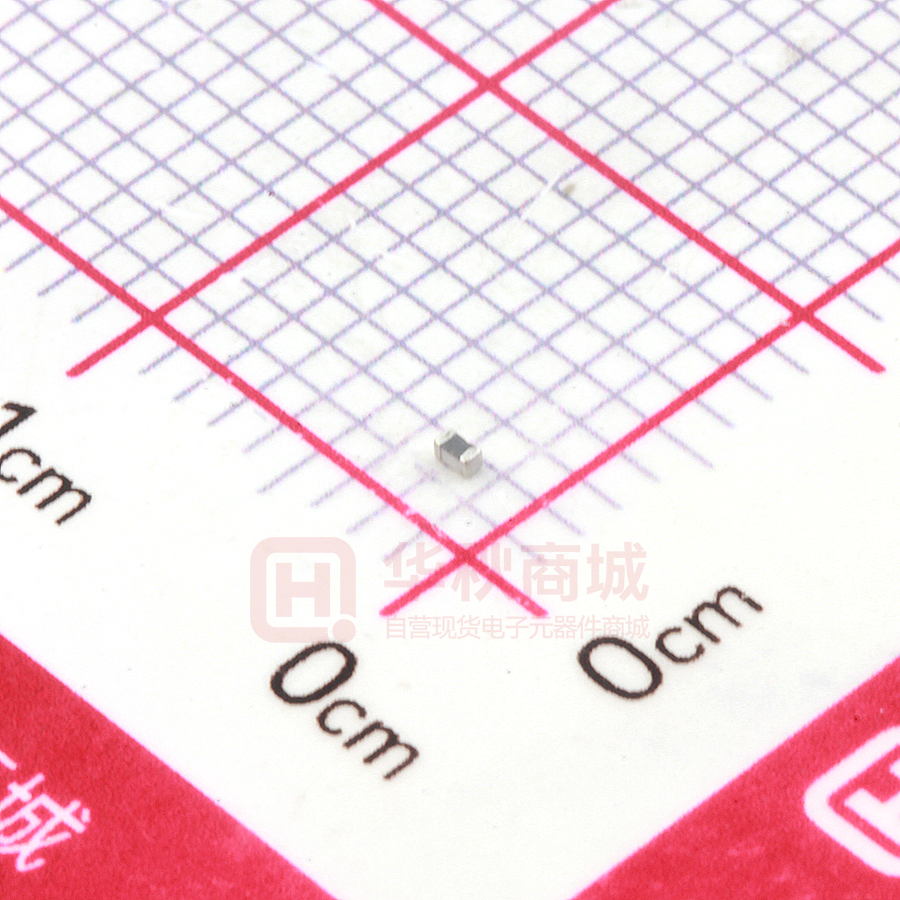

CLH1005T-3N3S-S

SMD Ceramic Multilayer Chip Inductors - CLH Series CLH Series The CLH Series is a type of ceramic chip inductor produced using the multilayer technology. The series provides excellent Q factor and SRF characteristics and is suitable for high frequency applications. Features Applications  RoHS compliant  RF resonance and impedance matching circuit  Excellent Q factor and SRF characteristics  RF and wireless communication  Small size of 1005/1608 is suitable for small portable devices  Information technology equipment, computers,  Supports operating frequency up to 6GHz with nominal inductance values from 1.0nH to 470nH. telecommunications, radar detectors, automotive electronics, cellular phones, pagers, PDAs, keyless remote systems  L-C filter configurations Product Identification  Packing Type: T: Taping B: Bulk  Product series identification: CLH0603-F: Top side half mark. CLH1005-S: Top side full mark. CLH1608-S: Top side full mark. Shape and Dimensions Recommended Pattern CLH0603-F Series CLH1005-S Series CLH1608-S Series Dimensions in mm Dimensions in mm TYPE A B C D TYPE A B C 0603 0.6±0.03 0.3±0.03 0.3±0.03 0.15±0.05 CLH0603 0.3 0.75 ~ 1.05 0.3 1005 1.0±0.10 0.5±0.10 0.5±0.10 0.25±0.10 CLH1005 0.4 1.2 ~ 1.4 0.5 1608 1.6±0.15 0.8±0.15 0.8±0.15 0.3±0.2 CLH1608 0.7 ~ 0.8 1.8 ~ 2.0 0.6 ~ 0.8 SMD Ceramic Multilayer Chip Inductors – CLH Series Electrical Characteristics Inductance Tolerance (nH) (±%) CLH0603T-1N0□-F 1.0 ±0.3nH CLH0603T-1N2□-F 1.2 ±0.3nH Part Number Test Q SRF RDC Rated Current Min (MHz) Min (Ω) Max (mA) Max 100 4 >10000 0.11 470 100 4 >10000 0.12 450 Frequency (MHz) CLH0603T-1N5□-F 1.5 ±0.3nH 100 4 >10000 0.13 430 CLH0603T-1N8□-F 1.8 ±0.3nH 100 4 >10000 0.16 390 CLH0603T-2N0□-F 2.0 ±0.3nH 100 4 >10000 0.17 380 CLH0603T-2N2□-F 2.2 ±0.3nH 100 4 8800 0.19 360 CLH0603T-2N4□-F 2.4 ±0.3nH 100 4 8300 0.20 350 CLH0603T-2N7□-F 2.7 ±0.3nH 100 4 7700 0.21 340 CLH0603T-3N0□-F 3.0 ±0.3nH 100 4 7200 0.22 330 CLH0603T-3N3□-F 3.3 ±0.3nH 100 4 6700 0.23 320 CLH0603T-3N6□-F 3.6 ±0.3nH 100 4 6400 0.25 310 CLH0603T-3N9□-F 3.9 ±0.3nH 100 4 6000 0.27 300 CLH0603T-4N3□-F 4.3 ±0.3nH 100 4 5700 0.30 280 CLH0603T-4N7□-F 4.7 ±0.3nH 100 4 5300 0.30 280 CLH0603T-5N1□-F 5.1 ±0.3nH 100 4 5000 0.33 270 CLH0603T-5N6□-F 5.6 ±0.3nH 100 4 4600 0.36 260 CLH0603T-6N2□-F 6.2 ±0.3nH 100 4 4200 0.38 250 CLH0603T-6N8□-F 6.8 5 100 4 3900 0.39 250 CLH0603T-7N5□-F 7.5 5 100 4 3600 0.41 240 CLH0603T-8N2□-F 8.2 5 100 4 3400 0.45 230 3200 0.48 220 CLH0603T-9N1□-F 9.1 5 100 4 CLH0603T-10N□-F 10 5 100 4 2900 0.51 220 CLH0603T-12N□-F 12 5 100 4 2700 0.68 190 CLH0603T-15N□-F 15 5 100 4 2300 0.71 180 CLH0603T-18N□-F 18 5 100 4 2100 0.81 170 CLH0603T-22N□-F 22 5 100 4 1800 1.00 150 CLH0603T-27N□-F 27 5 100 4 1800 1.35 120 CLH0603T-33N□-F 33 5 100 4 1700 1.47 110 CLH0603T-39N□-F 39 5 100 4 1500 1.72 100 CLH0603T-47N□-F 47 5 100 4 1300 1.90 100 CLH0603T-56N□-F 56 5 100 4 1100 2.27 80 CLH0603T-68N□-F 68 5 100 4 1100 2.66 80 CLH0603T-82N□-F 82 5 100 4 1000 3.37 70 CLH0603T-R10□-F 100 5 100 4 900 3.74 60 Note: When ordering, please specify tolerance code. Tolerance : S=±0.3nH , J=±5%  Operating temperature range－55℃～125℃(Including self - temperature rise)  Rate Current :Applied the current to coils, the temperature rise shall not be more than 30℃  Residual impedance of short chip : 0.19nH  Measure Equipment： L & Q：Agilent E4991A+Agilent 16197A SRF：Agilent E4991A or HP19196C RDC：HP4338B or CHEN HWA 502 Please be sure to request approval specifications that provide further details of the products. Kindly note that  the content of these specifications are subject to change or may be discontinued without advance  notice.   Please contact our sales department before ordering.  SMD Ceramic Multilayer Chip Inductors – CLH Series Test Instruments：Agilent E4991A Material/Impedance Analyzer 30 20 10 0 1 10 100 1000 3.5 3 2.5 2 1.5 1 CLH0603T-2N4S-F 30 L(nH) 60 Q 30 4 3 2 0 1 10 9 8 30 80 10 70 9 8 50 5 4 40 Q 6 30 3 20 2 10 1 0 10 100 1000 FREQUENCY (MHz) RDC5700MHz Rated current:280 mA 0 10000 30 70 10 10 0 10000 100 1000 FREQUENCY (MHz) RDC5300MHz Rated current:280 mA 10 1 9 20 0 20 2 10 30 1 40 4 80 40 1 60 1 5 4 2 70 50 0 50 80 5 0 10000 6 3 CLH0603T-3N9S-F 3 0 100 1000 10000 FREQUENCY (MHz) RDC6000MHz Rated current:300 mA 10 CLH0603T-5N1S-F 80 70 8 60 7 0 100 1000 10000 FREQUENCY (MHz) RDC7200MHz Rated current:330 mA 10 6 100 1000 FREQUENCY (MHz) RDC6400MHz Rated current:310 mA CLH0603T-4N7S-F 10 7 10 10 20 8 20 1 60 7 1 4 100 1000 FREQUENCY (MHz) RDC6700MHz Rated current:320 mA CLH0603T-4N3S-F 10 40 0 0 10000 30 70 5 1 40 4 9 50 2 10 1 50 5 10 6 3 20 60 80 Q 40 5 L(nH) 6 80 6 1 60 7 0 10000 70 0 100 1000 FREQUENCY (MHz) RDC7700MHz Rated current:340 mA 8 50 7 CLH0603T-3N0S-F 1 0 10000 CLH0603T-3N6S-F 1000 2 10 9 100 3 20 10 70 8 40 Q CLH0603T-3N3S-F 10 7 50 10 10 8 60 1 100 1000 FREQUENCY (MHz) RDC8300MHz Rated current:350 mA L(nH) L(nH) 2 1.5 1 0.5 0 0 10000 9 L(nH) 70 Q 10 10 L(nH) 70 9 10 20 FREQUENCY (MHz) RDC8800MHz Rated current:360 mA 10 20 30 1 100 1000 FREQUENCY (MHz) RDC10000MHz Rated current:470 mA 80 30 1 0 10000 CLH0603T-2N7S-F 40 0.5 0 10 10 60 1.5 1 20 5 40 0 50 30 80 2.5 2 4.5 4 3.5 3 2.5 50 1.5 1 0.5 70 3.5 3 80 60 3 2.5 2 70 40 1 CLH0603T-2N2S-F 5 4.5 4 50 0.5 0 0 10000 0 100 1000 10000 FREQUENCY (MHz) RDC10000MHz Rated current:430 mA 10 80 60 FREQUENCY (MHz) RDC10000MHz Rated current:390 mA 5 4.5 4 3.5 1 L(nH) 0.5 100 1000 FREQUENCY (MHz) RDC10000MHz Rated current:450 mA L(nH) 1 L(nH) 40 Q L(nH) 50 10 0 L(nH) 60 1.5 10 5 4.5 4 70 2 0 10000 CLH0603T-2N0S-F 80 2.5 20 Q 1 30 0.5 60 7 L(nH) CLH0603T-1N8S-F 3 0 10 40 1 Q 0 100 1000 10000 FREQUENCY (MHz) RDC10000MHz Rated current:470 mA 10 Q 1 Q 0.5 50 1.5 20 10 0 30 1 20 0.5 40 Q 1.5 6 50 5 40 4 30 Q 30 1 60 2 50 L(nH) 40 Q L(nH) 1.5 70 2.5 Q 60 2 50 80 3 70 2.5 60 2 CLH0603T-1N5S-F 80 L(nH) 70 2.5 CLH0603T-1N2S-F 3 80 Q CLH0603T-1N0S-F 3 3 20 2 10 1 0 1 Please be sure to request approval specifications that provide further details of the products. Kindly note that  the content of these specifications are subject to change or may be discontinued without advance  notice.   Please contact our sales department before ordering.  0 100 1000 10000 FREQUENCY (MHz) RDC5000MHz Rated current:270 mA 10 SMD Ceramic Multilayer Chip Inductors – CLH Series CLH0603T-6N2S-F 18 16 35 25 20 15 L(nH) 30 14 12 10 8 6 4 2 0 10 5 1 10 100 1000 FREQUENCY (MHz) RDC3600MHz Rated current:240 mA 0 10000 60 30 50 25 20 15 40 30 1 10 Q 40 30 CLH0603T-15NJ-F 30 25 20 25 15 20 20 15 10 10 5 10 5 0 80 100 70 90 70 60 80 70 60 60 50 50 40 40 30 30 20 20 10 10 1 100 1000 FREQUENCY (MHz) RDC2700MHz Rated current:190 mA 70 60 50 40 30 20 10 50 40 30 20 10 10 100 1000 0 10000 100 70 90 50 60 50 40 30 20 10 Q 40 30 20 10 0 10000 100 1000 FREQUENCY (MHz) RDC1700MHz Rated current:110 mA 0 100 1000 10000 FREQUENCY (MHz) RDC2300MHz Rated current:180 mA 10 CLH0603T-27NJ-F 0 1 FREQUENCY (MHz) RDC1800MHz Rated current:150 mA 80 35 0 10000 CLH0603T-22NJ-F 1 80 0 100 1000 10000 FREQUENCY (MHz) RDC1800MHz Rated current:120 mA 10 CLH0603T-47NJ-F 80 100 80 70 90 70 60 80 70 60 60 50 60 50 50 40 40 50 40 40 80 60 10 L(nH) 25 10 CLH0603T-39NJ-F 80 70 1 30 10 0 100 1000 10000 FREQUENCY (MHz) RDC3200MHz Rated current:220 mA 1 50 100 1000 FREQUENCY (MHz) RDC2100MHz Rated current:170 mA 0 5 0 30 0 0 10000 CLH0603T-33NJ-F 100 90 L(nH) L(nH) 10 70 L(nH) L(nH) Q 20 10 0 100 1000 10000 FREQUENCY (MHz) RDC3400MHz Rated current:230 mA 5 30 10 5 60 100 90 80 40 15 10 40 35 1 50 30 25 20 15 10 5 0 20 10 10 60 25 15 70 80 40 35 30 45 100 1000 FREQUENCY (MHz) RDC2900MHz Rated current:220 mA 70 35 50 0 CLH0603T-18NJ-F 40 20 20 20 0 100 1000 10000 FREQUENCY (MHz) RDC3900MHz Rated current:250 mA 10 25 80 0 10000 50 45 1 10 30 15 10 0 5 0 40 35 20 5 50 40 L(nH) 40 35 10 30 25 20 15 10 45 70 Q L(nH) 45 10 30 60 CLH0603T-12NJ-F 20 CLH0603T-9N1J-F 80 70 50 80 30 1 45 40 35 1 CLH0603T-10NJ-F 50 CLH0603T-8N2J-F 50 40 Q 40 Q L(nH) CLH0603T-7N5J-F 20 100 1000 FREQUENCY (MHz) RDC4200MHz Rated current:250 mA 50 5 0 0 10000 10 60 35 30 25 20 15 10 Q 1 FREQUENCY (MHz) RDC4600MHz Rated current:260 mA 70 Q 0 10000 20 80 30 30 20 20 10 10 0 1 10 0 10000 100 1000 FREQUENCY (MHz) RDC1500MHz Rated current:100 mA Q 1000 10 30 L(nH) 100 1 0 40 Q 10 50 Q 1 6 5 4 3 2 60 L(nH) 20 70 50 45 40 L(nH) 40 9 8 7 Q 4 3 2 1 0 L(nH) 60 80 L(nH) 80 CLH0603T-6N8J-F 10 Q 100 Q CLH0603T-5N6S-F 10 9 8 7 6 5 Q L(nH) Test Instruments：Agilent E4991A Material/Impedance Analyzer 30 30 20 20 10 10 0 1 Please be sure to request approval specifications that provide further details of the products. Kindly note that  the content of these specifications are subject to change or may be discontinued without advance  notice.   Please contact our sales department before ordering.  0 100 1000 10000 FREQUENCY (MHz) RDC1300MHz Rated current:100 mA 10 SMD Ceramic Multilayer Chip Inductors – CLH Series Test Instruments：Agilent E4991A Material/Impedance Analyzer 60 60 50 50 40 40 30 30 20 10 20 10 0 1 10 100 1000 0 10000 CLH0603T-R10J-F 10 400 8 300 6 200 4 100 2 100 1000 8 100 6 80 60 4 40 20 2 50 100 80 40 30 60 20 40 10 20 0 100 1000 10000 FREQUENCY (MHz) RDC1100MHz Rated current:80 mA 10 0 1 Q L(nH) 12 10 10 140 120 14 500 1 70 180 160 120 1 600 0 200 60 140 0 FREQUENCY (MHz) RDC1100MHz Rated current:80 mA 700 160 CLH0603T-82NJ-F 80 Q 80 70 CLH0603T-68NJ-F 0 10000 FREQUENCY(MHz) RDC900MHz Rated current:60 mA Please be sure to request approval specifications that provide further details of the products. Kindly note that  the content of these specifications are subject to change or may be discontinued without advance  notice.   Please contact our sales department before ordering.  10 100 1000 12 0 10000 FREQUENCY(MHz) RDC1000MHz Rated current:70 mA Q 70 180 L(nH) 200 Q L(nH) 90 80 L(nH) CLH0603T-56NJ-F 100 SMD Multilayer Ceramic Chip Inductors – CLH Series Electrical Characteristics Inductance Tolerance (nH) (±%) 1.0 ±0.3nH CLH1005T-1N1-S 1.1 ±0.3nH CLH1005T-1N2-S 1.2 CLH1005T-1N3-S CLH1005T-1N5-S Test Q SRF RDC IDC Min (MHz) Typ. (Ω) Max (mA) Max 100 8 10000 0.07 400 100 8 10000 0.07 400 ±0.3nH 100 8 10000 0.09 400 1.3 ±0.3nH 100 8 9000 0.10 400 1.5 ±0.3nH 100 8 9000 0.10 400 CLH1005T-1N6-S 1.6 ±0.3nH 100 8 8700 0.10 400 CLH1005T-1N8-S 1.8 ±0.3nH 100 8 8700 0.10 400 CLH1005T-2N0-S 2.0 ±0.3nH 100 8 8100 0.10 400 Part Number CLH1005T-1N0-S Frequency (MHz) CLH1005T-2N2-S 2.2 ±0.3nH 100 8 8100 0.12 400 CLH1005T-2N4-S 2.4 ±0.3nH 100 8 7700 0.15 400 CLH1005T-2N7-S 2.7 ±0.3nH 100 8 7700 0.15 400 CLH1005T-3N0-S 3.0 ±0.3nH 100 8 6300 0.15 400 CLH1005T-3N3-S 3.3 ±0.3nH/10 100 8 6300 0.15 400 CLH1005T-3N6-S 3.6 ±0.3nH/10 100 8 6100 0.15 400 CLH1005T-3N9-S 3.9 ±0.3nH/10 100 8 6100 0.18 400 CLH1005T-4N3-S 4.3 ±0.3nH/10 100 8 6000 0.18 400 CLH1005T-4N7-S 4.7 ±0.3nH/10 100 8 6000 0.18 400 CLH1005T-5N0-S 5.0 ±0.3nH/10 100 8 5100 0.20 400 CLH1005T-5N1-S 5.1 ±0.3nH/10 100 8 5300 0.20 400 CLH1005T-5N6-S 5.6 ±0.3nH/10 100 8 5100 0.20 400 CLH1005T-6N8-S 6.8 5 / 10 100 8 4550 0.24 400 CLH1005T-8N0-S 8.0 5 / 10 100 8 4100 0.30 300 CLH1005T-8N2-S 8.2 5 / 10 100 8 4100 0.24 300 CLH1005T-9N1-S 9.1 5 / 10 100 8 3900 0.26 300 CLH1005T-10N-S 10 5 / 10 100 8 3900 0.26 300 CLH1005T-12N-S 12 5 / 10 100 8 3000 0.40 300 CLH1005T-15N-S 15 5 / 10 100 8 2800 0.50 300 CLH1005T-18N-S 18 5 / 10 100 8 2500 0.55 300 CLH1005T-22N-S 22 5 / 10 100 8 2200 0.70 300 CLH1005T-24N-S 24 5 / 10 100 8 2100 0.70 300 CLH1005T-27N-S 27 5 / 10 100 8 2000 0.80 300 CLH1005T-33N-S 33 5 / 10 100 8 1800 0.9 200 CLH1005T-39N-S 39 5 / 10 100 8 1600 1.0 150 CLH1005T-47N-S 47 5 / 10 100 8 1400 1.2 150 CLH1005T-56N-S 56 5 / 10 100 8 1300 1.3 150 CLH1005T-68N-S 68 5 / 10 100 8 1100 1.5 100 Note: When ordering, please specify tolerance code. Tolerance : S=±0.3nH , J=±5% , K=±10%  Operating temperature range－55℃～125℃(Including self - temperature rise)  IDC：Applied the current to coils, the inductance shall be less than 10% initial value  Measure Equipment： L & Q：Agilent E4991A+Agilent 16197A SRF：HP8753D RDC：HP4338B or CHEN HWA 502 Please be sure to request approval specifications that provide further details of the products. Kindly note that the  content of these specifications are subject to change or may be discontinued without advance notice.   Please  contact our sales department before ordering.  SMD Multilayer Ceramic Chip Inductors – CLH Series Electrical Characteristics Part Number Inductance Tolerance (nH) (±%) CLH1005T-75N-S Test Frequency (MHz) Q SRF RDC IDC Min (MHz) Typ. (Ω) Max (mA) Max 75 5 / 10 100 8 1080 1.5 100 CLH1005T-82N-S 82 5 / 10 100 8 1000 1.6 100 CLH1005T-R10-S 100 5 / 10 100 8 900 2.0 100 CLH1005T-R12-S 120 5 / 10 100 8 800 2.2 100 CLH1005T-R15-S 150 5 / 10 100 8 700 3.5 100 CLH1005T-R18-S 180 5 / 10 100 8 600 3.8 100 CLH1005T-R22-S 220 5 / 10 100 8 500 4.2 100 CLH1005T-R27-S 270 5 / 10 100 8 500 4.8 100 Note: When ordering, please specify tolerance code. Tolerance : S=±0.3nH , J=±5% , K=±10%  Operating temperature range－55℃～125℃(Including self - temperature rise)  IDC：Applied the current to coils, the inductance shall be less than 10% initial value  Measure Equipment： L & Q：Agilent E4991A+Agilent 16197A SRF：HP8753D RDC：HP4338B or CHEN HWA 502 Test Instruments：Agilent E4991A Material/Impedance Analyzer 3 50 2.5 120 2.5 40 1 10 100 1000 0 1 FREQUENCY(MHz) RDC
