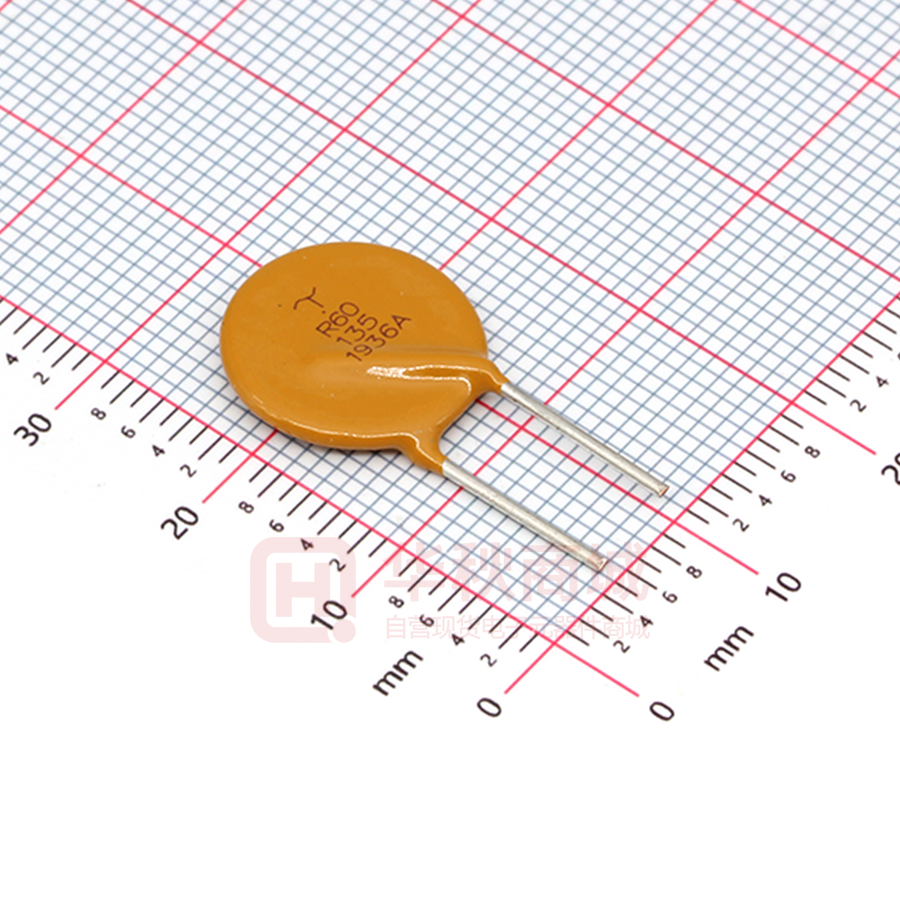

R60-135

Features ■ Radial Leaded Devices ■ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements ■ Bulk packaging,or tape and reel available on most models R60 Series Applications Almost anywhere there is a low voltage power supply, up to 60V and a load to be protected, including: ■ Industrial controls ■ Automotive electronics ■ Medical products Alpha-Top (Sea & Land Alliance) Electrical Properties Model R60-005 R60-010 R60-017 R60-020 R60-025 R60-030 R60-040 R60-050 R60-065 R60-075 R60-090 R60-110 R60-135 R60-160 Vmax (Vdc) 60 60 60 60 60 60 60 60 60 60 60 60 60 60 Imax (A) 40 40 40 40 40 40 40 40 40 40 40 40 40 40 Ihold (A) 0.05 0.10 0.17 0.20 0.25 0.30 0.40 0.50 0.65 0.75 0.90 1.10 1.35 1.60 Itrip (A) 0.10 0.20 0.34 0.40 0.50 0.60 0.80 1.00 1.30 1.50 1.80 2.20 2.70 3.20 Pd Typ. (W) 0.38 0.38 0.48 0.41 0.45 0.49 0.56 0.77 0.88 0.92 0.99 1.50 1.70 1.90 Maximum Time To Trip Current Time (A) 0.25 0.50 0.85 1.00 1.25 1.50 2.00 2.50 3.25 3.75 4.50 5.50 6.75 8.00 (Sec) 5.0 4.0 3.0 2.2 2.5 3.0 3.8 4.0 5.3 6.3 7.2 8.2 9.6 11.4 Agency Approval Resistance Rimin Rimax R1max (W) 7.30 2.00 2.50 1.25 0.65 0.45 0.40 0.35 0.25 0.20 0.15 0.13 0.10 0.07 (W) 18.00 4.50 5.21 2.75 1.95 1.33 0.86 0.77 0.48 0.40 0.31 0.25 0.19 0.14 (W) 30.00 7.50 8.00 4.40 3.00 2.10 1.29 1.17 0.72 0.60 0.47 0.38 0.30 0.22 R60-185 60 40 1.85 3.70 2.10 9.25 12.6 0.06 0.12 R60-250 60 40 2.50 5.00 2.50 12.50 15.6 0.04 0.08 R60-300 60 40 3.00 6.00 2.80 15.00 19.8 0.03 0.06 R60-375 60 40 3.75 7.50 3.20 18.75 24.0 0.02 0.05 Ihold = Hold Current : maximum current device will sustain for 4 hours without tripping in 25°C still air. Itrip = Trip Current : minimum current at which the device will trip in 25°C still air. Vmax = Maximum voltage device can withstand without damage at rated current (I max). 0.19 0.13 0.10 0.08 Imax = Maximum fault current device can withstand without damage at rated voltage (V max). Pd = Power dissipated from device when in the tripped state at 25°C still air. Ri min/max = Minimum/Maximum resistance of device in initial (un-soldered) state. R1 max = Maximum resistance of device at 25°C measured one hour after tripping. CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame. Environmental Specifications Test Conditions Passive aging +85°C, 1000 hrs Humidity aging +85°C, 85% R.H.,1000 hrs Thermal shock +85°C to -40°C, 20 times Resistance to solvent MIL-STD-202,Method 215 Vibration MIL-STD-202,Method 201 Ambient operating /storage conditions : - 40 °C to +85 °C Maximum surface temperature of the device in the tripped state is 125 °C In case of special use, please contact our engineer Agency Approvals : E201504(Alpha-Top)/E319079(Sea&Land) R 50274672 Regulation/Standard: 2015/863/EU EN14582 UL TUV √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ R60 Series Alpha-Top (Sea & Land Alliance) Physical Dimensions (Unit: mm) R60-005 R60-010 R60-017 R60-020 R60-025 R60-030 R60-040 R60-050 R60-065 R60-075 R60-090 R60-110 R60-135 R60-160 A Max. 7.4 7.4 7.4 7.4 7.4 7.4 7.6 7.9 9.7 10.4 11.7 13.0 14.5 16.3 B Max. 12.7 12.7 12.7 12.7 12.7 13.0 13.5 13.7 14.5 15.2 15.8 18.0 19.6 21.3 C Typ. 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 D Min. 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 E Max. 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 F Max. 1.0 1.0 1.7 1.0 1.0 1.0 1.2 1.2 1.5 1.5 1.5 1.2 1.2 1.5 Lead Style Kink Kink Kink Kink Kink Kink Kink Kink Kink Kink Kink Straight Straight Straight R60-185 17.8 22.9 5.1 7.6 3.1 1.5 Straight R60-250 R60-300 R60-375 21.3 24.9 28.5 26.4 30.0 33.5 10.2 10.2 10.2 7.6 7.6 7.6 3.1 3.1 3.1 1.7 2.0 2.0 Straight Straight Straight Model Dimensions Marking A A E A E C B B D B D D C C R60 135 XXXXY F = Trademark R60 = Radial type 60 Vrms 135 = 1.35A hold current XXXX = Date code Y = Factory code Physical Characteristics Lead Material : R60-010: Tin-plated nickel-copper alloy, 0.205mm2 (24AWG), Φ0.51mm(0.020 in). R60-017 ~ 040: Tin-plated copper-clad steel, 0.205mm2 (24AWG), Φ0.51mm(0.020 in). R60-050 ~ 090: Tin-plated copper , 0.205mm2 (24AWG), Φ0.51mm(0.020 in). R60-110 ~ 375: Tin-plated copper , 0.52mm2 (20AWG), Φ0.81mm(0.032 in). Lead Solderability : MIL-STD-202, Method 208 Order information Packing R60 Radial type 185 Hold 60 V Current (A) K or S K=Kink leads R or U R= Tape & Model R60-005 ~ R60-090 Reel Q'ty 3000 Bag Q'ty 500 S=Straight leads Reel U= Bulk packaged R60-017 R60-110 ~ R60-185 R60-250 ~ R60-375 2500 1500 - 500 500 500 Devices taped with reference EIA468 standard. R60 Series Alpha-Top (Sea & Land Alliance) Typical time-to-trip curve at 25°C Thermal derating curve Average Time Current Curves 1000 Derating Curves for R60 Series 0.10A 3.75A 0.05A 0.17A 180 0.20A 0.25A Percentage of Derated Current 160 0.30A 100 0.40A TIME IN SECOND 0.50A 0.65A 10 0.75A 0.90A 1.10A 1 1.35A 1.60A 1.85A 0.1 2.50A 3.00A 140 120 100 80 60 40 20 3.75A 0 0.01 0.1 1 10 -40 100 -20 CURRENT IN AMPERES 0 20 40 60 80 Temperature (°C) Ihold versus temperature Model Maximum ambient operating temperature (Tmao) vs. hold current (Ihold) R60-005 R60-010 R60-017 R60-020 R60-025 -40°C 0.08 0.16 0.26 0.31 0.39 -20°C 0.068 0.14 0.23 0.27 0.34 0°C 0.06 0.12 0.20 0.24 0.30 25°C 0.05 0.10 0.17 0.20 0.25 40°C 0.04 0.08 0.14 0.16 0.20 50°C 0.036 0.07 0.12 0.14 0.18 60°C 0.032 0.06 0.11 0.13 0.16 70°C 0.027 0.05 0.09 0.11 0.14 85°C 0.02 0.04 0.07 0.08 0.10 R60-030 0.47 0.41 0.36 0.30 0.24 0.22 0.19 0.16 0.12 R60-040 R60-050 R60-065 R60-075 R60-090 R60-110 R60-135 R60-160 R60-185 R60-250 R60-300 R60-375 0.62 0.78 1.01 1.16 1.40 1.71 2.09 2.48 2.87 3.88 4.65 5.81 0.54 0.68 0.88 1.02 1.22 1.50 1.84 2.18 2.52 3.40 4.08 5.10 0.48 0.60 0.77 0.89 1.07 1.31 1.61 1.90 2.20 2.98 3.57 4.46 0.40 0.50 0.65 0.75 0.90 1.10 1.35 1.60 1.85 2.50 3.00 3.75 0.32 0.41 0.53 0.61 0.73 0.89 1.09 1.30 1.50 2.03 2.43 3.04 0.29 0.36 0.47 0.54 0.65 0.79 0.97 1.15 1.33 1.80 2.16 2.70 0.25 0.32 0.41 0.47 0.57 0.69 0.85 1.01 1.17 1.58 1.89 2.36 0.22 0.27 0.35 0.41 0.49 0.59 0.73 0.86 1.00 1.35 1.62 2.03 0.16 0.20 0.26 0.30 0.36 0.44 0.54 0.64 0.74 1.00 1.20 1.50 · Use PPTC beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and flame. · PPTC are intended for protection against occasional over current or over temperature fault conditions and should not be used when repeated fault conditions or prolonged trip events are anticipated. · Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal, and mechanical procedures for electronic components. · Use PPTC with a large inductance in circuit will generate a circuit voltage (L di/dt) above the rated voltage of the PPTC. · Avoid impact PPTC device its thermal expansion like placed under pressure or installed in limited space.
