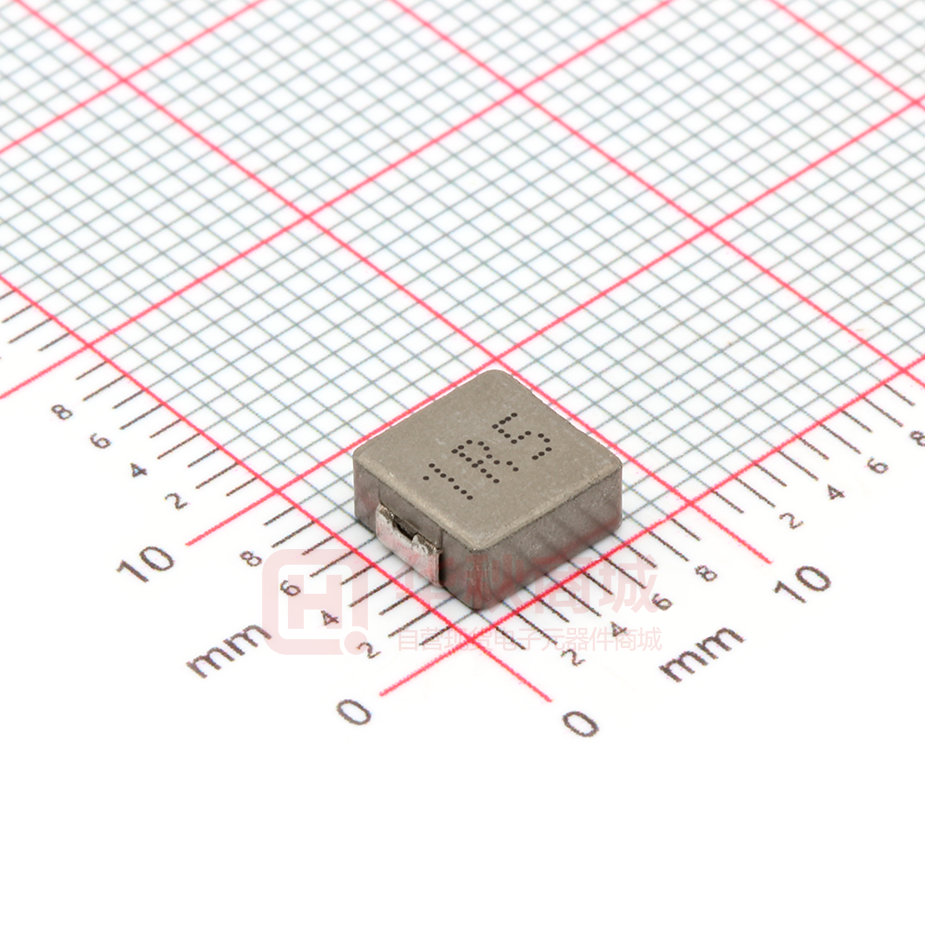

SMD Power Inductors
-YSPI0730 Series
■ Features
● Molding Inductor.
● Low Profile,Low Temp.
● Large Current(Over 15A).
● Customize For Different Need.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● General Electronic.
● Video Device,TV,TFT.
● Power Module for PC.
● NB/Lap Top Computer.
● Server,VGA Card/Module.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance:N=±30%,M=±20%,K=±10%
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YSPI0730 Series
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C Max.
D
E Ref.
F Ref.
G Ref.
H Ref.
YSPI0730
7.3±0.5
6.6±0.5
3.0
1.5±0.5
3.0±0.3
3.4
7.3
3.7
■ YSPI0730 Series
DC Resistance (mΩ)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YSPI0730-R10□
0.10
1.5
1.7
32.5
60.0
YSPI0730-R15□
0.15
1.9
2.5
26.0
52.0
YSPI0730-R22□
0.22
2.3
2.9
23.0
40.0
YSPI0730-R33□
0.33
3.2
4.2
20.0
33.0
YSPI0730-R47□
0.47
3.6
5.5
16.5
27.0
YSPI0730-R56□
0.56
4.3
5.7
16.5
25.5
YSPI0730-R68□
0.68
5.7
7.4
15.5
25
YSPI0730-R82□
0.82
6.7
8.0
13.0
24.0
YSPI0730-1R0□
1.00
9.0
10.0
12.0
22.0
YSPI0730-1R5□
1.50
10.5
15.0
9.5
18.0
YSPI0730-2R2□
2.20
12.5
20.0
8.5
14.0
YSPI0730-3R3□
3.30
20.0
35.0
6.0
12.0
YSPI0730-4R7□
4.70
28.0
40.0
5.5
9.0
Part Number
Inductance
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YSPI0730 Series
DC Resistance (mΩ)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YSPI0730-5R6□
5.60
34.0
45.0
5.5
8.0
YSPI0730-6R8□
6.80
40.0
60.0
4.5
7.0
YSPI0730-8R2□
8.20
54.0
68.0
4.5
6.0
YSPI0730-100□
10.0
60.0
102
4.0
5.5
YSPI0730-150□
15.0
98.0
122
3.0
5.0
YSPI0730-220□
22.0
130
145
3.0
3.2
YSPI0730-330□
33.0
209
270
2.0
3.0
Part Number
Inductance
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YSPI0730 Series
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
C
D
E
P
K Ref
T
MPQ
YSPI0730
16±0.3
7.1±0.1
7.30±0.1
6.75
7.5±0.1
3.4±0.1
12±0.1
3.2
0.40±0.05
1000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YSPI0730
330±2.0
16.4±2.00
22.4MAX
15.9 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YSPI0730 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
