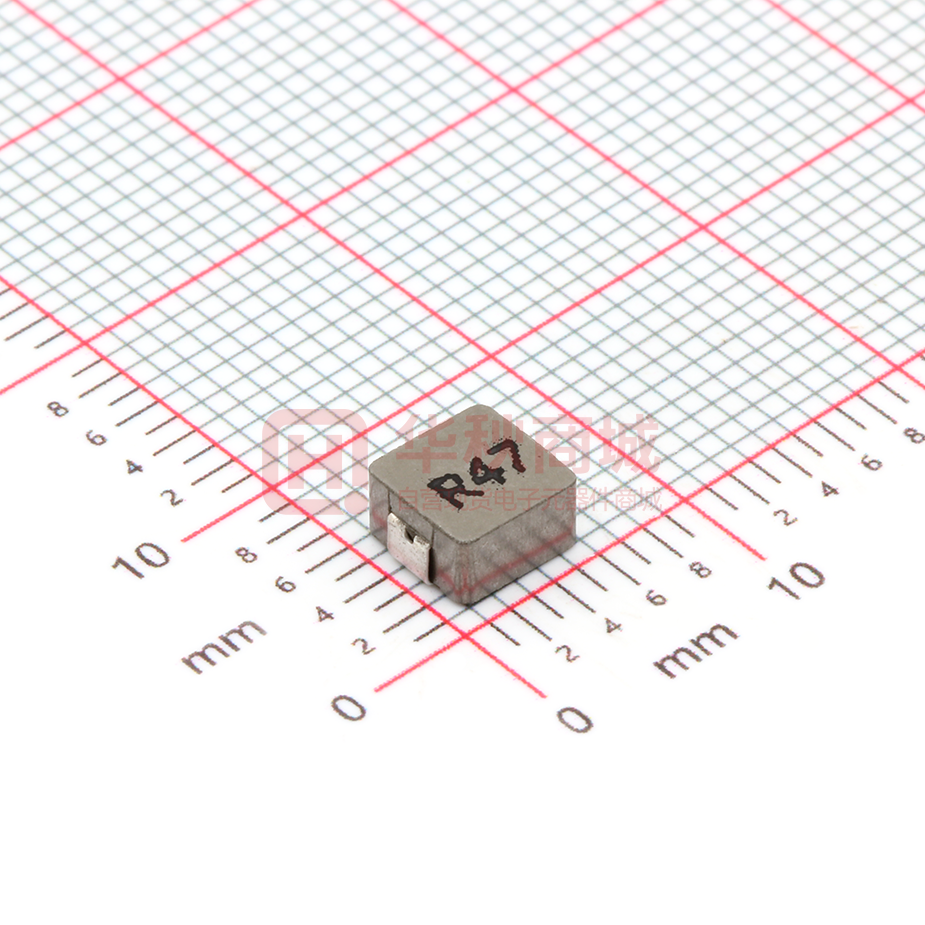

SMD Power Inductors
-YSPI0530 Series
■ Features
● Molding Inductor.
● Low Profile,Low Temp.
● Large Current(Over 15A).
● Customize For Different Need.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● General Electronic.
● Video Device,TV,TFT.
● Power Module for PC.
● NB/Lap Top Computer.
● Server,VGA Card/Module.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance:N=±30%,M=±20%,K=±10%
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YSPI0530 Series
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C Max.
D
E Ref.
F Ref.
G Ref.
H Ref.
YSPI0530
5.4±0.5
5.2±0.5
3.0
1.0±0.3
2.0±0.5
2.5
7.0
3.0
■ YSPI0530 Series
DC Resistance (mΩ)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YSPI0530-R20□
0.20
3.0
3.9
13.0
14.5
YSPI0530-R33□
0.33
5.0
7.0
10.0
15.0
YSPI0530-R47□
0.47
8.0
14.0
10.0
14.0
YSPI0530-R68□
0.68
11.0
18.0
8.0
14.0
YSPI0530-1R0□
1.00
13.0
22.0
7.0
11.0
YSPI0530-1R2□
1.20
14.0
23.0
6.5
11.0
YSPI0530-1R5□
1.50
20.0
25.0
6.0
10.0
YSPI0530-2R2□
2.20
26.5
40.0
5.0
8.0
YSPI0530-3R3□
3.30
30.0
42.0
4.5
7.0
YSPI0530-4R7□
4.70
46.0
60.0
4.0
6.0
YSPI0530-5R6□
5.60
62.0
80.0
3.0
4.0
YSPI0530-6R8□
6.80
78.0
108
3.0
5.0
YSPI0530-100□
10.0
115
150
2.5
4.5
YSPI0530-150□
15.0
190
265
2.1
2.5
YSPI0530-220□
22.0
230
270
2.0
2.0
Part Number
Inductance
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YSPI0530 Series
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
C
D
E
P
K Ref
T
MPQ
YSPI0530
12±0.3
5.1±0.1
5.30±0.1
4.75
5.5±0.1
3.4±0.1
8±0.1
3.2
0.35±0.05
2000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YSPI0530
330±2.0
12.4±2.00
18.4MAX
11.9 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YSPI0530 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
